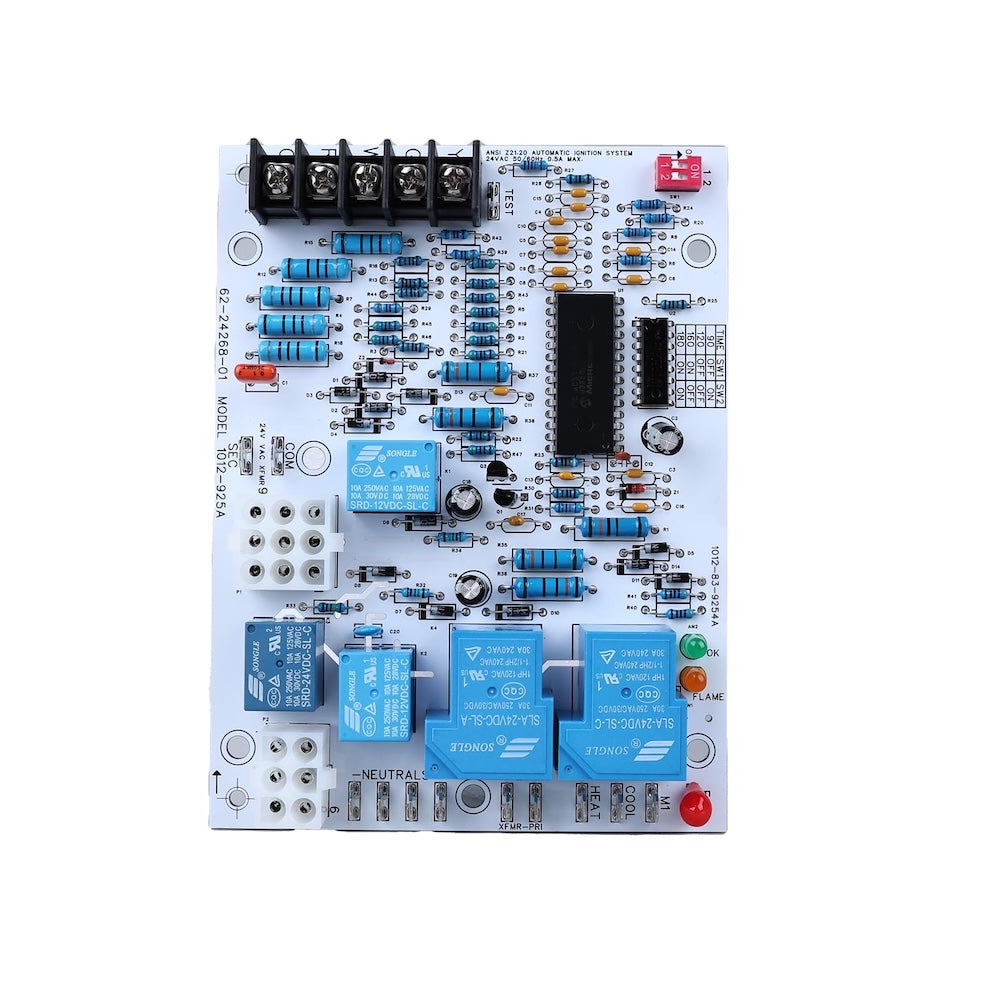

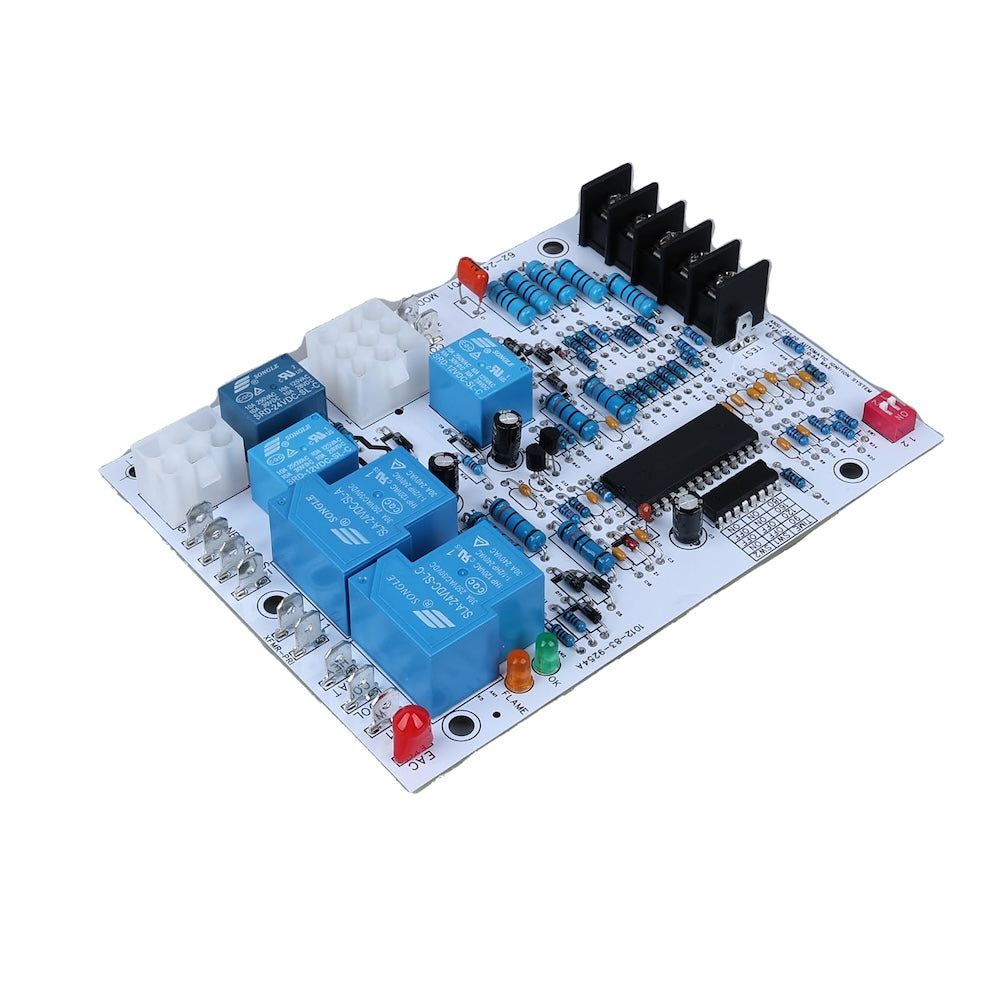

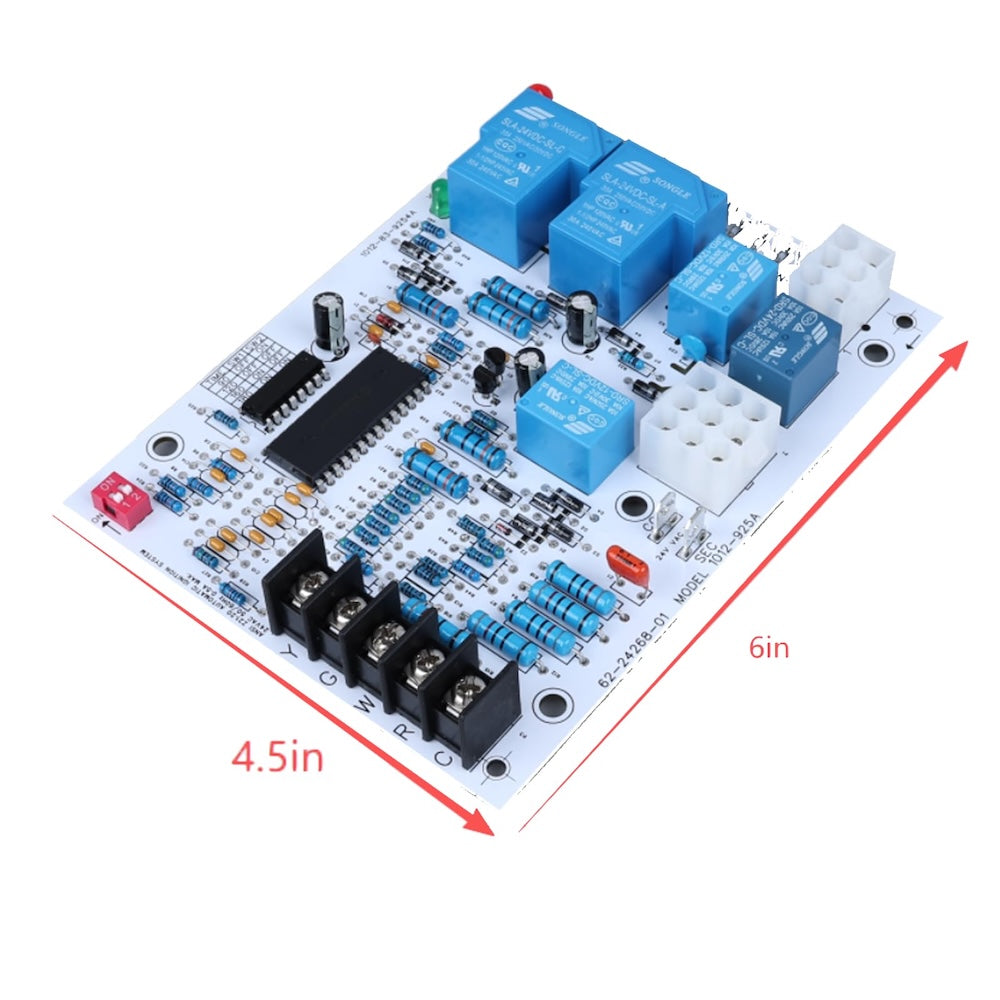

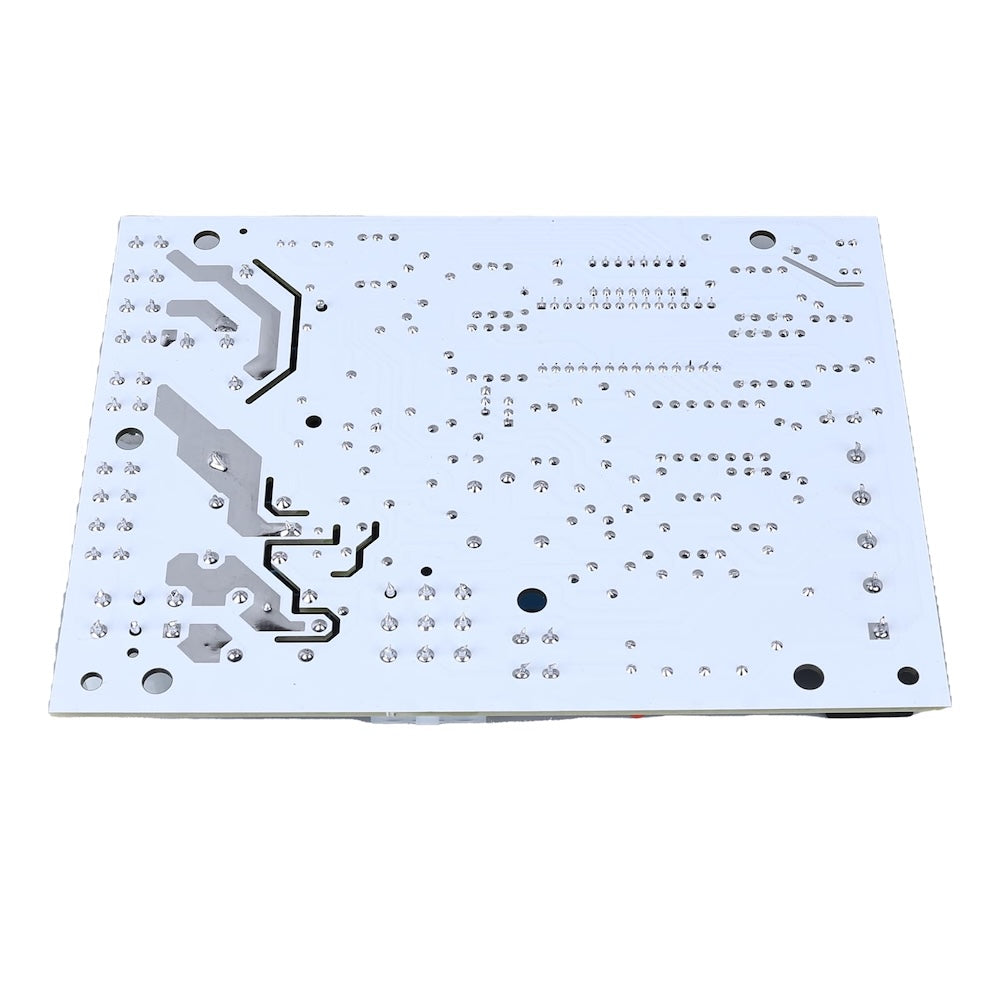

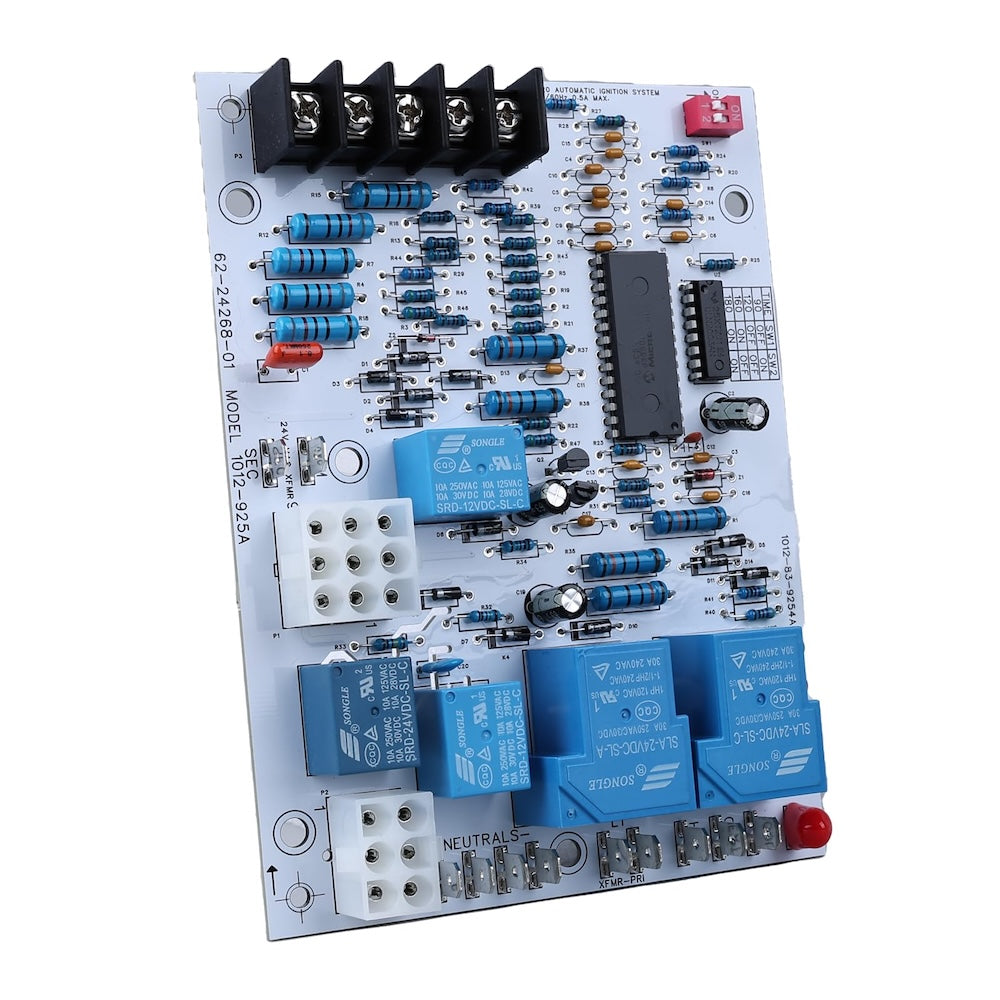

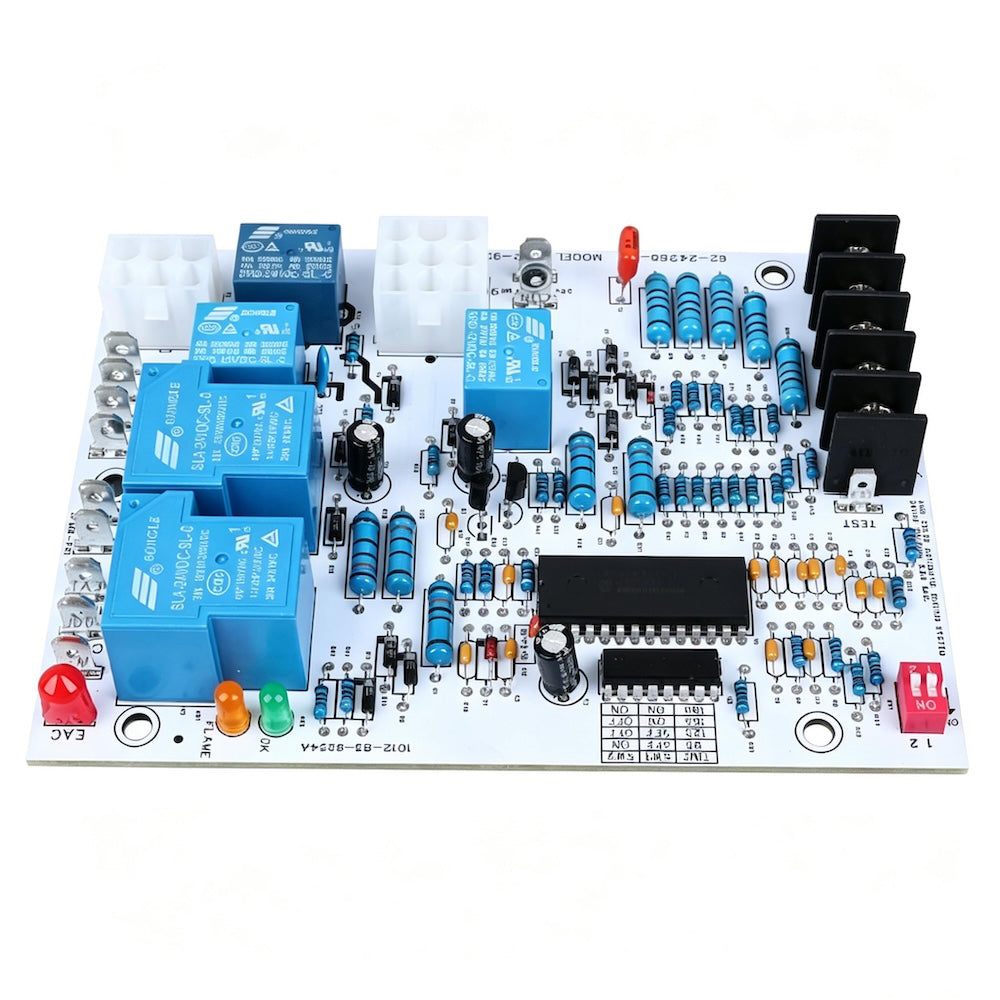

1012-925C Furnace Control Board 24 VAC HSI Compatible with Rheem Ruud
The 1012-925C integrated furnace control is engineered as a direct replacement board for gas furnaces running a Rheem, Ruud or Weather King 62-24268 series control. A built-in microprocessor manages hot surface ignition, flame sensing and the heating sequence, cycling the gas valve, inducer and blower, and shutting the gas valve safely if an abnormal condition is detected.
📋 Key Takeaways
- ✅ Exact Replacement: Directly replaces the 1012-925C (62-24268-03) integrated furnace control and the earlier 62-24268-02, 62-24268-01 and 62-24192-01 boards, for direct-fit installation.
- ✅ Broad Brand Coverage: Compatible with Rheem, Ruud and Weather King gas furnaces that use these 62-24268 series control boards.
- ✅ Reliable Ignition & Safety: Hot surface ignition with microprocessor flame monitoring — on an abnormal condition the gas valve shuts down safely.
- ✅ Transparent Electrical Specs: Runs on standard 24 VAC 50/60 Hz furnace power with relay control output and under 5 W standby consumption.
- ✅ Check Before You Order: Confirm the part number printed on your old board matches 62-24268-01, 62-24268-02, 62-24268-03 or 62-24192-01 — this board is not a universal fit for other furnace brands.
Features & Benefits
| Feature |
Benefit (What It Means for You) |
| Microprocessor Ignition & Sequencing |
Automatic hot surface ignition with flame confirmation; manages burner, inducer and blower timing through the heating sequence for dependable winter heating. |
| Rheem Ruud Weather King Coverage |
Replaces the 62-24268-03 control plus the earlier 62-24268-02, 62-24268-01 and 62-24192-01 boards used in Rheem, Ruud and Weather King gas furnaces. |
| 24 VAC Standard Ratings |
Input 24 VAC at 50/60 Hz with 24 V relay control output and under 5 W standby consumption, matched to the original 62-24268 series application. |
| Real-Time Flame Monitoring |
The microprocessor continuously watches the thermostat and flame sensing circuits, stabilizing the flame during operation and helping reduce the risk of gas leakage or flame outage. |
| Direct-Fit Marked Terminals |
Terminals follow the original 62-24268 series layout — photograph the old wiring first, then move each wire to the identically marked terminal with no wire cutting. |
| Heat-Resistant Construction |
Built with an enhanced heat-resistant design for dependable, long-term operation inside the furnace control compartment. |
Compatibility & Cross-Reference
Replaces / Interchange Part Numbers:
| Interchange Part Number |
System / Brand |
| 1012-925C |
Board number of this replacement |
| 62-24268-03 |
Rheem 62-24268 series (current control) |
| 62-24268-02 |
Rheem 62-24268 series (earlier revision) |
| 62-24268-01 |
Rheem 62-24268 series (earlier revision) |
| 62-24192-01 |
Rheem / Ruud earlier control |
The Rheem replacement documentation lists the 62-24268-03 as the later revision of this control, replacing the earlier 62-24268-02, 62-24268-01 and 62-24192-01 boards.
Common Applications:
- Rheem gas furnaces using a 62-24268 series integrated furnace control (1012-925C)
- Ruud gas furnaces using a 62-24268-03, 62-24268-02, 62-24268-01 or 62-24192-01 control board
- Weather King gas furnaces using the 62-24268 series control boards
This control runs on standard 24 VAC furnace power with hot surface ignition. It is not a universal board for other furnace brands — before ordering, read the part number printed on your old board and confirm it matches one of the numbers above.
Specifications
| Part Number |
1012-925C |
| Control Type |
Integrated furnace control (IFC) |
| Ignition |
Hot surface ignition (HSI) |
| Input Power |
24 VAC, 50/60 Hz |
| Relay Output |
24 V control relay output |
| Standby Power |
Under 5 W |
| Flame Safety |
Microprocessor flame sensing with automatic gas-valve shutoff |
| Replaces |
62-24268-03 (current); 62-24268-02, 62-24268-01, 62-24192-01 (earlier revisions) |
| Compatible With |
Rheem, Ruud and Weather King gas furnaces using these board numbers |
| Board Design |
62-24268 series terminal layout with heat-resistant construction |
| Package Contents |
1 × integrated furnace control board |
Why Choose iFJF?
iFJF supplies furnace control boards factory-direct, so you get the replacement part without the dealership markup. What you can verify before you buy:
- ✅ Cross-reference you can check yourself: the covered numbers (62-24268-03, 62-24268-02, 62-24268-01 and 62-24192-01) are listed openly above — match your old board number first.
- ✅ Spec transparency: 24 VAC 50/60 Hz input, hot surface ignition and under 5 W standby consumption are stated openly so you can compare them with your original control.
- ✅ DIY wiring guidance built in: terminals match the original 62-24268 series layout — photograph the old wiring before removal, then move each wire to the identically marked terminal.
- ✅ Factory-direct value: supply straight from the manufacturer keeps the price fair, without the dealership or middleman markup.
Installation note: replacement should be performed by a qualified HVAC contractor or licensed electrician. Always turn off power and shut off the gas supply before removing the old control. If you are unsure whether this control matches your furnace, message us with the model number printed on your old board before ordering.
Need help finding the right part? Our support team answers fitment questions before you order — support@ifjf.com.
Looking for related upgrades? Check out our iFJF 1170063 furnace control board for ICP furnaces or our 50A55-843 furnace control board for White-Rodgers and Lennox furnaces.
📂 Browse More: All Electronics Products →
Frequently Asked Questions
Q: Will this board fit my Rheem furnace?
A: It replaces original boards numbered 62-24268-01, 62-24268-02, 62-24268-03 or 62-24192-01 in Rheem, Ruud and Weather King gas furnaces. Open the furnace control compartment and read the part number printed on the old board; if it matches one of these four numbers, this board is the direct replacement. Check the Cross-Reference table above before ordering.
Q: My old board is 62-24268-02. Will the 62-24268-03 replacement work?
A: Yes. The 62-24268-03 is the later revision of this control and, per the Rheem replacement documentation, replaces the earlier 62-24268-02, 62-24268-01 and 62-24192-01 boards with the same terminal layout.
Q: Is this an OEM or original Rheem board?
A: No. This is a third-party compatible replacement designed to the same electrical specification as the original control — 24 VAC at 50/60 Hz with hot surface ignition — and built to the 62-24268 series layout so wires move over one by one. It is not sold as an OEM part.
Q: What is included in the package?
A: One 1012-925C integrated furnace control board. Reuse the mounting hardware already inside your furnace control compartment — no extra screws are needed.
Q: How hard is the installation for a DIY homeowner?
A: The terminals match the original 62-24268 series layout, so most buyers move each wire to the identically marked terminal. Turn off the power and shut off the gas first, then photograph the old wiring before removal. If you are not comfortable working with gas appliances, have a qualified HVAC contractor or licensed electrician do the swap.
Q: How do I know my control board is actually bad?
A: Common warning signs are no ignition, repeated flame loss, or a burner that starts and stops unexpectedly. The same symptoms can come from the igniter, gas valve or flame sensor, so check those parts first and read the fault code shown by your furnace. Replace the board only after confirming the fault points to the control.
Package Includes
- 1 × 1012-925C integrated furnace control board
Common Problems with Furnace Control Boards — Solved by iFJF
We analyzed verified customer reviews of OEM and aftermarket control boards in this category. Here is what owners keep complaining about — and how this board addresses it:
| ❌ What Owners Complain About |
|
✅ How This Board Addresses It |
"It says compatible but my furnace did not work"
— #1 cause of returns in this category
|
→ |
Check the board number before you buy
The covered numbers (62-24268-01, 62-24268-02, 62-24268-03 and 62-24192-01) and the Rheem, Ruud and Weather King fitment are stated openly, so you can verify your old board before ordering. This board is not a universal fit for other furnace brands.
|
"My old board number is different from the one in the listing"
— Often an earlier revision of the same control
|
→ |
Official replacement chain made explicit
The 62-24268-03 is the later revision of this control and replaces the earlier 62-24268-02, 62-24268-01 and 62-24192-01 boards, so a furnace running any of these numbers uses this board directly.
|
"No guidance, worried about wiring it wrong"
— Common DIY hesitation
|
→ |
Photo-first wiring on marked terminals
Turn off power and gas, photograph the old wiring, then move each wire to the identically marked terminal on the new board — no wire cutting and no guesswork.
|
🔎 We read the 1-star and 2-star reviews so you don't have to. This board is engineered around the real problems owners face — not just a spec sheet.
Factory Direct Supply & Wholesale — iFJF is a direct manufacturer of high-performance replacement parts for heating and filtration systems. Custom specifications and bulk orders are highly welcome. Contact us for exclusive dealer pricing and volume discounts. Backed by ISO 9001:2015 and IATF 16949:2016 quality management system certifications.
