Description
Product Overview
The BMW M52/M54 Oil Filter Housing Cap is a direct OEM-replacement for one of the most common failure points on BMW inline-6 engines. The original plastic cap is notorious for cracking at the center hex, leaking at the O-ring seat, and even shattering during removal if over-torqued. This replacement cap restores proper sealing between the oil filter housing and the engine block, preventing oil leaks that can lead to low oil pressure, engine bay contamination, and belt slippage.
Key Features
-
Direct OEM Replacement: Exact fit for BMW M52, M52TU, M54, and M56 inline-6 engines — replaces part number 11421744000
-
Precision-Threaded Body: Smooth, accurate threads prevent cross-threading and ensure consistent torque application
-

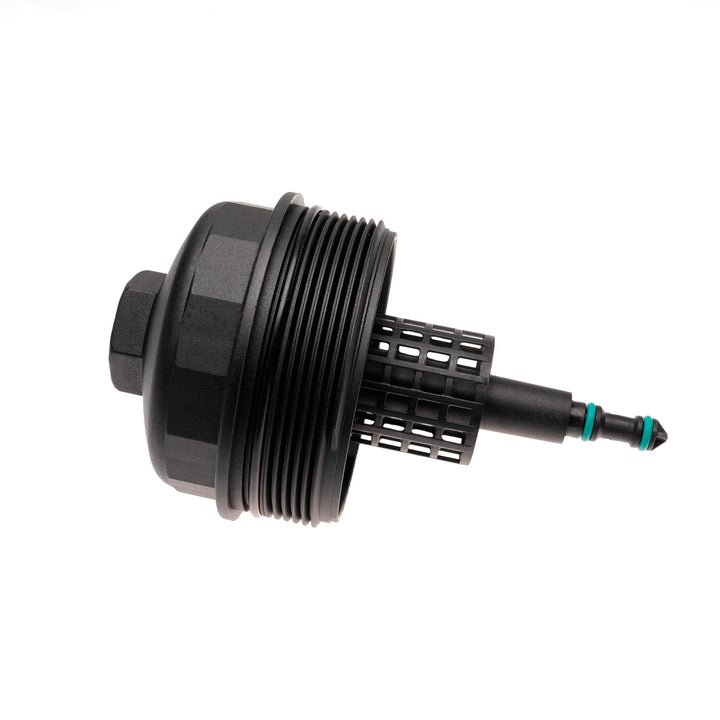

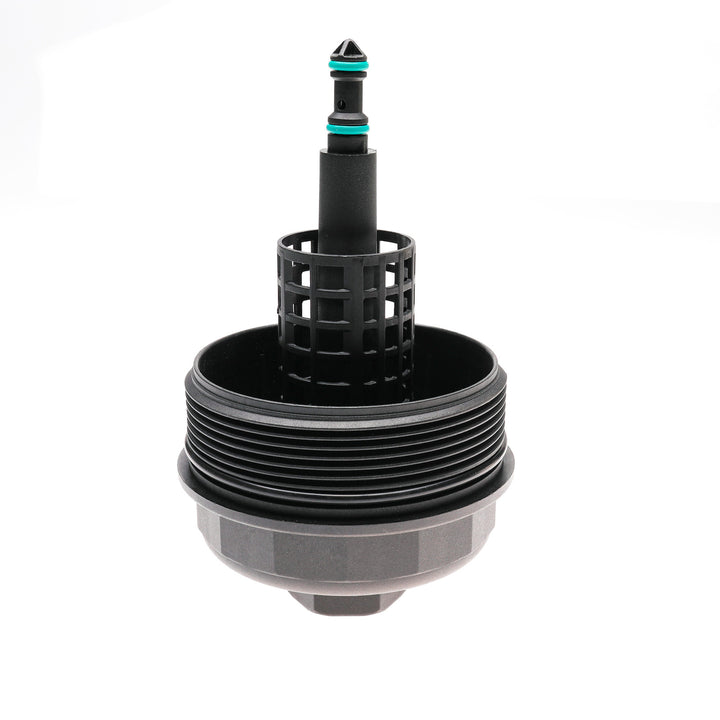

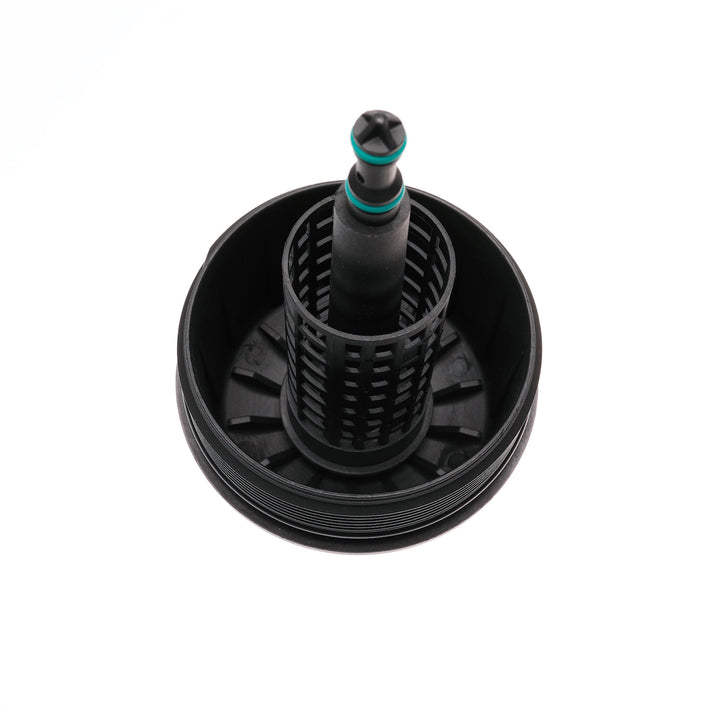

Integrated Cage & Stem: Includes the internal filter cage and center stem that supports the oil filter cartridge — a complete assembly, not just the cap
-
O-Ring Included: New large-diameter sealing O-ring pre-installed — eliminates leaks caused by hardened or flattened original seals
-
25 Nm Torque Specification: Clearly marked on the cap — prevents the #1 installation mistake (over-tightening)
-
Compatible with All Filter Brands: Works with MANN, Mahle, Hengst, Bosch, and OEM BMW filter cartridges
Vehicle Compatibility
| Make |
Model |
Engine |
Chassis |
Years |
| BMW |
328i / 328is |
M52B28 |
E36 |
1995–1999 |
| BMW |
328i |
M52TUB28 |
E46 |
1999–2000 |
| BMW |
320Ci / 320i |
M54B22 |
E46 |
2000–2007 |
| BMW |
323Ci / 323i |
M52TUB25 |
E46 |
1999–2000 |
| BMW |
325Ci / 325i |
M54B25 |
E46 |
2000–2006 |
| BMW |
330Ci / 330i |
M54B30 |
E46 |
2000–2006 |
| BMW |
528i |
M52B28 |
E39 |
1997–2000 |
| BMW |
530i |
M54B30 |
E39 |
2000–2003 |
| BMW |
728i / 730i |
M52/M54 |
E38 |
1995–2001 |
| BMW |
Z3 2.5 / 2.8 / 3.0 |
M52/M54 |
E36/7 E36/8 |
1997–2002 |
| BMW |
Z4 2.5i / 3.0i |
M54 |
E85 |
2003–2006 |
| BMW |
X3 2.5i / 3.0i |
M54 |
E83 |
2004–2006 |
| BMW |
X5 3.0i |
M54B30 |
E53 |
2000–2006 |
Specifications
| Specification |
Value |
| Part Number |
11421744000 (OEM BMW) |
| Cross References |
917-013, 11427512345, 11427512346 |
| Engine Compatibility |
BMW M52, M52TU, M54, M56 Inline-6 |
| Material |
High-Strength Composite / Reinforced Polymer |

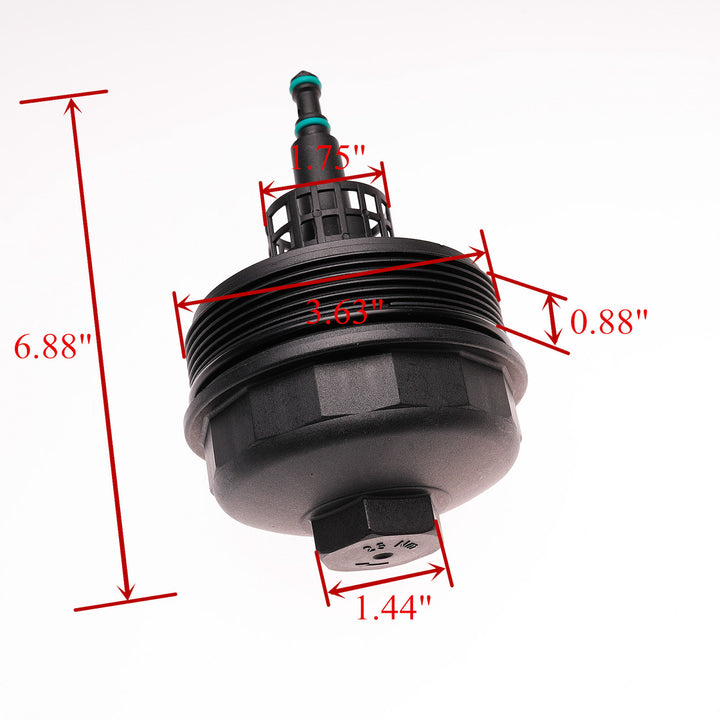

| Thread Diameter |
Approx. 75mm (housing thread) |
| Hex Size |
36mm Socket or Wrench |
| Torque Specification |
25 Nm (18.5 ft-lbs) — DO NOT exceed |
| O-Ring Included |
Yes (pre-installed large seal) |
Why Replace Your Oil Filter Housing Cap?
The factory BMW oil filter cap is a known weak point on M52/M54 engines. Common failure modes include:
-
Cracked Center Hex: The 36mm hex molded into the top of the cap develops stress cracks over time, eventually stripping or shattering during oil changes
-
Leaking O-Ring Seat: The O-ring groove can become pitted or deformed, allowing oil to seep past the seal and down the side of the oil filter housing
-
Failed Internal Cage: The plastic cage that supports the filter cartridge can break, allowing the filter to collapse — restricting oil flow
-
Stripped Threads: Cross-threading from improper installation ruins the cap threads, preventing proper sealing
An oil leak from the filter housing cap drips directly onto the serpentine belt and alternator — a dangerous combination that can cause belt slippage, alternator failure, and even belt derailment into the crankshaft seal (a catastrophic failure on these engines).
Installation Instructions
- Ensure the engine is cool — warm oil is manageable but hot oil poses a burn risk
- Place an oil drain pan under the oil filter housing to catch drips
- Using a 36mm socket or wrench, loosen the old cap by turning counterclockwise
- Once loose, unscrew the cap by hand — oil will drain from the housing as the cap clears the threads

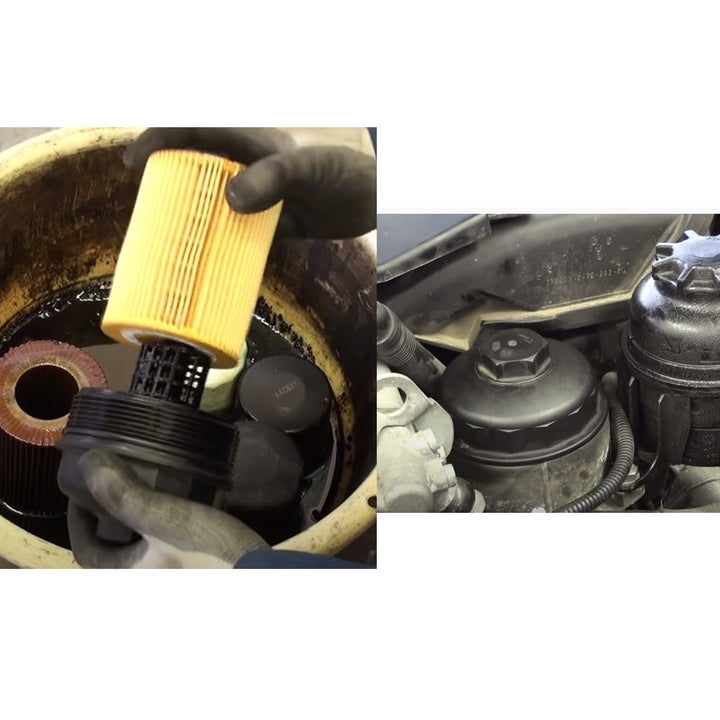

- Remove the old filter cartridge from the cap's cage — dispose of properly
- Clean the oil filter housing threads and sealing surface with a clean rag
- Lubricate the new cap's O-ring with fresh engine oil
- Insert the new oil filter cartridge into the cap's cage — ensure it snaps securely onto the center stem
- Thread the new cap into the housing by hand — turn clockwise until hand-tight
- Torque to 25 Nm (18.5 ft-lbs) using a torque wrench with 36mm socket
-
Critical: Do NOT over-tighten! Exceeding 25 Nm is the #1 cause of cracked caps
- Top off engine oil to compensate for oil lost during filter change
- Start engine, check for leaks around the cap, re-check after first drive
Frequently Asked Questions
Q: Does this fit my 2001 BMW 330Ci?
A: Yes. The 2001 330Ci has the M54B30 engine, which uses the 11421744000 oil filter housing cap. This is a direct replacement.
Q: What torque should I use when installing?
A: 25 Nm (18.5 ft-lbs). Use a torque wrench — do not guess. The most common cause of cracked oil filter caps is over-tightening. The O-ring does the sealing, not the thread tension.
Q: Do I need to replace the O-ring every time?
A: Yes. A new O-ring is pre-installed on this replacement cap. Always use a fresh O-ring with every oil change — hardened, flattened O-rings are the most common source of oil filter housing leaks.
Q: Is this an OEM BMW part?
A: This is a high-quality aftermarket replacement manufactured to OEM specifications. It provides the same fit, function, and durability as the BMW-branded part at a more affordable price point.
Q: What happens if the oil filter cap leaks?
A: Oil leaking from the filter cap drips directly onto the serpentine belt and alternator below. Oil-contaminated belts can slip, glaze, or derail — and a belt that comes off can get pulled behind the crankshaft pulley, through the front main seal, and into the engine. This is a well-documented catastrophic failure on M52/M54 engines. Address any oil filter housing leak immediately.
Q: Can I use this cap with a MANN/Mahle/Hengst filter?
A: Yes. The cap is designed to work with all standard BMW oil filter cartridges from major brands: MANN HU 925/4x, Mahle OX 187D, Hengst E81H D79, Bosch F 0264 070 020, and others.
