Description
Product Overview

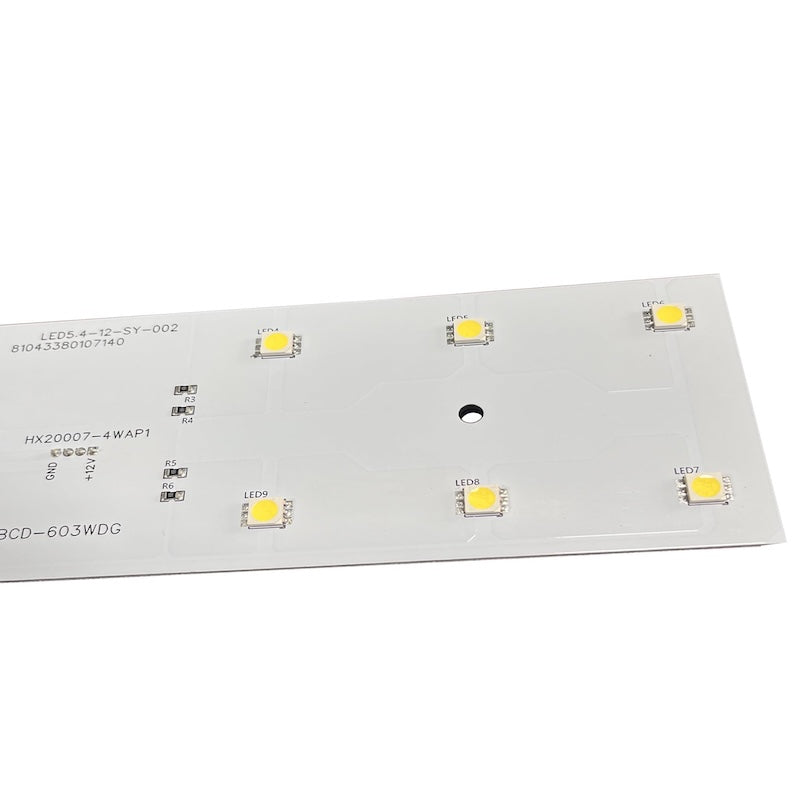

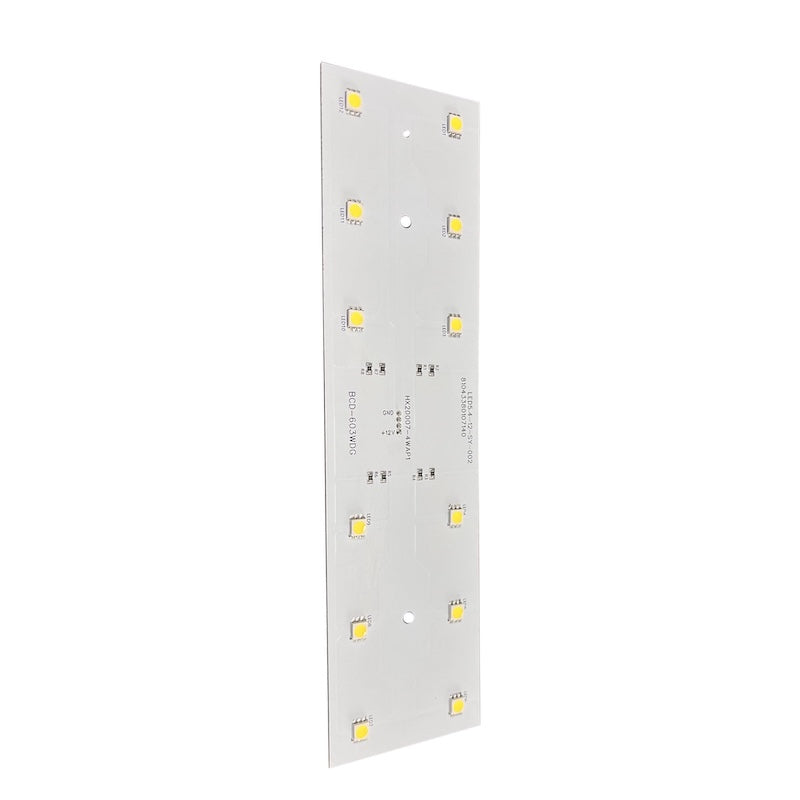

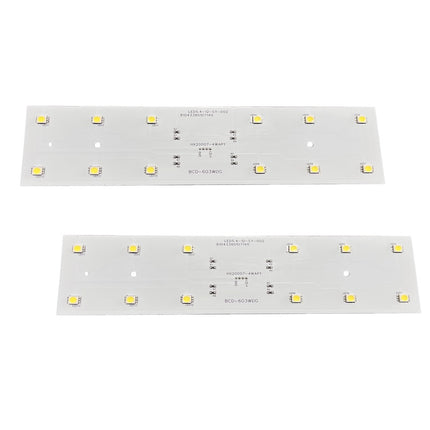

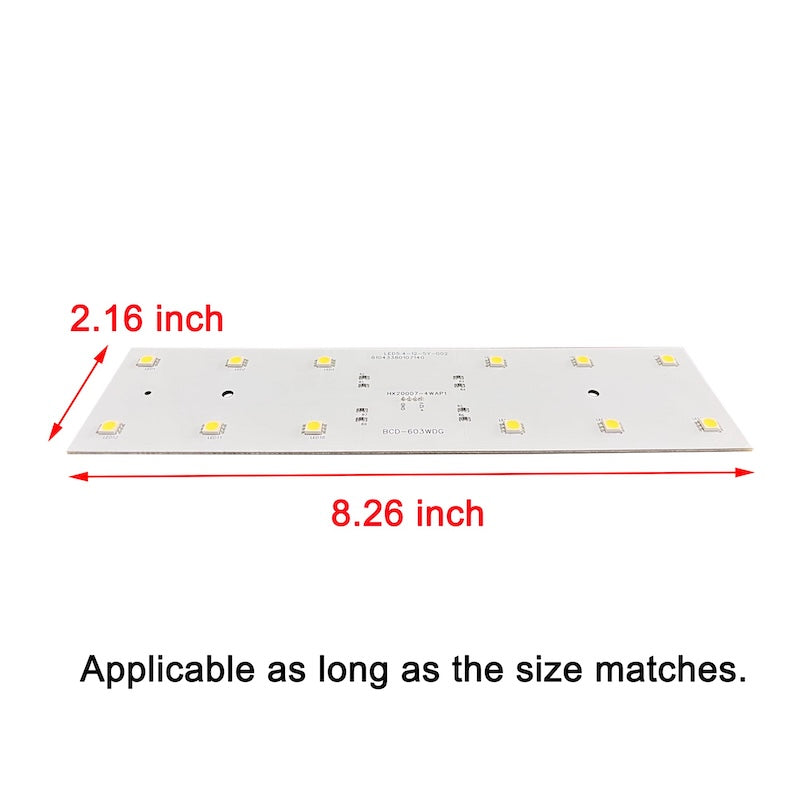

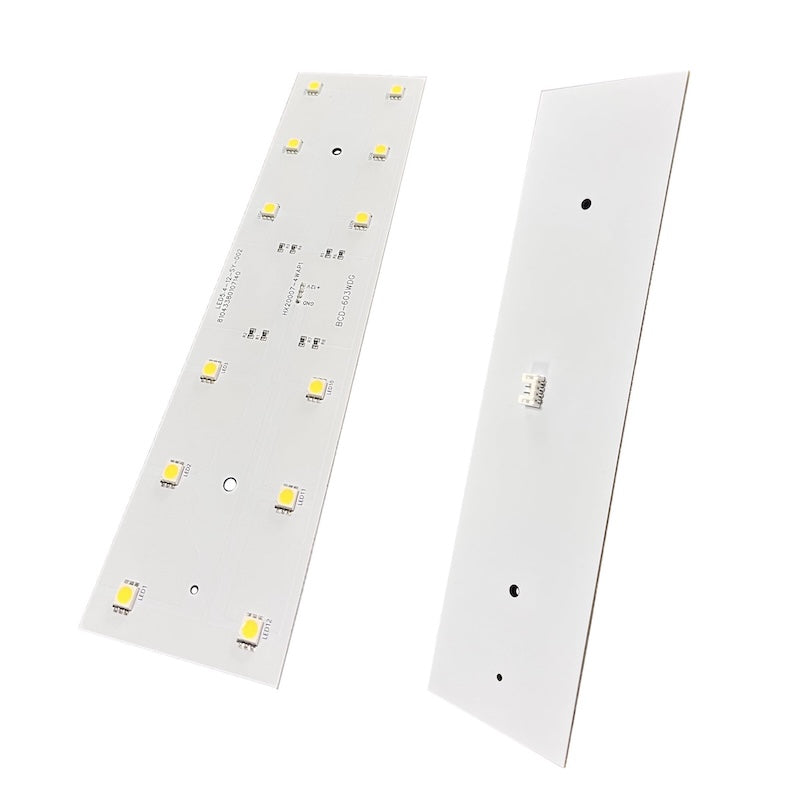

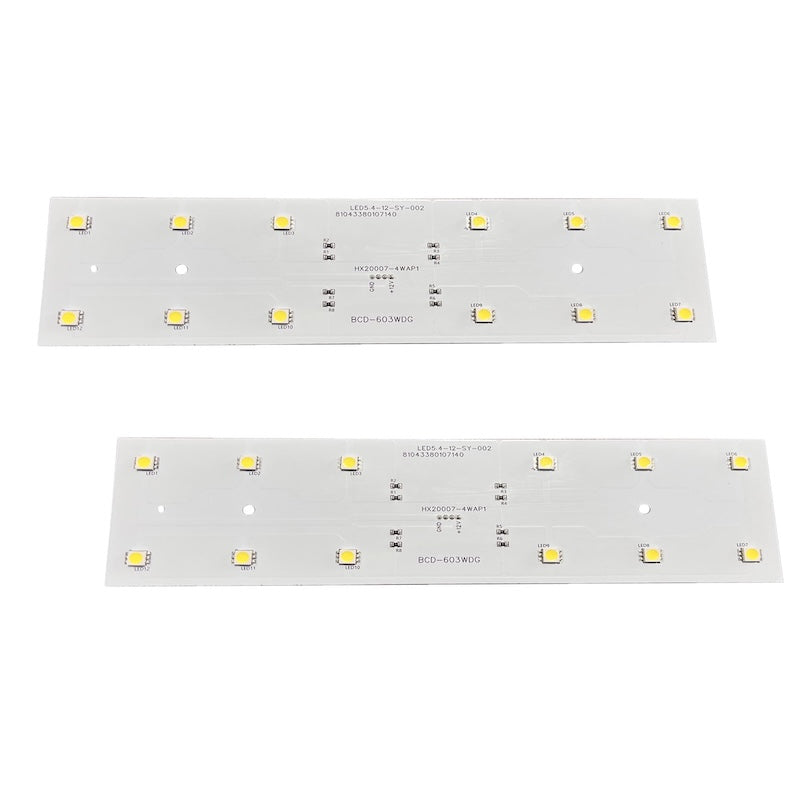

This 2-pack BCD-603WDG Refrigerator LED Light Strip is a direct replacement for the interior lighting in compatible refrigerator models. When your refrigerator's original LED strip fails — whether due to moisture exposure, door switch malfunction leaving lights on, or simple age — this replacement restores bright, clear illumination so you can see every shelf and drawer clearly. LED technology provides brighter light with less energy consumption than traditional incandescent bulbs.
Key Features
-
2-Pack Value: Two LED strips included — replace both sides at once or keep one as a spare. Most refrigerators with dual-side lighting require two strips
-
Bright LED Illumination: Cool white LED output provides clear, shadow-free visibility across all refrigerator shelves
-
Energy Efficient: LED technology consumes up to 80% less electricity than incandescent bulbs and generates virtually no heat — important inside a refrigerator compartment
-
Long Lifespan: Rated for 50,000+ hours of continuous operation — years of trouble-free use under normal cycling
-
Plug-and-Play Replacement: Direct connector replacement — no soldering, wiring, or modification required. Unplug the old strip, plug in the new one
-
Moisture-Resistant Design: Sealed construction protects LED components from refrigerator humidity and condensation
Compatibility
| Part Number |
Application |
| BCD-603WDG |
Refrigerator interior LED light strip module |
Compatible with refrigerators using the BCD-603WDG LED light strip assembly. Verify your existing light strip part number before ordering. The connector style and mounting points are model-specific.
Specifications
| Specification |
Value |
| Part Number |
BCD-603WDG |
| Quantity |
2 LED Light Strips |
| Light Type |
LED (Light Emitting Diode) |
| Color Temperature |
Cool White (~5000K-6000K) |
| Voltage |
DC 12V (typical refrigerator lighting voltage) |
| Mounting Type |
Snap-in / Clip-in with connector plug |
| Lifespan |
50,000+ hours |
Installation Instructions
-
Safety First: Unplug the refrigerator from the wall outlet before beginning any interior work
- Locate the failed LED light strip — typically mounted on the interior ceiling or side wall of the refrigerator compartment
- Remove the light strip cover/lens if applicable (usually clips or snaps off)
- Gently disconnect the wiring connector from the old LED strip — press the release tab if present, do not pull by the wires
- Remove the old strip from its mounting clips or brackets
- Snap the new BCD-603WDG LED strip into the mounting position
- Connect the wiring plug to the new strip — ensure it clicks fully into place
- Replace the cover/lens if removed
- Plug the refrigerator back in and open the door to verify the new lights illuminate
- If lights don't come on, check the door switch — a faulty door switch is a common cause of lighting failure, not the LED strip itself
Frequently Asked Questions
Q: How do I know if my LED strip is bad or if it's a wiring issue?
A: If neither light strip works, suspect the door switch or main control board. If only one side is out, the LED strip itself is most likely the culprit. You can also test the LED strip with a multimeter: check for 12V DC at the connector when the door is open. If voltage is present but the LED doesn't light, the strip is bad.
Q: Why did my refrigerator LED strip fail?
A: Common causes include moisture intrusion, power surges, door switch failure (leaving lights on 24/7 causing premature wear), or simply age. LED strips are rated for long life but aren't immune to failure — especially in the cold, humid environment of a refrigerator.
Q: Are these brighter than the original?
A: These LED strips provide comparable brightness to the OEM original. They are designed as direct replacements, not as upgrades. If you want brighter interior lighting, you may need to add additional LED modules.
Q: Will these fit my Samsung/LG/Whirlpool refrigerator?
A: The BCD-603WDG is a specific part number for compatible models. Check your refrigerator's model number (typically on a sticker inside the fresh food compartment) and cross-reference with the BCD-603WDG part number before ordering. Not all refrigerators use this specific LED strip.
Q: Is the 2-pack for the freezer and refrigerator sections?
A: These LED strips are typically for the fresh food (refrigerator) compartment. Some models use the same strip in both compartments, while others use different part numbers. Having two strips is useful for dual-side lighting setups or as a spare.
