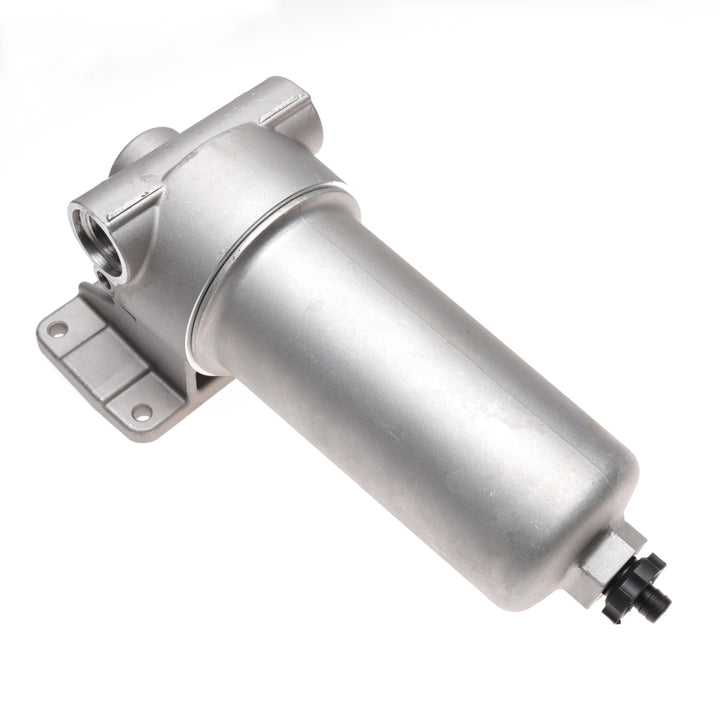

Premium Fuel Filter Assembly 322-3154 for Caterpillar Excavators
When you're running a Cat excavator on the job site, downtime isn't just inconvenient — it costs real money by the hour. The fuel filter assembly is your engine's first line of defense against contaminated diesel fuel, and a clogged or failing filter leads to power loss, hard starting, and eventually expensive injector damage. This Caterpillar 322-3154 fuel filter assembly delivers the same filtration performance as the OEM unit at a significantly lower price point, keeping your 312E, 320D2, 320E, 324E, or 329E excavator working reliably through long shifts.
Key Features
-
OEM-Equivalent Filtration: Advanced cellulose-synthetic blend media removes contaminants down to 2 microns, meeting or exceeding Cat's strict filtration standards for common-rail injection systems.
-

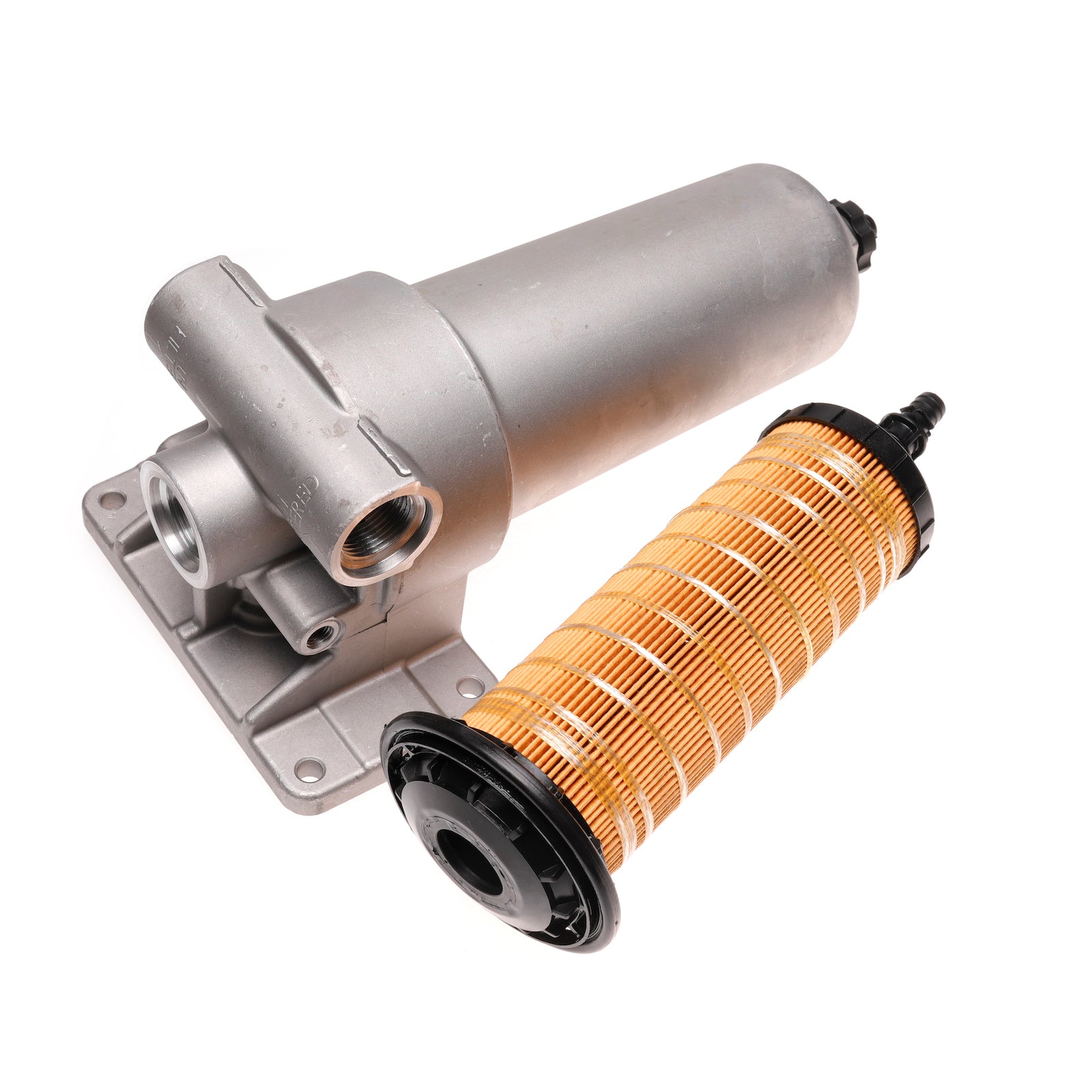

Full Assembly Design: Includes the complete canister-style filter housing with integrated water separator bowl — a true drop-in replacement that eliminates the need to rebuild your old housing with individual components.
-
Heavy-Duty Construction: Rugged metal canister housing withstands job site vibration, temperature extremes, and the physical demands of excavator operation in dirt, dust, and debris.
-
Water Separation Capability: Built-in water separator bowl collects and traps water that would otherwise reach your high-pressure common rail injectors and cause tip erosion or seizure.
-
Verified Cross-Reference: Directly replaces Caterpillar part number 322-3154 and compatible with C4.4, C6.6, and C7.1 ACERT engine platforms across the E-Series excavator lineup.
Vehicle Compatibility
| Make |
Model |
Engine |
Application |
| Caterpillar |
312E |
C4.4 ACERT |
Excavator |
| Caterpillar |
320D2 |
C6.6 ACERT |
Excavator |
| Caterpillar |
320E |
C6.6 ACERT |
Excavator |
| Caterpillar |
324E |
C7.1 ACERT |
Excavator |
| Caterpillar |
329E |
C7.1 ACERT |
Excavator |
Technical Specifications
| Specification |
Value |
| OEM Part Number |
322-3154 |
| Part Type |
Fuel Filter Assembly (Canister with Element) |
| Filtration Rating |
2 microns absolute |
| Water Separation Efficiency |
>95% |
| Filter Media Type |
Cellulose/Synthetic Blend, Multi-Stage |
| Housing Material |
Steel Canister with Anti-Corrosion Coating |
| Thread Size |
Standard Cat Filter Head Thread |
| Includes Gasket |
Yes — Pre-Lubricated O-Ring Seal |
| Service Interval |
500 Hours (Normal Conditions) |
Why Fuel Filtration Matters for Your Excavator
Modern Caterpillar excavators use high-pressure common-rail (HPCR) fuel injection systems operating at pressures exceeding 30,000 PSI. At these pressures, even microscopic dirt particles become abrasive projectiles that score injector plungers and erode nozzle tips. Cat specifies 2-micron absolute filtration for these engines for a reason — anything less and you're playing roulette with a multi-thousand-dollar injector set. The 322-3154 assembly ensures every drop of fuel reaching your injectors meets that standard, shift after shift.
Installation Guide
- Clean the filter mounting head surface thoroughly before removing the old filter — debris falling into the fuel system during filter changes is a leading cause of post-service contamination.
- Fill the new filter canister with clean diesel fuel before installation to minimize cranking time and reduce strain on your starter and batteries.
- Lubricate the O-ring seal with a thin film of clean diesel fuel — never use grease, which can introduce incompatible compounds into your fuel system.
- Hand-tighten firmly, then add ¾ turn with a filter wrench — do NOT overtighten, as this can distort the sealing surface and cause leaks.
- After installation, cycle the key several times to prime the system, then start and check for leaks at the filter base before returning the machine to service.
Frequently Asked Questions
Q: How do I know when it's time to replace the fuel filter on my Cat excavator?
A: Watch for these warning signs: hard starting (especially after the machine sits overnight), intermittent power loss under load, engine surging at idle, and black smoke from the exhaust indicating incomplete combustion. Cat recommends replacing fuel filters every 500 operating hours under normal conditions, or every 250 hours in high-dust or high-humidity environments.
Q: Will this 322-3154 fit other Cat machines besides the models listed?
A: The 322-3154 assembly is specifically designed for E-Series excavators and D2-Series machines with C4.4, C6.6, and C7.1 ACERT engines. It may also fit certain Caterpillar wheel loaders, motor graders, and other equipment using the same engine platforms — always verify your machine's parts catalog or contact us with your serial number for confirmation.
Q: Can I clean and reuse this filter element?
A: No. The 322-3154 is a sealed canister-type filter assembly designed for one-time use. Attempting to clean or flush the element will damage the delicate filter media and compromise filtration efficiency. Always replace with a new assembly at each service interval.
Q: What happens if water passes through the fuel filter?
A: Water in diesel fuel is extremely destructive to HPCR injection systems. Even small amounts cause injector tip cavitation (pitting and erosion), plunger scoring, and eventual injector failure. The water separator bowl in the 322-3154 assembly traps free water before it reaches the filter media. Drain the bowl daily during wet or humid operating conditions.
