Description
Product Overview
The 6R3-24560-00 is a complete fuel filter assembly designed for Yamaha outboard engines from 115HP to 225HP, covering both 2-stroke and 4-stroke models. This direct OEM-spec replacement includes the filter housing, mounting bracket, and internal 10-micron filter element — ready to bolt on and protect your outboard's fuel system from water and debris contamination. Essential maintenance for saltwater and freshwater boaters alike.
Key Features
-
Complete Assembly: Includes filter housing with clear water-separation bowl, mounting bracket, and 10-micron filter element. No separate parts to source — everything you need in one box.
-
Wide Yamaha Coverage: Compatible with Yamaha 115HP, 130HP, 140HP, 150HP, 175HP, 200HP, and 225HP outboard engines in both 2-stroke and 4-stroke configurations.
-
10-Micron Water-Separating Filter: Protects sensitive fuel injectors and carburetors from water and debris. Clear bowl allows visual inspection — drain before water reaches the filter element.
-
Corrosion-Resistant Construction: Marine-grade materials with anti-corrosion coating for saltwater environment durability. OEM-spec mounting pattern for bolt-on installation.
-
IATF 16949 Certified: Manufactured to the same quality standards as Yamaha OE production. Identical fit, form, and function at a fraction of dealer pricing.
Compatibility
| Brand |
HP Range |
Stroke |
| Yamaha |
115HP |
2-Stroke / 4-Stroke |
| Yamaha |
130HP |
2-Stroke |
| Yamaha |
140HP |
4-Stroke |
| Yamaha |
150HP |
2-Stroke / 4-Stroke |
| Yamaha |
175HP |
2-Stroke |
| Yamaha |
200HP |
2-Stroke / 4-Stroke |
| Yamaha |
225HP |
2-Stroke / 4-Stroke |
Specifications
| Specification |
Value |
| Part Number |
6R3-24560-00-00 |

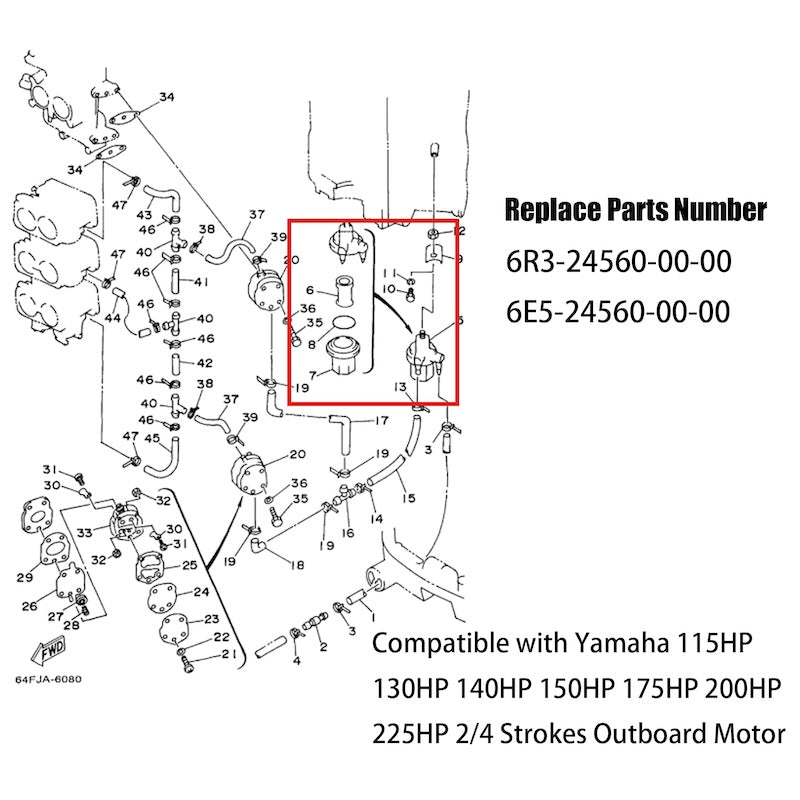

| Replaces |
6E5-24560-00-00, 6R3-24560-01-00 |
| Micron Rating |
10 Micron Nominal |
| Filter Type |
Complete Assembly (Housing + Element + Bracket) |
| Bowl Type |
Clear Water-Separating with Drain |
| Fuel Type |
Gasoline (Including E10) |
Why Choose iFJF
A failed fuel filter assembly on the water means a tow back to the dock — or worse, a destroyed fuel system from water ingestion. iFJF 6R3-24560-00 assemblies provide Yamaha OEM-equivalent quality and fitment at 40-60% less than dealer pricing. Each assembly is pressure-tested and includes all mounting hardware. Replace your aging, corroded filter assembly before it fails on the water.
Frequently Asked Questions
Q: Will this fit my 2006 Yamaha F150 4-stroke?
A: Yes. The 6R3-24560-00 fits Yamaha F150 4-stroke outboards and all 115-225HP models listed. It replaces both 6R3-24560-00-00 and the older 6E5-24560-00-00.
Q: Does this come with the mounting bracket?
A: Yes. This is a complete assembly including the filter housing, clear water-separating bowl, internal 10-micron element, mounting bracket, and hardware.
Q: How often should I replace the filter element?
A: Replace the internal element every 100 hours or annually. The clear bowl allows visual inspection — drain any water you see before each outing. Replace the entire assembly every 5-7 years or if corrosion is visible.
Q: Can I use this with ethanol-blended fuel (E10)?
A: Yes. The filter assembly is compatible with E10 gasoline commonly sold at marine fuel docks. For E15 or higher ethanol blends, check your engine manufacturer's recommendations.
Q: Is this plug-and-play?
A: Plug-and-play. The mounting bracket uses the same bolt pattern as Yamaha OEM. Fuel line fittings match standard Yamaha outboard fuel hose sizes. Installation takes 15-30 minutes with basic hand tools.
