Description
Product Overview

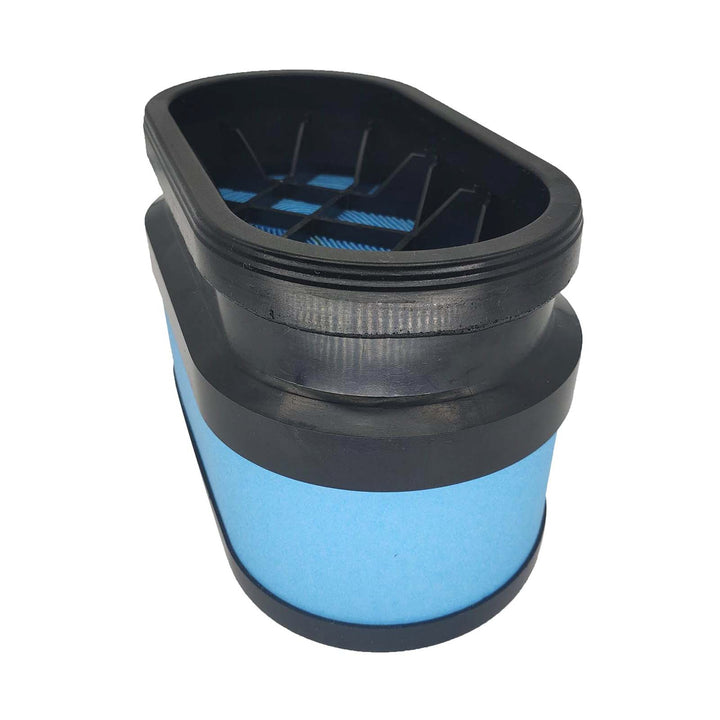

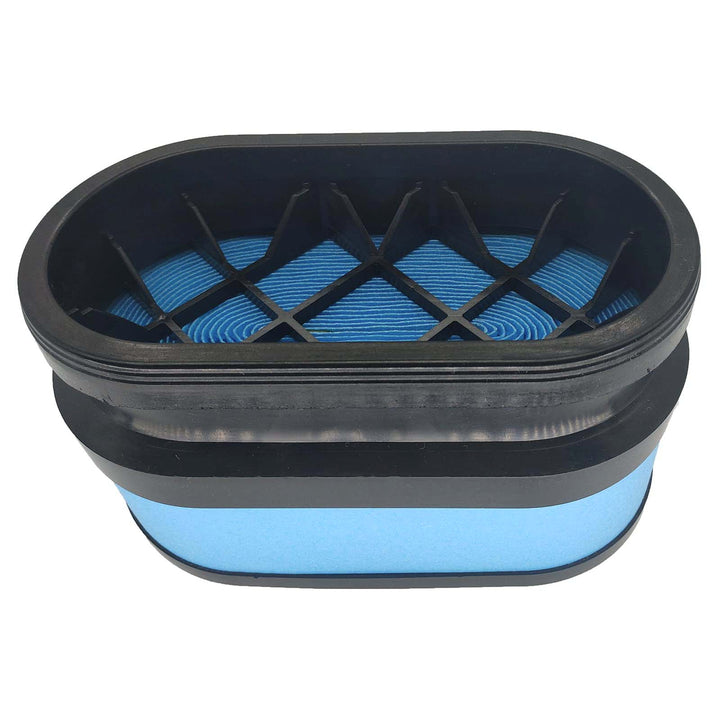

The A3140C Engine Air Filter is the heavy-duty filtration solution for 2010–2016 Chevrolet Express and GMC Savana vans equipped with the legendary 6.6L Duramax V8 turbo diesel. Built for the demands of commercial fleet use — ambulances, shuttle buses, cargo vans, and passenger vans — this filter provides the high airflow volume and superior dust-holding capacity that turbocharged diesel engines require. The direct-fit panel design drops right into the factory air box with zero modifications.
Key Features
-
Precision Fit: Designed specifically for 2010–2016 Chevy Express 2500/3500/4500 and GMC Savana 2500/3500/4500 with the 6.6L Duramax LGH/LML V8 diesel
-
Full Cross-Reference: Replaces A3140C, CA5370, P611720, 49154, and CA10491 — verify your current filter number before ordering
-
Turbo-Ready Airflow: High-flow pleated media delivers unrestricted airflow under full boost conditions while maintaining filtration efficiency
-
Fleet-Grade Durability: Engineered for extended service intervals in commercial applications — ambulances, airport shuttles, mobile service vans
-
Moisture-Resistant Media: Treated filtration media resists moisture absorption and filter swelling in humid or wet operating environments
Vehicle Compatibility
| Make |
Model |
Engine |
Years |
| Chevrolet |
Express 2500 |
6.6L Duramax LGH/LML V8 Turbo Diesel |
2010–2016 |
| Chevrolet |
Express 3500 |
6.6L Duramax LGH/LML V8 Turbo Diesel |
2010–2016 |
| Chevrolet |
Express 4500 |
6.6L Duramax LGH/LML V8 Turbo Diesel |
2010–2016 |
| GMC |
Savana 2500 |
6.6L Duramax LGH/LML V8 Turbo Diesel |
2010–2016 |
| GMC |
Savana 3500 |
6.6L Duramax LGH/LML V8 Turbo Diesel |
2010–2016 |
| GMC |
Savana 4500 |
6.6L Duramax LGH/LML V8 Turbo Diesel |
2010–2016 |
Specifications
| Specification |
Value |
| Part Number |
A3140C |
| Cross References |
CA5370, P611720, 49154, CA10491 |
| Filter Type |
Panel Engine Air Filter |
| Media Type |
High-Capacity Cellulose/Synthetic Blend |
| Frame Material |
Reinforced Polyurethane with Integrated Seal |
| Service Interval |
30,000–45,000 miles under normal conditions |
A3140C vs A2959C — What's the Difference?
Both filters fit the Duramax van platform, but for different engine generations:
-
A2959C: 2006–2016 LLY/LBZ/LMM engine family (earlier Duramax van engines)
-
A3140C: 2010–2016 LGH/LML engine family (later Duramax van engines with DPF/DEF emissions)
If your van is a 2010–2016 model with the LGH or LML engine, the A3140C is the correct filter. Check your build sheet or VIN to confirm your engine code.
Installation Guide
- Park on level ground, set parking brake, open hood
- Locate air filter housing — passenger side of engine bay, rectangular black plastic box
- Release the housing clips (4–6 clips around perimeter) or remove screws if equipped
- Lift the top cover — careful not to dislodge the MAF sensor wiring harness
- Remove old filter — note the direction of the airflow arrow printed on the filter frame
- Clean housing interior: vacuum out leaves, dust, or debris accumulated at the bottom
- Install new A3140C filter — airflow arrow should point toward the engine (intake tube side)
- Replace cover and secure all clips — press firmly on each clip until you hear it click
- Start engine, check for any unusual intake noise or warning lights
Frequently Asked Questions
Q: Will this fit my 2014 Chevy Express 3500 diesel cargo van?
A: Yes. The A3140C is the correct filter for any 2010–2016 Express or Savana 2500/3500/4500 with the 6.6L Duramax diesel. Verify your engine code is LGH or LML for 100% confirmation.
Q: Can I use the A2959C instead?
A: While both filters share similar dimensions, the A2959C is designed for earlier LLY/LBZ/LMM engines (2006–2010). The A3140C is specifically engineered for the LGH/LML engine's airflow and filtration requirements. Using the correct part number ensures optimal performance.
Q: What happens if I don't change my air filter on schedule?
A: A restricted air filter reduces fuel economy by 3-10%, increases turbo lag, elevates EGTs, can trigger DPF regeneration issues, and in severe cases, may cause turbocharger damage from overspeed conditions. On a fleet vehicle, the fuel cost alone from a dirty filter can exceed $200/month with heavy use.
Q: Is this filter pre-oiled like a K&N?
A: No. This is a dry media filter — it requires no oiling. Dry filters are preferred for diesel applications with MAF sensors, as oil from reusable filters can contaminate the MAF sensor element and cause inaccurate readings.
Q: How do I know when to replace vs just clean?
A: This is a disposable filter — it should be replaced, not cleaned. Hold the filter up to a light source; if you cannot see light through the media, it's past due for replacement. If tapping the filter releases a cloud of dust, it's been overdue for a while.
