Description
Product Overview

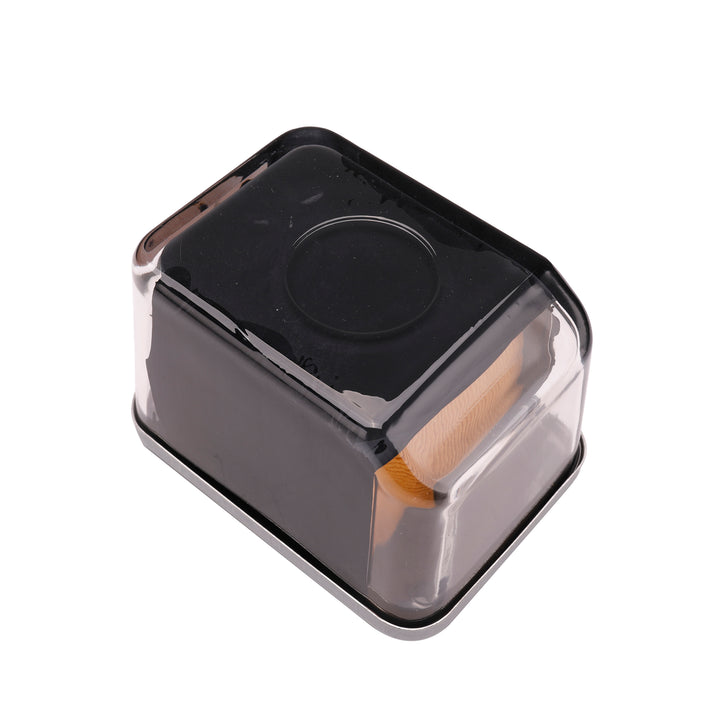

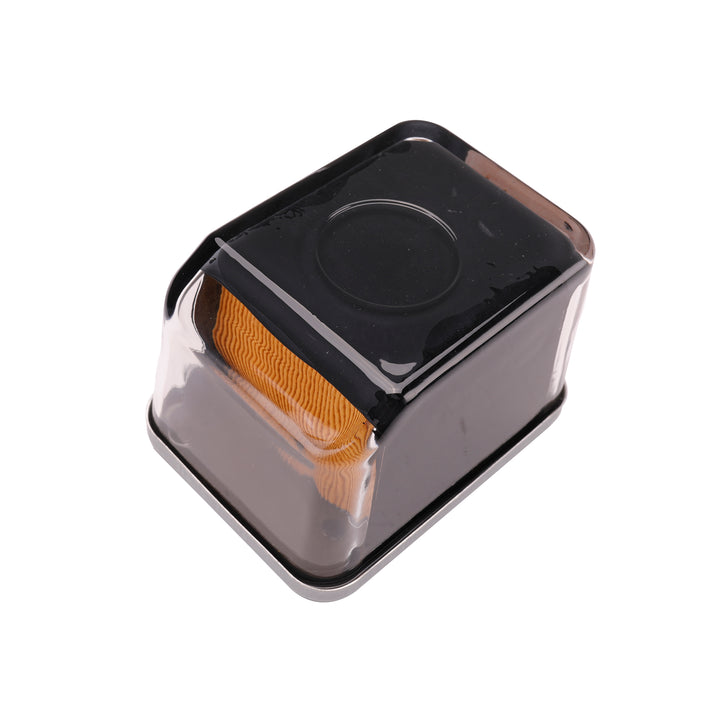

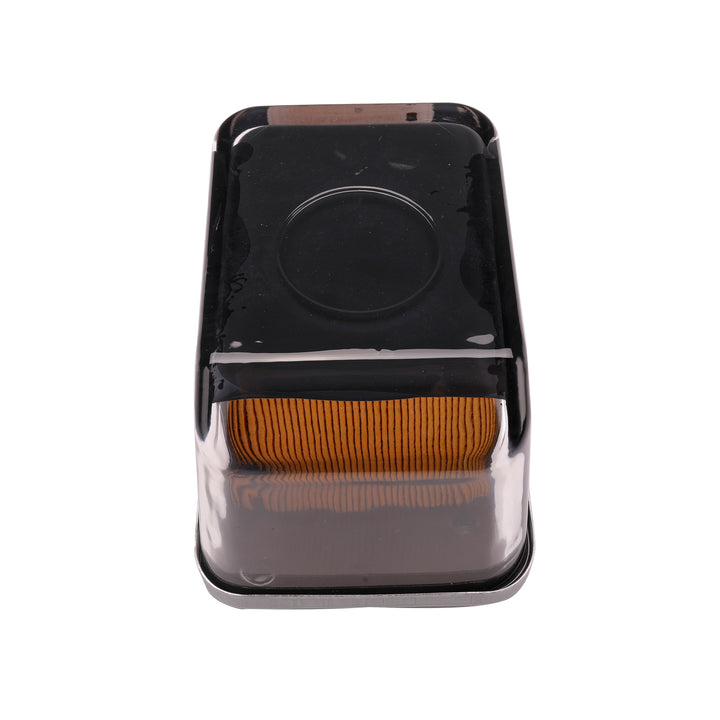

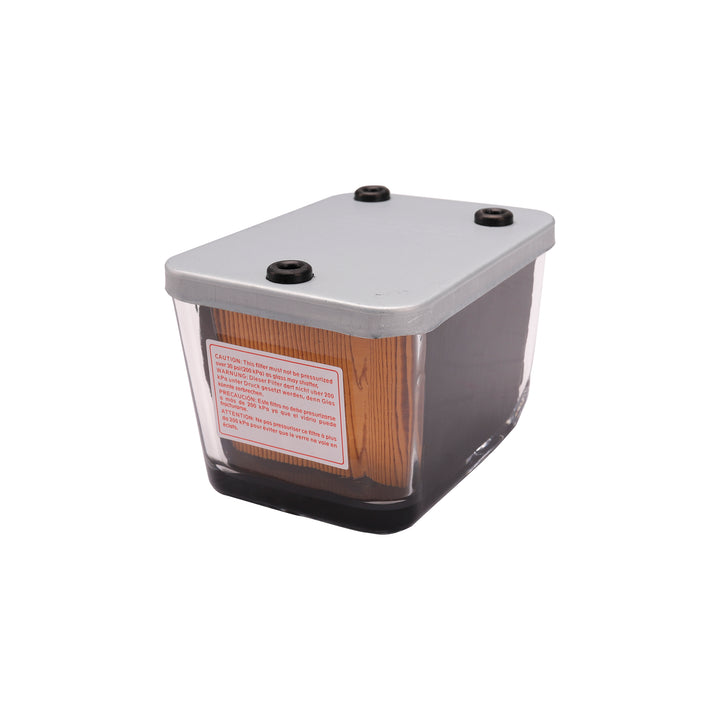

The AR50041 Snap-On Fuel Filter is a screw-on cartridge-style filter with an integrated transparent water-separation bowl, designed for John Deere 20, 30, 40, 50, and 55 Series utility and row-crop tractors. This filter serves as the primary fuel filtration stage, separating water and larger particulates (40 microns) before fuel reaches the engine's fine secondary filter. The clear bowl allows quick visual inspection for water accumulation and filter condition — a critical feature for tractors operating with bulk fuel storage where water contamination is common.
Key Features
-
Snap-On Design: Quick-twist bayonet-style mounting — no tools required for filter changes. Matches the John Deere filter head on 20–55 Series tractors
-
Integrated Clear Bowl: Transparent water-separation bowl with drain valve allows visual water checks and easy draining without filter removal
-
40-Micron Primary Filtration: Captures large particulates and emulsified water droplets while maintaining full fuel flow to the injection pump
-
Genuine Cross-Reference: Replaces AR50041, WK13001, and compatible John Deere filter head assemblies on 20–55 Series
-
Diesel & Biodiesel Compatible: Filter media and seals are compatible with ultra-low sulfur diesel (ULSD) and biodiesel blends up to B20
-
Year-Round Protection: Prevents water-related injection pump and injector damage — the most expensive fuel system repairs on mechanical diesel tractors
Vehicle Compatibility
| Make |
Series |
Model Examples |
Notes |
| John Deere |
20 Series |
820 |
Utility tractor, diesel engines with AR50041 filter head |
| John Deere |
30 Series |
830, 930, 1030, 1130 |
Row-crop and utility tractors |
| John Deere |
40 Series |
2040, 2240, 2440, 2640 |
Mannheim-built utility tractors |
| John Deere |
50 Series |
850, 950, 1050 |
Compact utility tractors (Yanmar-built) |
| John Deere |
55 Series |
955, 855, 755, 655 |
Compact utility tractors |
| John Deere |
Industrial |
1120, 2120 |
Industrial/agricultural variants |
Specifications
| Specification |
Value |
| Part Number |
AR50041 |
| Cross References |
WK13001 |
| Filter Type |
Primary Fuel Filter / Water Separator |
| Micron Rating |
40 Micron (Nominal) |
| Mount Type |
Snap-On / Bayonet (John Deere AR50041 Filter Head) |
| Bowl Material |
Transparent Polymer with Drain Valve |
| Filter Media |
Cellulose with Water-Stripping Treatment |
| Service Interval |
250 hours or annually (whichever comes first) |
| Fuel Compatibility |
Diesel ULSD, B5–B20 Biodiesel |
Installation Instructions
- Park tractor on level ground, shut off engine, and allow to cool
- Place a drain pan under the filter — fuel will spill during removal
- If equipped, open the drain valve on the clear bowl to drain water and fuel first
- Grip the filter body and twist counterclockwise approximately 1/4 turn to release the bayonet mount
- Pull the filter straight down to remove from the filter head
- Clean the filter head mating surface — remove any old gasket material or debris
- Fill the new AR50041 filter with clean diesel fuel (prevents extended cranking during restart)
- Lubricate the new filter's gasket with a thin film of clean diesel fuel
- Insert the new filter into the filter head — align the bayonet tabs
- Push up firmly and twist clockwise until the filter locks into place
- Bleed the fuel system per your tractor's operator manual (typically a bleed screw on the injection pump)
- Start engine and check for leaks at the filter seal
Frequently Asked Questions
Q: Does this fit my John Deere 2040?
A: Yes, the John Deere 2040 (40 Series) uses the AR50041 snap-on filter with clear bowl. This is one of the most common applications for this filter.
Q: How do I know when the filter needs replacing?
A: Check the clear bowl regularly for water accumulation (drain if water is visible) and sediment buildup on the filter element. Replace at 250 operating hours or annually. If you notice hard starting, rough running, or power loss under load, the filter may be clogged prematurely — replace immediately.
Q: Can I use this with off-road/dyed diesel?
A: Yes. The AR50041 is fully compatible with off-road diesel (dyed diesel) commonly used in agricultural applications. The filter media and seals are designed for all diesel fuel types.
Q: What happens if water isn't drained from the bowl?
A: Water accumulation in diesel fuel is the #1 cause of injection pump and injector failure on mechanical diesel engines. Water causes corrosion, pitting, and seizure of precision injection components. A $500 injection pump rebuild is not worth the 30 seconds it takes to check and drain the bowl — make it part of your pre-operation checklist.
Q: Do I need to bleed the fuel system after changing this filter?
A: Yes. John Deere mechanical diesel engines require bleeding after any fuel system service. The procedure varies by model — consult your operator's manual. Typically involves opening the bleed screw on the injection pump and operating the hand primer until bubble-free fuel flows.
