Description
Overview

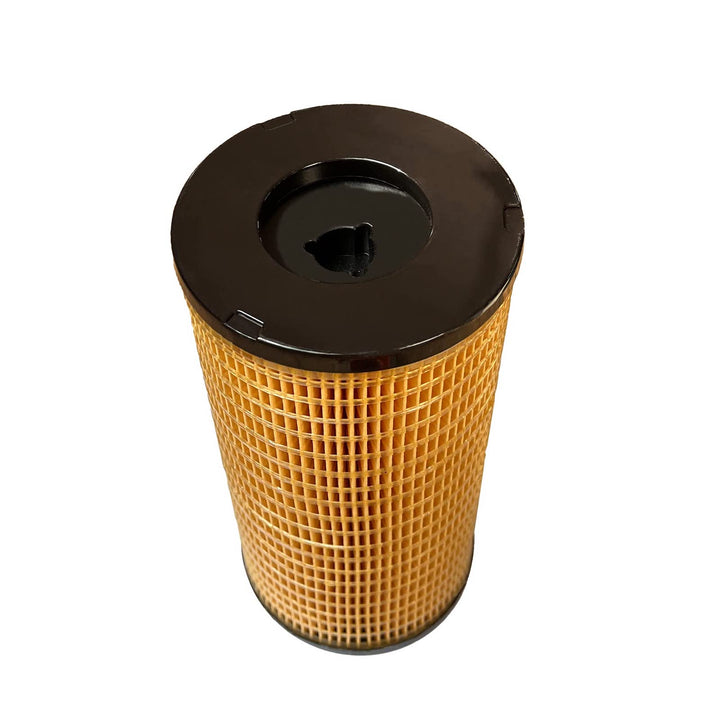

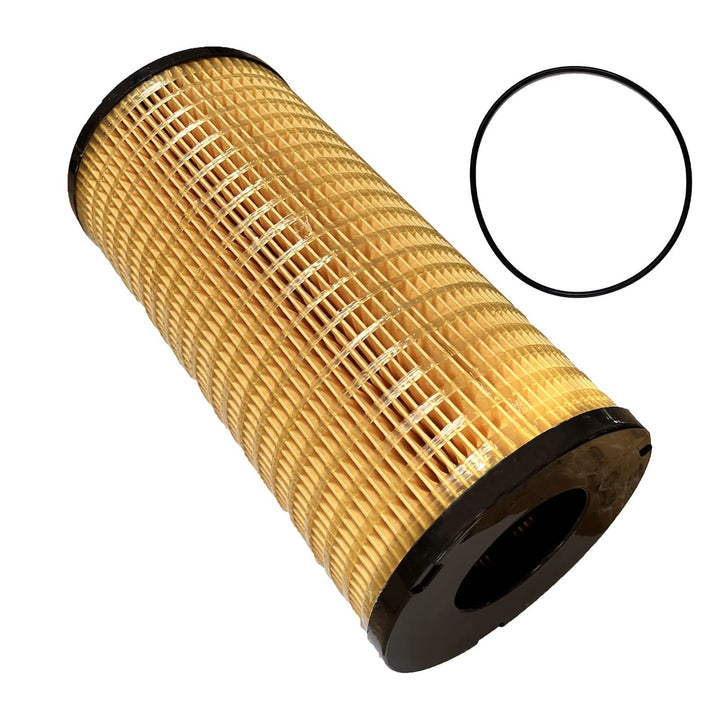

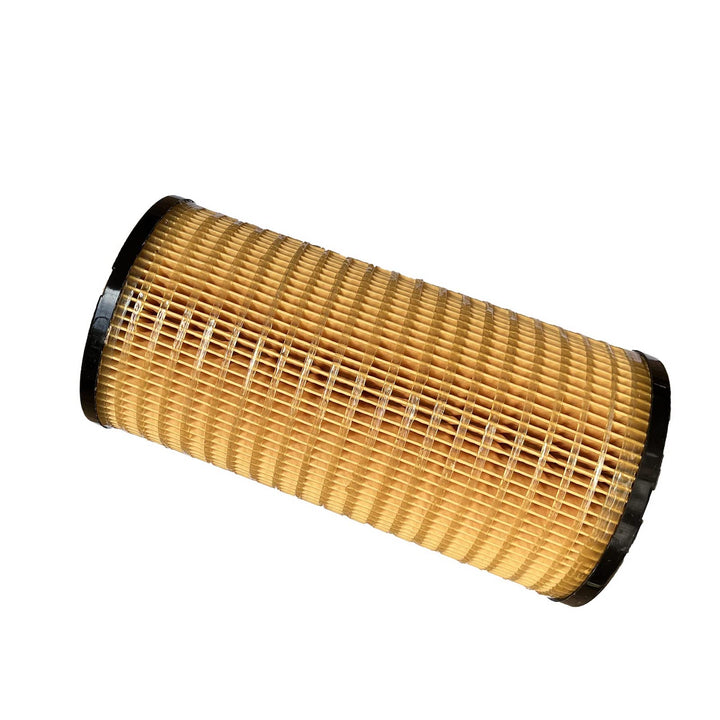

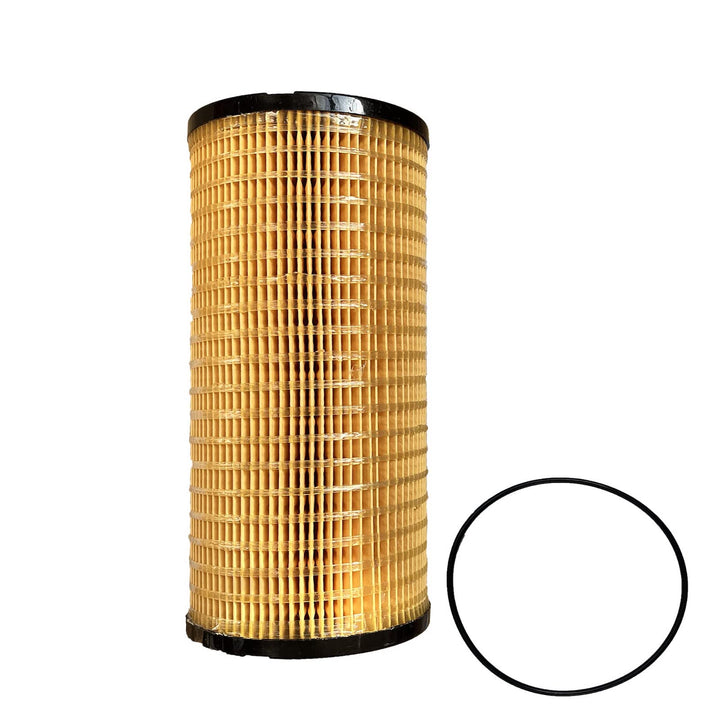

The CH10930 Fuel Filter Element is a precision-engineered cartridge designed for Perkins FGA06 through FGA19 series and 2306/2806 industrial diesel engines. These engines power generators, agricultural equipment, construction machinery, and marine applications where fuel cleanliness directly impacts reliability. This direct-replacement element delivers the high-efficiency filtration these workhorse engines demand.
Key Features
-
Multi-Brand Cross-Reference: Replaces PF7899 (Fleetguard), P502478 (Donaldson), FF5714 (Baldwin), 33990 (Perkins)
-
High-Efficiency Media: Cellulose/synthetic blend captures 99.9% of contaminants at rated flow
-
Industrial-Grade Construction: Reinforced center tube and end caps withstand high-pressure fuel systems
-
Wide Application Range: Fits FGA06, FGA07, FGA08, FGA09, FGA10, FGA11, FGA12, FGA13, FGA15, FGA16, FGA17, FGA18, FGA19, 2306, 2806 engines
-
Extended Service Life: 250-500 hour service interval depending on fuel quality
Compatibility Table
| Engine Series |
Models Covered |
Application |
| Perkins FGA06 |
FGA06 through FGA19 |
Industrial / Agricultural |
| Perkins 2306 |
2306A-E13, 2306A-E14, 2306C-E14 |
Genset / Industrial |
| Perkins 2806 |
2806A-E18, 2806C-E18 |
Genset / Marine |
Specifications
| Spec |
Value |
| Part Number |
CH10930, PF7899, P502478, FF5714, 33990, 996453, 996-453, 996-999 |
| Filter Type |
Cartridge Element (Fuel) |
| Media |
Synthetic/Cellulose Blend |
| Service Interval |
250-500 hours (fuel quality dependent) |
Why iFJF?
- Batch-tested for micron rating and flow rate consistency
- 50-70% below Perkins dealer pricing
- Compatible with Fleetguard, Donaldson, and Baldwin filter housings
- US inventory ready to ship
FAQ
Q: How do I know which Perkins engine series I have?
A: Check the engine data plate on the valve cover or block. The engine model (e.g., 2306A-E13) is stamped there. You can also reference your equipment's service manual.
Q: Can a dirty fuel filter cause power loss on a Perkins genset?
A: Yes. Fuel starvation from a clogged filter causes RPM fluctuation, power loss under load, and potential engine shutdown — exactly when you need backup power most.
Q: Is this compatible with biodiesel blends?
A: Yes, up to B20. For higher biodiesel concentrations (B20-B100), more frequent filter changes are recommended as biodiesel has a solvent effect that can release tank deposits.
