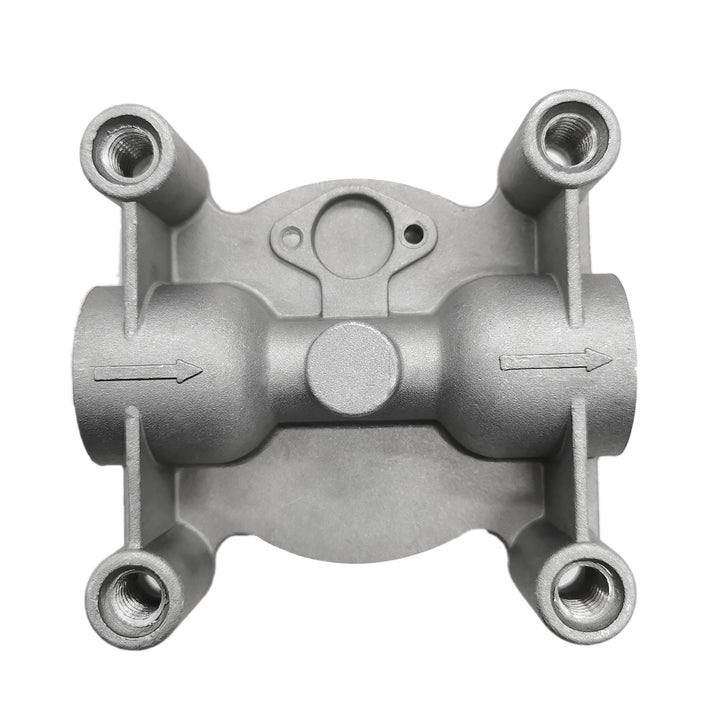

FB1311 Fuel Filter Base — Universal Diesel Spin-On Filter Head
The FB1311 Fuel Filter Base is a robust replacement filter head for spin-on diesel fuel filters. Compatible with FF104, FF105, FF105C, FF105D, FF213, FS1000, FS1212, FS1242, BF948, BF957, BF1249, and Caterpillar 1R-0750 filters, this base provides a secure, leak-free mounting solution for agricultural, construction, and over-the-road diesel applications.
Key Features
-
Universal Compatibility: Precision 1″-14 UNF threads accept FF-series, FS-series, BF-series, and Caterpillar 1R-0750 spin-on fuel filters with standard thread pattern.
-
Heavy-Duty Aluminum Alloy: Corrosion-resistant anodized finish withstands diesel fuel exposure, heat cycling, and vibration without cracking or pitting.
-

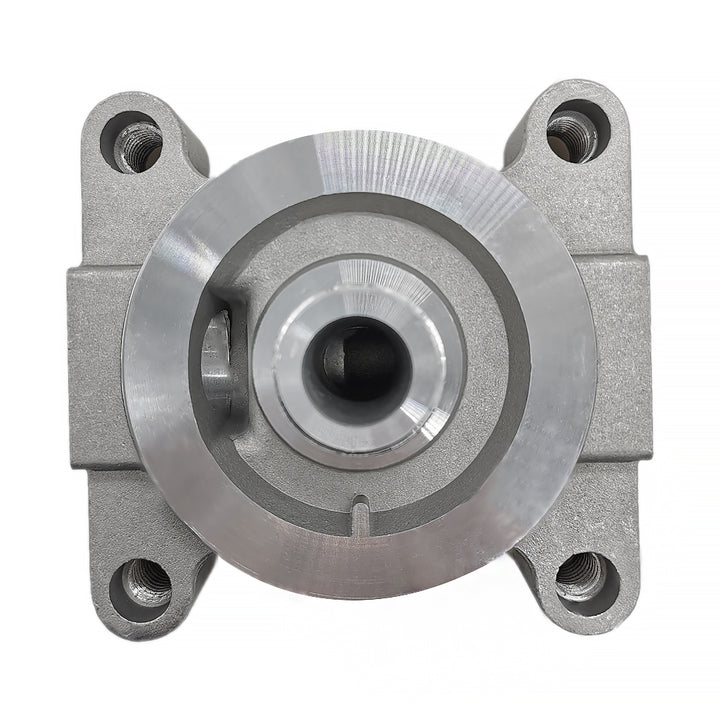

Leak-Free Seal: Precision-machined sealing surface ensures perfect gasket mate — eliminates fuel weep and air intrusion common with worn OEM bases.
-

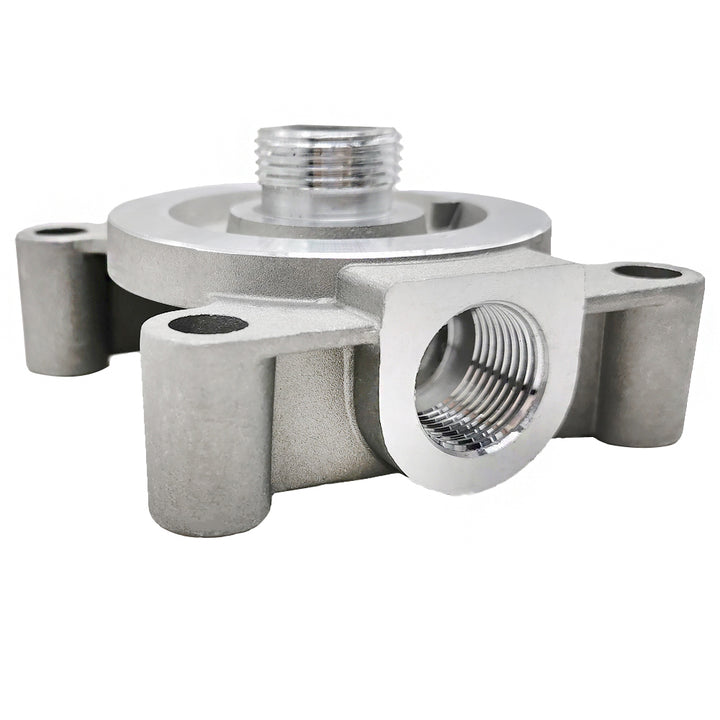

Flexible Port Configuration: 1/2″ NPT inlet and outlet ports with pre-installed plugs for both left and right-hand fuel line routing.
-
IATF 16949 Certified: Manufactured to OEM-equivalent quality standards with 100% dimensional inspection.
Technical Specifications
| Specification |
Value |
| Thread Pattern |
1″-14 UNF (Unified Fine Thread) |
| Port Size |
1/2″ NPT (Inlet & Outlet) |
| Material |
Aluminum Alloy — Anodized Finish |
| Mounting Type |
2-Bolt Flange Mount |
| Application |
Primary/Secondary Diesel Fuel Filtration |
Vehicle & Engine Compatibility
| Filter Series |
Compatible Part Numbers |
| FF-Series |
FF104, FF105, FF105C, FF105D, FF213 |
| FS-Series |
FS1000, FS1212, FS1242 |
| BF-Series |
BF948, BF957, BF1249 |
| Caterpillar |
1R-0750, 142784S |
Why Choose This Product?
Fuel filter bases degrade over time — vibration, heat cycling, and corrosive diesel cause aluminum to pit, crack, and develop vacuum leaks. A leaking base introduces air into your fuel system, causing hard starts and power loss. The FB1311 replaces your worn base with factory-spec dimensions and upgraded sealing surfaces.
Installation Notes
- Clean mounting surface thoroughly before installation
- Apply clean diesel fuel to filter gasket before spinning on
- Hand-tighten + 3/4 turn — do NOT over-tighten
- Prime fuel system and check for leaks before starting
Frequently Asked Questions
Q: Will this fit my FF105 filter?
A: Yes. The FB1311 is designed for FF104, FF105, FF105C, FF105D, and all filters in the FF105 family with 1″-14 UNF threads.
Q: What thread pattern does this filter base use?
A: The filter mounting stud uses 1″-14 UNF threads, which is the industry standard for spin-on diesel fuel filters in this size class.
Q: Does the filter base come with mounting bolts?
A: The base includes the filter head only. Mounting bolts are typically M8 or 5/16″ — reuse your existing hardware or source locally.
Q: How do I know if my filter base needs replacement?
A: Signs include fuel weeping around the filter seal, air in the fuel system (hard starting, rough idle), visible corrosion or pitting on the sealing surface, and stripped or damaged threads.
Q: Is this compatible with biodiesel blends?
A: Yes. The anodized aluminum construction is compatible with diesel, biodiesel blends up to B20, and standard diesel fuel additives.
