Description
Product Overview
The FD-4596 Spin-On Fuel Filter is the primary fuel filtration for the 1999-2003 Ford 7.3L Powerstroke diesel engine. This filter mounts on top of the engine in the fuel filter housing and is the first line of defense against water, dirt, and debris entering your injectors. Replaces Ford part number F81Z-9N184-AA and Motorcraft FD-4596.
Key Features
-
OEM-Spec Filtration — High-efficiency cellulose media captures contaminants down to 10 microns, protecting HEUI injectors that operate at up to 3,000 PSI oil pressure.
-
Water Separation — Hydrophobic filter media repels water, preventing water-contaminated fuel from reaching the injectors (a leading cause of 7.3L injector failure).
-
Direct Fit — Spin-on design drops into the factory fuel filter housing. No modifications needed.
-

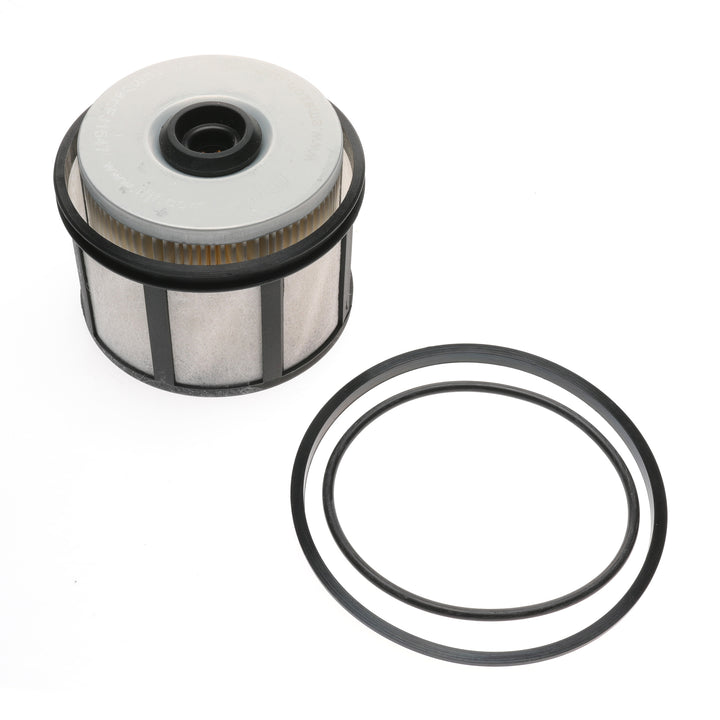

Matched O-Ring — Includes the correct Beveled O-ring seal for the housing lid to prevent air intrusion — the #1 cause of 7.3L hard-start issues.
-
15,000-Mile Interval — Replace every 15,000 miles or 12 months under normal conditions. Severe duty: every 10,000 miles.
Compatibility
| Year |
Make |
Model |
Engine |
| 1999-2003 |
Ford |
F-250 / F-350 / F-450 / F-550 Super Duty |
7.3L Powerstroke V8 Diesel |
| 2000-2003 |
Ford |
Excursion |
7.3L Powerstroke V8 Diesel |
| 1999-2003 |
Ford |
E-350 / E-450 / E-550 |
7.3L Powerstroke V8 Diesel |
Cross-Reference Part Numbers
| Brand |
Part Number |
| Ford / Motorcraft |
FD-4596, F81Z-9N184-AA |
| Fleetguard |
FF5320 |
| Baldwin |
BF7787 |
| Donaldson |
P550440 |
| WIX |
33675 |
| Luber-finer |
LFF7787 |
| NAPA |
3675 |
Technical Specifications
| Specification |
Value |
| Filter Type |
Spin-On Cartridge |
| Filtration Rating |
10 Micron (Nominal) |
| Media Type |
Cellulose with Hydrophobic Treatment |
| Thread Size |
M16 x 1.5 |
| Service Interval |
15,000 miles / 12 months |
Why Timely Fuel Filter Changes Matter
The 7.3L Powerstroke uses HEUI (Hydraulic Electronic Unit Injectors) that are extremely sensitive to fuel quality. A clogged or water-saturated fuel filter causes:
-
Injector damage — Water in fuel erodes injector tips and causes scoring ($2,500+ replacement)
-
Fuel pump wear — Restricted flow stresses the electric fuel pump
-
Power loss / misfire — Restricted fuel flow starves injectors under load
-
Hard starting — Air intrusion from old seals compounds with filter restriction
FAQ
Q: How often should I change the fuel filter on my 7.3L Powerstroke?
A: Ford recommends every 15,000 miles or 12 months. If you tow heavy, idle frequently, or use biodiesel, change every 10,000 miles.
Q: Does this filter include the lid O-ring?
A: Yes, the FD-4596 filter includes the Beveled lid O-ring seal. Always replace both the filter and O-ring together to prevent air intrusion.
Q: Will this fit my 2001 Excursion 7.3L?
A: Yes. This filter fits all 1999-2003 7.3L Powerstroke engines in F-250 through F-550, Excursion, and E-Series vans.
Q: What happens if I don't change my fuel filter?
A: A clogged filter causes fuel starvation, rough running, power loss, and can lead to injector failure from contaminated fuel. HEUI injectors cost $250-400 each to replace.
Q: Is this the same as the Motorcraft FD-4596?
A: This is a direct replacement manufactured to the same specifications as the Motorcraft FD-4596 / Ford F81Z-9N184-AA filter, at a fraction of the dealer price.
