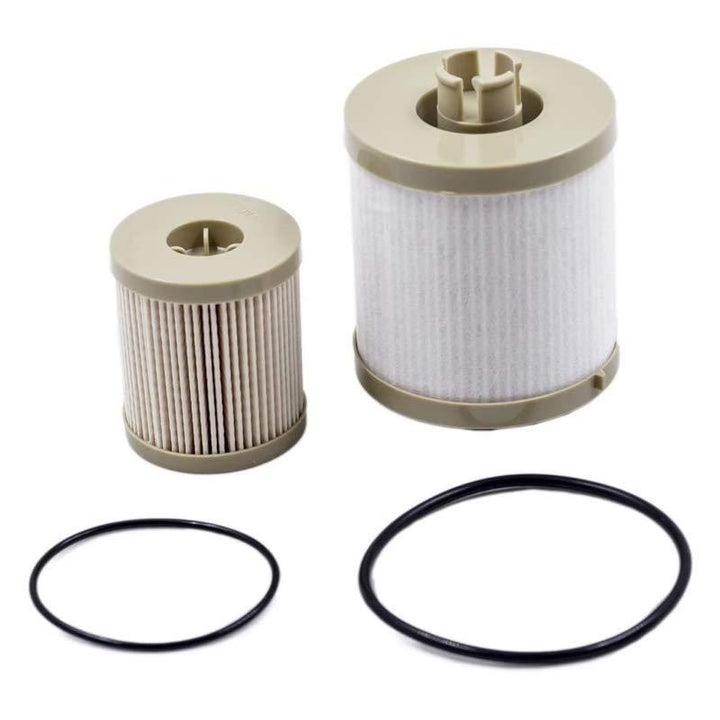

Ford 6.0L Powerstroke Fuel Filter FD-4616 — Stop Injector Stiction
The FD-4616 Fuel Filter is the exact-fit replacement for 2003-2007 Ford 6.0L Powerstroke engines. This filter fits BOTH the frame-mounted HFCM (Horizontal Fuel Conditioning Module) and the engine-mounted secondary filter housing.
Why 6.0L Filtration Is Critical
The 6.0L's HEUI injection system uses engine oil pressurized to 3,600 psi to fire the injectors. The injector spool valves have clearances measured in microns. Contaminated fuel OR oil causes stiction — the #1 6.0L drivability complaint. Quality filtration is the single most important maintenance item on any 6.0L.
Specifications
| Part Number |
FD-4616 |
| OEM Cross-Reference |
3C3Z-9N184-CB, Motorcraft FD-4616 |
| Application |
Primary (HFCM) AND Secondary (engine-mounted) — uses same element in both positions |
| Fitment |
2003-2007 F-250, F-350, F-450, F-550 6.0L; 2003-2005 Excursion 6.0L |
| Service Interval |
Every 10,000-15,000 miles (BOTH filters simultaneously) |
| Quantity Needed |
2 per service (primary + secondary) |
6.0L Bulletproofing: The Filtration Foundation
Every 6.0L "bulletproofing" guide starts with filtration:
-
Fuel filters (FD-4616 x2): Change every 10K miles — dirty fuel destroys injectors ($300+ each x8)
-
Oil & filter: Use only 5W-40 synthetic, CI-4 or CJ-4 rated, every 5,000 miles
-
Coolant filter: Prevents oil cooler clogging (root cause of EGR cooler rupture)
-
HFCM drain: Drain water from the HFCM monthly
Signs Your 6.0L Fuel Filters Are Overdue
-
Stiction: Cold-start misfire, rough idle that clears when warm (injectors sticking)
-
Low power: Fuel volume insufficient at high demand
-
Hard hot start: Air in fuel from a clogged filter causes vapor lock
-
HFCM whine: Fuel pump working harder against a restricted filter
-
P2291/P0087 codes: Low injection control pressure or low fuel rail pressure
FAQ
Q: Do I need 1 or 2 filters for a 6.0L service?
A: TWO. The 6.0L uses identical FD-4616 elements in both the frame-mounted HFCM (primary) and the engine-mounted secondary housing. ALWAYS change both at the same time.
Q: How do I change the HFCM filter?
A: The HFCM is on the driver-side frame rail, inside the frame. Remove the skid plate (4 bolts), drain water via the 6mm hex plug, unscrew the cap with a 36mm socket, replace filter and O-ring. Reinstall and prime by cycling the key 6 times.
Q: Will better fuel filters fix injector stiction?
A: Fuel filtration prevents NEW stiction by keeping contaminants out of the injectors. If you already have stiction, try Archoil AR9100 or Hot Shot's Secret Stiction Eliminator added to your oil — many 6.0L owners report significant improvement.
Q: OEM Motorcraft vs aftermarket — does it matter?
A: We recommend OEM-spec filters for the 6.0L. The HEUI system is extremely sensitive. Our FD-4616 meets all Motorcraft specifications for filtration efficiency and flow rate.
Your 6.0L can run 300,000+ miles. The difference between a 100K engine and a 300K engine is maintenance. Start with filtration.
