Ford 6.0L Powerstroke HFCM Fuel Manifold — Fix the Cracked Drain Plug

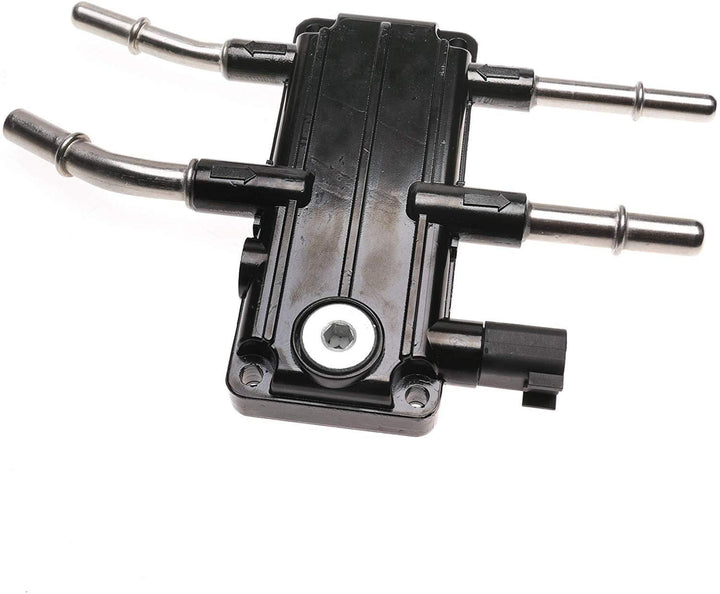

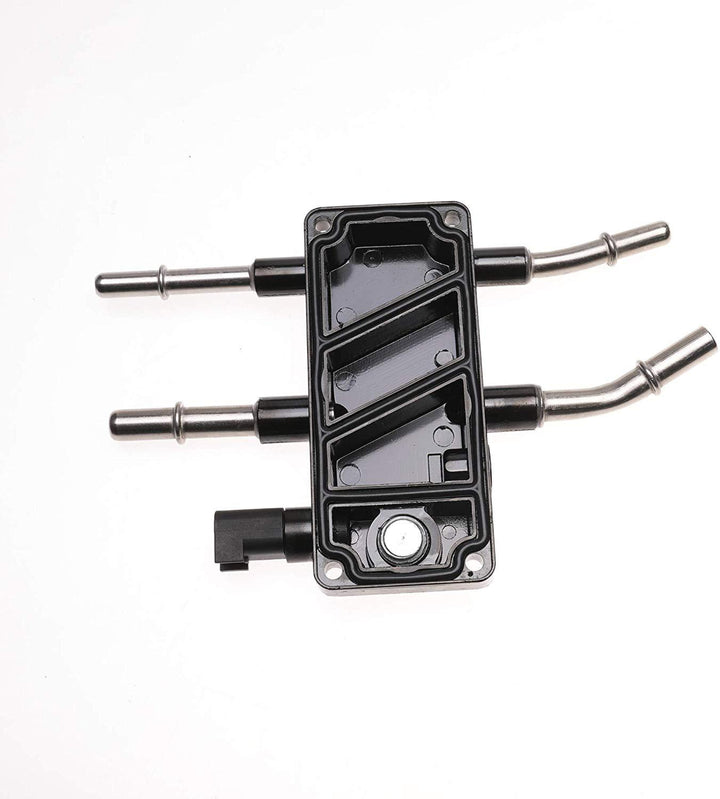

The HFCM Fuel Manifold (6C3Z-9B249-A) is the direct replacement for the cracked, leaking fuel conditioning module manifold on 2003-2007 Ford 6.0L Powerstroke engines. If your HFCM drain plug won't seal or fuel is leaking from the module, this is the fix.
Why HFCM Manifolds Fail
The HFCM is mounted on the driver-side frame rail, exposed to road salt, water, and debris. The OEM manifold's water drain plug threads are the weak point — they corrode, strip, or crack over time. Once the threads are damaged, the drain plug won't seal, causing:
- Fuel leaks (fire hazard)
- Air intrusion (hard starting, rough idle)
- Water-in-fuel warning (false or real)
- Unable to drain water separator
Specifications
| Part Number |
6C3Z-9B249-A, HFCM Manifold |
| Fitment |
2003-2007 F-250, F-350, F-450, F-550 6.0L; 2003-2005 Excursion 6.0L |
| Installation |
Bolts directly to HFCM housing — no modifications required |
| Includes |

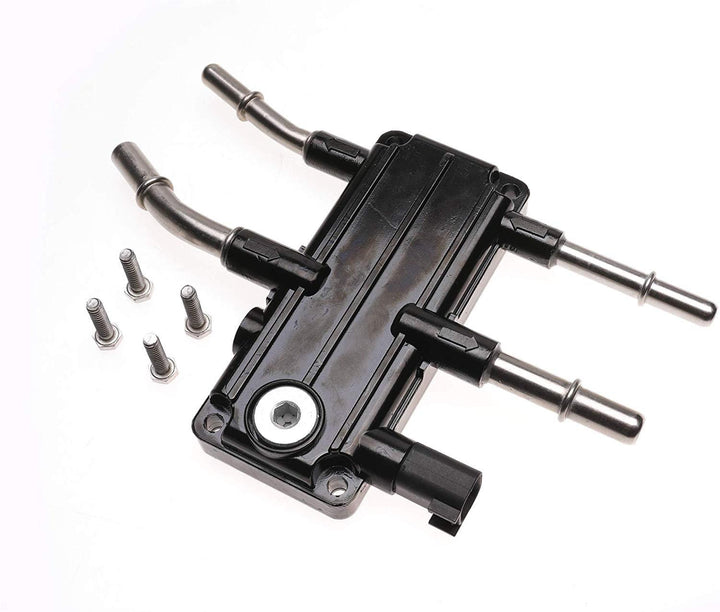

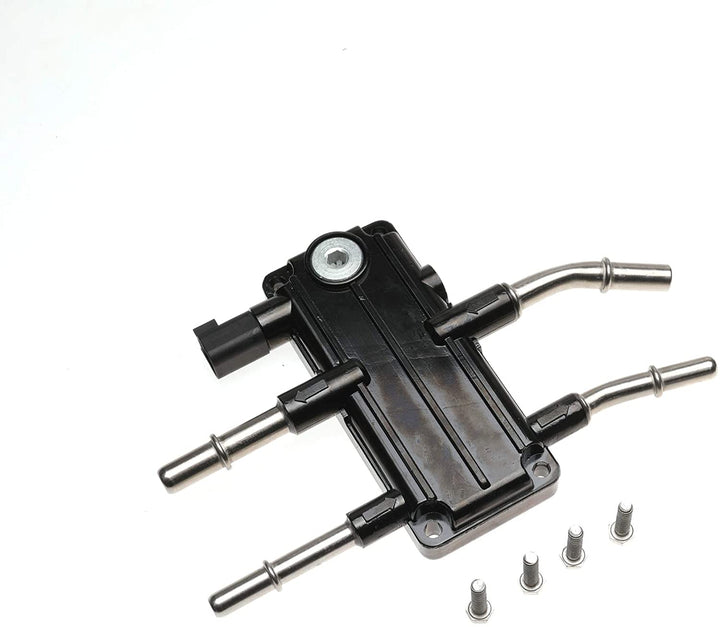

Manifold, drain plug, mounting gasket |
Related Parts You May Need
FAQ
Q: How do I know if my HFCM manifold is bad?
A: Look for fuel residue around the drain plug, a drain plug that won't tighten, or a persistent fuel smell from the driver-side frame rail area. Also, if you can't drain water from the HFCM because the plug won't open, the manifold threads are likely damaged.
Q: Do I need to drop the fuel tank to replace the HFCM manifold?
A: No — the HFCM is frame-mounted on the driver side, accessible from under the truck. Removal of the skid plate (4 bolts) is required. Total labor: 1-2 hours.
Q: Can I just replace the drain plug instead of the whole manifold?
A: If the threads in the manifold body are stripped or cracked, a new plug won't fix it. The manifold body is the problem. Replace it once, do it right.
