Description
Overview

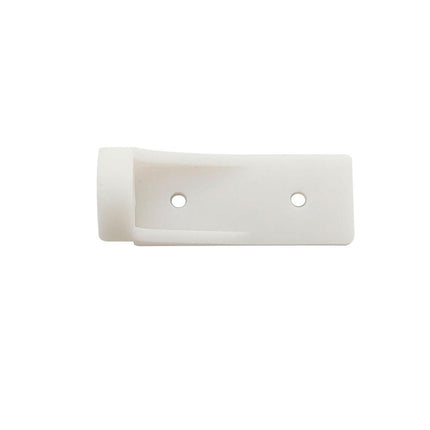

The iFJF 2002244008 Freezer Door Hinge Plate Replacement Kit restores proper operation and sealing of your RV refrigerator's freezer compartment door. Over time, the original plastic hinge plates on Dometic and Norcold 2-way and 3-way absorption refrigerators become brittle, crack, or snap — leaving your freezer door sagging, misaligned, or completely detached. A door that doesn't seal properly forces the refrigerator to work harder, wastes propane or electricity, and can lead to food spoilage.
This complete replacement kit includes both the upper and lower hinge plates needed to rebuild your freezer door mounting. Installation is straightforward and requires only basic hand tools — no refrigeration system knowledge or special skills needed. Save hundreds compared to the cost of replacing the entire refrigerator or paying for RV service center labor.
Key Features
-
Complete Hinge Replacement Kit — Includes upper and lower hinge plates, pivot pins, and mounting hardware for a thorough repair
-
Restores Proper Door Seal — Correct door alignment ensures the freezer door gasket seals tightly, improving cooling efficiency
-
Durable Construction — Manufactured from impact-resistant material superior to the brittle factory plastic that commonly fails
-
Broad Compatibility — Fits most Dometic and Norcold 2-way (propane/120V) and 3-way (propane/120V/12V) RV refrigerators
-
DIY-Friendly — Replace in approximately 20-30 minutes with a Phillips screwdriver — no special tools or skills required
-
Prevents Further Damage — Addressing the hinge early prevents stress cracks from spreading to the door panel or refrigerator frame
Technical Specifications
| Specification |
Details |
| Part Number |
2002244008 |
| Compatible Refrigerators |
Dometic & Norcold 2-Way and 3-Way RV Absorption Refrigerators |
| Includes |
Upper Hinge Plate, Lower Hinge Plate, Pivot Pins, Mounting Screws |
| Material |
Impact-Resistant Engineered Plastic |
| Installation Time |
Approx. 20-30 Minutes |
Compatibility
| Brand |
Type |
Compatibility |
| Dometic |
RM, NDR, DM Series (2-Way & 3-Way) |
✅ Compatible |
| Norcold |
N Series (2-Way & 3-Way) |
✅ Compatible |
⚠️ Verify Before Ordering: This hinge kit fits standard freezer compartment doors on most Dometic and Norcold models. Measure your existing hinge plate dimensions and compare with product photos to confirm fitment for your specific refrigerator model.
Installation Guide
-
Empty Freezer — Remove all items from the freezer compartment
-
Remove Door — Carefully lift the freezer door off its hinge pins (may require gentle upward pressure if the bottom hinge is still intact)
-
Remove Old Hinge Plates — Unscrew the broken hinge plates from the refrigerator frame using a Phillips screwdriver
-
Clean Mounting Points — Remove any debris or broken plastic fragments from the hinge mounting area
-
Install New Hinge Plates — Screw the new iFJF upper and lower hinge plates into position; do not overtighten
-
Rehang Door — Align the door pivot points with the new hinges and lower the door into place
-
Test Operation — Open and close the door several times to verify smooth operation and proper gasket seal
FAQ
Q: How do I know if my freezer door hinge is the problem?
A: Signs include: the freezer door sagging or not aligning with the refrigerator frame, difficulty closing the door completely, visible cracks or breaks in the plastic hinge plates, the door falling off when opened past a certain angle, or frost buildup inside the freezer from a poor door seal.
Q: Will this kit fit both upper and lower hinges?
A: Yes. The kit includes both the upper and lower hinge plates, so you can replace one or both as needed. Even if only one hinge is broken, replacing both ensures even wear and proper alignment.
Q: Why did my original hinge plates break?
A: The original plastic hinge plates used on many RV refrigerators become brittle over time due to temperature cycling (hot during storage, cold during operation), UV exposure through RV windows, and simply age. The freezer door's weight stresses these small plastic components, and they eventually fatigue and crack.
Q: Can I install this without removing the refrigerator from the RV?
A: Yes. The freezer door hinge plates are accessible from the front of the refrigerator while it remains installed in the RV cabinetry. No need to disconnect propane, electrical, or remove the refrigerator from its enclosure.
Q: Will this hinge kit improve my refrigerator's cooling performance?
A: If your freezer door wasn't sealing properly due to hinge misalignment, yes — restoring a proper seal prevents cold air loss and reduces the refrigerator's workload. You may notice faster cool-down times and more consistent temperatures after the repair.
Q: Is this compatible with both propane and electric operation?
A: The hinge plates have no interaction with the cooling system — they are purely mechanical door mounting components. They work identically whether your refrigerator is operating on propane, 120V AC, or 12V DC.
Q: Can I replace just the door gasket while I'm at it?
A: If your freezer door gasket is also worn, cracked, or compressed, replacing it along with the hinges is a good idea. However, the gasket is a separate part and not included in this hinge kit. Inspect the gasket while the door is off and consider replacement if it shows signs of wear.
Q: How does this compare to the OEM Dometic/Norcold hinge?
A: This aftermarket hinge kit is manufactured to OEM specifications with equivalent or improved material durability. Many RV owners report the aftermarket replacement outlasts the OEM hinge due to improved impact-resistant material formulation.
