Description
Product Overview

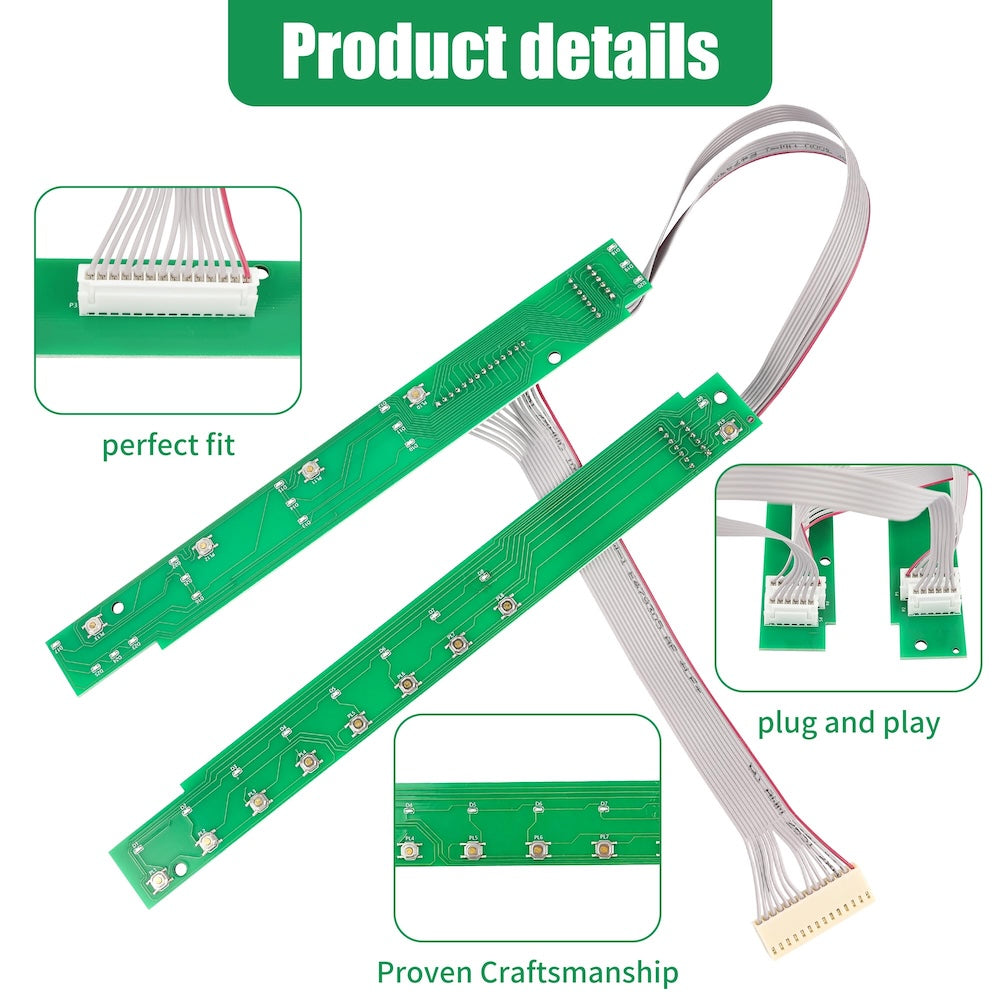

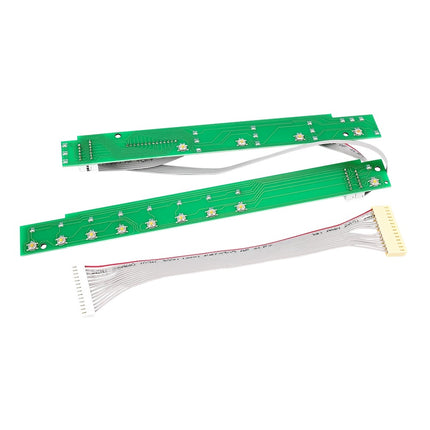

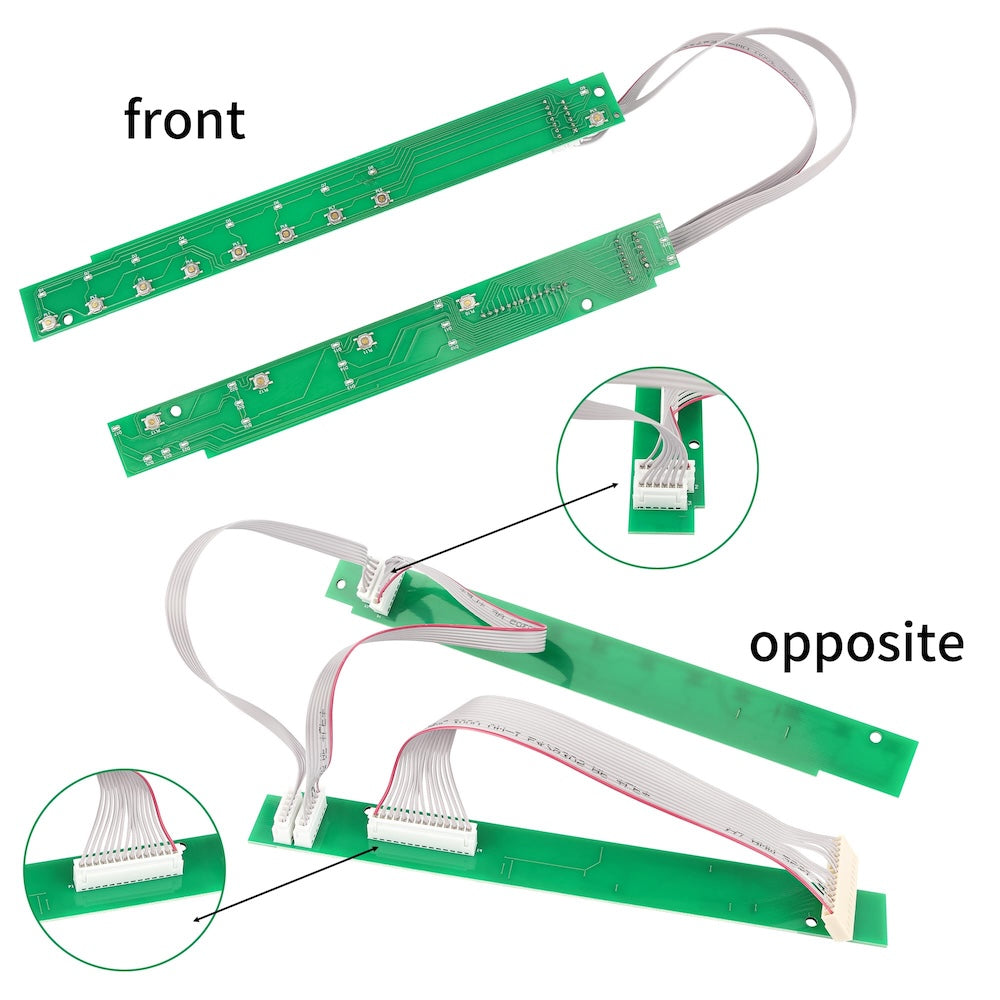

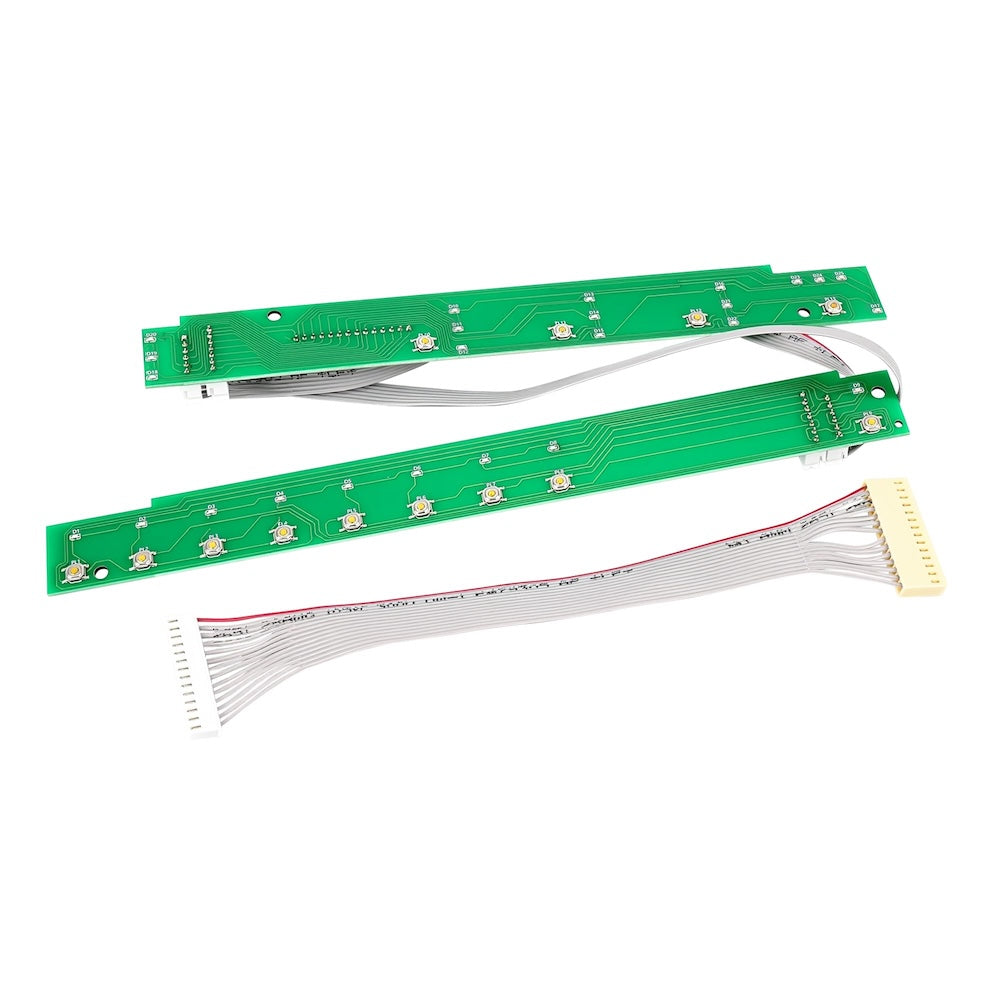

Bring your Frigidaire dishwasher back to life with the iFJF 5304517587 Dishwasher User Interface Control Board. This precision electronic replacement board restores full functionality to dishwashers with unresponsive buttons, blank displays, or erratic cycle behavior. Designed as a direct plug-and-play replacement, it installs in minutes with no programming required.
When your dishwasher's control panel stops responding, the problem is often the user interface (UI) board rather than the main control board. This component processes button inputs and displays cycle information — a failed UI board can make your dishwasher completely unusable. Save hundreds compared to service calls or replacement appliances with this affordable, reliable fix.
Key Features
-
Direct Replacement: Designed to match OEM part 5304517587 exactly — same dimensions, connectors, and button layout
-
Plug-and-Play: No soldering, programming, or special tools required — simply disconnect old board and plug in new one
-
Quality Components: Uses industrial-grade PCB with protective coating against moisture and heat
-
Wide Cross-Reference: Replaces 4840235, 5304517587, AP6802340, PS12585690, EAP12585690
-
Fixes Common Issues: Unresponsive buttons, blank LED display, stuck cycles, beeping without starting
📋 Compatibility
| Compatible Frigidaire Dishwasher Models |
|---|
| Frigidaire Gallery Series Dishwashers |
| Frigidaire Professional Series Dishwashers |
| Frigidaire Built-In Dishwashers (various models) |
| Models using part numbers: 5304517587, 4840235, 154574401 |

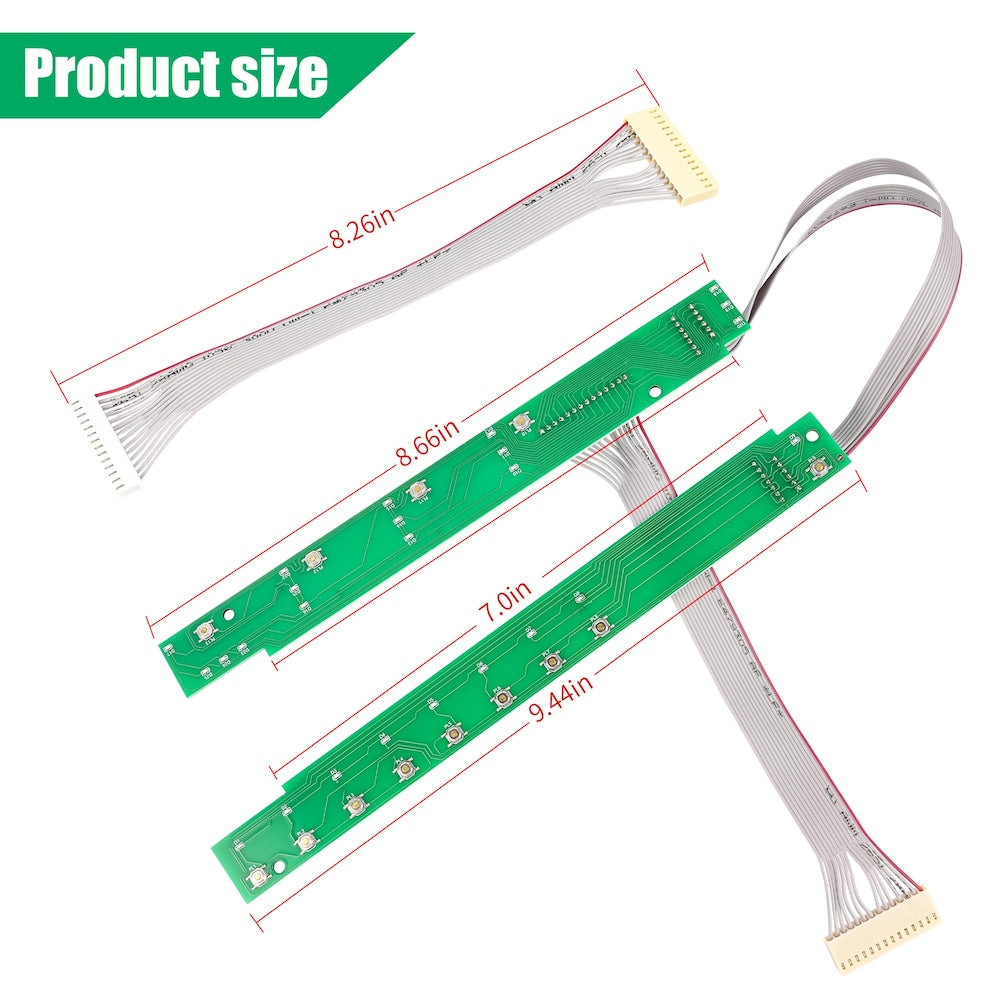

📐 Specifications
| Specification |
Value |
| Part Number |
5304517587 |
| Cross References |
4840235, AP6802340, PS12585690, EAP12585690 |
| Type |
User Interface (UI) Control Board |
| Connector Type |
Multi-pin ribbon connector |
| Compatible Brand |
Frigidaire / Electrolux |
Symptoms of a Bad Control Board
- Buttons don't respond when pressed
- Display is blank or shows random segments
- Dishwasher beeps but won't start cycle
- Selected cycle changes by itself
- Control panel lights flicker or stay on continuously
- Dishwasher starts but stops mid-cycle unexpectedly
Installation Safety
⚠️ IMPORTANT: Always disconnect power to the dishwasher at the circuit breaker before opening the control panel. The control board area contains live electrical connections that can cause injury.
❓ Frequently Asked Questions
Q: How do I know if the UI board or main control board is bad?
A: If the display works but certain buttons don't respond, the UI board is likely at fault. If the dishwasher has power but nothing works at all (no lights, no beeps), the main control board might be the issue. If only some buttons fail, the UI board is the most common culprit.
Q: Does this require any programming or setup?
A: No. This is a true plug-and-play replacement. Simply remove the old board, connect the new one, and reassemble. The dishwasher will recognize it immediately.
Q: Will this fit my Frigidaire Gallery dishwasher?
A: If your model uses part number 5304517587 or 4840235, this board will fit. Check your dishwasher's model number (usually on a sticker inside the door frame) and verify against the compatible parts list.
Q: What tools do I need for installation?
A: Typically just a Phillips head screwdriver and possibly a Torx T-15 driver. Most Frigidaire control panels are secured with screws accessible from the inner door panel.
Q: Is this board new or refurbished?
A: This is a brand new, factory-tested board. iFJF does not sell refurbished or used electronic components.
