Description

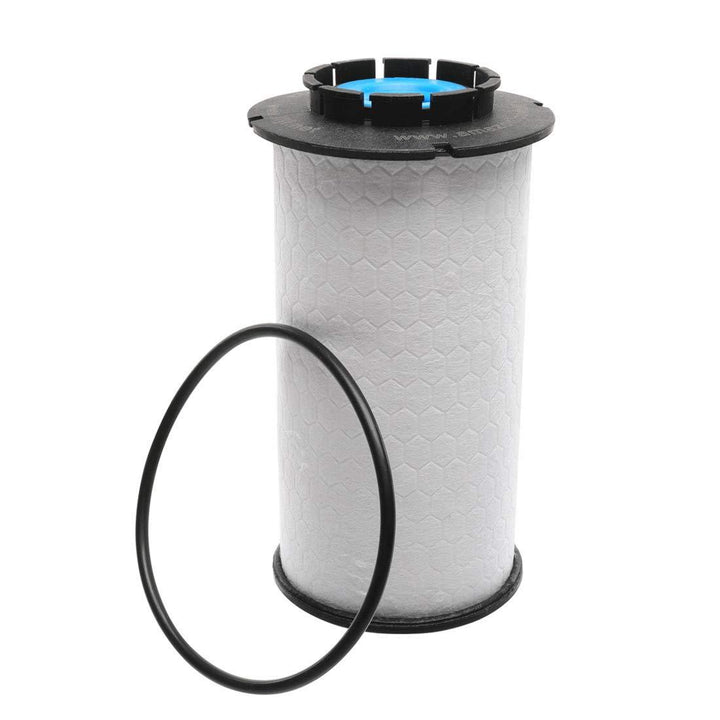

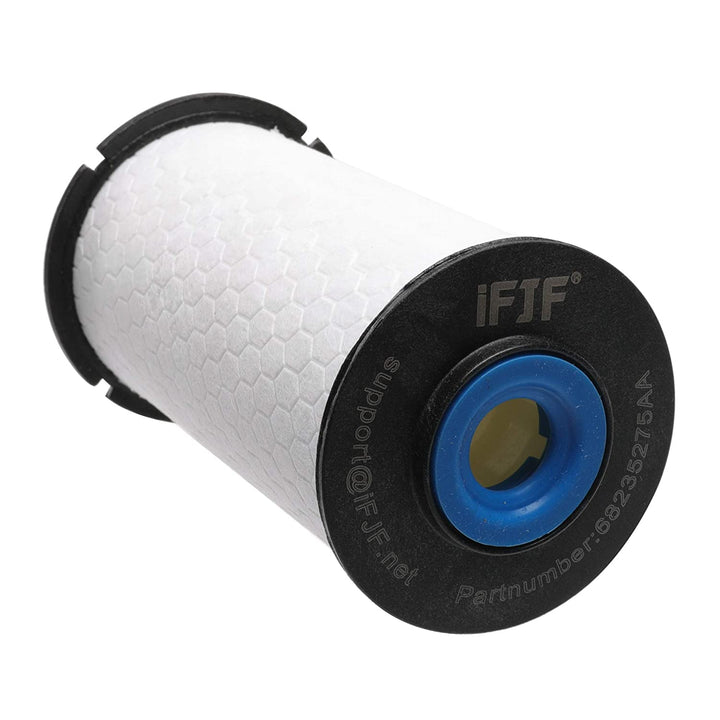

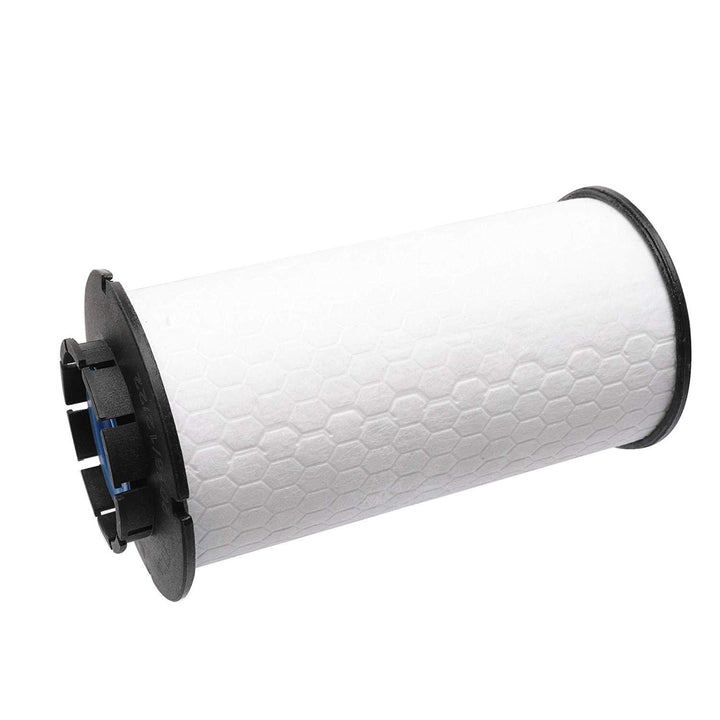

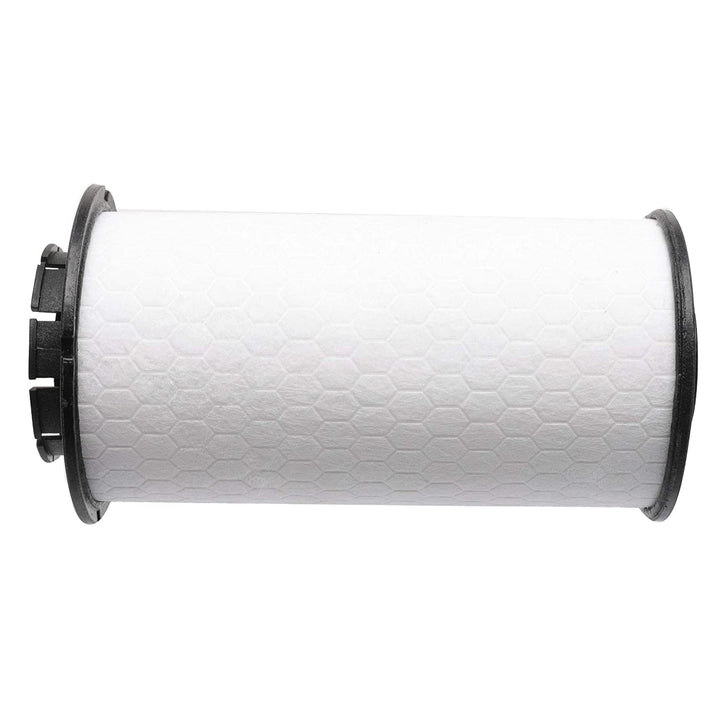

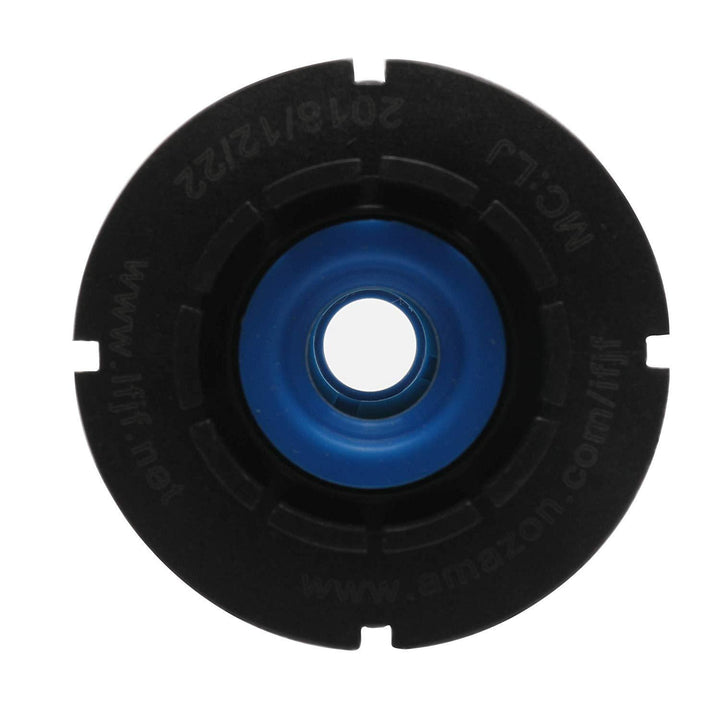

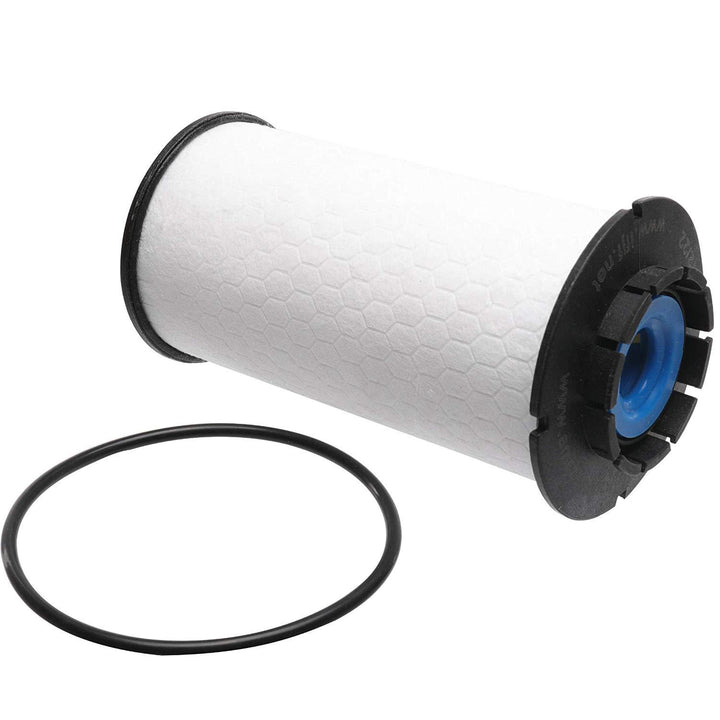

68235275AA Fuel Filter for 2014-2019 Ram 1500 3.0L V6 EcoDiesel
This 68235275AA fuel filter is precision-engineered for 2014-2019 Ram 1500 equipped with the 3.0L V6 EcoDiesel engine. The 10-micron filtration media captures harmful contaminants — including water, rust particles, and fine sediment — before they can damage your high-pressure fuel injection system.
Key Features
-
10-Micron Filtration: Removes 99%+ of particles ≥10 microns, protecting sensitive injectors and high-pressure pump from premature wear.
-
OEM-Spec Construction: Manufactured to meet or exceed factory specifications for filtration capacity, flow rate, and burst pressure.
-
Multi-Layer Media: High-capacity cellulose/synthetic blend provides superior dirt-holding capacity while maintaining optimal fuel flow under all conditions.
-
Water Separation: Hydrophobic barrier repels emulsified water droplets, protecting fuel system from corrosion and microbial growth.
-
Complete Interchange: Direct replacement for WF10245, PGF412, GF5275, XF10321, PF-4500 and other aftermarket equivalents.
Compatibility Table
| Year |
Make |
Model |
Engine |
| 2014-2019 |
Ram |
1500 |
3.0L V6 EcoDiesel |
Technical Specifications
| Specification |
Value |
| Part Number |
68235275AA |
| Filtration Rating |
10 Micron |
| Filter Type |
Cartridge-style element |
| Interchange Numbers |
WF10245, PGF412, GF5275, XF10321, PF-4500 |
| Replacement Interval |
Every 15,000-20,000 miles or 12 months |
Why Choose iFJF?
The EcoDiesel CP4.2 pump operates at up to 29,000 PSI — clean fuel is absolutely critical. A single tank of contaminated diesel can destroy this $2,500+ pump. Our filter provides dealership-grade protection at a fraction of the cost, backed by a 12-month satisfaction guarantee. Regular fuel filter replacement is the single most cost-effective maintenance for your EcoDiesel.
Frequently Asked Questions
Q: Will this fit my 2014-2019 Ram 1500?
A: Yes. This filter is an exact-fit replacement for all 2014-2019 Ram 1500 models with the 3.0L V6 EcoDiesel engine.
Q: How often should I replace this filter?
A: Every 15,000-20,000 miles or 12 months. Reduce to 7,500-10,000 miles for severe service or biodiesel use.
Q: Is this equivalent to the OEM/dealership part?
A: Yes. Our aftermarket filter meets or exceeds OEM filtration and flow specifications at a significantly lower price point.
Q: Do I need any special tools?
A: A socket wrench (typically 28mm or 1-1/8") for the filter housing cap and a drain pan for residual fuel are all you need.
Q: What happens if I skip filter changes?
A: A clogged filter restricts fuel flow, causing hard starts, power loss, and reduced fuel economy. In extreme cases, contaminants can damage the injection system — repairs exceeding $5,000+.
