Description
Billet Aluminum Magnetic Fuel Cap + DEF Cap Set for 2013+ Ram Cummins Diesel
Replace your Ram's fragile OEM plastic fuel and DEF caps with this CNC-machined billet aluminum upgrade set. Designed for 2013 and newer Ram 2500/3500/4500/5500 trucks with the 6.7L Cummins Turbo Diesel or 3.0L EcoDiesel engines. The magnetic fuel cap with dual O-ring sealing and anodized finish provides lasting durability and convenience that the factory plastic caps simply cannot match.
Compatibility
| Year Range |
Make |
Models |
Engine |
| 2013-Present |
Ram |
2500, 3500, 4500, 5500 |
6.7L Cummins Turbo Diesel |
| 2014-Present |
Ram |
1500 |
3.0L EcoDiesel V6 |
Key Features
-
CNC-Machined Billet Aluminum: Precision-cut from solid 6061-T6 aluminum billet — dramatically more durable than the factory plastic caps that crack, strip, or break. The anodized finish resists corrosion, UV fading, and chemical exposure from diesel fuel and DEF fluid.
-
Integrated Neodymium Magnet: The fuel cap features a powerful neodymium magnet embedded in the base. When refueling, simply place the cap against the steel fuel door — the magnet holds it securely in place. No more dangling cap scratching your paint or falling into the dirt.
-
Dual O-Ring Sealing System: Two high-quality O-rings create a superior seal compared to the single-gasket factory design. Prevents fuel vapor escape, keeps dirt and moisture out of the fuel system, and maintains proper tank pressure — especially important during off-road use.
-

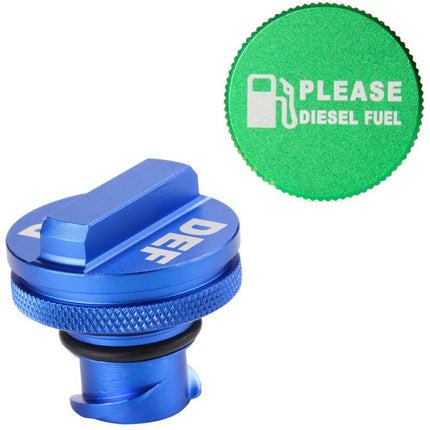

Complete Set — Green Fuel Cap + Blue DEF Cap: Includes both the green diesel fuel cap and the blue DEF (Diesel Exhaust Fluid) cap. Consistent billet aluminum construction and color coding for both fill ports.
-
Anodized Color Coding: The green fuel cap and blue DEF cap are color-matched to industry standards for easy identification and a clean, custom appearance on your truck.
-
Tool-Free Installation: Remove the old factory plastic caps from their tethers and thread on the new billet caps. Installation takes seconds — no tools, no modifications.
Technical Specifications
| Material |
CNC-machined billet aluminum 6061-T6 |
| Finish |
Anodized (Green = Fuel, Blue = DEF) |
| Sealing System |
Dual O-ring (fuel cap and DEF cap) |
| Magnet |
Neodymium rare-earth magnet (fuel cap only) |
| Includes |
Green anodized fuel cap + Blue anodized DEF cap |
| Fitment |
2013+ Ram 6.7L Cummins; 2014+ Ram 3.0L EcoDiesel |
Installation Guide
-
Remove Old Fuel Cap: Unscrew the factory plastic fuel cap from the filler neck. If tethered, cut the tether or disconnect it from the cap.
-
Inspect Filler Neck: Check the filler neck opening for debris, corrosion, or damage. Clean the sealing surface as needed.
-
Install New Fuel Cap: Thread the green billet aluminum fuel cap onto the filler neck. Hand-tighten until the O-rings are fully seated — do not over-tighten. The O-ring seal, not thread torque, creates the seal.
-
Repeat for DEF Cap: Follow the same procedure for the blue billet aluminum DEF cap on the DEF fill port.
-
Test Magnetic Hold: Verify the fuel cap's magnet holds securely against the steel fuel door during refueling.
FAQ
Q: Will these caps fit my 2013+ Ram Cummins?
A: Yes. Both caps are designed as direct replacements for 2013 and newer Ram 2500/3500/4500/5500 trucks with the 6.7L Cummins Turbo Diesel, and 2014+ Ram 1500 EcoDiesel with the 3.0L V6 engine.
Q: What makes the magnetic feature useful?
A: The neodymium magnet in the fuel cap holds it against the steel fuel door while refueling. This prevents the cap from dangling on its tether (scratching paint), falling into dirt or snow (contaminating the seal), or getting lost. Simple convenience that becomes essential once you've used it.
Q: How does the dual O-ring seal compare to the factory cap?
A: The dual O-ring design provides a redundant seal — if one O-ring degrades, the second maintains tank pressure and prevents fuel vapor escape. The factory cap uses a single gasket. This is particularly valuable for off-road use where dust and moisture ingress are constant concerns.
Q: Will the anodized finish fade or corrode?
A: No. The anodized aluminum finish is chemically bonded to the metal surface — it will not peel, fade, or corrode even after years of exposure to diesel fuel, DEF fluid, UV radiation, and road chemicals.
Q: Is this compatible with aftermarket locking fuel caps?
A: This is a replacement fuel cap — not a locking cap. If you need a locking cap for theft prevention, this set is not designed for that purpose. It replaces the factory non-locking caps with a more durable billet aluminum alternative.
Why Choose iFJF?
-
Billet Over Plastic: The factory plastic caps are a known weak point — they crack, strip, and eventually fail. Our CNC-machined billet aluminum caps are built to outlast the truck.
-
Attention to Detail: From the neodymium magnet to the dual O-ring seals to the color-matched anodizing, every feature is designed with real-world diesel ownership in mind.
-
Factory Direct Value: Premium billet aluminum construction at a price point competitive with plastic factory replacements from the dealer.
-
US Stock & Fast Shipping: Ships from our US warehouses. Typical delivery: 3-5 business days.
-
Support: Contact support@ifjf.net with any fitment questions.
