Billet Aluminum Door Cable Repair Kit for Ford Trucks — Permanent Fix for Broken Door Cables
Fix broken door cables permanently with this CNC-machined billet aluminum repair kit. Fits 1992-2013 Ford F-Series, E-Series vans, Ranger, Expedition, Excursion, Explorer, and Lincoln Navigator. The kit repairs two complete door cables with four billet aluminum ends — replacing the brittle OEM plastic ends that are notorious for snapping and leaving you locked out or unable to open your door from the inside.
Compatibility
| Make |
Model |
Year Range |
| Ford |
F-Series (F-150, F-250, F-350) |
1992-2013 |
| Ford |
E-Series Vans (all models) |
1992-2013 |
| Ford |
Ranger |
1992-2013 |
| Ford |
Expedition |
1997-2003 |
| Ford |
Excursion |
2000-2005 |
| Ford |
Explorer (rear tailgate glass/door) |
2003-2005 |
| Lincoln |
Navigator |
1998-2002 |
| Mazda |
B-Series Trucks |
1997-2004 |
Key Features
-
CNC-Machined Billet Aluminum 6061-T6: Precision-cut from solid aircraft-grade aluminum billet — infinitely more durable than the OEM plastic cable ends that become brittle over time. These ends will not crack, snap, or degrade with age.
-
Replaces OEM F2UZ-15266A46-A: Direct functional replacement for the factory cable end design. No modification to the door latch or cable required — the billet ends fit the existing cable and latch mechanism.
-

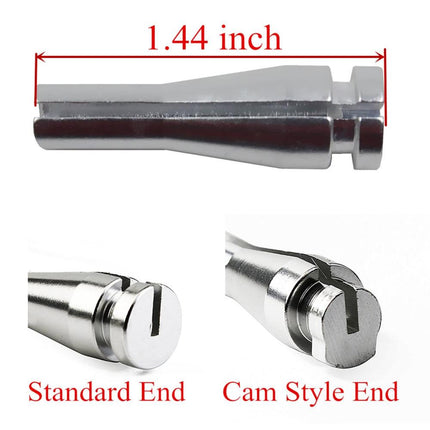

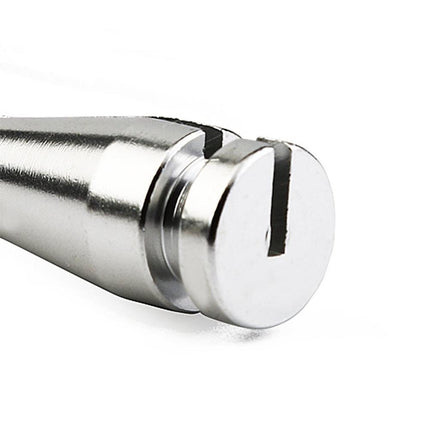

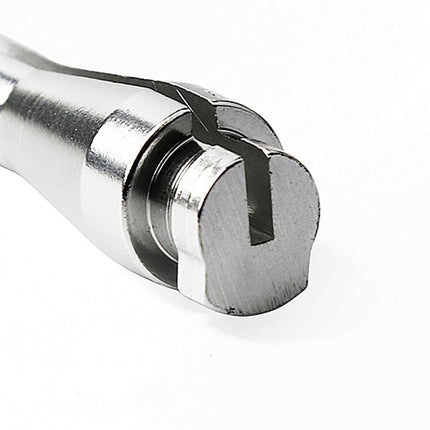

Complete Kit for Two Cables: Contains 3 standard ends and 1 cam-style locking end. The cam-style end eliminates the need to bend the cable bracket into place during installation — a clever design improvement over the OEM system.
-
Fixes All Door Types: Works on front doors, rear doors, cargo doors, liftgates, suicide doors, tailgates, and rear hatches. Any door on a compatible Ford vehicle that uses cable-actuated latches.
-
Quick Installation: Installs in minutes with basic hand tools. Numerous installation videos are available online showing the step-by-step process. No special tools or professional mechanic required.
Technical Specifications
| Material |
CNC-machined billet aluminum 6061-T6 |
| OEM Reference |
F2UZ-15266A46-A |
| Package Contents |
3 × Standard cable ends, 1 × Cam-style locking end |
| Cable Capacity |
Repairs 2 door cables (4 ends total) |
| Compatible Cable Types |
Door latch cables, cargo door cables, liftgate cables, tailgate cables |
Why Ford Door Cables Fail
Ford used plastic cable ends on virtually all their door latch cables from 1992 through 2013. These plastic ends live in one of the harshest environments in the vehicle — inside the door, exposed to extreme temperature swings (from below freezing to well over 140°F in summer sun), moisture, and constant mechanical stress every time the door is opened. Over years of use, the plastic becomes brittle, develops micro-cracks, and eventually snaps — usually at the worst possible moment when you need to get in or out of the truck. This billet aluminum kit eliminates the failure point entirely.
Installation Guide
-
Remove Door Panel: Carefully remove the interior door panel to access the latch mechanism and cable. Most Ford models use screw fasteners around the perimeter and plastic push-pins.
-
Locate Broken Cable End: Identify the broken plastic cable end — it will typically be found disconnected from the latch mechanism or still attached but cracked.
-
Remove Old Cable End: If the old end is still partially attached, remove it. Clean the cable end to ensure a secure fit for the new billet end.
-
Install Standard End: Slide the cable into the standard billet aluminum end. Secure it according to the kit design.
-

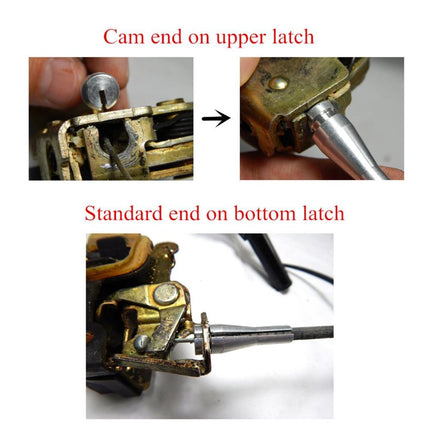

Install Cam-Style End: For applications where cable bracket bending would otherwise be required, use the cam-style locking end. This unique design allows installation without bending — preserving the bracket and simplifying the process.
-
Reconnect to Latch: Attach the repaired cable end to the door latch mechanism. Verify smooth operation before reinstalling the door panel.
-
Reinstall Door Panel: Replace the door panel, ensuring all clips and screws are secure. Test door operation from both inside and outside handles.
FAQ
Q: Will this kit fix all my Ford's broken door cables?
A: This kit contains 4 ends — enough to repair 2 complete door cables. If multiple doors have failed cables, purchase additional kits. The standard configuration repairs one door (2 cables) with the 3 standard and 1 cam-style end.
Q: How do I know if my cable ends are about to fail?
A: Warning signs include: increasing resistance when pulling the interior door handle, a handle that feels loose or travels further than normal before engaging, and visible cracks in the plastic cable ends when the door panel is removed. If your door handle feels different than it used to, inspect the cable ends before they fail completely.
Q: What's the advantage of the cam-style end?
A: The OEM plastic design sometimes requires bending the cable bracket to achieve proper alignment during installation. The cam-style locking end eliminates this step — it locks into place without bracket bending, making installation faster and reducing the risk of bracket damage.
Q: Does this work on the rear tailgate of my Explorer?
A: Yes. The kit is compatible with rear tailgate glass and door cables on 2003-2005 Ford Explorers, in addition to all standard door applications on the listed vehicles.
Why Choose iFJF?
-
Permanent Solution: Unlike OEM replacement cables that will fail again (same plastic ends, same problem), our billet aluminum ends fix the root cause permanently.
-
Precision Manufacturing: Every end is CNC-machined to tight tolerances from certified 6061-T6 aluminum billet — not cast, not stamped, not molded.
-
Cost-Effective: Repair your existing cables for a fraction of what a shop charges for complete cable assembly replacement — and with a more durable result.
-
US Stock & Fast Shipping: Products ship from our US warehouses. Typical delivery: 3-5 business days.
-
Installation Support: Contact support@ifjf.net for technical assistance. Many installation videos are available online.
