Description
Heavy-Duty Oil Protection for Big-Bore Cummins Engines

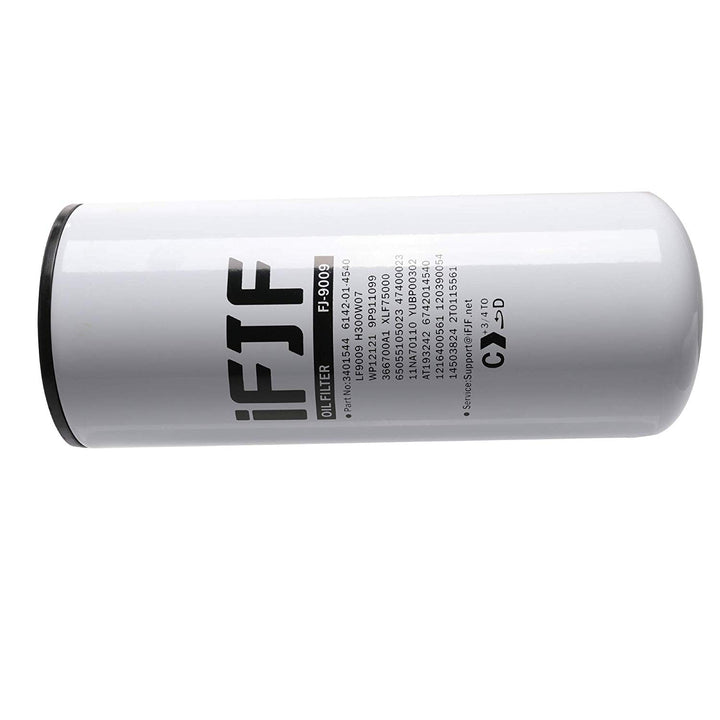

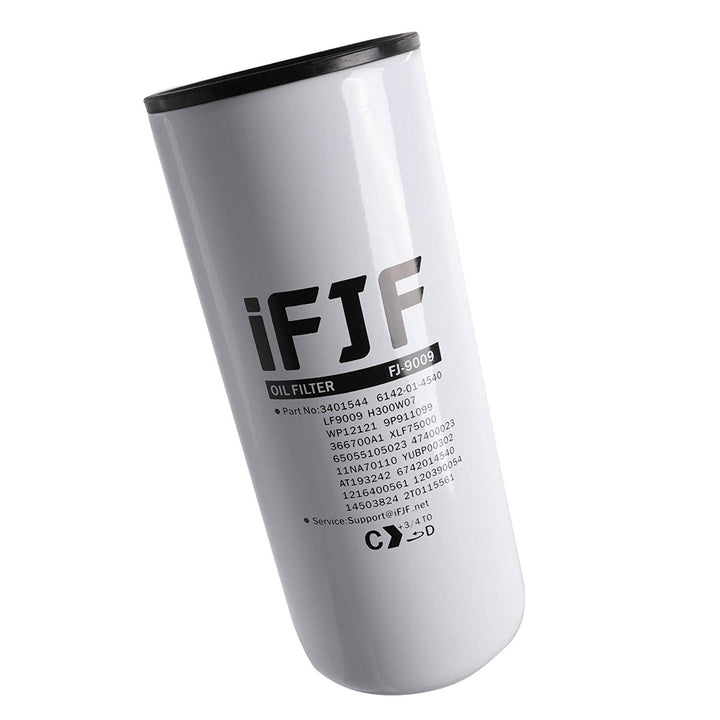

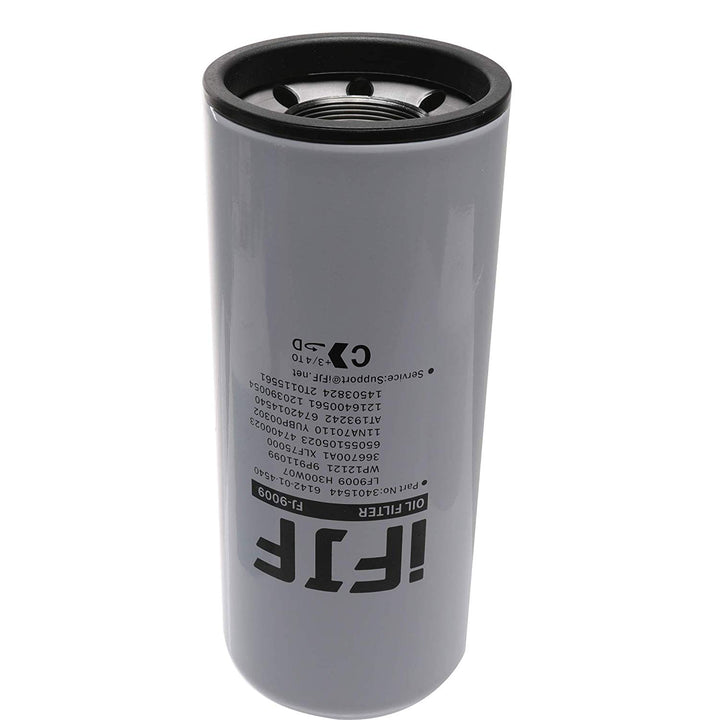

The LF9009 spin-on oil filter is built for the high oil volume and pressure demands of Cummins mid-range and heavy-duty diesel engines — ISC 8.3L, ISL/QSL 9.0L, ISM, N14, and M11 series. These engines power Class 8 trucks, motorhomes, marine vessels, and industrial equipment where engine reliability means everything. Our replacement filter delivers OEM-spec filtration at a competitive price.
Engine Protection You Can Count On
Big-bore diesels move 10-15 gallons of oil through the filter every minute at operating RPM. Any compromise in filtration quality means abrasive wear on main bearings, rod bearings, cam lobes, and turbocharger bearings. The LF9009 uses high-capacity cellulose/synthetic blend media to maintain flow while capturing particles down to 20 microns — the critical size range for bearing damage.
Compatibility
| Engine Series |
Displacement |
Common Applications |
| Cummins ISC |
8.3L I6 |
Class 6-7 trucks, buses, motorhomes, fire trucks |
| Cummins ISL / QSL |
8.9L I6 |
Class 7-8 trucks, motorhomes, marine propulsion |
| Cummins ISM |
10.8L I6 |
Class 8 trucks, construction, marine |
| Cummins N14 |
14.0L I6 |
Class 8 trucks, heavy equipment (1991-2000) |
| Cummins M11 |
10.8L I6 |
Class 8 trucks, industrial (1994-1998) |
Cross-Reference Part Numbers: Fleetguard LF9009, Cummins 3401544, Donaldson XLF75000, Baldwin B96
Specifications
| Specification |
Detail |
| Type |
Spin-on full-flow lube oil filter — heavy-duty canister |
| Micron Rating |
20 micron nominal — ≥95% efficiency |
| Thread Size |

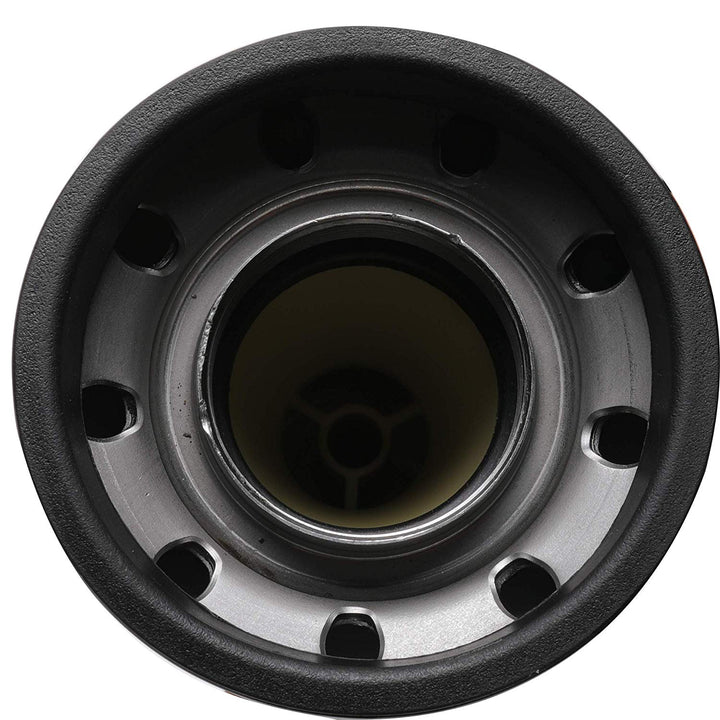

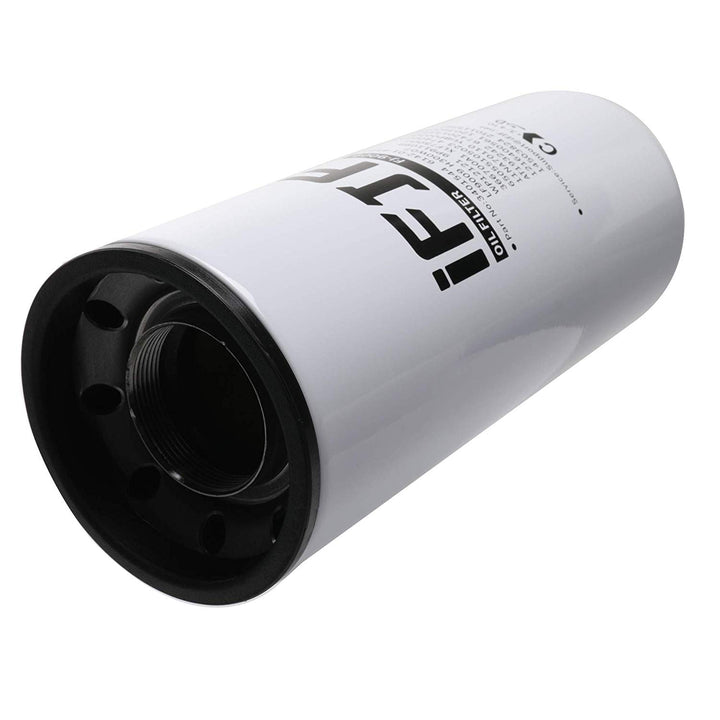

1-1/2"-16 UNF — standard Cummins heavy-duty thread |
| Anti-Drain Back Valve |
Yes — silicone valve for instant oil pressure on cold start |
| Bypass Valve |
Yes — calibrated pressure relief for cold start protection |
| Canister |
Heavy-gauge steel — burst pressure exceeds 600 PSI |
| Gasket |
Pre-lubricated high-temperature nitrile |
Installation Tips
-
Drain oil completely — Engine warm, drain plug out, allow 15+ minutes for full drain
-
Clean the filter mounting surface — Remove all old gasket material and oil residue
-
Pre-fill the new filter — Pour clean oil into the center hole until the media is saturated (takes about 1 quart for LF9009-sized filters)
-
Lubricate the gasket — A thin film of clean oil on the rubber seal
-
Spin on until gasket contacts — Then 3/4 to 1 full turn by hand. Do NOT use a filter wrench to install
-
Start engine and check for leaks — Verify oil pressure rises within 5 seconds
Why Choose iFJF?
-
OEM-spec filtration — Matches Fleetguard LF9009 performance and flow characteristics
-
Heavy-duty canister — Built for 600+ PSI burst pressure — handles cold-start oil pressure spikes
-
Silicone anti-drain valve — Maintains flexibility from -40°F to 300°F
-
Pre-lubed gasket — No dry gasket leaks, easy spin-off at the next change
-
Proven fit — Used in fleet maintenance programs across North America
Frequently Asked Questions
Q: What's the recommended oil change interval for ISC/ISL engines?
A: Cummins recommends 15,000-25,000 miles depending on duty cycle and oil type. Severe service (heavy towing, high idle time, dusty conditions) calls for the shorter interval. Always follow your engine manufacturer's maintenance schedule.
Q: Do I need to pre-fill the filter before installation?
A: Yes — highly recommended for large filters like the LF9009. Pre-filling prevents the engine from running without oil pressure during the few seconds it takes to fill the filter canister. This is critical for turbocharger protection.
Q: Is this the correct filter for my N14 Cummins?
A: Yes — the LF9009 is the standard oil filter for all N14 and M11 engines. It also fits ISC, ISL, and QSL series engines.
Q: Can I use this on a Caterpillar engine?
A: No. This filter has a 1-1/2"-16 thread pattern designed for Cummins engines. Caterpillar engines use different thread sizes and gasket diameters. Cross-referencing to non-Cummins engines is not recommended.
Q: What's the difference between LF9009 and LF9001?
A: The LF9009 is a full-flow filter (filters all oil every pass). The LF9001 is a bypass filter (filters a small portion of oil to a finer micron rating). These are different filter types and are not interchangeable.
