Description
Product Overview
The iFJF Complete Portable Marine Fuel System combines a 12L (3 Gallon) HDPE fuel tank with a 10 ft 5/16" fuel line hose kit and primer bulb — everything you need to get fuel from the tank to your outboard in one package. Pre-assembled quick-connect ends plug directly into Mercury, Yamaha, Johnson, Evinrude, and OMC outboards from 4 hp to 200 hp. No trips to the marine supply store for separate fittings.

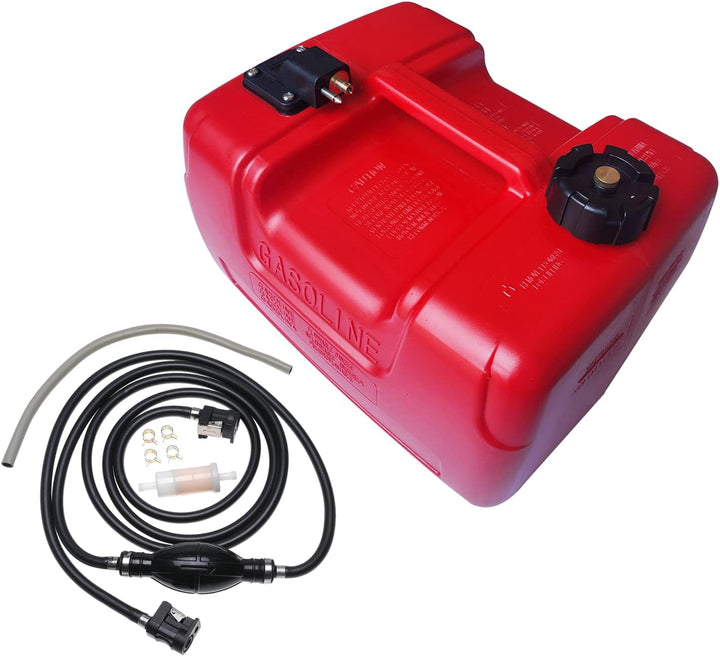

What's Included
-

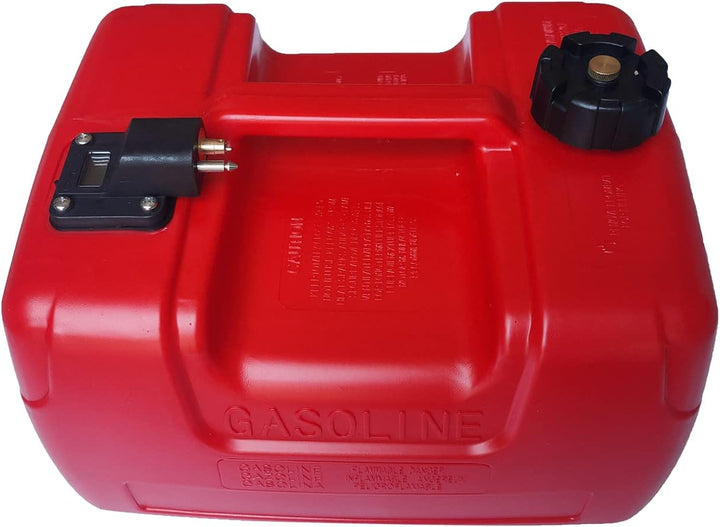

1 × 12L (3 Gallon) Portable Marine Fuel Tank — Red HDPE, rectangular 14.4" × 11.4" × 9.8" with integrated pressure-balancing vent cap
-
1 × 5/16" Fuel Line Hose (10 ft) — Rubber construction with UV/ozone/alcohol-resistant formulation, stays flexible in cold and won't collapse in heat
-
1 × Primer Bulb with Built-In Check Valve — Directional arrows marked on body, quick prime with 3–4 squeezes even after long storage
-
Pre-Installed Marine Quick-Connect Fittings — Clip-on connections at both ends, compatible with Mercury/Quicksilver and Yamaha standard fittings
Key Features
-
Complete Out-of-the-Box System — Tank + hose + primer bulb + connectors. Open the box, fill with fuel, connect to your outboard, and you're running in under 5 minutes.
-
12L Tank with Multi-Brand Compatibility — Works with Mercury/Mariner 4–200 hp (1990+), Yamaha 4–200 hp (1988–1998), Johnson/Evinrude/OMC 4–200 hp, and Tohatsu/Nissan Marine 4–140 hp.
-
10 ft Premium Fuel Line — Longer than the typical 6 ft kit — gives you flexibility to place the tank anywhere in the boat. Rated for ethanol-blended fuels and marine alcohol-enhanced gasoline.
-
Built-In Check Valve Primer Bulb — One-way check valve prevents fuel backflow, keeps the line primed between uses, and eliminates air-lock restarts.
-
OEM Cross-Reference Coverage — Replaces Mercury/Mariner 32-858104K08, 32-858104Q08; Yamaha 6Y1-24306-00/05/51/52/53/54; fits Johnson/Evinrude/OMC equivalent part numbers.
Compatibility
| Brand |
Engine Type |
HP Range |
Model Years |
OEM Part # |
| Mercury / Mariner |
4-Stroke & 2-Stroke |
4 hp – 200 hp |
1990 – Present |
32-858104K08, 32-858104Q08 |
| Yamaha |
4-Stroke & 2-Stroke |
4 hp – 200 hp |
1988 – 1998 |
6Y1-24306-00, 6Y1-24306-05 |
| Johnson / Evinrude |
2-Stroke |
4 hp – 200 hp |
All Years |
— |
| OMC |
2-Stroke |
4 hp – 200 hp |
All Years |
— |
| Tohatsu / Nissan Marine |
4-Stroke & 2-Stroke |
4 hp – 140 hp |
1990 – Present |
— |
Specifications
| Component |
Spec |
Value |
| Tank |
Capacity |
12 Liters / 3.17 Gallons |
| Tank |
Material |
High-Density Polyethylene (HDPE) |
| Tank |
Dimensions |

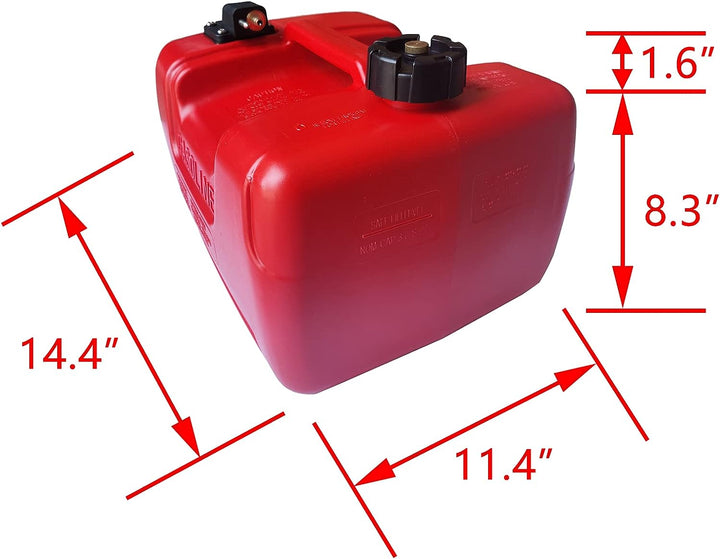

14.4" L × 11.4" W × 9.8" H |
| Fuel Line |
Diameter |
5/16" ID |
| Fuel Line |
Length |
10 ft (3.05 m) |
| Fuel Line |
Material |
Rubber with UV/Ozone/Alcohol resistance |
| Primer Bulb |
Feature |
Built-in one-way check valve |
| Fuel Compatibility |
— |
Gasoline, E10 Ethanol-Blend, Diesel |
| SKU |
— |
FJ-YT01-12-ZH |
Why Choose iFJF
Most budget fuel line kits use thin-walled hose that kinks in cold weather and cracks after one season of UV. Our 5/16" line is sourced from the same rubber compound used by major OEM suppliers — it stays pliable down to -20°F and resists swelling from ethanol-blended fuels. Combined with a pressure-tested HDPE tank, this kit is built for multi-season reliability. iFJF Direct ships from US warehouses with trackable delivery and real customer support — not just a drop-ship tracking number.
Frequently Asked Questions
Q: Does this kit include everything I need to connect my outboard?
A: Yes — tank, 10 ft fuel line, primer bulb, and pre-installed marine quick-connect fittings at both ends. Fill the tank, clip onto your outboard's fuel inlet, prime the bulb 3–4 times, and start up.
Q: What's the difference between this combo and buying the tank alone?
A: The standalone tank is just the tank — you supply your own fuel line. This combo saves you the hassle of sourcing compatible hose, fittings, and a primer bulb separately.
Q: Will the fuel line fit my older 1988 Yamaha outboard?
A: Yes. The quick-connect fittings are compatible with Yamaha outboards from 1988–1998. For 1999+ Yamahas, you may need an adapter fitting (the tank-side connector is standard Yamaha pattern).
Q: How do I know which direction the primer bulb goes?
A: The bulb body has a raised arrow indicating fuel flow direction. Point the arrow toward the engine side. The built-in check valve ensures fuel only flows one way — install it backwards and you'll feel resistance when squeezing.
Q: Can I run diesel through this system for a diesel heater?
A: The tank and fuel line are both diesel-compatible. However, if you're installing a diesel heater in a camper van or RV, we recommend reading our DIY ABS Diesel Tank guide for a permanent under-van installation — it's purpose-built for that application.
Q: Is the 10 ft hose long enough for my boat?
A: For most small boats (jon boats, aluminum fishing boats, inflatables under 16 ft), 10 ft is ample. Place the tank near the transom and route the line along the gunwale. If you need longer reach, standard 5/16" marine fuel line extensions are available at any marine supply store.
Q: What cross-reference part numbers does this replace?
A: Mercury/Mariner 32-858104K08, 32-858104Q08; Yamaha 6Y1-24306-00, 6Y1-24306-05, 6Y1-24306-51, 6Y1-24306-52, 6Y1-24306-53, 6Y1-24306-54, 6YL-24306-53, 6YL-24306-54. Also fits Johnson/Evinrude/OMC equivalent assemblies.
