Description

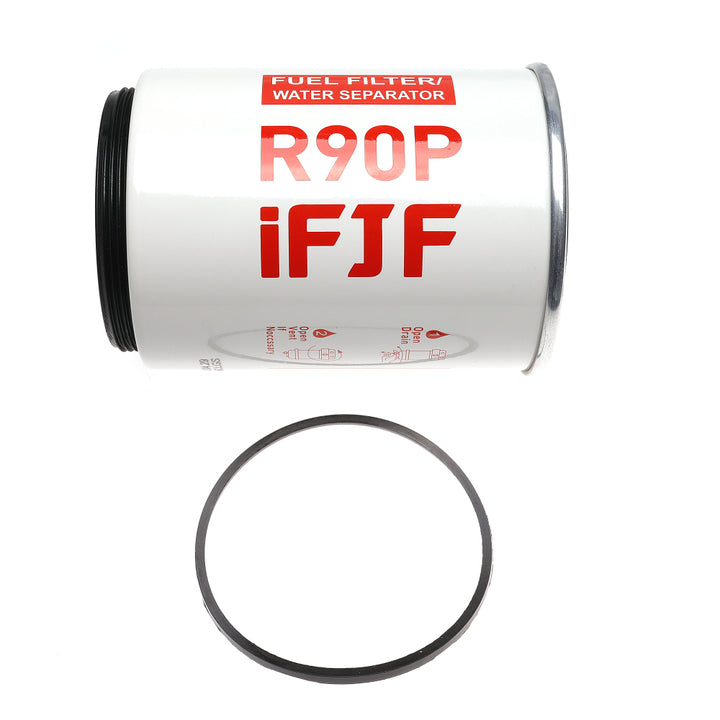

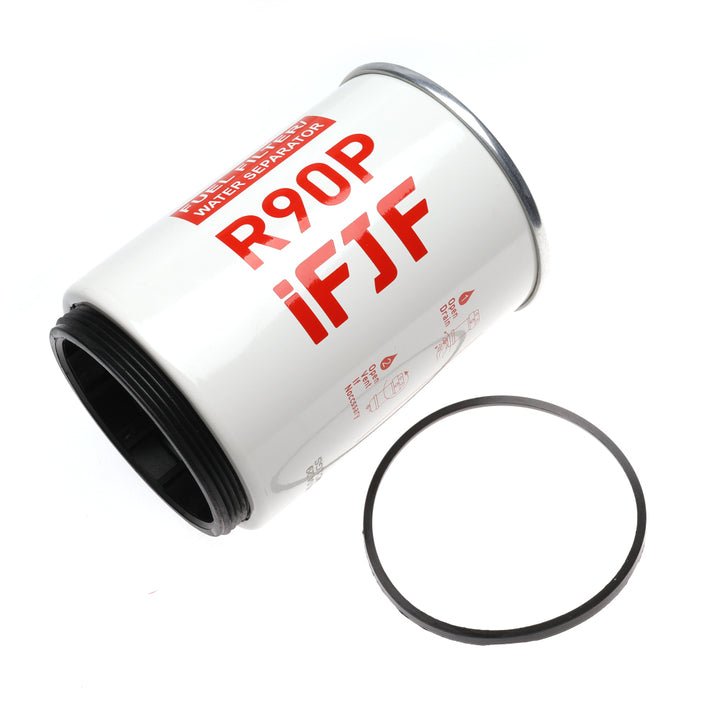

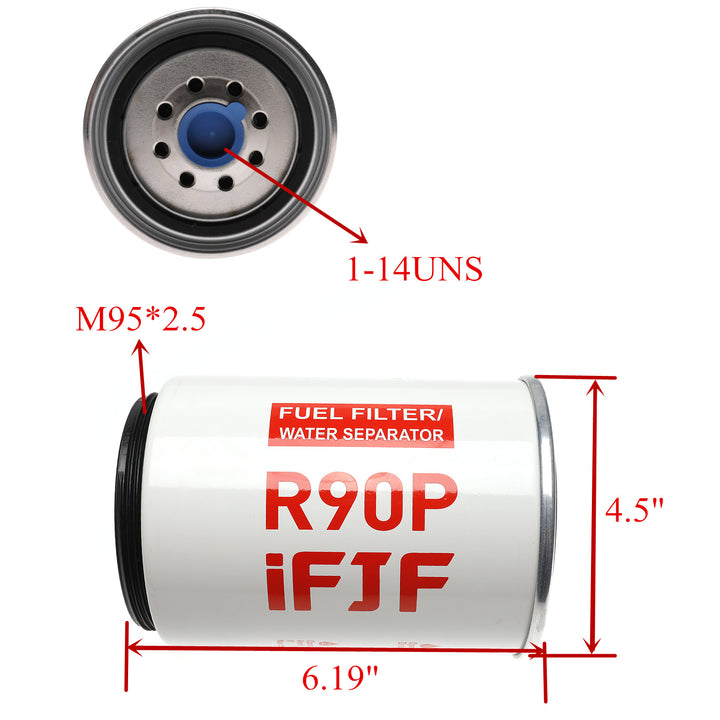

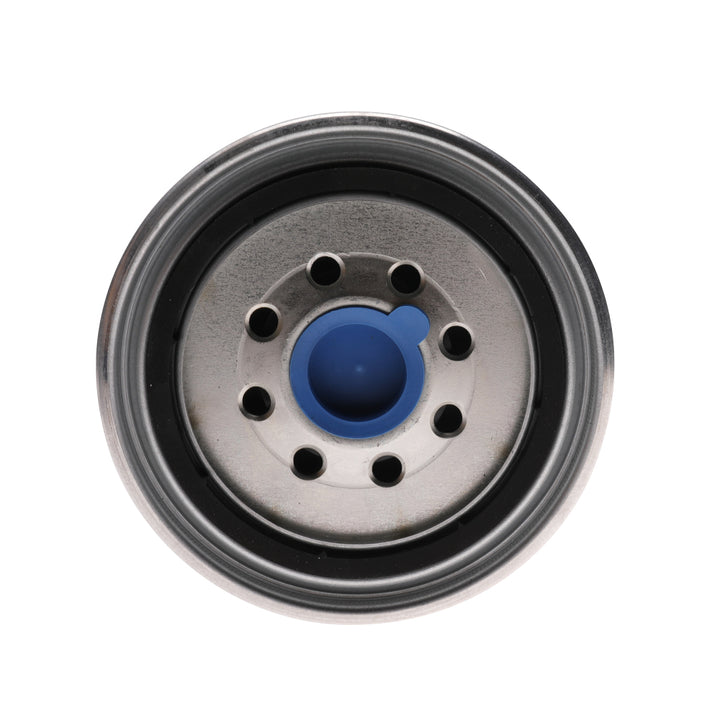

R90P Fuel Filter Water Separator Spin-On Element — 30 Micron for 790R / 690R / 490R Series
Product Overview
The iFJF R90P is a 30-micron spin-on fuel filter water separator element designed as a direct replacement for the 790R, 690R, 490R, and RC390 series filter assemblies. This high-capacity filter element provides primary fuel filtration and water separation for diesel engines in marine, agricultural, and industrial equipment applications.
Engineered to meet or exceed OEM specifications, the R90P uses premium filtration media that effectively removes solid contaminants and separates emulsified water from diesel fuel. The 30-micron rating provides the ideal balance of flow rate and particle capture for primary (pre-pump) filtration systems. Replaces OEM part numbers 8159975 and FS19521.
Key Features
-
30-Micron Primary Filtration: Optimal micron rating for pre-pump fuel filtration — captures harmful particles while maintaining full fuel flow.
-
Water Separation Media: Specialized filter media repels water droplets, causing them to coalesce and settle in the collection bowl.
-
Spin-On Design: Tool-free element changes — simply spin off the old element and spin on the new one.
-
OEM Cross-Reference: Replaces 8159975, FS19521, and equivalent 790R/690R/490R series elements.
-
High Dirt-Holding Capacity: Extended service life compared to standard elements — ideal for high-hour commercial and agricultural operations.
Compatibility
| Filter Assembly Series |
OEM Part Numbers |
| 790R Series |
8159975, FS19521 |
| 690R Series |
8159975, FS19521 |
| 490R Series |
8159975, FS19521 |
| RC390 Series |
8159975, FS19521 |
Specifications
| Specification |
Value |
| Micron Rating |
30 Micron (Nominal) |
| Filter Type |
Spin-On Canister with Water Separation |
| OEM Cross-Reference |
8159975, FS19521 |
| Media Type |
High-Capacity Cellulose with Water-Repellent Treatment |
Frequently Asked Questions
Q: How often should I replace this filter element?
A: Replace every 200-250 engine hours or annually, whichever comes first. In dusty or high-contamination environments, replace more frequently. Watch for reduced fuel flow or increased vacuum gauge readings as replacement indicators.
Q: Is 30 micron fine enough for my engine?
A: Yes. The R90P is a primary filter — it's designed to protect the fuel pump and act as the first stage of filtration. Most systems use a secondary 2-10 micron filter downstream for final fuel polishing before the injection system.
Q: Can I use this on a gasoline engine?
A: While technically compatible with gasoline, the 30-micron rating and water separation features are optimized for diesel fuel systems. For gasoline, a standard 10-micron marine filter is typically recommended.

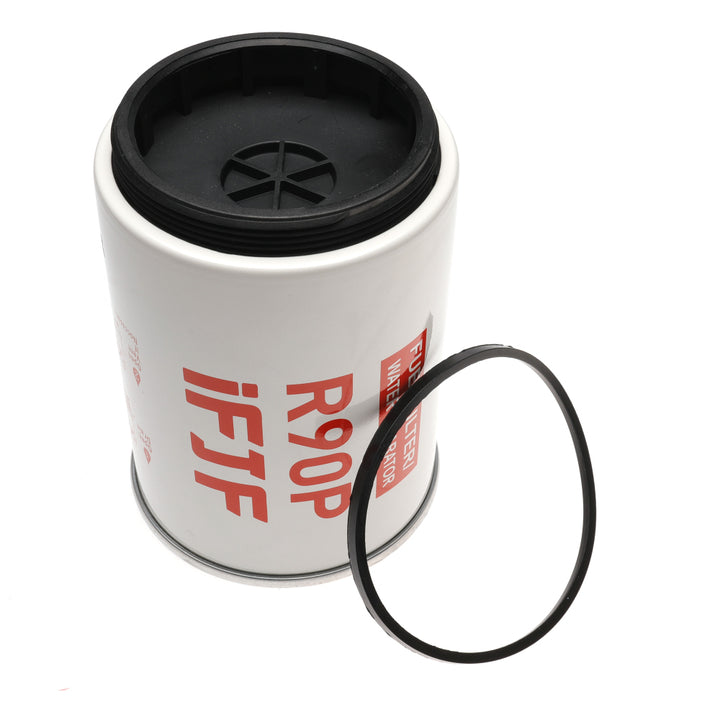

Q: Does it come with a new O-ring?
A: Yes, the spin-on element includes a pre-lubricated O-ring seal on the base plate. Always wet the O-ring with clean diesel before installation to ensure a proper seal.
