Wi-Fi Smart Oil Tank Meter/Gauge for 275 330 Gallon Fuel Tank and 500 550 1000 Gallon Cylinder Fuel Oil Tank, Only Support 2.4Ghz

$71.99 $59.99 SAVE 17%
Add to WishlistCompare

american expressjcbmasterpaypalvisa
Ask a Question
SKU: FJ-OG01
Availability : In Stock Pre order Out of stock
Categories: Feature Product

About this item

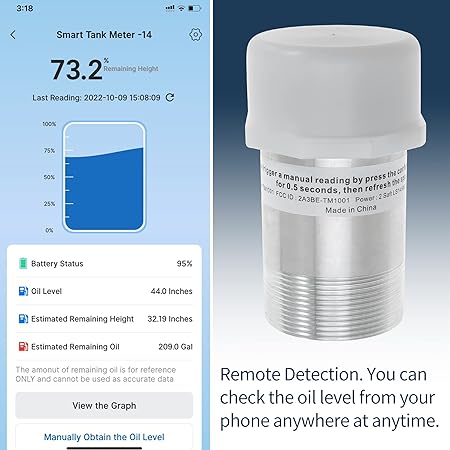

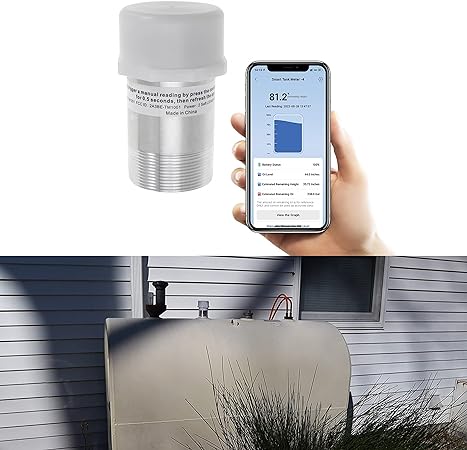

  • The Smart Tank Meter is designed to monitor the fuel oil level and oil volume changes of your fuel tank in real time, and remind you to fill up in time, make your life more convenient
  • Function: Allow remote monitoring of the amount of oil in an oil tank; Track your heating oil usage; Adjust the thermostat to save heating oil
  • Package comes with an oil tank gauge with user manual
  • Tools required: A pipe wrench, a pipe thread sealant, 2 LS14500 3.6V AA batteries, a brush and a mop (These 5 tools are not included in the package, which need to be purchased by yourself）
  • Note: Your wireless network must support 2.4Ghz WiFi Legacy mode

Suitable for Various Sizes of Fuel Tanks

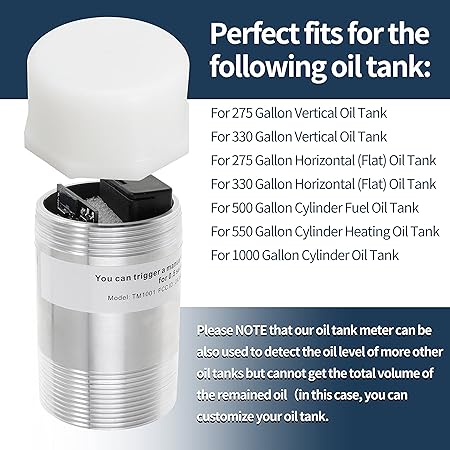

Perfect fits for the following oil tank:

  • For 275 or 330 Gallon Vertical Oil Tank
  • For 275 or 330 Gallon Horizontal (Flat) Oil Tank
  • For 500 Gallon Cylinder Fuel Oil Tank
  • For 550 Gallon Cylinder Heating Oil Tank
  • For 1000 Gallon Cylinder Oil Tank

Please NOTE that our oil tank meter can be also used to detect the oil level of more other oil tanks but cannot get the total volume of the remained oil（in this case, you can customize your oil tank

Notifications

  • You can set a low battery notification to remind you that it's time to replace the battery to avoid stopping work.
  • You can set a notification for insufficient fuel tank capacity to remind you that it is time to add fuel to avoid running out of fuel.
  • You can view historical notifications to know the last time the battery was replaced and the last time the fuel was used up.

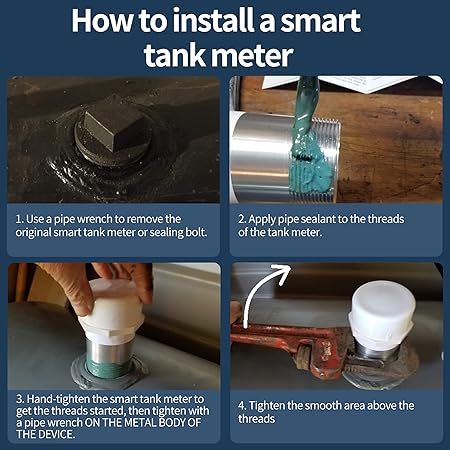

Apply Sealant to the Threads of the Tank Meter

Use a brush to apply sealant to the threads of the tank meter.

For outdoor installations, PTFE tape or other white sealing caps must be used to prevent the ingress of moisture. The expect oil level and consumption readings will vary as the temperature changes.

Note: Most tanks have 2" NPT fittings on top. For tanks with 1.5" fittings, an adapter is required, which needs to be purchased by yourself.

Apply Sealant to the Threads of the Tank Meter

After appling sealant, mount the tank meter vertically on the tank and use a pipe wrench to tighten the smooth area above the threads.

Put Batteries In

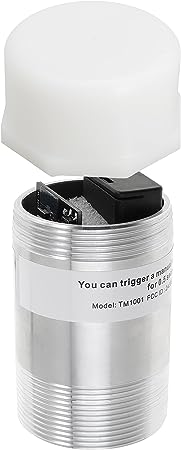

Unscrew the screw cap of the smart tank meter, take out the black box with the battery and install. After installation, there is a switch behind the box, turn OFF of the switch to ON.

Observe the indicator light on the panel, make sure the power is on to complete the configuration.

Note: The product does not support 5G networks.
