Briggs & Stratton 796184 Carburetor Rebuild Guide: Master Overhaul Kit for 11HP-19HP Intek Engines

July 28 2026, by iFJF Direct, 8 min reading time

Your Mower Cranked Fine Last Fall. Now It Will Not Even Cough.

Every spring, same story. The mower that ran perfect in November sits dead in the shed come April. You dump fresh gas in, yank the cord until your shoulder gives out, and nothing. Nine times out of ten, a gummed-up Nikki carburetor is the culprit — and a $30 rebuild kit beats a $200 shop bill every time.

The Briggs & Stratton 796184 Master Overhaul Kit is the fix. It covers everything from the float needle to the welch plugs for the Nikki twin-barrel carbs found on Intek OHV engines from 11HP all the way to 19HP. If your engine lives on a Craftsman, Husqvarna, John Deere, or Poulan Pro, this kit likely fits it.

What the 796184 Kit Includes (And What It Does Not)

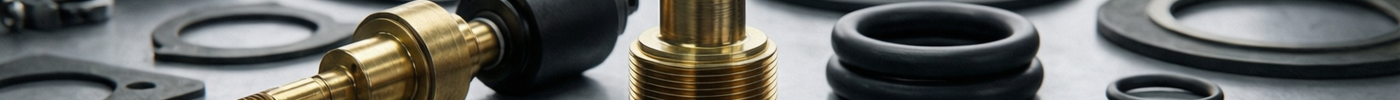

This is a complete kit, not a basic gasket set. Inside you get:

Float bowl O-ring — the #1 source of fuel leaks. Old ones shrink, crack, and dump gas onto a hot muffler.
Float needle and seat — the brass seat presses into the carb body. The viton-tipped needle seals against it. When this pair wears out, fuel overflows the bowl.
Float bowl gasket — seals the bowl to the carb body.
Idle mixture screw with O-ring — the old O-ring hardens over time, letting air sneak past and messing with your idle.
Welch plugs — small expansion plugs that seal off the factory-drilled passages. If you are doing a full ultrasonic clean, you need to replace these.
Throttle shaft seals — often overlooked. Worn seals let air bypass the throttle plate, causing a lean surge at mid-RPM.
Base gasket and mounting hardware — the gasket between the carb and intake manifold.

What is NOT included: the plastic idle speed screw, the fuel shutoff solenoid (if your carb has one), and the choke linkage. Those are separate parts — check yours before ordering.

Symptoms That Scream "Rebuild the Carb"

If your engine does any of these, the carb is suspect:

Only runs on choke. Classic sign of a clogged idle circuit. The engine needs the extra fuel from the choke just to stay alive.
Surges at full throttle. The main jet is partially blocked. The engine leans out, RPM drops, governor opens the throttle, RPM spikes, repeat.
Fuel dripping from the air filter. Float needle is not sealing. Could be debris, could be a worn needle tip.
Backfires through the carb. Lean condition — not enough fuel reaching the cylinder. Often accompanied by the engine quitting under load.
Will not start without starting fluid. The carb is so gummed up that fuel is not making it past the pilot circuit. Starting fluid is a diagnostic tool, not a lifestyle.

Step-by-Step Rebuild — Do It Right the First Time

Step 1: Pull the Carb and Tear It Down

Disconnect the fuel line and pinch it off. Remove the two mounting nuts (usually 10mm or 3/8"). Disconnect the choke and throttle linkages — take a photo first so you remember which hole each rod goes into. Unplug the fuel shutoff solenoid wire if equipped.

On the bench, remove the float bowl (one bolt in the center or four small screws, depending on Nikki variant). Dump out whatever is left in the bowl. If it looks like varnish or smells like turpentine, you found the problem.

Step 2: Clean — Actually Clean

Spray carb cleaner through every passage until it comes out clear somewhere else. If the passage is blocked, use a single strand of copper wire — never steel, never a drill bit. You scratch the bore, you ruin the airflow metering.

Remove the old welch plugs with a small punch. Clean underneath them — this is where the worst crud hides. Tap the new plugs in flush with a flat punch.

Step 3: Install the New Needle and Seat

Thread the old brass seat out with a wide flathead. Thread the new one in — snug it down but do not crank on it; it is brass threading into aluminum. Drop the new viton needle in, pointed end down. Install the float and check height: with the carb upside down and the float resting on the needle (but not compressing the spring), the float should sit parallel to the gasket surface. On most Nikki carbs, this is roughly 11/64" (4.3mm) gap.

Step 4: Reassemble and Set Mixture Screws

New bowl O-ring, new bowl gasket, bolt it back together snug but not tight. Install the new throttle shaft seals — a dab of light oil helps them slide in without tearing.

Before mounting back on the engine, bottom out the idle mixture screw gently, then back it out 1.5 turns. This is your baseline. Final adjustment happens with the engine running and warm.

Step 5: Mount, Prime, and Fire

Bolt the carb back on with the new base gasket. Reconnect linkages exactly as they were. Reconnect the fuel line and let the bowl fill for 30 seconds. Set the throttle to about 1/3 and crank. It should fire within 3-5 pulls.

Once warm, set the idle speed to about 1750 RPM (no-load, blade disengaged). Turn the mixture screw in slowly until RPM drops, then back out until RPM peaks, then another 1/8 turn out. That is your sweet spot.

Pro Tips from the Shop Floor

Ultrasonic cleaner if you have access. A 30-minute bath at 60°C with Simple Green HD will get passages cleaner than you ever will with a spray can. Remove all rubber and plastic first.
Check the fuel pump. Intek engines with the square-top pulse pump (mounted to the valve cover) are known for diaphragm failure. If fuel is not getting to the carb, the carb is not the problem.
Ethanol is your enemy. If the mower sits for more than 30 days, add fuel stabilizer or drain the system. Ethanol absorbs water, water causes corrosion, corrosion clogs the idle circuit.
Replace the spark plug while you are in there. A fouled plug from a rich-running carb will make your freshly rebuilt engine run like garbage. Champion RC12YC or NGK BKR5E for most Intek engines.

What This Kit Fits

The 796184 kit covers Nikki carburetors on these Briggs & Stratton Intek engine families:

11HP to 13HP Intek OHV (single cylinder, vertical shaft)
14HP to 17.5HP Intek OHV (single cylinder)
18HP to 19HP Intek OHV (twin cylinder — note: some 19HP twins used Walbro carbs, verify before ordering)

Common mower brands: Craftsman LT1000/LT2000/YTS, Husqvarna YTH, John Deere L/LA/D series, Poulan Pro, Murray, Snapper, Toro. If your engine model number starts with 31, 33, or 44, this kit is almost certainly the right one.

FAQ

How do I know if my carb is Nikki or Walbro?

Look at the side of the carb body. Nikki carbs have the Nikki logo cast into the aluminum or a part number starting with "6". Walbro carbs have a Walbro stamp and typically use a different float bowl design with a large plastic center nut. The 796184 kit fits Nikki only.

Can I just buy a new carb instead of rebuilding?

You can, and sometimes it makes sense. If the carb body is corroded internally or the throttle shaft bore is worn egg-shaped, a rebuild kit will not fix it. Replacement carbs for Intek engines run $60-120. The rebuild kit at $30 is worth trying first if the body is in decent shape.

What is the torque spec for the carb mounting nuts?

85-95 inch-pounds, which is about 7-8 ft-lbs. If you do not have an inch-pound torque wrench, snug plus 1/8 turn is close enough. Overtightening warps the flange.

My engine still surges after the rebuild. What now?

Check for vacuum leaks first — spray carb cleaner around the intake manifold and carb base while the engine is running. If RPM changes, you have a leak. Also check that the governor spring is in the correct hole on the governor arm. A misrouted spring will cause surging regardless of carb condition.

Does this kit work on the 20HP and larger Intek engines?

Generally no. The 20HP+ Intek twins used a larger Nikki carb with different gasket dimensions. Briggs part number for those kits is typically 796185 or 796187. Double-check your engine model against the Briggs parts lookup before ordering.
