Duramax NOx Sensor Replacement: 5WK96645H Downstream Sensor Fix — Fault Codes, Diagnosis & Install

Check engine light on. Code P2201 staring back at you from the scanner. Your LML or L5P Duramax just threw a NOx sensor circuit fault and now you're looking at a $400+ dealership quote. Take a breath. This is a driveway job if you've got a 22mm wrench and about 45 minutes.

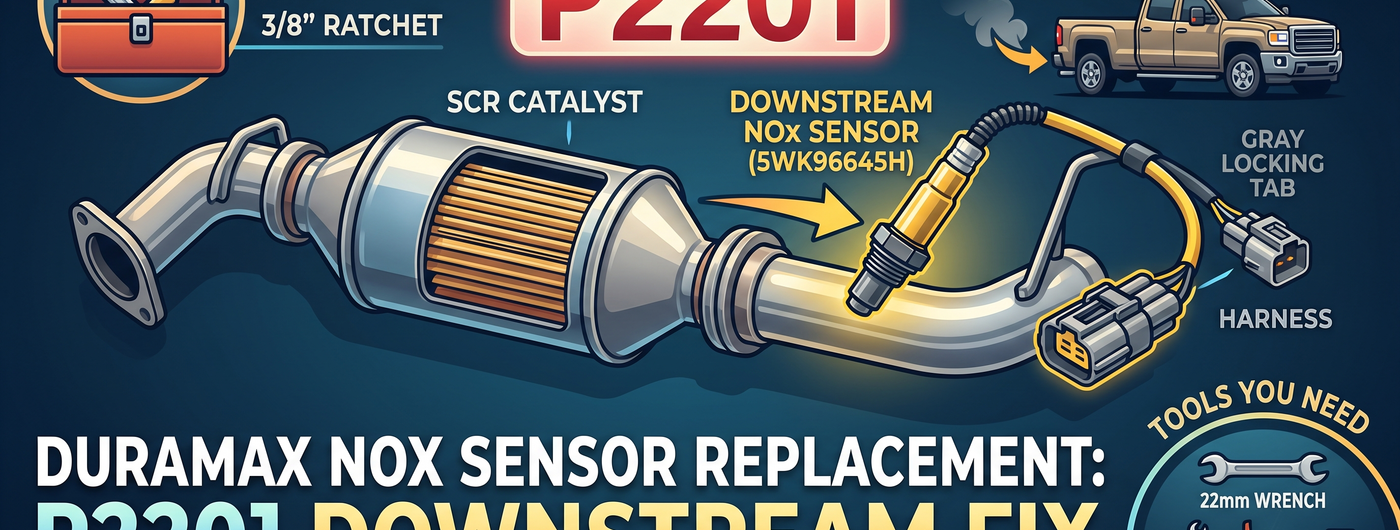

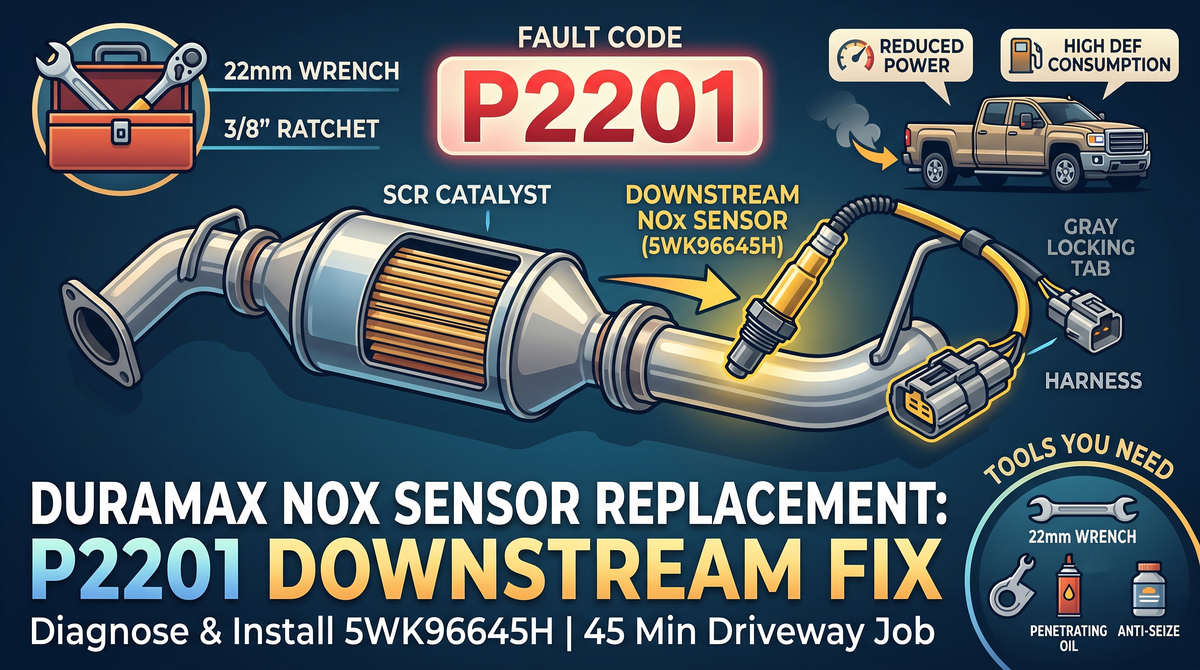

The 5WK96645H is the downstream NOx sensor — it lives behind the SCR catalyst, right after the DEF injection point. Its job is simple: tell the ECM whether the SCR system is actually cutting NOx like it's supposed to. When it lies (or quits entirely), your truck goes into reduced power mode and your DEF consumption goes haywire. Not fun on I-70 hauling 14,000 pounds.

Symptoms That Scream "Bad NOx Sensor"

Before you throw parts at it, make sure you're chasing the right problem. Here's what a failing downstream NOx sensor looks like on a Duramax:

DTC P2201, P2202, or P229F — NOx sensor circuit range/performance, bank 1 sensor 1 (downstream). These are the big three.
P20EE — SCR NOx catalyst efficiency below threshold. The downstream sensor reports bad numbers, ECM blames the SCR.
Reduced engine power / limp mode — Truck won't let you go over 55 mph. Rush hour with a trailer? Yeah, it's as bad as it sounds.
DEF consumption doubled — Bad downstream readings make the ECM dump extra DEF trying to compensate. You're burning through a 2.5-gallon tank in 400 miles instead of 2,000.
Rough idle after regen — The ECM can't verify SCR efficiency post-regen, so it starts messing with fuel trims.
Failed emissions test — If you're in a state that plugs into OBD-II, a pending NOx code is an automatic fail.

One dead giveaway: if you clear the code and it comes back within 50-75 miles, that sensor is toast. Intermittent codes that take 300+ miles to return might be a wiring issue. Don't skip the visual inspection.

Tools You'll Need

22mm open-end wrench or O2 sensor socket (the slotted kind — $12 at any parts store)
3/8" ratchet with short extension
Penetrating oil (Kroil or PB Blaster — WD-40 won't cut it on a heat-cycled exhaust sensor)
Flathead screwdriver (for the connector clip)
Anti-seize compound (nickel-based, NOT copper — copper anti-seize screws up sensor readings)
Torque wrench (inch-pounds)
OBD-II scanner capable of reading GM-enhanced codes (a basic $30 reader won't show you NOx sensor data)
Safety glasses and gloves (exhaust components bite)

Step-by-Step Replacement

Step 1: Kill the engine and let the exhaust cool for at least 45 minutes. The downstream sensor sits right behind the SCR brick — that thing holds heat like a pizza stone.

Step 2: Crawl under the passenger side, look up at the exhaust pipe just behind the DPF/SCR assembly. You'll see a single sensor threaded into the pipe at roughly the 2 o'clock position. That's your downstream NOx sensor.

Step 3: Unplug the connector. Push the gray locking tab with a flathead, then pull the connector straight back. Don't twist it — the pins inside are tiny and they'll bend if you look at them wrong.

Step 4: Hit the sensor base with penetrating oil. Let it soak 5-10 minutes. These sensors go through heat cycles from ambient to 1,200°F, and they weld themselves in place over time.

Step 5: Break it loose with the 22mm wrench. If it's fighting you, don't force it — apply more penetrant and wait. A snapped-off sensor means pulling the exhaust section. Nobody wants that.

Step 6: Once it's out, compare the old sensor to your new iFJF 5WK96645H. Thread pitch, connector orientation, sensor tip length — all should match.

Step 7: Put a tiny dab of nickel anti-seize on the threads — just the threads, nowhere near the sensor tip. If anti-seize gets on the sensing element, the sensor reads wrong and you're back under the truck in a week.

Step 8: Thread it in by hand first. These are fine-pitch threads and cross-threading is too easy with a wrench. Once it's finger-tight, torque to 35-40 ft-lbs. The factory spec says 33-37 ft-lbs but real-world experience says 40 is fine. Don't go past 45 — you'll crush the crush washer and the sensor won't seal.

Step 9: Reconnect the harness. You should hear a solid click when the locking tab engages. Give the connector a gentle tug to confirm it's seated.

Step 10: Clear the codes with your scanner. Start the engine and let it idle for 5 minutes. Watch live NOx sensor data — you should see voltage readings cycling normally (0.1V to 4.5V range on most Duramax controllers).

Pro Tips From the Shop Floor

Don't replace just one. If your downstream sensor failed, the upstream one probably isn't far behind. The upstream (pre-SCR) sensor sees even more abuse. They're not the same part number — upstream is 5WK96645G/H depending on year — but budget for both if the truck has over 120,000 miles.
Check your DEF quality. Bad or contaminated DEF will nuke a NOx sensor in 2,000 miles. If your replacement fails fast, drain the DEF tank and refill with fresh fluid. Old DEF crystallizes and ruins everything downstream.
Watch for exhaust leaks. A pinhole leak upstream of the sensor lets outside air in and screws with the oxygen reference. Your new sensor reads lean, ECM dumps fuel, and you're chasing your tail. Spray soapy water on the exhaust joints at cold startup — bubbles = leak.
Do a forced regen after install. New sensor, clean numbers. Let the ECM relearn by running a forced stationary regen with your scan tool. Takes about 25 minutes. Go grab a coffee.
Keep the old sensor. If it was just throwing intermittent codes and not dead-dead, it's a trail spare. Wrap it in a rag and toss it in the glovebox. You'll thank me at 2am in Bakersfield.

Common Mistakes That Cost You

Using a universal sensor. Don't. These are application-specific. Sensor heater resistance, CAN bus protocol, and calibration are matched to the Duramax ECM. A "compatible" sensor WILL throw codes.
Skipping the anti-seize. Next time that sensor needs to come out — and there will be a next time — you'll be fighting it with a breaker bar and a torch.
Not disconnecting the batteries. The NOx sensor controller stays powered for several minutes after key-off. Unplugging the sensor while the controller is live can fry the controller module — a $600 mistake.

Frequently Asked Questions

Q: What's the difference between upstream and downstream NOx sensors on a Duramax?

The upstream sensor sits before the SCR catalyst and measures raw engine-out NOx so the ECM knows how much DEF to inject. The downstream sensor (5WK96645H) sits after the SCR and verifies the system actually cut NOx like it's supposed to. Different part numbers, different locations, different jobs. Don't mix them up.

Q: Will a bad NOx sensor cause the truck to go into limp mode?

Yes. The Duramax ECM will eventually trigger a 55 mph speed limiter if the downstream NOx reading doesn't make sense for too many drive cycles. Usually takes 2-3 drive cycles after the first CEL.

Q: Can I drive with a P2201 code?

Short distance, yes. But every mile you drive with bad NOx data, the ECM is potentially overdosing DEF and running suboptimal combustion strategies. A 50-mile trip to the parts store is fine. A 500-mile road trip? Replace it first.

Q: How long does a NOx sensor last on a Duramax?

Factory sensors typically go 100,000-150,000 miles. Trucks that idle a lot or run high-ash oil tend to kill them faster — exhaust soot coats the sensor element. If you deleted the EGR but kept the SCR intact (and legal), you might see longer life since the exhaust stays cleaner.

Q: Do I need to reprogram anything after replacing a NOx sensor?

For the downstream sensor on LML/L5P — typically no. Clear the DTCs and the ECM will start reading the new sensor immediately. Some 2017+ L5P trucks benefit from a "NOx sensor reset" procedure using a bidirectional scan tool. If your scanner supports it, do it. If not, 3-4 drive cycles will accomplish the same thing.
