Description

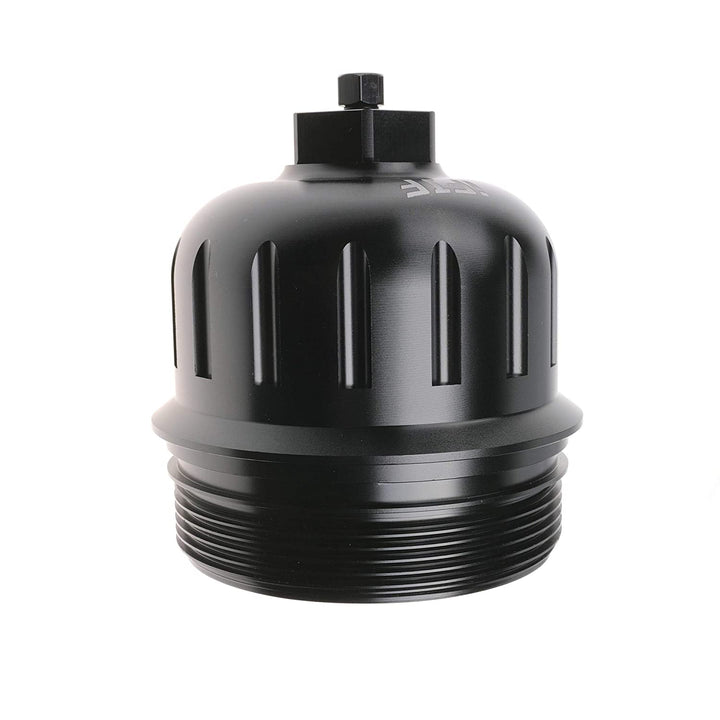

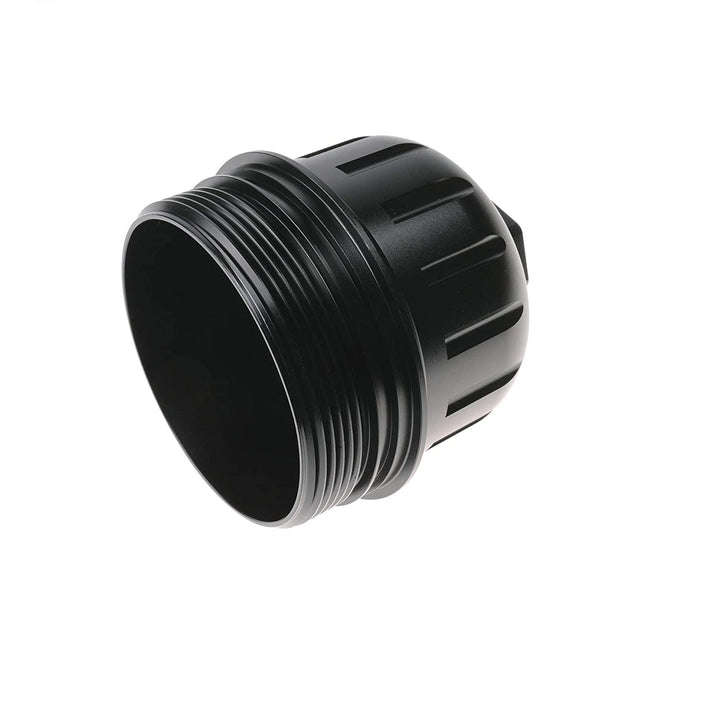

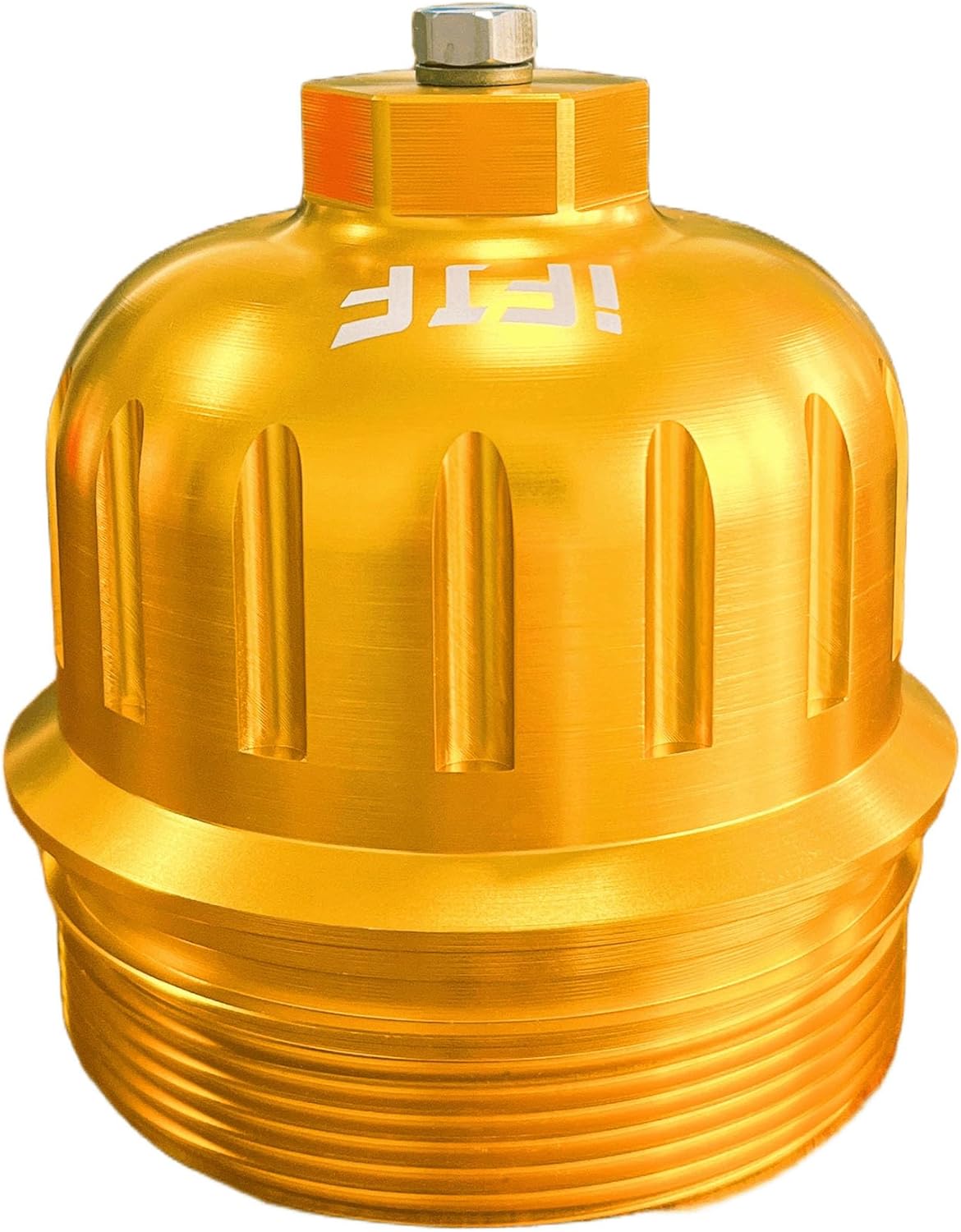

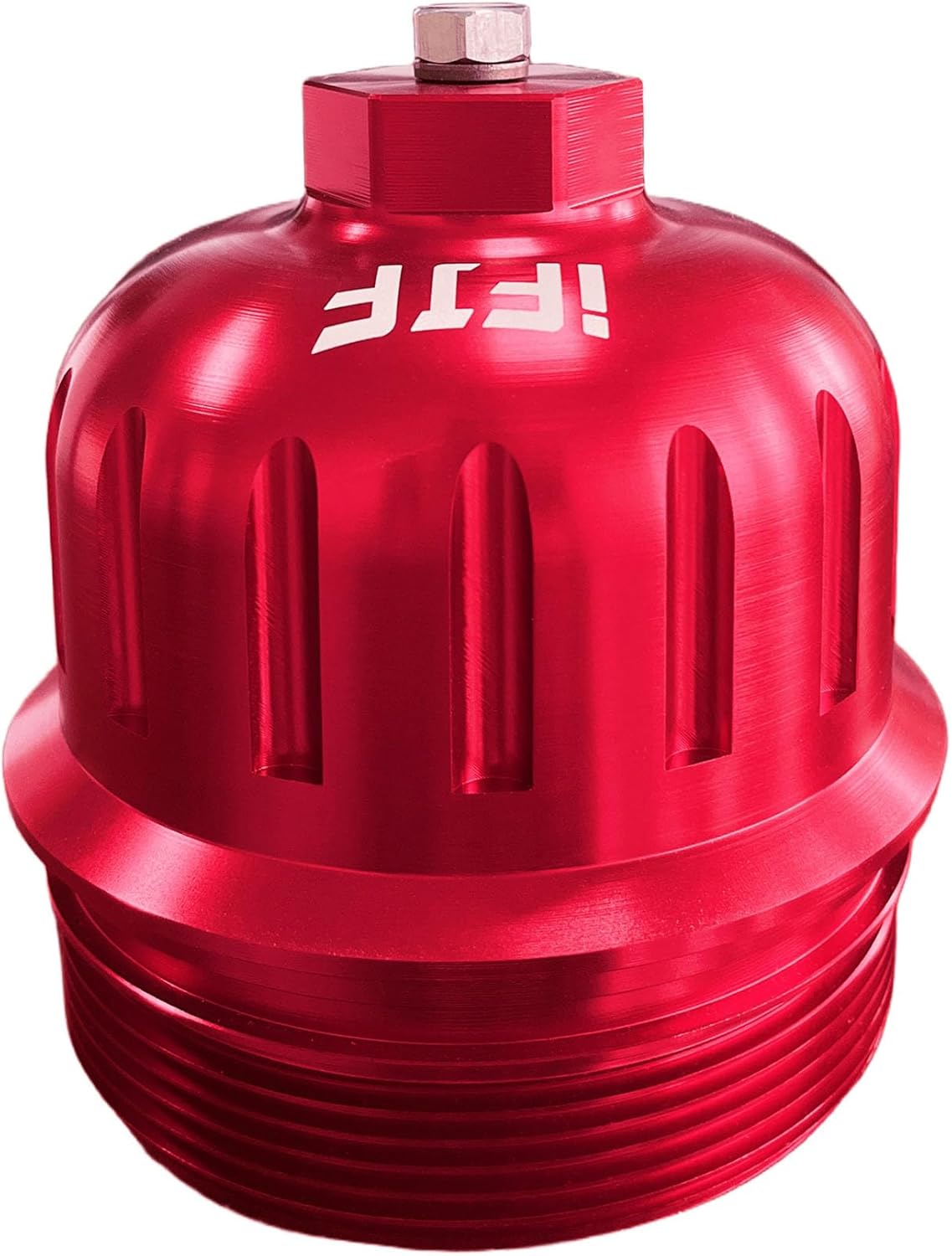

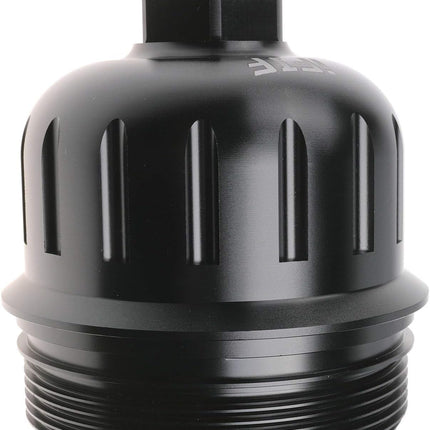

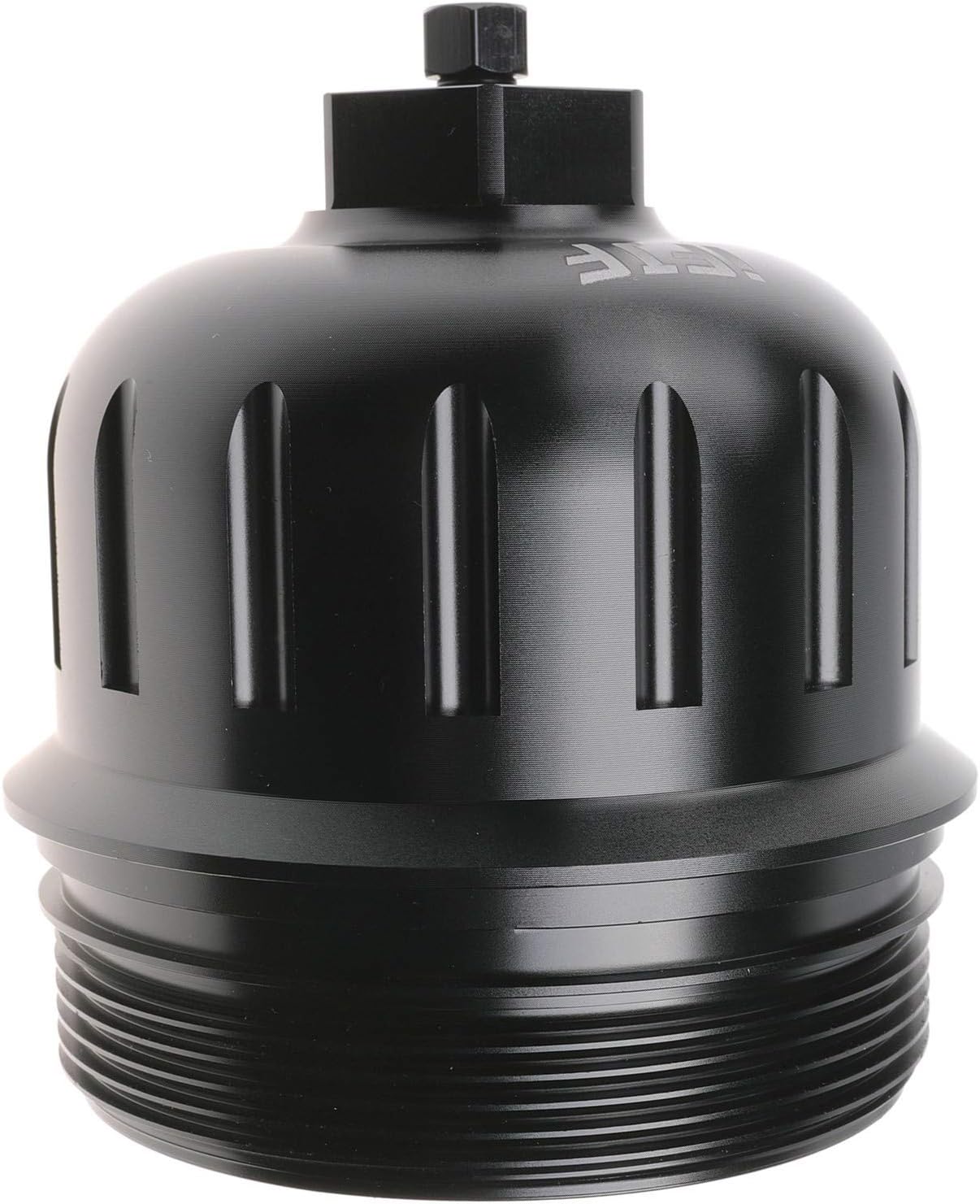

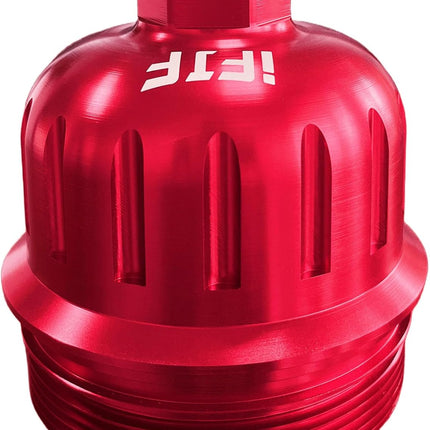

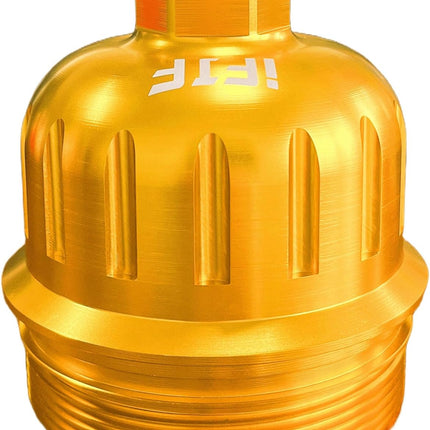

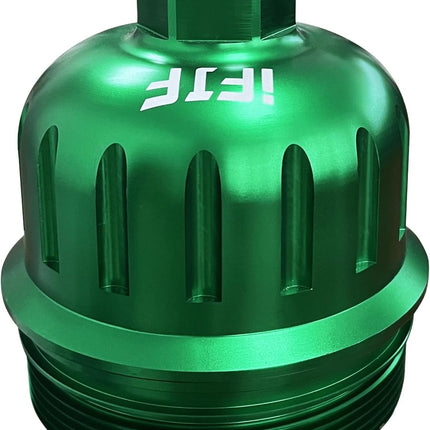

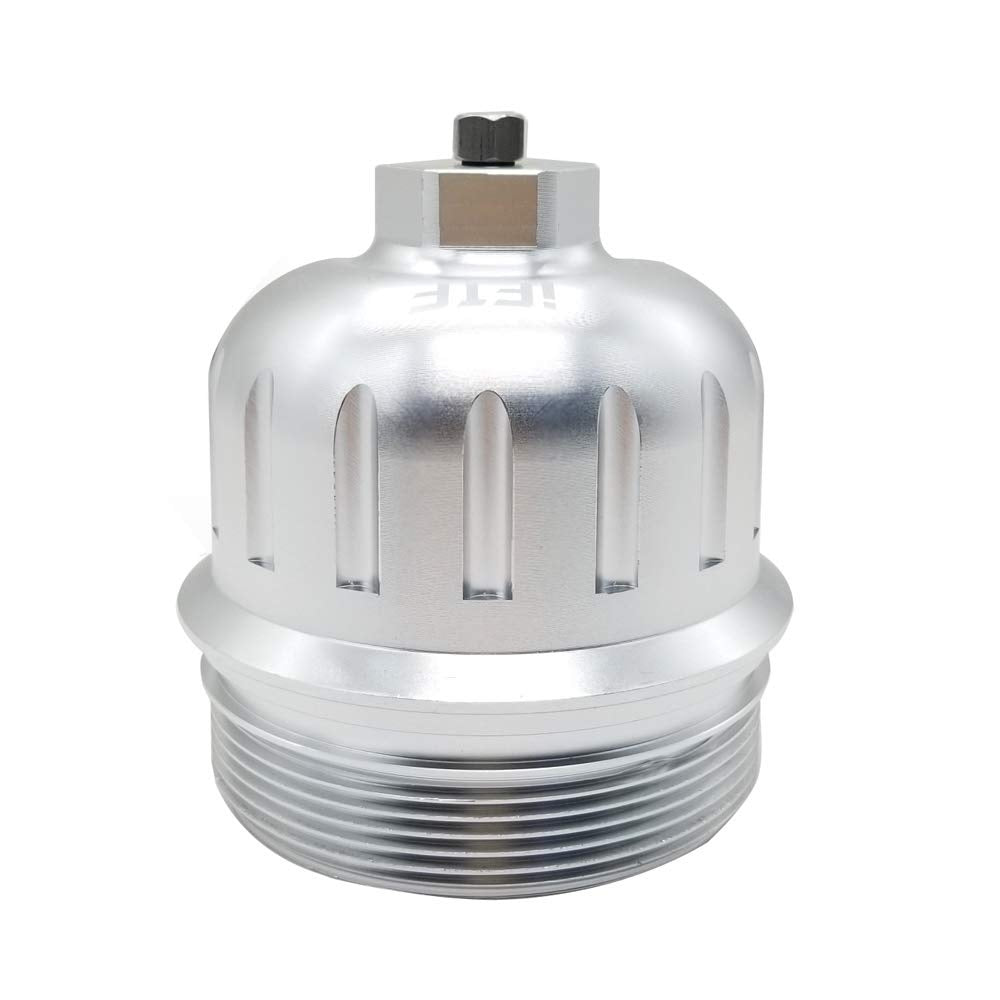

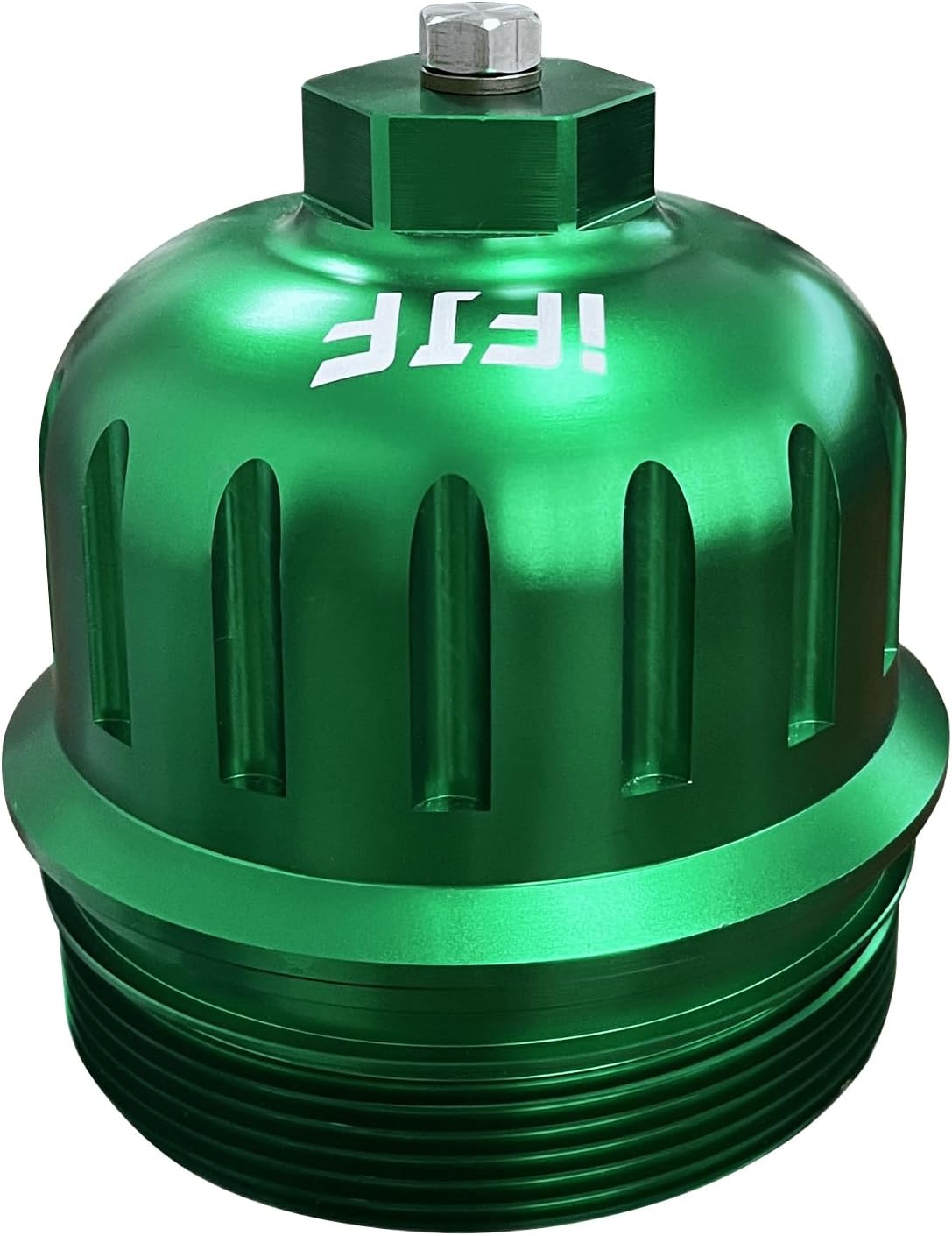

CNC Billet Aluminum Fuel Filter Cap for 2017-2020 Duramax L5P — Replaces OEM 134001
The L5P Duramax is the most powerful diesel GM has ever put in a heavy-duty truck, pushing 445 horsepower and 910 lb-ft of torque. But its factory fuel filter cap — a plastic component subjected to heat cycles, vibration, and repeated filter changes — remains a weak link. Cracked caps cause fuel leaks, stripped threads mean you can't properly seal the filter housing, and a failed cap on the road can leave you stranded. This billet aluminum fuel filter cap is CNC-machined from solid 6061-T6 aluminum for a lifetime of filter changes without deformation, stripping, or cracking.
Key Features
-

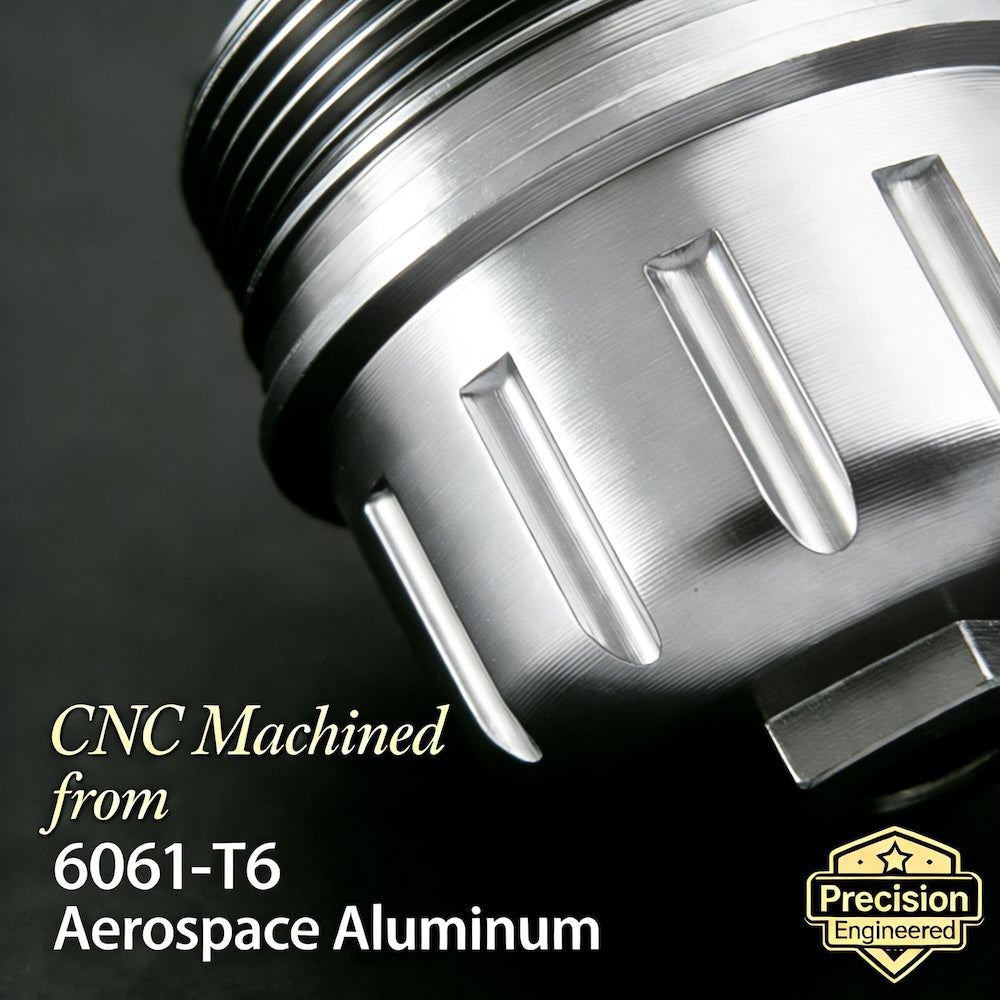

6061-T6 Billet Aluminum: Precision CNC-machined from a solid block of aerospace-grade aluminum, not cast, not molded — this cap maintains dimensional accuracy through extreme temperature cycling and years of filter changes.
-
Anodized Finish: Hard-coat anodized surface resists corrosion from road salt, diesel fuel exposure, and under-hood chemicals — it won't pit, oxidize, or degrade like raw aluminum.
-
Stripped-Thread Insurance: The factory plastic cap threads are notorious for cross-threading and stripping, especially during roadside filter changes. Precision-cut aluminum threads engage smoothly and stay true for the life of the cap.
-
OEM Fitment: Designed as a direct replacement for GM part number 134001, the L5P's factory fuel filter cap. Same dimensions, same O-ring seal interface, zero modifications required.
-

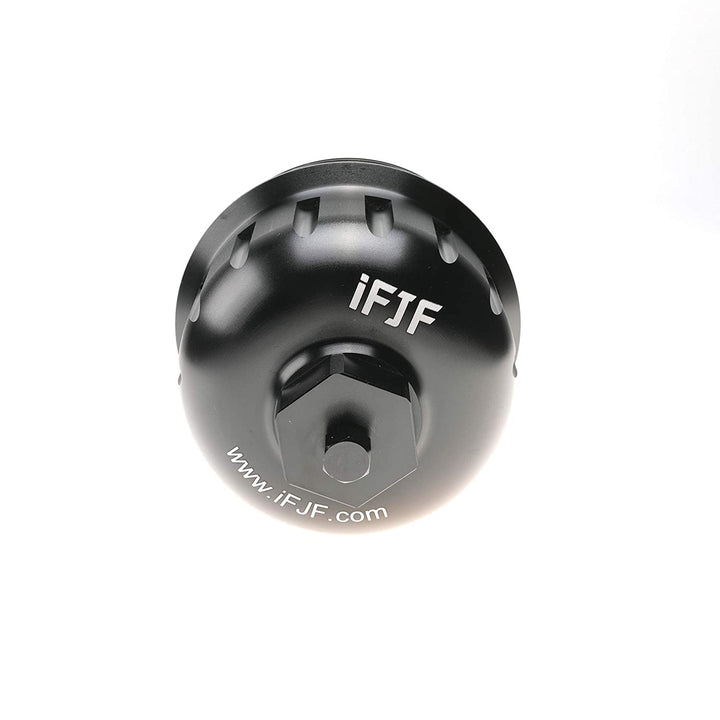

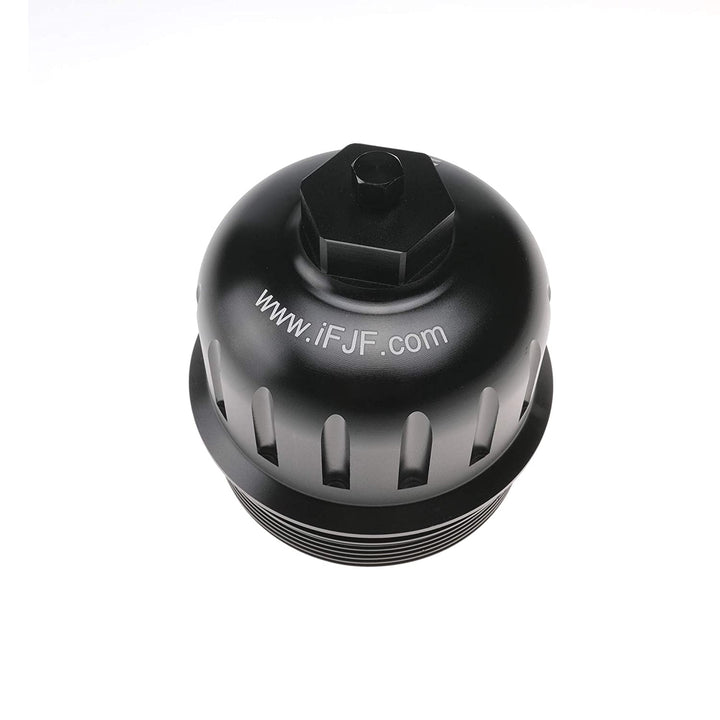

Hex-Drive Center: The machined hex recess accepts a standard socket or wrench for positive removal torque — no more struggling with a filter strap wrench in the tight engine bay.
Vehicle Compatibility
| Make |
Model |
Years |
Engine |
| Chevrolet |
Silverado 2500HD |
2017-2020 |
6.6L Duramax L5P Turbo Diesel |
| Chevrolet |
Silverado 3500HD |
2017-2020 |
6.6L Duramax L5P Turbo Diesel |
| GMC |
Sierra 2500HD |
2017-2020 |
6.6L Duramax L5P Turbo Diesel |
| GMC |
Sierra 3500HD |
2017-2020 |
6.6L Duramax L5P Turbo Diesel |

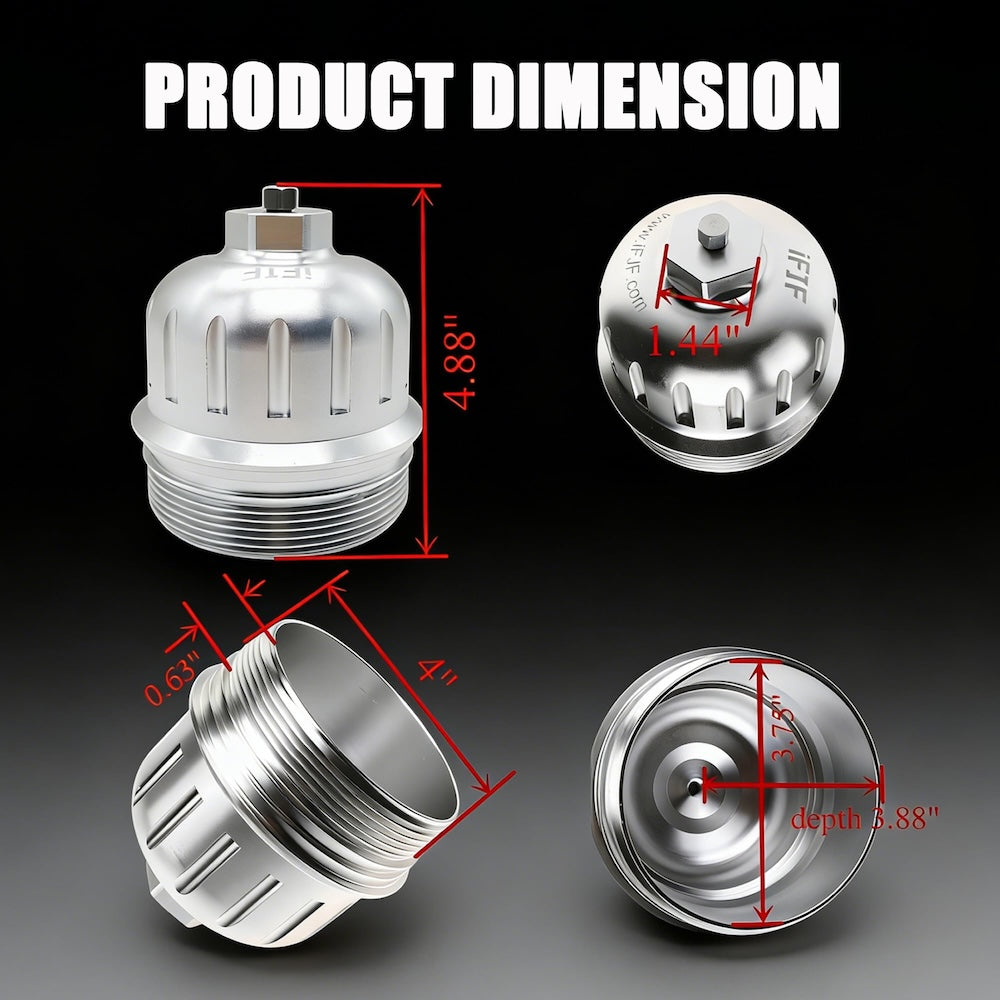

Technical Specifications
| Specification |
Value |
| Part Type |
Fuel Filter Housing Cap |
| Material |
6061-T6 Billet Aluminum |
| Manufacturing Process |
CNC Machined (Not Cast or Molded) |
| Finish |
Hard-Coat Anodized (Corrosion Resistant) |
| Replaces OEM |
134001 (GM/ACDelco) |
| Thread Type |
Precision-Cut Aluminum, OEM Profile |
| Drive Style |
Machined Hex Recess (Socket-Compatible) |
| Application |
Under-Hood Fuel Filter Housing (Engine-Mounted) |
| Weight |
Approximately 0.45 lbs (Significantly Heavier than Plastic OEM) |
Why Replace Your Plastic Factory Cap?
The OEM plastic fuel filter cap on the L5P is adequate when new, but repeated heat cycling (from -20°F winter starts to 220°F+ under-hood temps during heavy towing) causes the nylon material to degrade. The threads gradually lose their crisp profile, making each filter change harder than the last. Eventually, the cap either won't tighten to a proper seal (causing a fuel leak and loss of prime) or the drive recess rounds out, trapping a stuck cap on the housing. This billet aluminum replacement eliminates all three failure modes. It's a one-time upgrade that pays for itself the first time you avoid a roadside filter change nightmare.

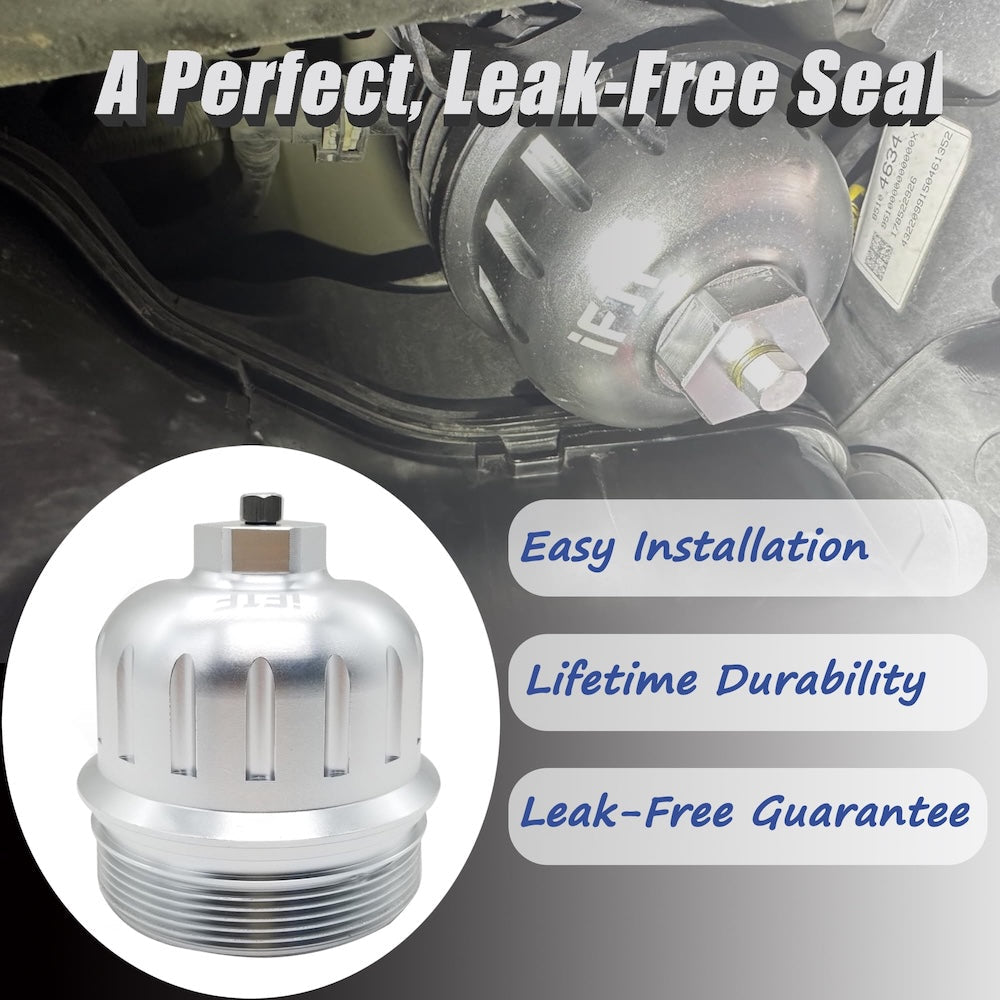

Installation & Maintenance
- This cap is a direct swap — remove the factory plastic cap, transfer the O-ring (or install a new one — recommended), and thread on the billet aluminum cap.
- Apply a thin film of clean diesel fuel or silicone-based O-ring lubricant to the seal before installation — this ensures a smooth seal and prevents O-ring pinching.
- Hand-tighten until the O-ring contacts the sealing surface, then snug with a socket — the aluminum-to-plastic thread interface doesn't require extreme torque. Snug is sufficient.
- After installation, cycle the ignition to prime the system (the L5P's electric lift pump handles this automatically) and inspect for any seepage.
- During future filter changes, the aluminum threads will remain true and smooth — no galling, no binding, just consistent, reliable operation.
Frequently Asked Questions
Q: Will this cap fit the 2020+ L5P trucks with the 10-speed Allison?
A: Yes. The fuel filter housing design carried over unchanged for all L5P-equipped trucks through the 2020 model year. If your truck is a 2017, 2018, 2019, or 2020 Silverado HD or Sierra HD with the 6.6L L5P, this cap fits.
Q: Do I need a special O-ring with this aluminum cap?
A: No, the cap is designed to use the standard OEM-specification O-ring that comes with your L5P fuel filter (ACDelco TP1018 or equivalent). We strongly recommend replacing the O-ring with each filter change — never reuse an old O-ring regardless of cap material.
Q: Won't the aluminum cap corrode against the factory plastic housing?
A: No. Aluminum and nylon composite are galvanically compatible — there's no dissimilar-metal corrosion concern. The anodized finish provides an additional barrier, and the O-ring seal prevents direct metal-to-plastic contact at the sealing surface.
Q: Is this cap compatible with the passenger-side frame-rail filter on the L5P?
A: No. The L5P has two fuel filters — the engine-mounted filter (driver's side, under the hood) and the chassis-mounted filter (passenger side, frame rail). This cap is specifically for the under-hood engine-mounted filter housing. The frame-rail filter uses a different cap design.
🔧 OEM Cross-Reference & Compatibility
| OEM Part Number |
Brand |
Notes |
| 134001 |
GM / ACDelco |
Original GM fuel filter cap |
Fitment: 2017-2020 Chevy Silverado / GMC Sierra 2500HD 3500HD 6.6L Duramax L5P. Replaces the plastic factory cap prone to cracking and stripping. CNC-machined billet aluminum construction with upgraded O-ring seal.
Common failure: Factory plastic cap cracks from overtightening, causing air leaks in the fuel system — symptoms include hard starting, rough idle, and P0087 low fuel rail pressure code.
