Your L5P's Plastic Fuel Filter Cap Is a Ticking Time Bomb — Here's the Fix

August 06 2026, by iFJF Direct, 6 min reading time

Your L5P's Plastic Fuel Filter Cap Is a Ticking Time Bomb — Here's the Fix

If you own a 2017-2020 Duramax L5P, walk out to your truck right now and pop the hood. Look at your fuel filter housing cap. The factory one — GM part number 12681273 — is plastic. Not fancy engineered polymer. Just plastic. The same stuff your laundry detergent cap is made of. And it's holding back diesel fuel under pressure, sitting inches from a hot engine, getting torqued and untorqued every 15,000 miles.

I've seen three of these crack in the last year alone. Two of them the owners didn't even know until their trucks started stumbling at highway speed. One guy had diesel weeping down the side of his filter housing for months, wondering why his fuel economy dropped 2 mpg.

Why the OEM Plastic Cap Fails

The L5P fuel filter housing cap takes a beating. Every time you do a filter change, you're supposed to torque it to 18 ft-lbs. But here's the thing — the plastic develops micro-cracks from heat cycling. After 2-3 filter changes, that cap's structural integrity is shot. Give it one extra quarter-turn with a socket wrench and you've got a hairline crack you can't even see.

The real problem isn't the crack itself. It's what happens next. A cracked cap lets air into the fuel system. The CP4 injection pump on your L5P doesn't handle air well — it relies on fuel for lubrication and cooling. Air pockets = metal-on-metal contact = glitter in your fuel system. That's a $10,000 repair you don't want.

Symptoms of a failing fuel filter cap:

Extended crank time, especially on cold starts
Slight fuel smell after driving (weeping at the cap O-ring)
Rough idle that clears up after warmup
Loss of power under heavy throttle — feels like fuel starvation
Visible diesel residue around the cap or on the housing body
P0087 (low fuel rail pressure) or P0088 (high fuel rail pressure) codes that come and go

Billet Aluminum: The Permanent Fix

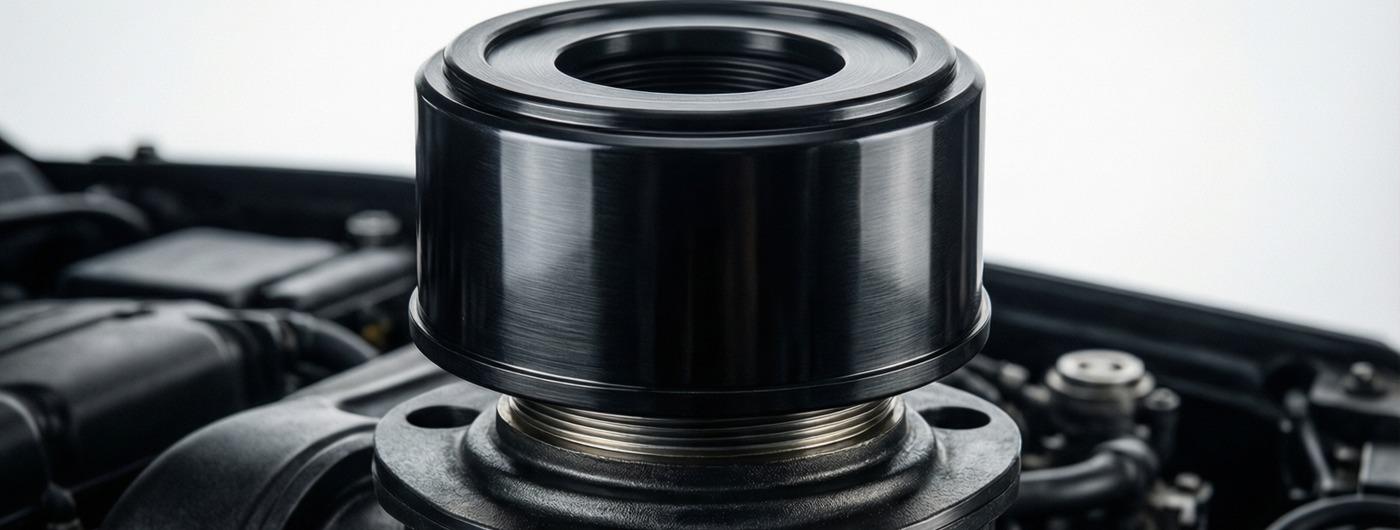

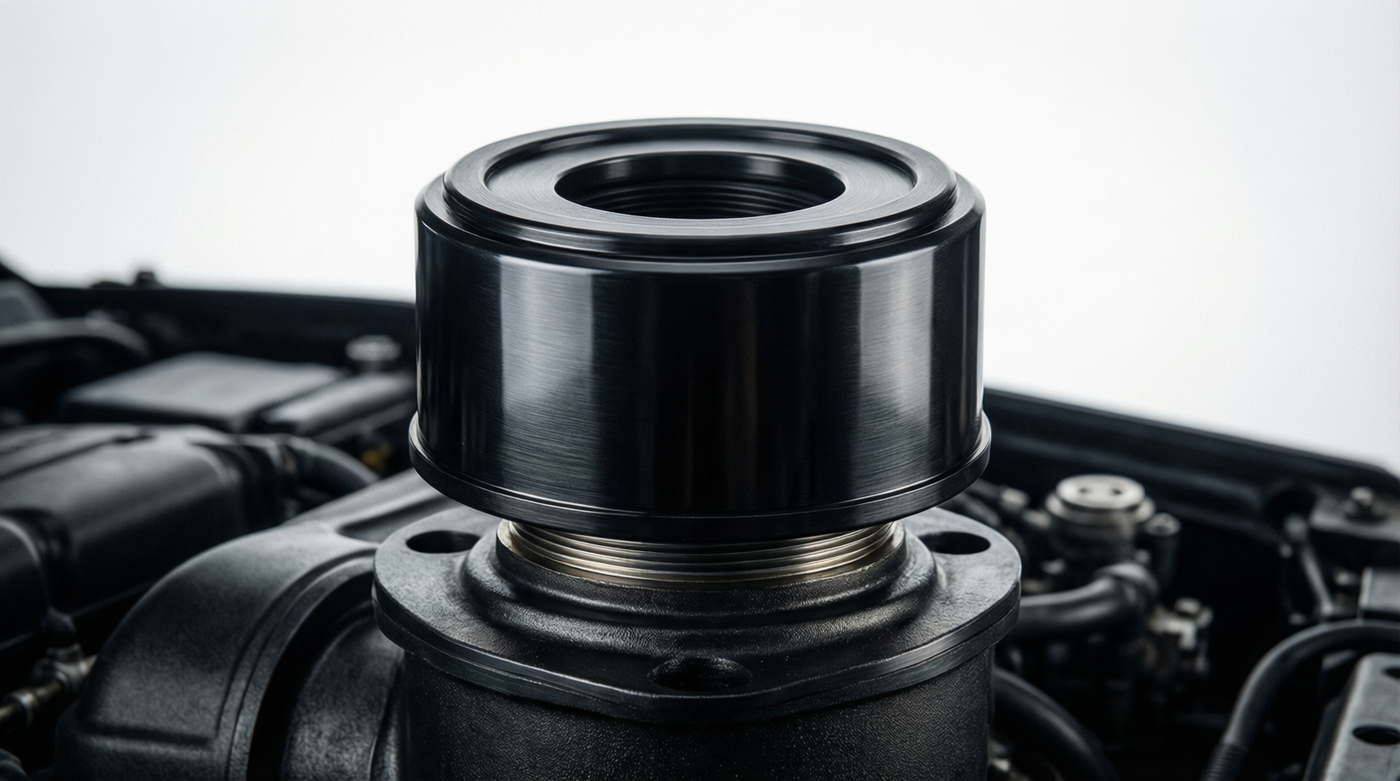

The iFJF 134001 Billet Fuel Filter Cap replaces that plastic time bomb with a solid chunk of 6061-T6 aluminum. This isn't cast pot metal — it's CNC-machined from billet stock. The threads are cut, not molded. The O-ring seat is machined to a tolerance of ±0.001". When you torque it down, you're tightening metal threads into metal threads. It doesn't deform. It doesn't develop stress cracks. And it sure as hell doesn't strip out at 18 ft-lbs.

Here's what you get versus OEM:

Feature	OEM Plastic (12681273)	iFJF Billet 134001
Material	Glass-filled nylon	6061-T6 billet aluminum
Thread type	Molded plastic	CNC-machined, anodized
Heat tolerance	~250°F before softening	400°F+ no deformation
Torque spec	18 ft-lbs (easy to overtighten)	18 ft-lbs (solid stop)
Lifespan	2-3 filter changes before risk	Lifetime of the truck
O-ring seal	Single lip seal	Double-lip Viton O-ring
Corrosion	N/A (but cracks)	Black anodized — won't corrode

I run this cap on my own L5P. No leaks. No weeping. No weird idle. Just a cap that does its job and shuts up about it.

Installation: 10 Minutes, One Socket

Tools you need:

1-1/4" socket (or large adjustable wrench)
Clean rag
Diesel-rated thread lubricant (optional, but I use it)
Torque wrench capable of 18 ft-lbs

Steps:

Engine off, key out. Let the engine bay cool if you've been driving. Hot diesel on your hands isn't fun.
Locate the fuel filter housing on the passenger side of the engine bay, mounted to the firewall area.
Break the old cap loose with your socket. Unscrew by hand the rest of the way.
Remove the old O-ring if it's stuck to the housing — check the groove with a flashlight. Any debris in there will cause a leak on the new cap.
Apply a thin film of diesel to the new O-ring on the billet cap. Don't use grease — it'll contaminate your fuel.
Thread the billet cap on by hand until it seats. You'll feel the O-ring engage.
Torque to 18 ft-lbs. Do NOT go tighter. The billet cap doesn't need it, and you can crush the O-ring.
Cycle the key to "Run" (don't start) 3-4 times to prime the system. Listen for the lift pump — it should sound normal, no gurgling.
Start the truck, let it idle, check for leaks around the cap seam.

Pro Tip: If your old plastic cap was leaking, you probably have air in the fuel system. After installing the billet cap, take the truck for a 15-minute drive at varying RPMs to work any residual air out. If it still stumbles, cycle the primer more times.

Should You Buy Just the Cap or the Combo Kit?

We sell the cap on its own, and as part of a combo kit with a TP1015 fuel filter. If you're due for a filter change anyway — which is every 15,000 miles on the L5P — grab the combo. The TP1015 filter is a direct cross to the OEM ACDelco TP1015, 10-micron filtration, same fitment. Doing the cap and filter together means you open the housing once and you're done.

At $25.99 for the billet cap alone, versus the OEM plastic cap that GM charges $18-22 for (and will fail again), this is one of the cheapest insurance policies you can buy for a $60,000 truck.

FAQ

Will this cap fit my 2021+ L5P?

Yes. The fuel filter housing design didn't change from 2017-2024 for the L5P. GM just kept using the same plastic cap. Part number cross-reference: 12681273, 12674952, and the ACDelco TP1015 kit all use the same thread pitch and diameter.

Do I need to replace the O-ring every time?

If you're running the billet cap, the Viton O-ring will outlast several filter changes. Inspect it each time — if it's flat, cracked, or the rubber feels hard and brittle, swap it. We include a spare O-ring with every cap. Keep it in your glovebox.

Will this void my warranty?

Technically, the Magnuson-Moss Warranty Act says a manufacturer can't void your warranty for using aftermarket parts unless they can prove the part caused the failure. A billet fuel cap that seals better than OEM isn't going to "cause" a failure. That said, if your dealer is hostile about mods, swap the OEM cap back on before service visits — it takes 2 minutes.

Does the black anodizing hold up?

Yes. Type II black anodizing on 6061-T6 is rated for under-hood temperatures. I've seen caps with 50,000+ miles on them that still look new. The anodizing doesn't peel or bubble like paint.

Can I use this cap with a lift pump upgrade?

Absolutely. If you're running a FASS or AirDog lift pump (higher fuel pressure to the filter housing), the billet cap is actually a better choice than OEM — it handles the increased pressure without flexing. The OEM plastic cap can bulge under sustained high flow from an aftermarket lift pump.
