Description

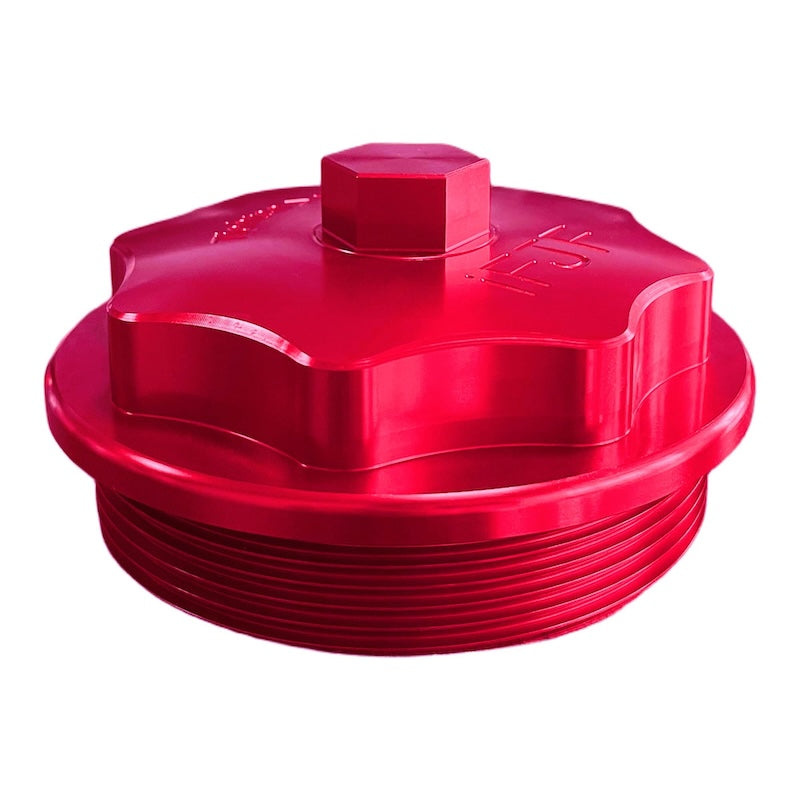

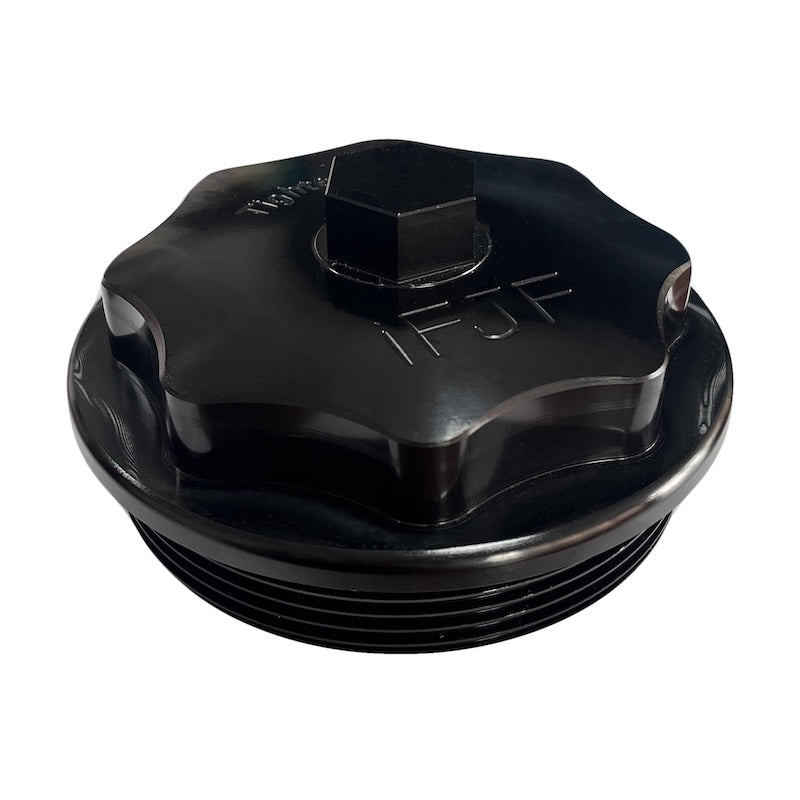

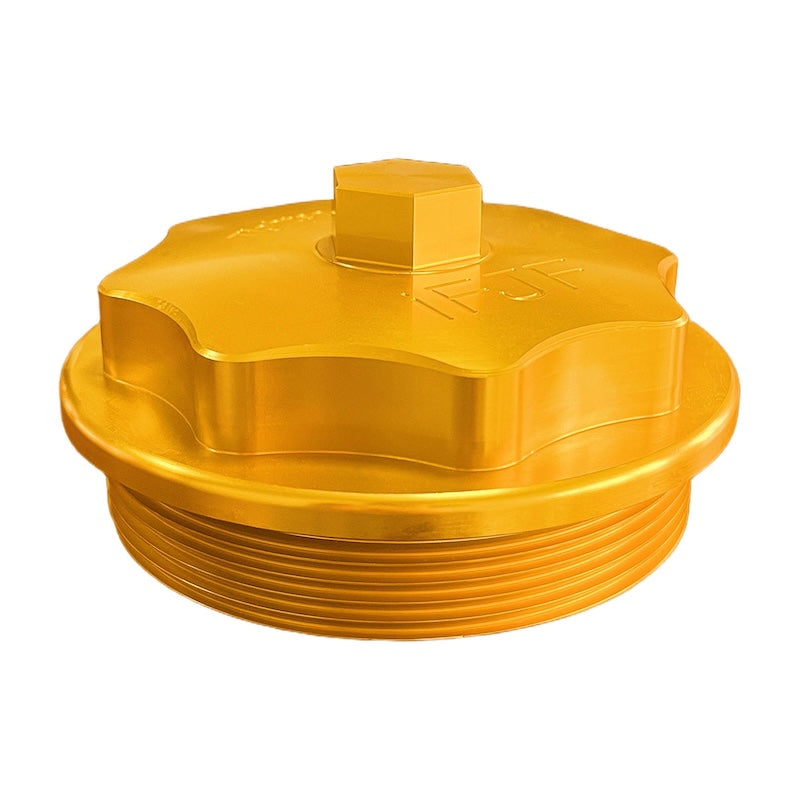

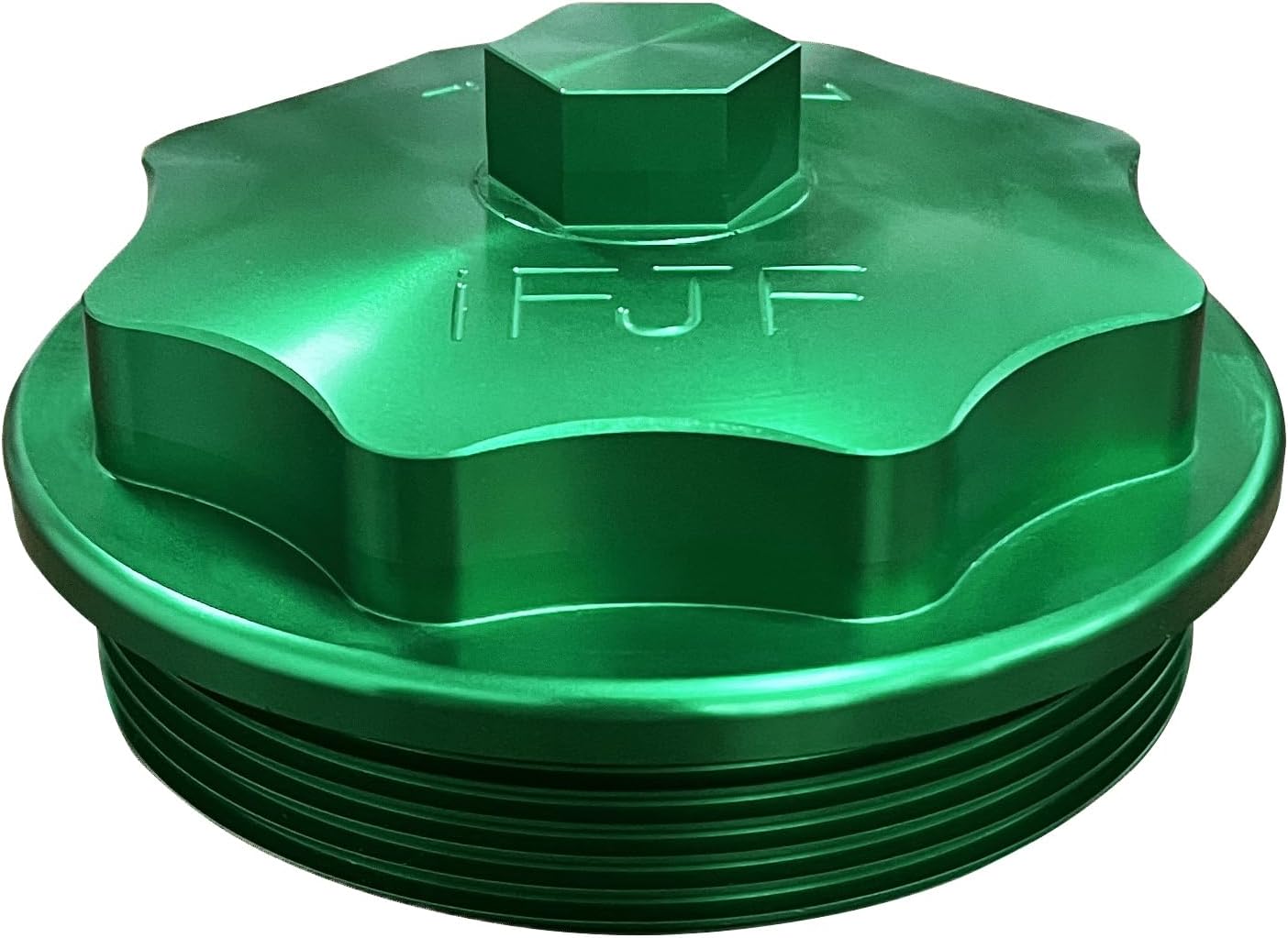

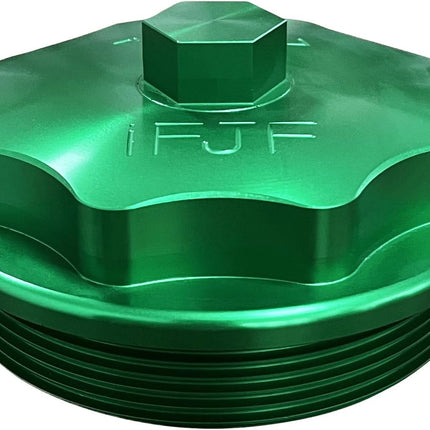

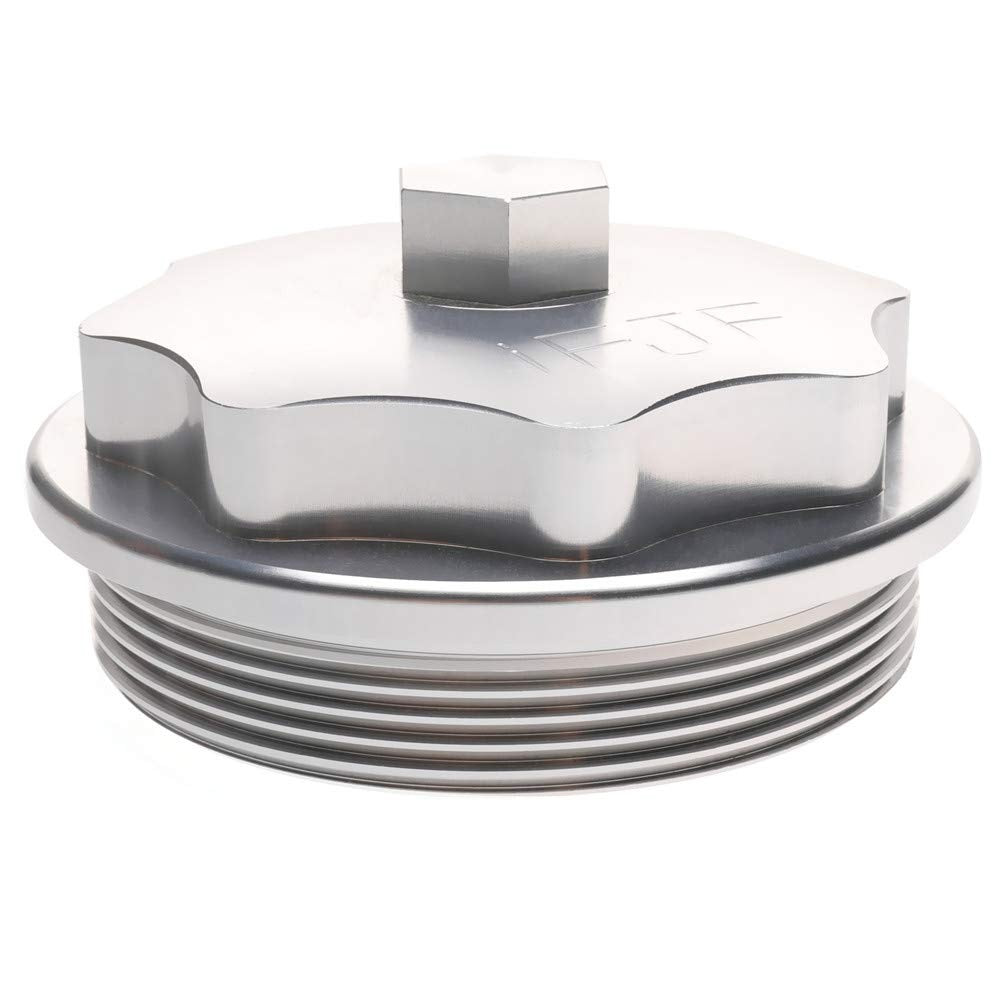

Fuel Filter Housing Cap for 1999-2003 Ford 7.3L Powerstroke Diesel
The 7.3L Powerstroke is legendary for durability, but after 20+ years in service, the plastic fuel filter cap on the engine-mounted fuel bowl is a common failure point. When the cap threads strip, the O-ring groove deforms, or the cap develops hairline cracks, you lose fuel pressure, experience hard starting, and risk introducing air into the injection system. This replacement fuel filter cap restores a perfect seal on your fuel bowl so your 7.3L gets the consistent fuel pressure it needs to fire up reliably — hot or cold, loaded or empty.
Key Features
-

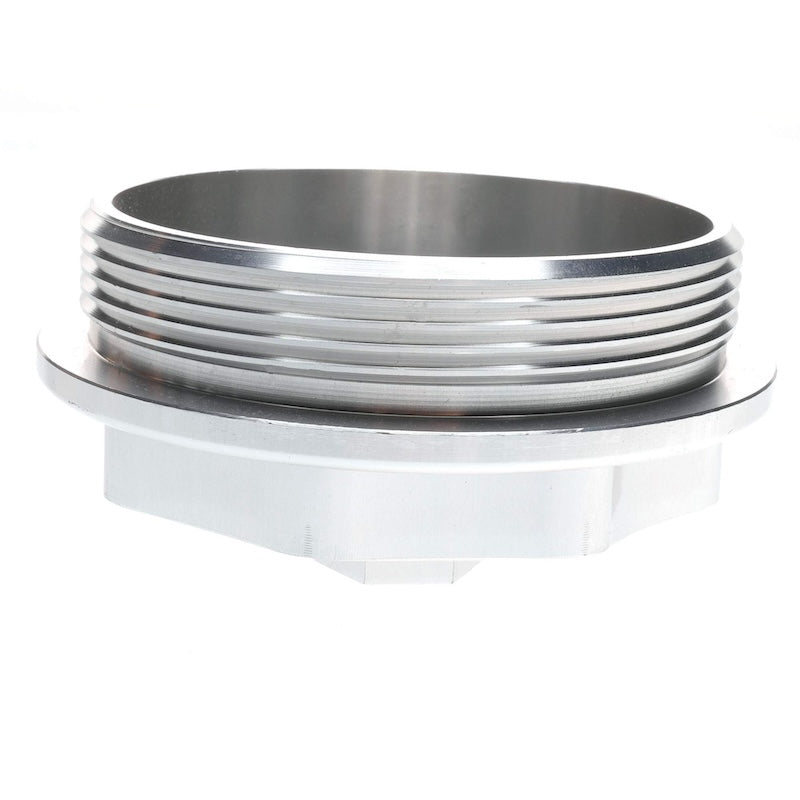

Precision-Threaded: Machined threads engage smoothly with the fuel bowl housing without cross-threading — a critical improvement over worn factory caps that fight you every filter change.
-
Correct O-Ring Groove Profile: The sealing groove is dimensionally accurate to accept the OEM-spec O-ring (sold separately or included), ensuring a bubble-tight seal at operating pressures up to 65 PSI.
-
Heat-Resistant Material: Molded from high-temperature nylon composite that withstands the engine bay heat of a working Powerstroke without warping, softening, or developing stress cracks over time.
-
Wide Cross-Reference: Direct replacement for F81Z-9G270-BA, 1831193C91, RK31449, and 904-203 — the four most commonly searched part numbers for this application.
-
Fast Filter Changes: The 1/2" square drive recess in the cap center allows you to use a standard ratchet for removal and installation, eliminating the need for a specialty filter wrench on the side of the road.
Vehicle Compatibility
| Make |
Model |
Years |
Engine |
| Ford |
F-250 Super Duty |
1999-2003 |
7.3L Powerstroke V8 Turbo Diesel |
| Ford |
F-350 Super Duty |
1999-2003 |
7.3L Powerstroke V8 Turbo Diesel |
| Ford |
F-450 Super Duty |
1999-2003 |
7.3L Powerstroke V8 Turbo Diesel |
| Ford |
F-550 Super Duty |
1999-2003 |
7.3L Powerstroke V8 Turbo Diesel |
| Ford |
Excursion |
2000-2003 |
7.3L Powerstroke V8 Turbo Diesel |

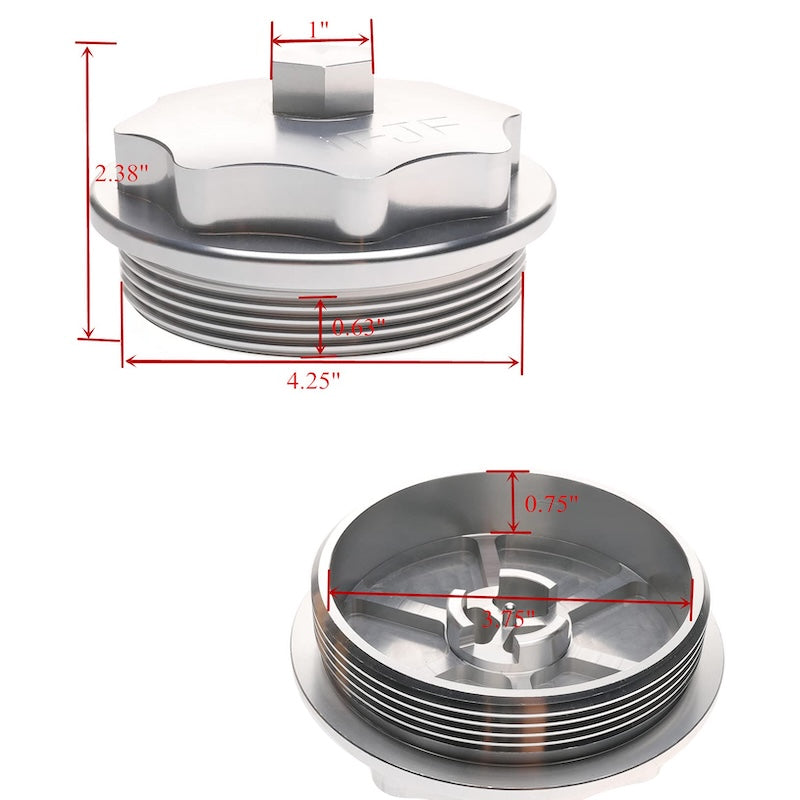

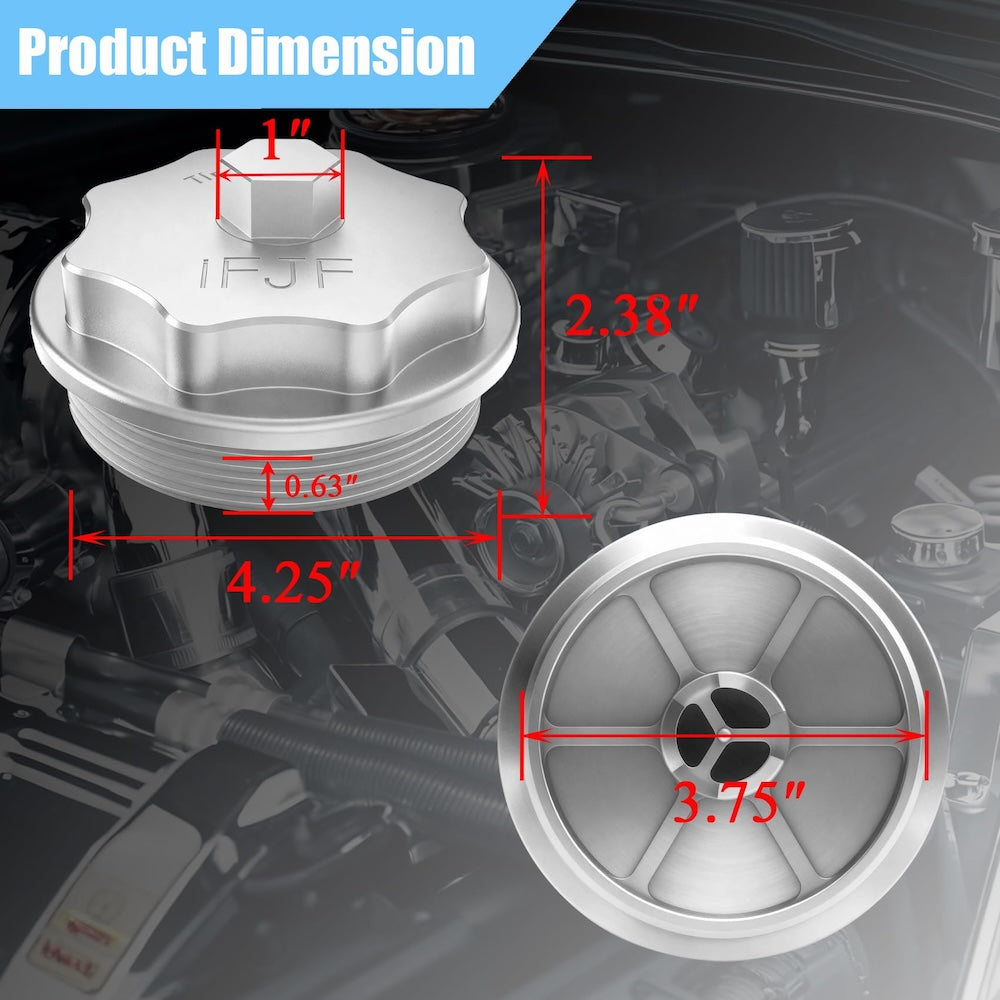

Technical Specifications
| Specification |
Value |
| Part Type |
Fuel Filter Housing Cap / Lid |
| Material |
High-Temperature Nylon Composite |
| Drive Size |
1/2" Square Drive Recess |
| Thread Type |
Coarse ACME-Style Buttress Thread |
| Replaces OEM |
F81Z-9G270-BA (Ford), 1831193C91 (International/Navistar) |
| Cross-Reference |
RK31449, 904-203 |
| Application Location |
Engine-Mounted Fuel Bowl (Top of Engine) |
| Includes O-Ring |
Check Listing — Sold With or Without O-Ring Option |
Common Signs Your Fuel Filter Cap Needs Replacement
-
Fuel smell under the hood: Diesel fuel weeping from the cap-to-bowl interface leaves a noticeable odor and often a damp fuel stain on the fuel bowl valley.
-
Hard starting after sitting: A leaking cap allows fuel to drain back from the fuel bowl, meaning the injection pump has to re-prime the system every cold start.
-
Difficult cap removal during filter changes: Threads that bind, gall, or feel "gritty" during removal indicate thread deformation that will only get worse with repeated filter changes.
-
Visible cracks or stress marks: Inspect the cap under good light — hairline cracks, especially radiating from the center drive recess, are a sign of impending failure.
-
Intermittent power loss: Air entering through a compromised cap seal causes erratic fuel delivery and intermittent stumbling, particularly under load or at highway speeds.

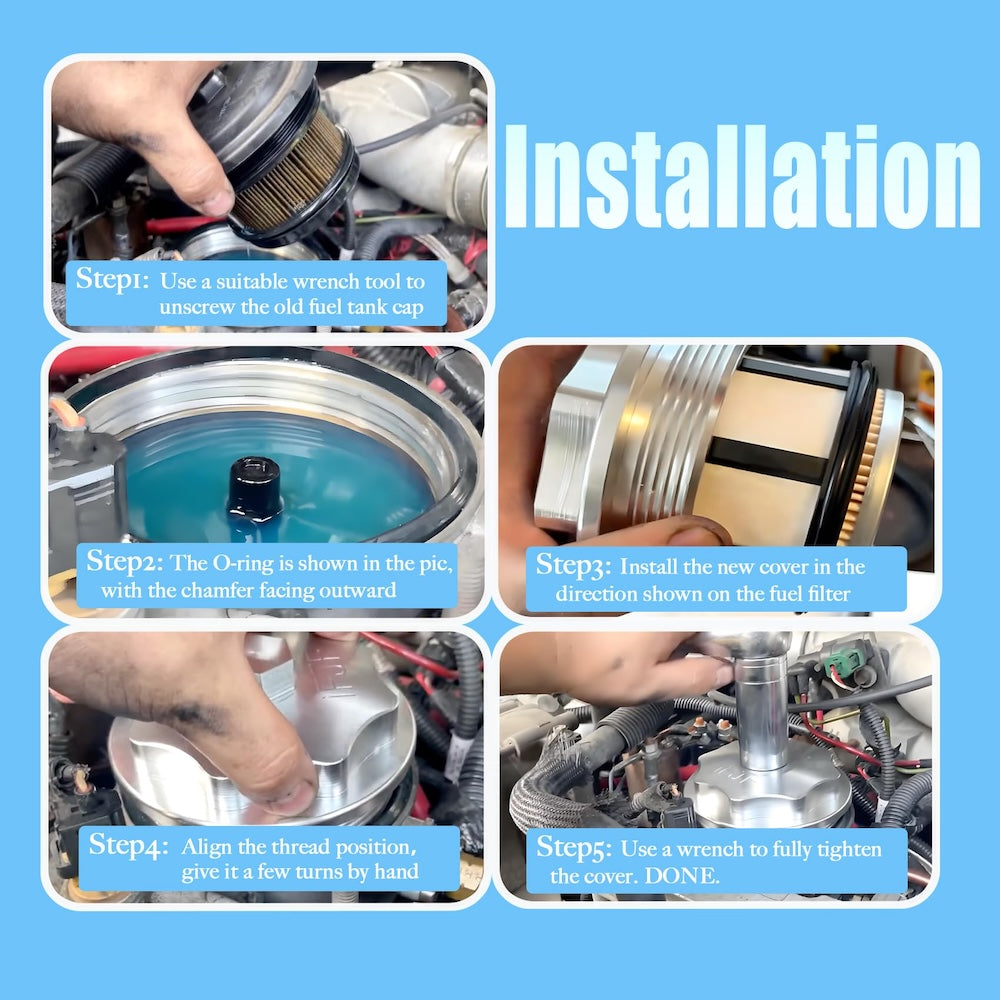

Installation Instructions
- Remove the old cap and filter element together — the spring-loaded standpipe in the fuel bowl will rise, which is normal.
- Inspect the fuel bowl standpipe O-rings while the cap is off. If they show signs of flattening or cracking, replace them at the same time (sold separately).
- Apply a thin coat of clean diesel fuel to the new cap's O-ring before installation — this prevents the O-ring from rolling or pinching during tightening.
- Thread the cap on by hand until the O-ring contacts the sealing surface, then tighten with a 1/2" ratchet until firm. The cap does NOT need to bottom out on the threads — over-tightening damages threads and distorts the O-ring.
- Cycle the key to "Run" (not Start) 3-4 times to fill the fuel bowl, then start the engine and inspect the cap area for any fuel seepage.
Frequently Asked Questions
Q: Does this cap include the fuel filter element?
A: No, this listing is for the fuel filter cap/lid only. The filter element (Motorcraft FD-4596 or equivalent) is sold separately. We recommend replacing both the cap and filter element at the same time for best results.
Q: Will this fit the 1994-1997 OBS (Old Body Style) 7.3L Powerstroke?
A: No. The 1994-1997 trucks use a different fuel bowl design with a different cap thread pattern. This cap is designed for the 1999-2003 Super Duty and 2000-2003 Excursion with the late-style engine-mounted fuel bowl.
Q: My old cap is stuck and won't come off. Any tips?
A: Soak the cap-to-bowl interface with penetrating oil (PB Blaster or Kroil) and let it sit for 15-30 minutes. Use a 1/2" breaker bar (not an impact gun) with steady, increasing pressure. If it's still stuck, apply careful heat to the bowl — not the cap — with a heat gun to expand the aluminum bowl slightly. Never use a hammer or chisel; you risk cracking the fuel bowl itself.
Q: Can I use this with an aftermarket fuel system (regulated return, etc.)?
A: Yes, the cap is compatible with any fuel system modification that retains the factory engine-mounted fuel bowl. If you've deleted the fuel bowl entirely (common with some regulated return kits), this cap is not needed.
