Description
Ford 7.3L IDI Fuel Water Separator FD3375 — Protect Your Stanadyne DB2 Pump

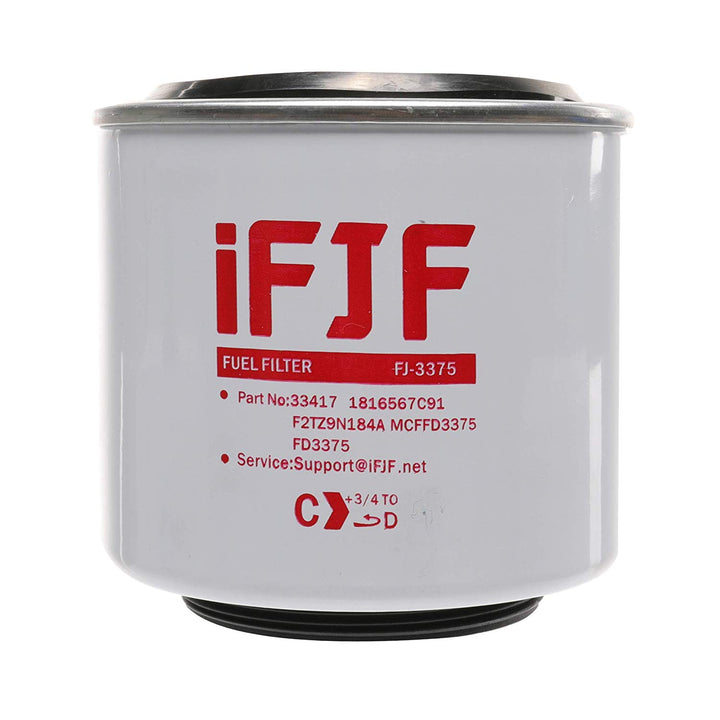

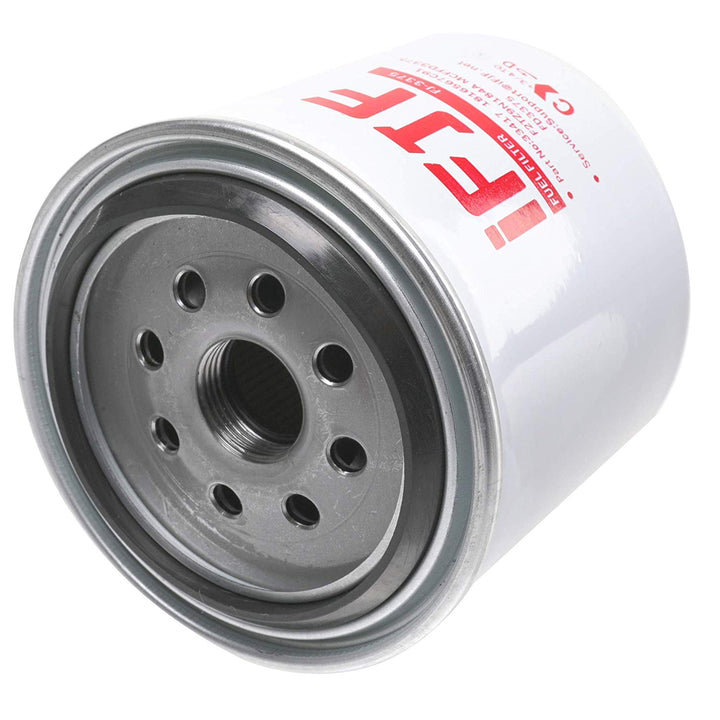

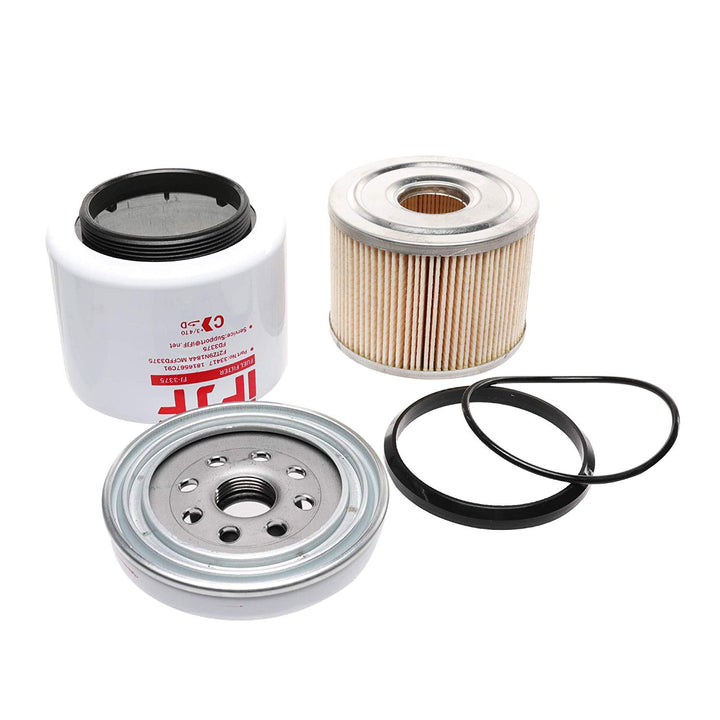

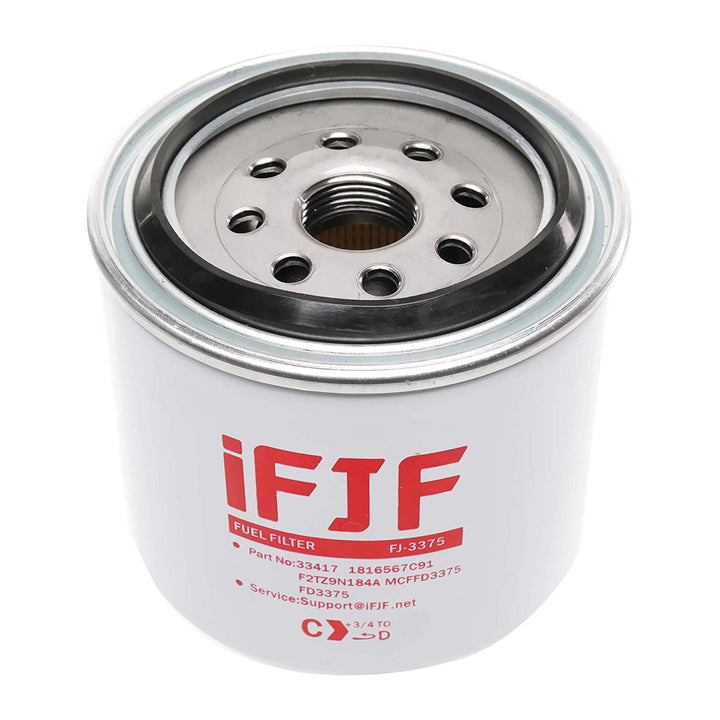

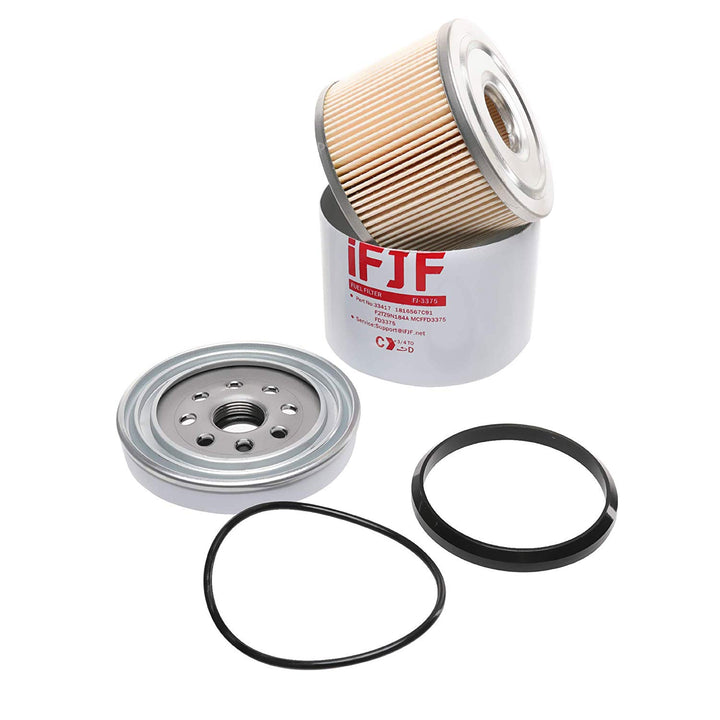

The FD3375 Spin-On Fuel Water Separator is the correct replacement for 1988-1994 Ford 7.3L IDI naturally-aspirated diesel engines. This filter is the single most important maintenance item for IDI longevity — the Stanadyne DB2 mechanical injection pump is extremely sensitive to water and debris contamination, and replacement costs $1,500+ with specialized calibration.
Compatibility
| Make |
Model |
Years |
Engine |
| Ford |
F-250 |
1988-1994 |
7.3L IDI V8 Diesel (Naturally Aspirated) |
| Ford |
F-350 |
1988-1994 |
7.3L IDI V8 Diesel (Naturally Aspirated) |
| Ford |
E-250 |
1988-1994 |
7.3L IDI V8 Diesel |
| Ford |
E-350 |
1988-1994 |
7.3L IDI V8 Diesel |
Key Features
-
Spin-On Convenience: Tool-free installation — the threaded base design allows fast filter changes without specialized equipment. Ideal for fleet maintenance and roadside service.
-
Water-Separating Media: Proprietary cellulose/synthetic blend with hydrophobic layer removes both free and emulsified water before it reaches the injection pump. Water is the #1 killer of Stanadyne DB2 pumps.
-
High Dirt-Holding Capacity: Pleated design with extended surface area handles long service intervals and the dirtier fuel conditions common with older diesel equipment.
-
OEM Cross-Compatibility: Direct replacement for F2TZ-9N184-A (Ford), FS1281 (Fleetguard), PS6554A, and 33217. No adapters or modifications.
-
Anti-Drainback Valve: Integrated valve prevents fuel from draining back to the tank when the engine is off, ensuring faster starts and reduced wear on the starter and injection pump.
Technical Specifications
| Part Number |
FD3375 |
| OEM Cross-Reference |
F2TZ-9N184-A, FS1281, PS6554A, 33217 |
| Filter Type |
Spin-on fuel water separator |
| Service Interval |
Every 15,000 miles (10,000 with biodiesel or alternative fuels) |
| Thread Size |
Standard spin-on base — matches factory filter head |
The Stanadyne DB2: Protect It or Replace It
The 7.3L IDI's Stanadyne DB2 mechanical rotary injection pump is a precision instrument manufactured to tolerances measured in microns. It costs $1,500+ to replace and requires specialized calibration equipment that most shops don't have. Water in the fuel causes internal corrosion and eventual seizure of the pumping elements. Unlike modern common-rail pumps, the DB2 cannot be remanufactured without a dedicated Stanadyne calibration bench. Quality fuel filtration is your only practical defense — and the FD3375 is engineered specifically for this duty.
Installation Guide
-
Locate Filter: The fuel water separator is mounted on the passenger-side inner fender or firewall, depending on the model year. It's a spin-on canister with a water drain at the bottom.
-
Drain Water First: If your housing has a drain valve, drain accumulated water into a container before removing the filter.
-
Remove Old Filter: Use a strap wrench if necessary. The spin-on design typically allows hand removal if the previous installer didn't over-tighten.
-
Prepare New Filter: Fill the new FD3375 with clean diesel fuel (reduces cranking time for priming). Apply a thin film of diesel to the gasket.
-
Install: Spin on by hand until the gasket contacts the mounting surface, then tighten an additional 1/2 to 3/4 turn. Do not over-tighten.
-
Prime System: If equipped with a mechanical lift pump, crank the engine in 15-second bursts with 30-second cool-down periods until it starts. An electric lift pump upgrade (available from iFJF) makes priming effortless.
FAQ
Q: Can I use a 7.3L Powerstroke filter on my IDI?
A: No. Despite the shared 7.3L displacement, the IDI and Powerstroke use completely different fuel systems. The IDI's mechanical DB2 injection pump requires different filtration specifications. Using a Powerstroke filter can cause inadequate filtration and catastrophic pump damage.
Q: My IDI is hard to start after sitting — is the fuel filter the problem?
A: Probably not. The #1 cause of hard-start-after-sitting on IDI engines is air intrusion through the return line system — the plastic return caps and O-rings on top of the injectors allow fuel to drain back to the tank. A clogged filter causes different symptoms: low power, black smoke, and poor fuel economy.
Q: Should I add an electric lift pump to my IDI?
A: Many IDI owners add an electric lift pump to provide positive fuel pressure to the injection pump. This improves starting, reduces air intrusion, and extends injection pump life. iFJF offers a compatible electric lift pump — contact support@ifjf.net for details.
Q: Is biodiesel safe with this filter?
A: Yes, for blends up to B20. For biodiesel above B20, reduce the service interval to 10,000 miles. Biodiesel has greater solvency and can release tank deposits that load the filter more quickly.
Why Choose iFJF?
-
Heritage Vehicle Support: We manufacture filters for older diesel platforms that dealerships no longer prioritize. Your 30-year-old IDI deserves the same quality as a modern common-rail truck.
-
Factory Direct Value: No dealer markup on a filter that costs $50+ at Ford parts counters.
-
US Stock & Fast Delivery: Ships from our US warehouses. Typical delivery: 3-5 business days.
-
Diesel Community Knowledge: Our support team includes IDI enthusiasts. Contact support@ifjf.net with any questions.
