Stop Fighting Your 68157291AA Filter — Use the Right Tool
If you've ever changed the rear fuel filter on a 2011–2017 Ram 6.7L Cummins, you know the struggle: the 68157291AA filter element sits deep inside a cramped housing on the driver-side frame rail, with barely enough clearance to get your fingers in. The OEM plastic housing cap tightens over time, and pulling the filter out by hand often means scraped knuckles, broken fingernails, or a filter torn in half with the bottom stuck inside the housing.
The iFJF Fuel Filter Removal Lever is purpose-built to solve exactly this problem. Hook the tip under the filter lip, lever it out in seconds — no prying with screwdrivers, no damage to the housing, no frustration.
Compatibility
| Year |
Make |
Model |
Engine |
| 2011–2017 |
Ram |
2500 / 3500 / 4500 / 5500 |
6.7L Cummins Turbo Diesel |
Specifically designed for the 68157291AA rear (chassis-mounted) fuel filter element. Works with all filter brands that match this form factor, including Mopar, Fleetguard FS43255, WIX 33255, Baldwin FF1199, and Donaldson.
Why You Need This Tool
-

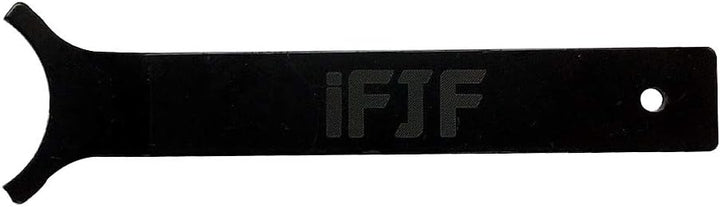

✅ Purpose-Built for 68157291AA — The hooked tip is precisely angled to catch the filter's recessed lip without slipping or damaging the filter media. Not a generic pry bar — made specifically for this filter.
-
✅ Heavy-Duty Steel Construction — CNC-cut from thick steel plate and finished with a black anodized coating. Won't bend under levering force, won't rust in your toolbox, and won't leave metal flakes in your filter housing.
-
✅ Ergonomic Handle with Extension Slot — The handle is long enough for comfortable leverage. Need more? The precision-drilled hole at the end accepts a 3/8" extension bar or thin metal rod, effectively doubling your mechanical advantage for extra-stubborn filters.
-
✅ Compact & Hangable — Only about 6 inches long. The end hole doubles as a hanging slot — clip it to your toolbox pegboard so it's always where you left it next service.
-
✅ Protects Your Housing — Using screwdrivers or pliers to pry out a stuck filter can score the housing bore, leading to air leaks and fuel prime issues. This tool engages the filter lip only — zero housing contact.

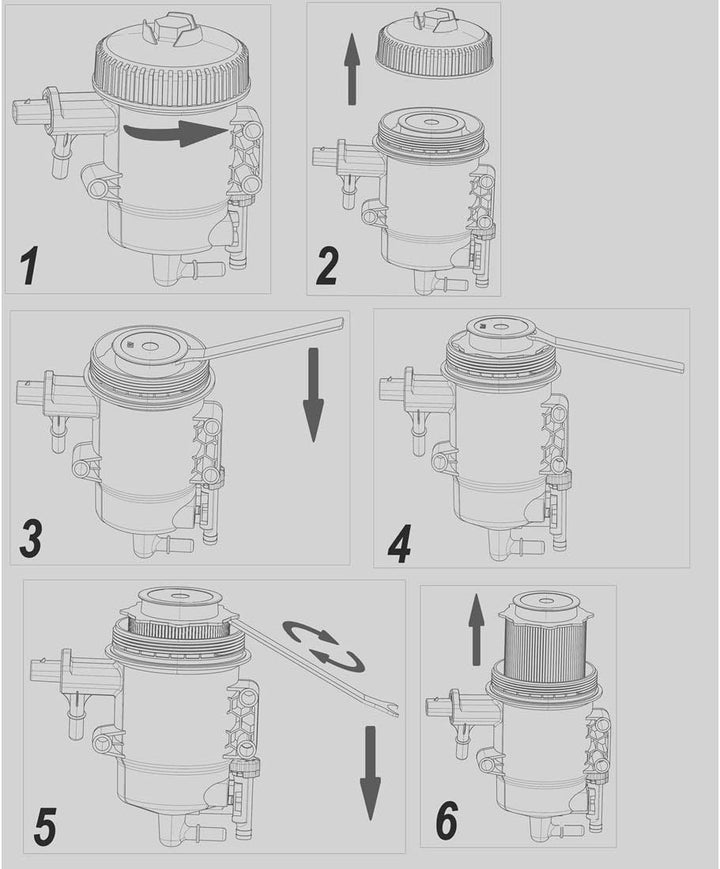

How to Use
- Remove the filter housing cap using a 28mm or 29mm socket
- Drain any residual fuel from the housing
- Insert the hooked tip of the lever under the exposed lip of the filter element
- Pivot the handle downward — the filter will lift out smoothly
- If the filter is exceptionally tight, insert a 3/8" bar through the handle hole for extra leverage
- Install the new filter, replace the O-ring, and reassemble
Frequently Asked Questions
Q: Will this work on other Ram diesel filters?
A: This tool is designed specifically for the 68157291AA-style cylindrical filter element (2011–2017 rear position). It may also work on 2010 and 2018–2020 models using the same 68157291AA filter, though the housing design changed slightly after 2017 — test fit before applying full force.
Q: Do I really need a special tool for this?
A: If you only change this filter once, you might get by with a bent wire hook or screwdriver. But if you service your own truck regularly — or run a shop — this tool pays for itself in saved time, saved filters (no more torn elements), and saved frustration. It's the difference between a 10-second removal and a 10-minute fight.
Q: Will this scratch or damage the housing?
A: No. The tool only contacts the filter element's plastic lip. It never touches the aluminum housing bore.
Q: What's the hole at the end of the handle for?
A: Two purposes: (1) it accepts a 3/8" extension bar or thin rod to extend your leverage for extra-stubborn filters, and (2) it lets you hang the tool on a pegboard hook for storage.
Q: Is the black finish durable?
A: Yes. The anodized black finish is chemically bonded to the steel surface — it won't chip, peel, or rub off onto your hands or parts. It also provides corrosion resistance so the tool stays rust-free in humid shop environments.
Technical Specifications
| Spec |
Detail |
| Material |
Steel with Black Anodized Finish |
| Overall Length |
~6 in (150 mm) |
| Hook Profile |
Angled Tip, Optimized for 68157291AA Lip |
| Extension Hole |
Accepts 3/8" Drive Extension Bar |
| SKU |
FJ-91AA-BS14 |
