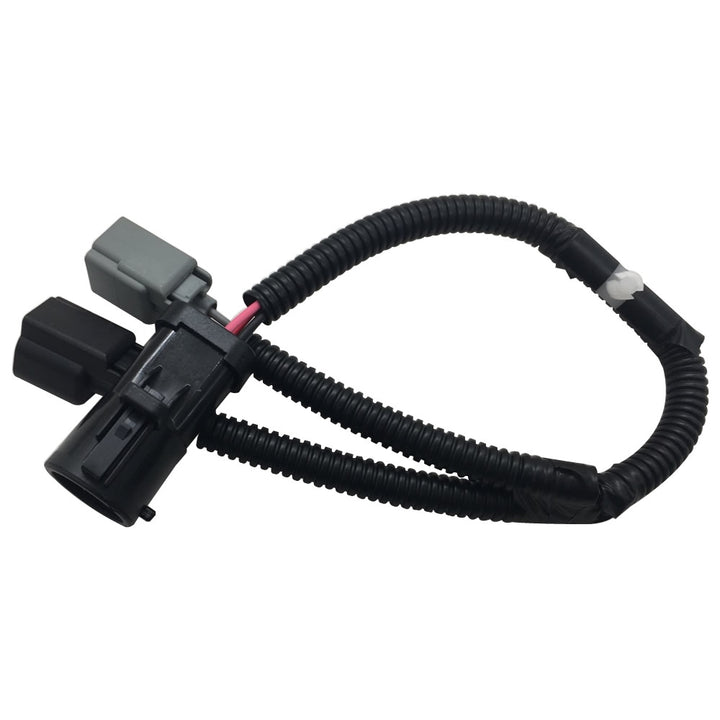

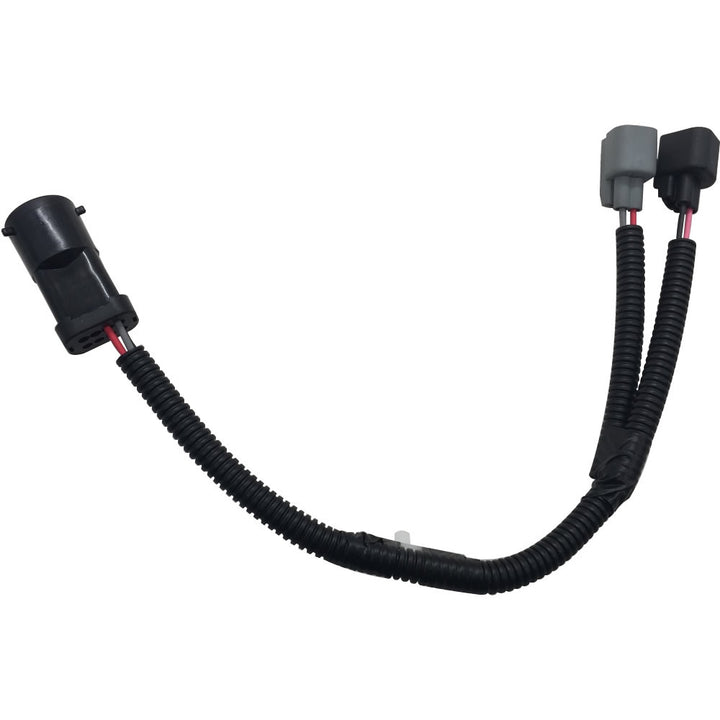

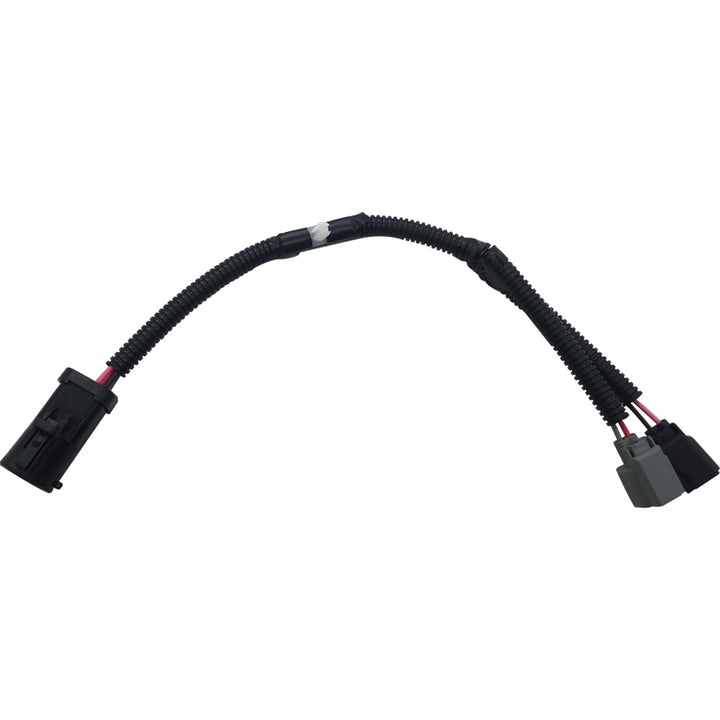

HFCM Fuel Pump Wiring Harness for 2003-2007 Ford 6.0L Powerstroke
The HFCM (Horizontal Fuel Conditioning Module) wiring harness is the electrical lifeline of your 6.0L Powerstroke's fuel delivery system. Mounted on the driver's side frame rail, it connects the frame-mounted HFCM fuel pump assembly to the vehicle's main electrical system — supplying power to the fuel pump and fuel heater element. When this harness fails — and it does, often — your truck experiences intermittent no-starts, sudden stalling, or a complete loss of fuel pressure with zero warning.
Rated 4.5 stars with 140+ reviews and carrying the Amazon's Choice badge in the Wiring Harnesses category, this is the go-to replacement for 6.0L Powerstroke owners tired of chasing electrical gremlins. Each harness is built with heavy-duty fluoroelastomer (Viton) seals — the same material used in OEM diesel fuel system O-rings — ensuring long-term resistance to diesel fuel, road salt, and extreme under-chassis temperatures.
Key Features
-
Direct OEM Replacement — Manufactured to Ford 6C3Z-9F759-A (6C3Z9F759A) specifications. Identical connector shells, pin count, wire gauge, and circuit routing. Plugs directly into the factory chassis harness and HFCM pump with zero modifications.
-
Heavy-Duty Fluoroelastomer Seals — All connector seals are made from genuine Viton fluoroelastomer, not cheap nitrile rubber. Viton withstands continuous exposure to diesel fuel, road salt brine, and under-chassis temperatures up to 400°F without hardening or cracking — the #1 cause of connector seal failure on budget harnesses.
-
Bridge Harness Design — New aftermarket HFCM fuel pumps often use updated connector styles that are incompatible with the original 2003-2007 factory wiring harness (different plug shape, different pinouts). This harness acts as a jumper, bridging the gap between your factory chassis harness and the new pump — without replacing the entire HFCM assembly.
-

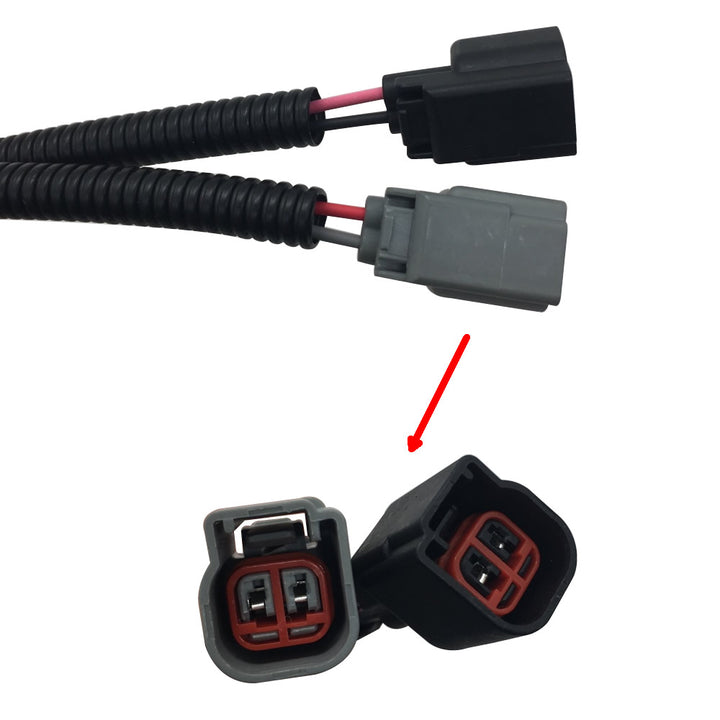

Complete Plug-and-Play Kit — Includes the HFCM pump connector, fuel heater connector, and main chassis harness connector — all pre-assembled and ready to install. No wire cutting, no soldering, no crimping. Simply unplug the old, plug in the new.
-
OEM-Grade Wire & Color Coding — Uses the same AWG copper wire gauge and factory color coding as the Ford harness for straightforward pin-by-pin verification during installation and troubleshooting.
-
Weather-Sealed Throughout — Every connector features silicone rubber environmental seals and terminal position assurance (TPA) locks. Keeps moisture, salt spray, and road grime out of the electrical contacts — the root cause of most HFCM harness failures.
Vehicle Compatibility
| Year |
Make |
Model |
Engine |
Notes |
| 2003-2007 |
Ford |
F-250 Super Duty |
6.0L Powerstroke V8 Turbo Diesel |
All cab configurations |
| 2003-2007 |
Ford |
F-350 Super Duty |
6.0L Powerstroke V8 Turbo Diesel |
Single & dual rear wheel |
| 2003-2007 |
Ford |
F-450 Super Duty |
6.0L Powerstroke V8 Turbo Diesel |
Chassis cab included |
| 2003-2007 |
Ford |
F-550 Super Duty |
6.0L Powerstroke V8 Turbo Diesel |
Chassis cab included |
| 2003-2005 |
Ford |
Excursion |
6.0L Powerstroke V8 Turbo Diesel |
All trim levels |
Important: This harness connects the frame-mounted HFCM pump only (driver side frame rail, under the cab). It is NOT the engine-mounted fuel injector harness, NOT the in-tank sending unit harness, and NOT the FICM harness. If you need those, check our 6.0L Powerstroke collection.
Technical Specifications
| Specification |
Detail |
| OEM Part Number |
6C3Z-9F759-A, 6C3Z9F759A |
| Connector Seal Material |
Viton Fluoroelastomer (Fuel & Heat Resistant to 400°F) |
| Wire Gauge |
14-18 AWG — Matches OEM Ford Specification |
| Circuit Coverage |
Fuel Pump Power (12V), Fuel Heater, Ground |

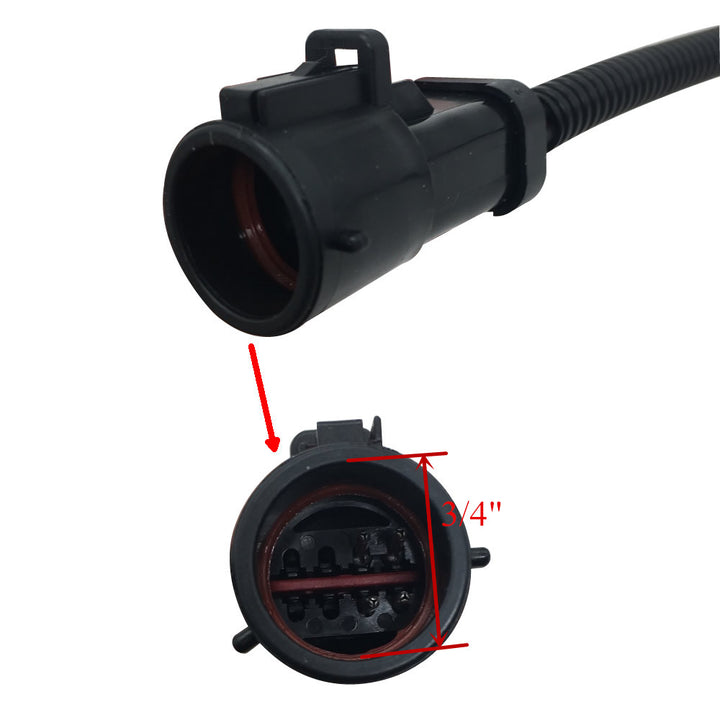

| Connector Type |
Weather-Sealed Multi-Pin (OEM-Spec Shell) |
| Installation Type |
Frame-Mount, Plug-and-Play — No Splicing Required |
| Kit Contents |
1x Complete HFCM Wiring Harness Assembly |
| Amazon Rating |
4.5 ★ (140+ Reviews) — Amazon's Choice |
Symptoms of a Failing HFCM Wiring Harness
The 6.0L HFCM harness doesn't usually fail all at once. It degrades gradually, causing increasingly frustrating symptoms that are often misdiagnosed as a bad fuel pump. Here's what to watch for:
-
Intermittent No-Start — The Classic Sign — Engine cranks strong but won't fire. No fuel pump hum when the key is turned to ON. Then 20 minutes later it starts like nothing happened. This is the #1 symptom of a failing HFCM harness — heat cycling causes the corroded connector to lose contact, and cooling down temporarily restores it.
-
Sudden Stalling While Driving — Truck dies without warning at highway speed. Restarts after cooling down or after wiggling the HFCM connector. Dangerous and unpredictable — do not ignore this.
-
P0231 / P0232 Diagnostic Trouble Codes — Fuel pump secondary circuit low voltage (P0231) or high voltage (P0232). These codes point directly to a wiring or connector issue at the HFCM pump, not the pump itself.
-
Fuel Pump Runs Intermittently — You hear the pump prime sometimes but not others when cycling the key. Classic loose connection or high-resistance contact.
-
Visible Corrosion on Connector Pins — Green, white, or blue crust on the HFCM connector terminals. Once corrosion is visible on the outside, it has almost certainly traveled up the wire strands inside the insulation. The connector is compromised.
-
Fuel Pressure Drops Under Load — Truck runs fine at idle but falls on its face during acceleration or towing. Corroded connections create voltage drop at the pump, reducing fuel pressure when demand is highest.
How to Diagnose Harness vs. Pump Failure
Before replacing any parts, do this simple 2-minute diagnostic to avoid throwing money at the wrong component:
-
Test for 12V at the HFCM connector during the key-on prime cycle (first 2 seconds after turning the key to ON, before cranking). Use a multimeter or test light at the pump power and ground pins.
-
If 12V is present but the pump doesn't run → the pump itself is bad. Replace the HFCM pump.
-
If voltage is absent or intermittent → the harness, relay, or fuse is at fault. Wiggle the harness connector while your meter is connected — if voltage cuts in and out, the harness is the culprit. Replace this harness.
-
Inspect the connector pins closely — look for green corrosion, melted plastic around the terminals (sign of overheating from high resistance), or loose female pins that have lost their spring tension.
Pro tip: Many shops misdiagnose this as a fuel pump failure because they test at the relay (which shows good voltage) but never test at the pump connector itself. The voltage drop happens in the corroded harness between the relay and the pump. Always test at the pump connector before condemning the pump.
Installation Guide
Difficulty: Beginner to Intermediate | Time: 15-30 Minutes | Tools: 8mm & 10mm sockets, flathead screwdriver, dielectric grease (recommended)
-
Safety First — Disconnect both battery negative terminals. The HFCM circuit is live even with the key off on some 6.0L models.
-
Locate the HFCM — Crawl under the driver's side of the truck, just behind the front door. The HFCM is a black module mounted on the inside of the frame rail with two wiring connectors and two fuel lines attached.
-
Disconnect the Old Harness — Depress the locking tab on each connector and pull straight out. If the connector body is brittle (common), it may crack — use needle-nose pliers to remove any broken plastic pieces from the pump and chassis ports.
-
Inspect the Ports — Before installing the new harness, inspect both the pump and chassis connector ports for debris, corrosion, or bent pins. Clean with electrical contact cleaner if needed.
-
Apply Dielectric Grease — Apply a thin coat of dielectric grease to the new harness connector seals. This prevents moisture intrusion and makes future disconnection easier.
-
Plug In the New Harness — Connect the chassis side first, then the pump side. Push each connector in until you hear an audible click from the locking tab. Give each connector a gentle tug to confirm it's locked.
-
Secure the Harness — Route the harness along the same path as the original, using the factory mounting clips. Avoid routing near exhaust components or sharp frame edges.
-
Reconnect Batteries & Test — Reconnect both batteries. Turn the key to ON (do not crank) and listen for the fuel pump priming hum. It should run for approximately 2 seconds and then stop. Cycle the key 3-5 times to purge any air introduced during installation, then start the engine and check for proper operation.
Why This Harness Fails on the 6.0L Powerstroke
The 2003-2007 6.0L Powerstroke HFCM harness is a known weak point for three reasons:
-
Location, Location, Location — The HFCM is mounted on the frame rail, inches from the road surface. It catches everything: water, salt, mud, gravel, ice. In northern states that use road salt (MI, NY, OH, PA, MN, WI), harness failure is nearly guaranteed by 100,000 miles.
-
Heat Cycling — The exhaust system runs near the frame rail. Repeated heating and cooling causes the connector plastic to expand and contract, loosening the terminal grip and creating tiny gaps where moisture enters and corrosion begins.
-
Budget Harness Alternatives Fail Faster — Cheap replacement harnesses use nitrile rubber seals that harden and crack within 2-3 years of diesel fuel and salt exposure. Our Viton fluoroelastomer seals are the same material used in aerospace fuel systems — they stay flexible and seal-tight for the life of the vehicle.
What Customers Say
With 140+ ratings and a 4.5-star average on Amazon — plus the Amazon's Choice badge — this HFCM wiring harness has earned its reputation as the go-to fix for 6.0L Powerstroke fuel pump electrical issues. Here's what verified buyers are saying:
| Rating |
Review Title |
Verified |
| ⭐⭐⭐⭐⭐ |
"Exact replacement for original" |
✅ |
| ⭐⭐⭐⭐⭐ |
"A perfect replacement" |
✅ |
| ⭐⭐⭐⭐⭐ |
"Perfect fit" |
✅ |
| ⭐⭐⭐⭐⭐ |
"Worked perfect" |
✅ |
| ⭐⭐⭐⭐⭐ |
"Good quality" |
✅ |
| ⭐⭐⭐⭐⭐ |
"Works fine for 6.0 Powerstroke" |
✅ |
| ⭐⭐⭐★★ |
"Works great" |
✅ |
Common themes from buyers: "Exact fit, no modifications needed." "Fixed my intermittent no-start immediately." "Plug-and-play — took 15 minutes." "Quality matches OEM at a fraction of dealer price."
Data sourced from Amazon product reviews for ASIN B081JMT3J2. Rating and review count updated as of 2026-07.
Frequently Asked Questions
Q: How do I know if it's the harness or the pump itself?
A: Test for 12V at the HFCM pump connector pins during the key-on prime cycle. If you have 12V and the pump doesn't run, the pump is bad. If voltage is absent or drops when you wiggle the connector, the harness is bad. Most importantly — inspect the connector pins for green or white corrosion. If you see any, the harness is compromised regardless of what your meter says.
Q: My new aftermarket HFCM pump has a different connector than the factory harness. Will this work?
A: Yes — this is exactly what this harness is designed for. Many aftermarket 6.0L HFCM pumps use updated connector styles that don't match the original 2003-2007 factory plug. This harness acts as a bridge, adapting your factory chassis wiring to the new pump's connector without cutting or splicing a single wire.
Q: Do I need to drop the fuel tank to replace this harness?
A: No. The HFCM is mounted on the driver's side frame rail, under the cab — accessible from under the truck without dropping the tank or removing the bed. You'll need to crawl under the truck on the driver's side, just behind the front door. A creeper makes the job more comfortable but isn't required.
Q: Can I just clean the old connector pins and re-use the harness?
A: We don't recommend it. The corrosion you can see on the connector pins has almost certainly wicked up the copper wire strands inside the insulation — creating high resistance that you can't see. What looks like clean copper at the connector face may have 50+ ohms of resistance 6 inches up the wire. This causes voltage drop at the pump, reduced fuel pressure, and eventual total failure — usually at the worst possible moment. Replace the complete harness for a permanent fix.
Q: Will this fix my P0231 or P0232 code?
A: If the code is caused by a faulty harness or corroded connector (which it is in the majority of 6.0L cases), yes — replacing the harness will clear the circuit fault. After installation, clear the DTCs with a scan tool and perform a key-on test. If the code returns, check the fuel pump relay and fuse in the central junction box under the hood.
Q: Is dielectric grease really necessary?
A: It's not strictly required for the harness to work, but we strongly recommend it. A thin coat of dielectric grease on the connector seals creates a secondary moisture barrier that dramatically extends connector life — especially in salt-belt states. It takes 30 seconds and costs pennies. Do it.
