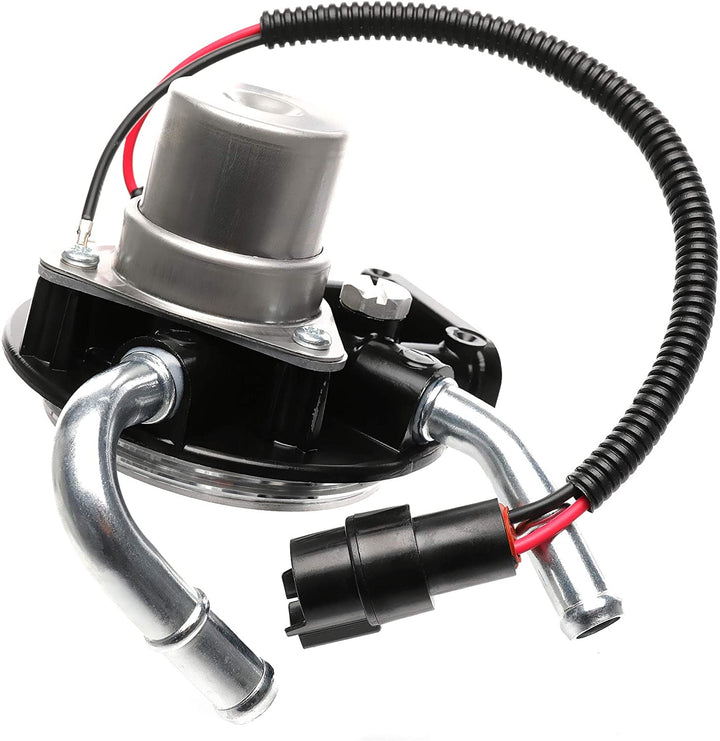

Fuel Filter Head Assembly for 2005-2013 Duramax 6.6L LLY/LBZ/LMM — with Billet Bleeder Screw Upgrade
Any Duramax owner who's fought with a seized bleeder screw knows the frustration — that plastic factory screw welds itself into the filter head, and one wrong twist with a screwdriver rounds off the slots, leaving you unable to bleed air from the fuel system after a filter change. This replacement fuel filter head assembly solves that problem permanently. It includes a CNC-machined billet aluminum bleeder screw that won't strip, won't seize, and gives you positive control every time you service your fuel filter. Complete with a new hand primer pump and all mounting provisions, it's the upgrade your Duramax deserves.
Key Features
-

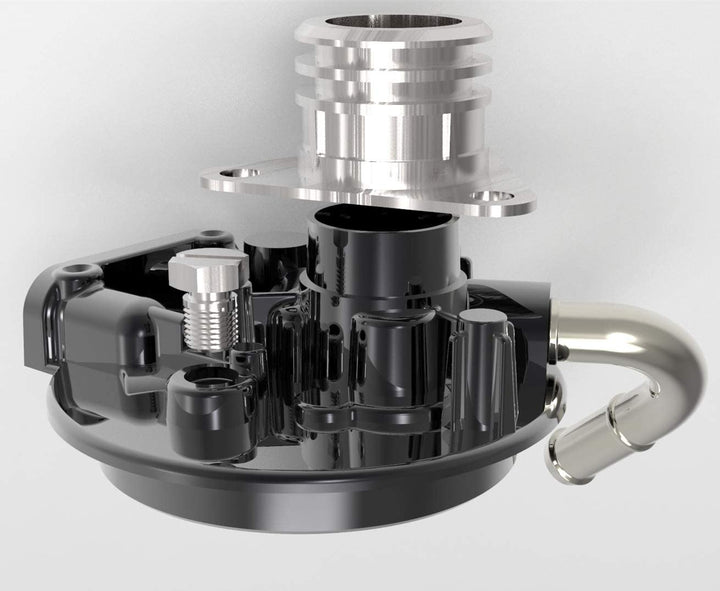

Billet Aluminum Bleeder Screw: CNC-machined from 6061-T6 aluminum with a hex-head design — no more stripped plastic screw slots. Apply a wrench for positive bleed control during filter priming.
-
New Hand Primer Pump: Includes a fresh diaphragm-style hand primer that produces firm, consistent pressure to push fuel through the new filter and purge air without excessive pumping.
-
Complete Filter Head: Replaces the entire factory filter head assembly, including the filter mounting thread boss, WIF sensor port, fuel inlet/outlet ports, and heater element provision — not just a partial rebuild kit.
-
Direct Bolt-On Fit: All mounting points match the factory bracket on 2005-2013 Silverado and Sierra 2500HD/3500HD trucks. Remove the old head, transfer your sensors, bolt this one on.
-

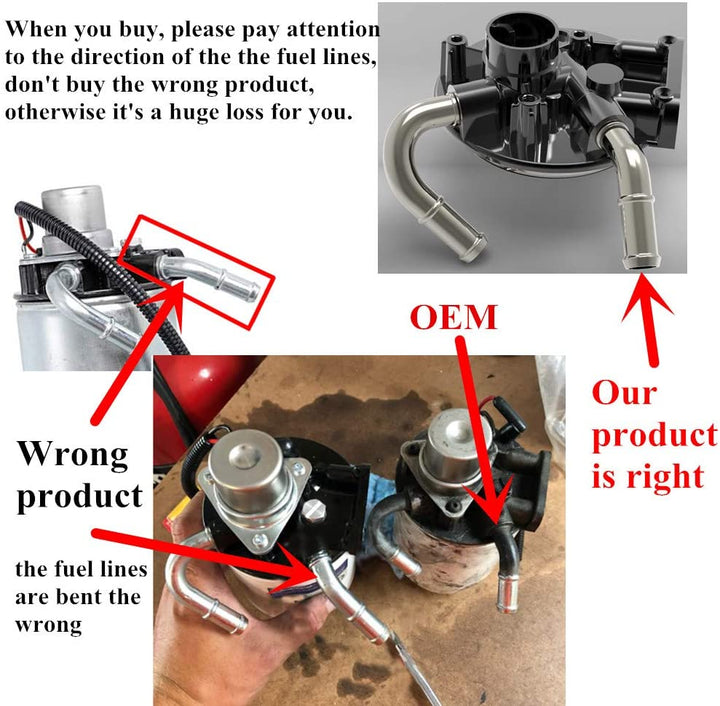

Proper Fuel Routing: Internal passages are correctly sized to maintain factory fuel flow rates, preventing the restriction issues that plague some cheaper aftermarket filter heads.
Vehicle Compatibility
| Make |
Model |
Years |
Engine |
Engine Code |
| Chevrolet |
Silverado 2500HD/3500HD |
2005-2013 |
6.6L Duramax Turbo Diesel |
LLY, LBZ, LMM |
| GMC |
Sierra 2500HD/3500HD |
2005-2013 |
6.6L Duramax Turbo Diesel |
LLY, LBZ, LMM |
Technical Specifications
| Specification |
Value |
| Part Type |
Fuel Filter Head Assembly (Complete) |
| Replaces OEM |
12642623 (GM/ACDelco) |
| Bleeder Screw Material |
6061-T6 Billet Aluminum, CNC Machined |
| Bleeder Screw Drive |
Hex Head (Wrench-Operated) |
| Primer Pump |
Diaphragm-Type Hand Primer (Included) |
| WIF Sensor Port |
Yes — Accepts Factory Sensor |
| Fuel Heater Provision |
Yes — Compatible with Factory Heater Element |
| Filter Thread |
Standard Duramax Spin-On Filter Thread |
| Inlet/Outlet Size |
Matches Factory Fuel Line Fittings |

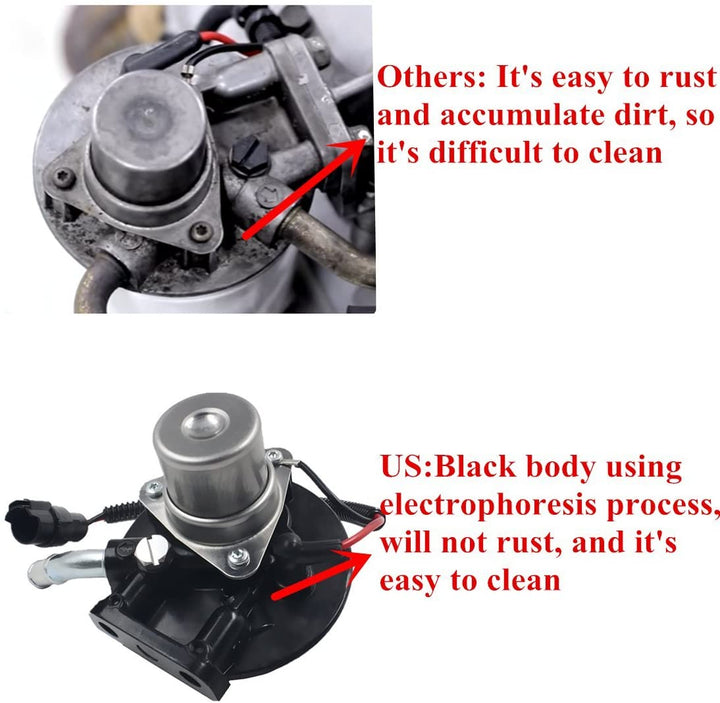

Why Upgrade Your Filter Head?
The OEM Duramax filter head has two well-known weaknesses that this assembly addresses. First, the plastic bleeder screw: it's a Phillips/flathead combo that strips with alarming regularity. Once stripped, you can't effectively bleed the system, and many owners resort to cracking a fuel line fitting (which introduces its own risks). Second, the hand primer diaphragm hardens and loses effectiveness over time, making filter priming a tedious, multi-minute pumping ordeal. This assembly replaces both failure points with upgraded components while maintaining compatibility with all your factory sensors and heater.
Installation Guide
- Disconnect both negative battery cables before starting — you'll be working near the alternator and starter wiring on the passenger side of the engine.
- Remove the inner fender liner for better access to the filter head mounting bolts — it adds 10 minutes to the job but saves an hour of frustration.
- Transfer the WIF sensor and fuel heater element from your old filter head to the new one. Inspect each O-ring and replace if they show any signs of flattening or cracking.
- Torque the filter head mounting bolts to 18 ft-lbs — the aluminum bracket threads will strip if over-torqued.
- Lubricate the new billet bleeder screw threads with a small amount of anti-seize compound before installation — this prevents galling and ensures smooth operation for years of filter changes.
- After installation, fill the new filter with clean diesel, install it on the head, and use the hand primer until firm resistance is felt. Open the bleeder screw, continue pumping until bubble-free fuel emerges, then close the bleeder and start.
Frequently Asked Questions
Q: Will this fit the 2001-2004 LB7 Duramax?
A: No, the LB7 uses a different fuel filter head design with a different mounting pattern and port configuration. This assembly is designed for 2005-2013 LLY, LBZ, and LMM engines only. For 2011-2016 LML trucks, a different filter head is also required.
Q: Does this include the fuel filter element?
A: No, the fuel filter element is sold separately. This assembly accepts standard Duramax spin-on fuel filters (ACDelco TP3018, Wix 33960, or equivalent). We recommend replacing the filter whenever you replace the filter head.
Q: The factory bleeder screw is completely stripped and I can't get it out. What now?
A: If the bleeder screw is seized beyond removal, don't risk cracking the housing by forcing it — you're replacing the entire filter head anyway. Simply disconnect the fuel lines and remove the complete assembly. The old bleeder screw doesn't need to come out separately.
Q: Can I still use my edge programmer or tuning with this filter head?
A: Yes. This filter head is a mechanical component with no electronic interfaces. It has no effect on engine tuning, programmers, or emissions equipment. Fuel flow rates are maintained at factory specifications.
