Description
Product Overview
Upgrade your 1999-2004 Mustang GT 4.6L V8 or 1996-2008 Crown Victoria with the iFJF 400-524 Performance Throttle Body Spacer. Precision CNC-machined from 6061-T6 billet aluminum with a striking anodized red finish, this spacer increases intake plenum volume and features a helix/spiral bore design that creates a vortex effect for superior air/fuel atomization. The result? Stronger throttle response, improved mid-range torque between 800-3,000 RPM, and a noticeable boost in part-throttle drivability — all without requiring a custom tune. Designed for vehicles equipped with the returnless fuel system, this is a true bolt-on upgrade that installs in under an hour with basic hand tools.
Key Features
-
CNC-Machined 6061-T6 Billet Aluminum — Precision-cut from aerospace-grade aluminum for exact OEM port matching and superior heat resistance. Won't warp or melt under sustained engine bay temperatures, unlike cheaper cast alternatives.
-
Helix/Spiral Bore Design — Patented internal spiral pattern creates a controlled vortex that improves air/fuel mixture atomization. Delivers measurable torque gains from 800-3,000 RPM where you actually drive.
-
Anodized Red Finish — Corrosion-resistant anodized coating provides long-lasting protection and a custom under-hood appearance that complements any engine bay.
-

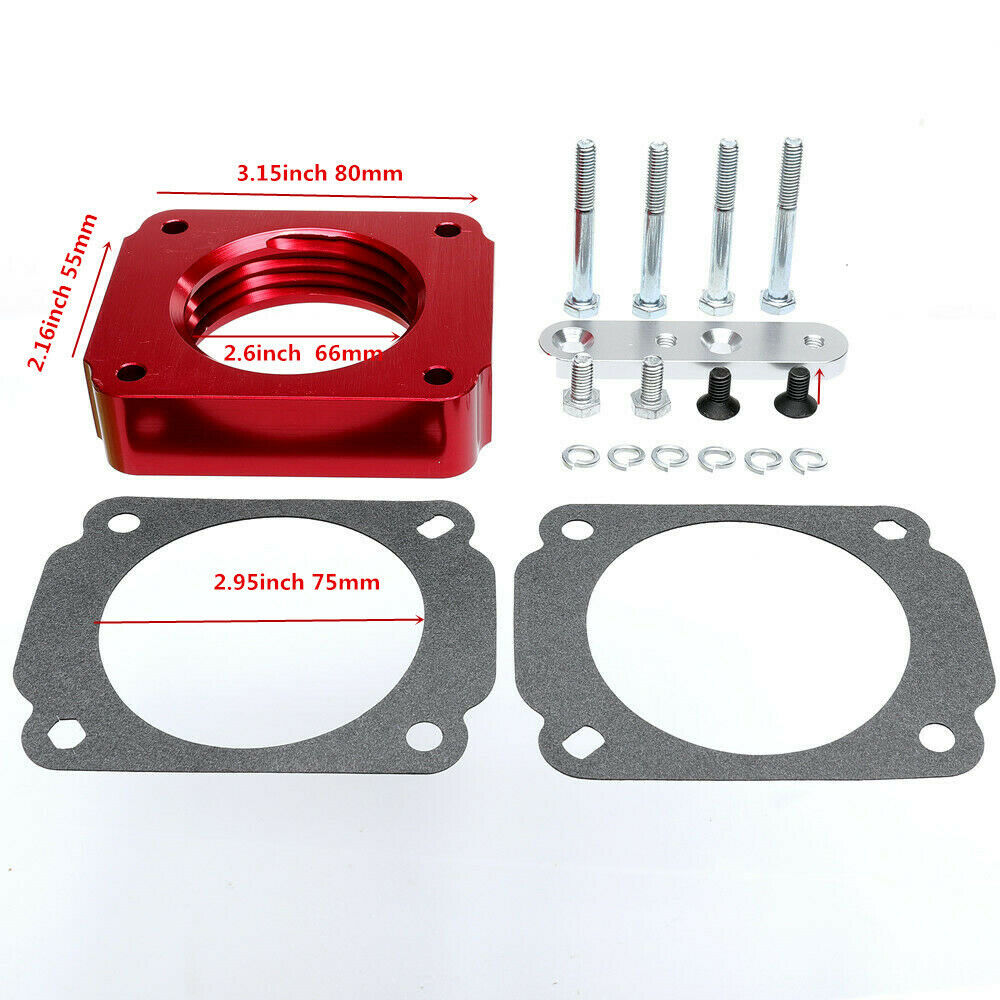

Complete Bolt-On Kit — Includes extended-grade hardware (bolts, studs, and gaskets) — everything needed for a leak-free install. No drilling, cutting, or permanent modifications required.
-
Returnless Fuel System Compatible — Specifically designed for 1999-2004 Mustang GT models with the returnless fuel system. Also compatible with 1996-2008 Crown Victoria, Grand Marquis, and Town Car with the 4.6L 2V SOHC engine.
Compatibility
| Year |
Make |
Model |
Engine |
Notes |
| 1999-2004 |
Ford |
Mustang GT |
4.6L 2V SOHC V8 |
Returnless fuel system |
| 1996-2008 |
Ford |
Crown Victoria |
4.6L 2V SOHC V8 |
Including P71 Police Interceptor |
| 1996-2008 |
Mercury |
Grand Marquis |
4.6L 2V SOHC V8 |
— |
| 1996-2008 |
Lincoln |
Town Car |
4.6L 2V SOHC V8 |
— |
Specifications
| Part Number |
400-524 (Replacement) |
| Material |
CNC 6061-T6 Billet Aluminum |
| Finish |
Anodized Red |
| Bore Design |
Helix / Spiral Vortex |
| Thickness |
1.0 inch (adds ~1 inch to intake height) |
| Dimensions |
4.88 × 4.84 × 1.65 inches |
| Weight |
1.08 lbs |
| Gaskets Included |
Yes (upper + lower) |
| Hardware Included |
Extended-grade bolts & studs |
| Fuel System |
Returnless (1999-2004 Mustang GT) |
| Installation |
Bolt-on — no permanent modifications |
Performance Benefits
- ✅ Improved Throttle Response — Larger plenum volume reduces intake restriction for quicker tip-in
- ✅ Enhanced Low-End & Mid-Range Torque — Most gains felt between 800-3,000 RPM for daily driving and highway passing
- ✅ Better Fuel Atomization — Helix bore creates air turbulence for more complete combustion
- ✅ Potential MPG Improvement — More efficient combustion can yield 1-3 MPG gains under highway cruising
- ✅ Aggressive Intake Sound — Subtle but noticeable induction growl at wide-open throttle
- ✅ No Tuning Required — Factory ECU adapts fuel trims automatically after battery reset
Installation Guide
-
Skill Level: Beginner to Intermediate
-
Time Required: 30-60 minutes
-
Tools Needed: Socket set (8mm, 10mm), flathead screwdriver, torque wrench
-
Torque Spec: 89 in-lbs (10 Nm) — hand-tighten in a crisscross pattern, then torque to spec
-
Pro Tip: Disconnect the negative battery terminal for 15 minutes after installation to reset the ECU's learned fuel trims. This allows the computer to adapt to the new airflow characteristics for optimal performance.
-
Important: Apply a thin, even bead of RTV silicone sealant to both sides of each gasket for a leak-free seal. Allow 1 hour cure time before starting the engine.
Why Choose iFJF Over Budget Alternatives?
- 🔧 Proper Hardware Included — Unlike some budget kits that ship with bolts too short for secure engagement, our kit includes properly sized extended-grade hardware for full thread engagement and peace of mind.
- 🔥 Heat-Resistant 6061-T6 Construction — Engine bay temperatures can exceed 200°F. Our aerospace-grade billet aluminum won't soften, warp, or melt — a known issue with lower-grade cast spacers.
- 🇺🇸 Ships from US Warehouse — Fast domestic shipping, no long international wait times.
- 🛡️ IATF 16949 Certified Manufacturing — Built to the same quality standards that supply OEM automotive manufacturers worldwide.
Frequently Asked Questions
Q: Will I feel a real power difference?
A: Yes — most drivers report noticeable improvements in throttle response and mid-range pull, particularly between 2,000-3,500 RPM during part-throttle acceleration and highway passing. Dyno-tested gains are typically 3-8 HP and 5-10 lb-ft of torque at the wheels, depending on supporting modifications and engine condition.
Q: Do I need a custom tune after installation?
A: No custom tune is required. The factory ECU will automatically adjust fuel trims to compensate for the altered airflow. For best results, disconnect the negative battery terminal for 15 minutes after installation to reset learned adaptations, then drive normally for 50-100 miles while the ECU relearns.
Q: Will this cause a check engine light?
A: When properly installed with gaskets correctly sealed, the spacer will NOT trigger a check engine light. If you do get a CEL (typically P0171/P0174 lean codes), it indicates a vacuum leak — recheck gasket seating and bolt torque. Apply RTV sealant to both sides of each gasket for a guaranteed seal.
Q: Will this fit my Crown Victoria Police Interceptor (P71)?
A: Yes! Our 400-524 throttle body spacer is compatible with the 1996-2008 Crown Victoria, including all P71 Police Interceptor models equipped with the 4.6L 2V SOHC V8. It also fits the Mercury Grand Marquis and Lincoln Town Car from the same years. Check the compatibility table above for full details.
Q: What is the returnless fuel system and does my Mustang have it?
A: Starting in 1999, Ford switched the Mustang GT 4.6L from a return-style fuel system to a returnless system (single fuel line, no return line to tank). If your Mustang GT is 1999-2004, it has the returnless system and this spacer is a direct fit. 1996-1998 Mustang GT models have the return-style system — verify fitment before ordering.
Q: Will this spacer clear my strut tower brace or hood?
A: The spacer adds approximately 1 inch of height to the intake assembly. Most vehicles clear without issue, including those with factory strut tower braces. If you have an aftermarket strut tower brace or cowl hood, measure the clearance between your throttle body and the brace/hood before installation. Closing the hood slowly on the first attempt is always recommended.
Q: Is this compatible with aftermarket throttle bodies?
A: This spacer is designed for the OEM 4.6L 2V throttle body bolt pattern (65mm or 70mm factory TB). If you're running an aftermarket throttle body (BBK, Accufab, etc.), it may still fit if it uses the OEM bolt pattern. Aftermarket TBs with proprietary bolt spacing may not be compatible — verify before ordering.
Q: What's the difference between a helix bore and a straight bore spacer?
A: A straight bore spacer simply increases plenum volume. A helix/spiral bore spacer does that PLUS creates controlled air turbulence (vortex effect) that improves fuel atomization as the air-fuel mixture enters the intake manifold. This results in better combustion efficiency and more usable torque gains compared to a standard straight-bore design.
Shop with Confidence
Precision-engineered performance without the premium price tag. Backed by iFJF quality and fast shipping from our US warehouse. Add to cart now and feel the difference on your next drive.
📖 Learn More: Full Review & Installation Guide
We wrote an in-depth review covering real-world dyno results, competitor comparisons, and a complete step-by-step install guide — read the full 400-524 Throttle Body Spacer Review →
