Description
Product Overview

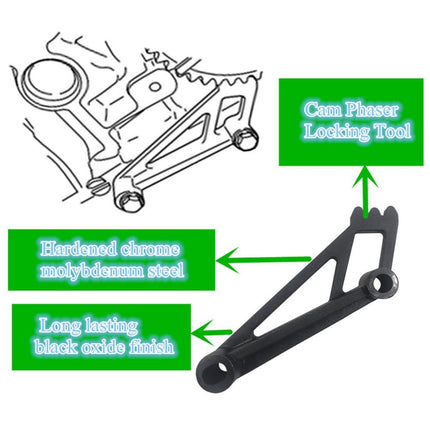

This precision-engineered specialty tool is designed for professional technicians and serious DIY mechanics performing timing chain and camshaft service on Ford modular engines. It locks the camshaft phasers and holds the crankshaft in position, preventing engine timing loss during service — a critical step that, if skipped, can result in catastrophic valve-to-piston contact.
Manufactured from hardened alloy steel with a black oxide finish, this tool withstands the high torque demands of engine work without flexing, stripping, or deforming. Whether you're replacing timing chains, cam phasers, or performing a full timing system overhaul, this tool ensures precise alignment every time.
Key Features
-
Precision CNC-Machined: Tight tolerances ensure perfect engagement with cam phaser and crankshaft interfaces — no slop, no damage to engine components.
-
Hardened Alloy Steel: Heat-treated construction withstands repeated high-torque applications without deformation or wear.
-
Black Oxide Finish: Corrosion-resistant coating protects the tool in shop environments and prevents rust during storage.
-
Multi-Engine Compatibility: Works across the Ford modular engine family — 4.2L V6, 4.6L 2V/3V V8, 5.4L 2V/3V/4V V8, and 6.8L V10.
-
Cam Phaser Locking: Secures camshaft phasers in position during timing chain removal, preventing valve-to-piston contact.
-
Crankshaft Holding: Built-in wrench holder keeps the crankshaft from rotating during bolt removal and torque application.
Compatibility
| Year |
Make |
Model |
Engine |
| 1993-2014 |
Ford |
F-150, F-250, F-350 |
4.2L V6 / 4.6L V8 / 5.4L V8 / 6.8L V10 |
| 1997-2014 |
Ford |
Expedition, Explorer |
4.6L V8 / 5.4L V8 |
| 1993-2011 |
Lincoln |
Town Car, Navigator, Mark VIII |
4.6L V8 / 5.4L V8 |
| 1993-2011 |
Mercury |
Grand Marquis, Mountaineer |
4.6L V8 / 5.4L V8 |
| 1997-2014 |
Ford |
E-Series Vans |
4.6L V8 / 5.4L V8 / 6.8L V10 |
Compatible with 2-valve and 3-valve modular engines. Not compatible with 4-valve DOHC engines without additional adapters.
Technical Specifications
| Specification |
Detail |
| Tool Type |
Cam Phaser Locking + Crankshaft Holding Tool |
| Material |
Hardened Alloy Steel (HRC 45-50) |
| Finish |
Black Oxide |
| Compatible Engines |
Ford 4.2L, 4.6L, 5.4L, 6.8L Modular |
| Application |
Timing chain, cam phaser, and front engine service |
| Warranty |
1-Year Limited Warranty |
Why Choose This Tool?
Performing timing chain service without the proper locking tools risks catastrophic engine damage. One slipped camshaft means bent valves, damaged pistons, and a repair bill in the thousands. Professional shops charge $150-300 just for tool rental — this kit pays for itself on the first use.
Frequently Asked Questions
Q: What engines does this tool work with?
A: Compatible with Ford 4.2L V6, 4.6L 2-valve and 3-valve V8, 5.4L 2-valve/3-valve/4-valve V8, and 6.8L V10 modular engines found in F-150, Expedition, Explorer, E-Series vans, and Lincoln/Mercury vehicles from 1993-2014.
Q: Do I need this tool to change timing chains?
A: Yes. Without locking the cam phasers and crankshaft, the camshafts can rotate when the timing chain is removed, causing valve-to-piston contact. This tool is essential for safe timing chain service on Ford modular engines.
Q: Can I use this for cam phaser replacement on the 5.4L 3V Triton?
A: Yes — this tool is compatible with 5.4L 3V engines found in 2004-2010 F-150, 2003-2014 Expedition, and 2005-2014 F-250/F-350. It's the same engine family that commonly needs cam phaser replacement.
Q: Is this the same as the Ford OEM special service tool?
A: This is an aftermarket equivalent that performs the same function as the Ford Rotunda tool set at a fraction of the cost. The engagement surfaces are machined to the same specifications.
Q: Do you include installation instructions?
A: The tool is straightforward for experienced mechanics. We recommend consulting the factory service manual for your specific vehicle for complete timing chain procedures, torque specifications, and timing mark alignment.
Q: What's included in this kit?
A: This kit includes both the cam phaser locking tool AND the crankshaft positioning/holding tool in one package.
