Description

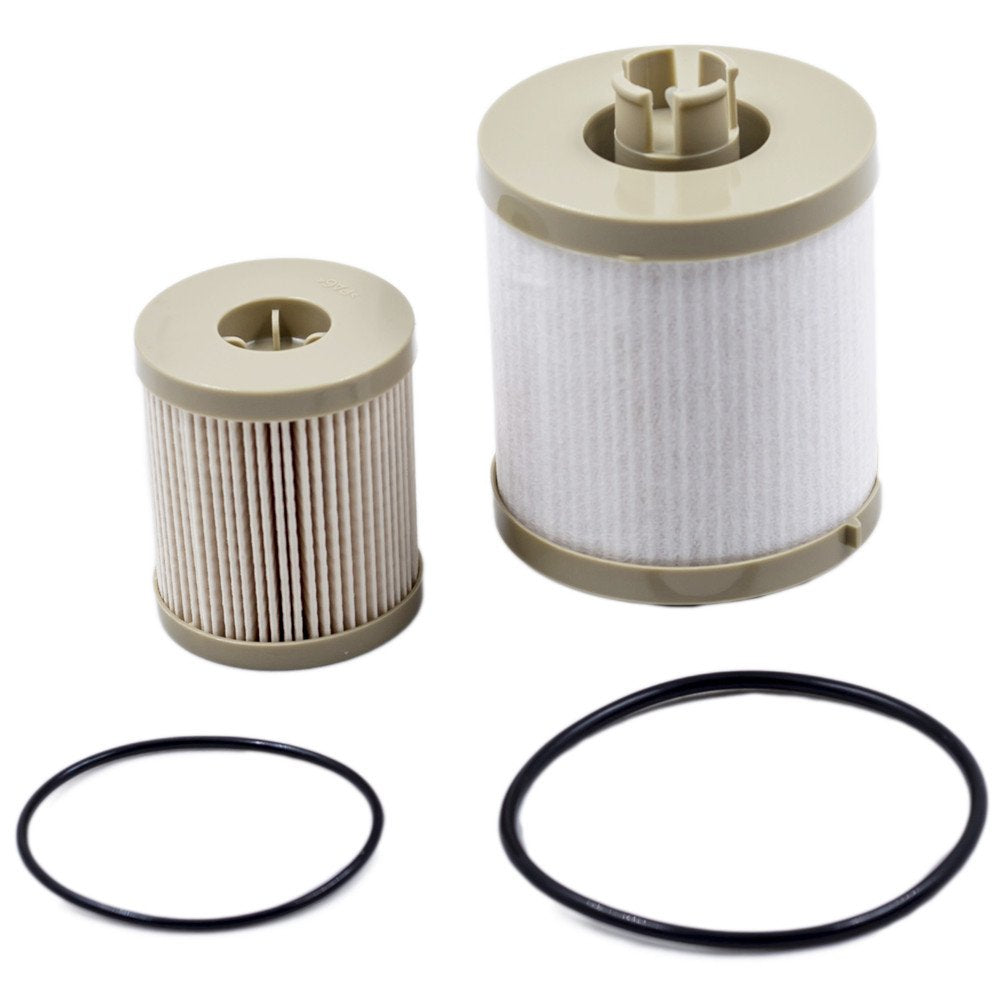

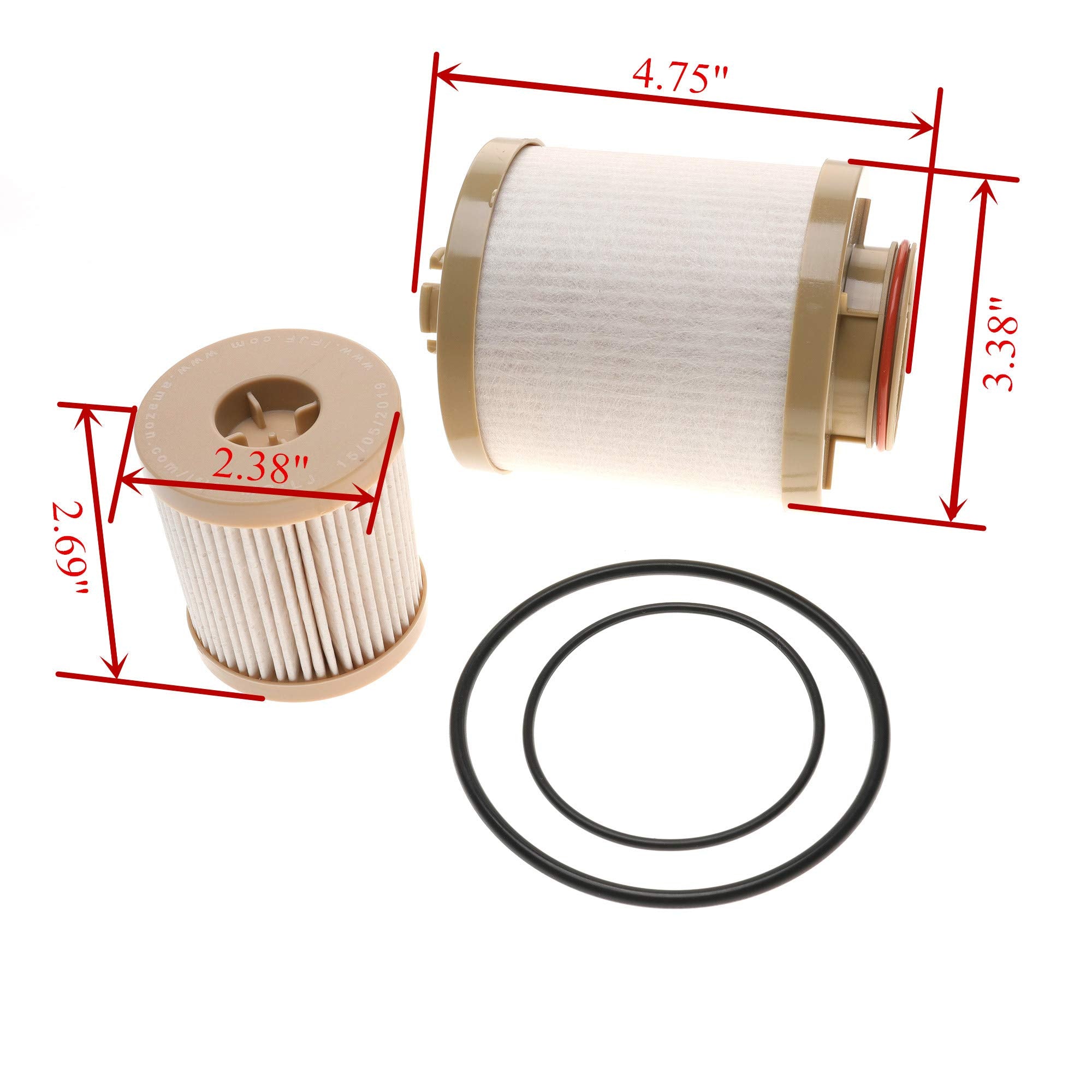

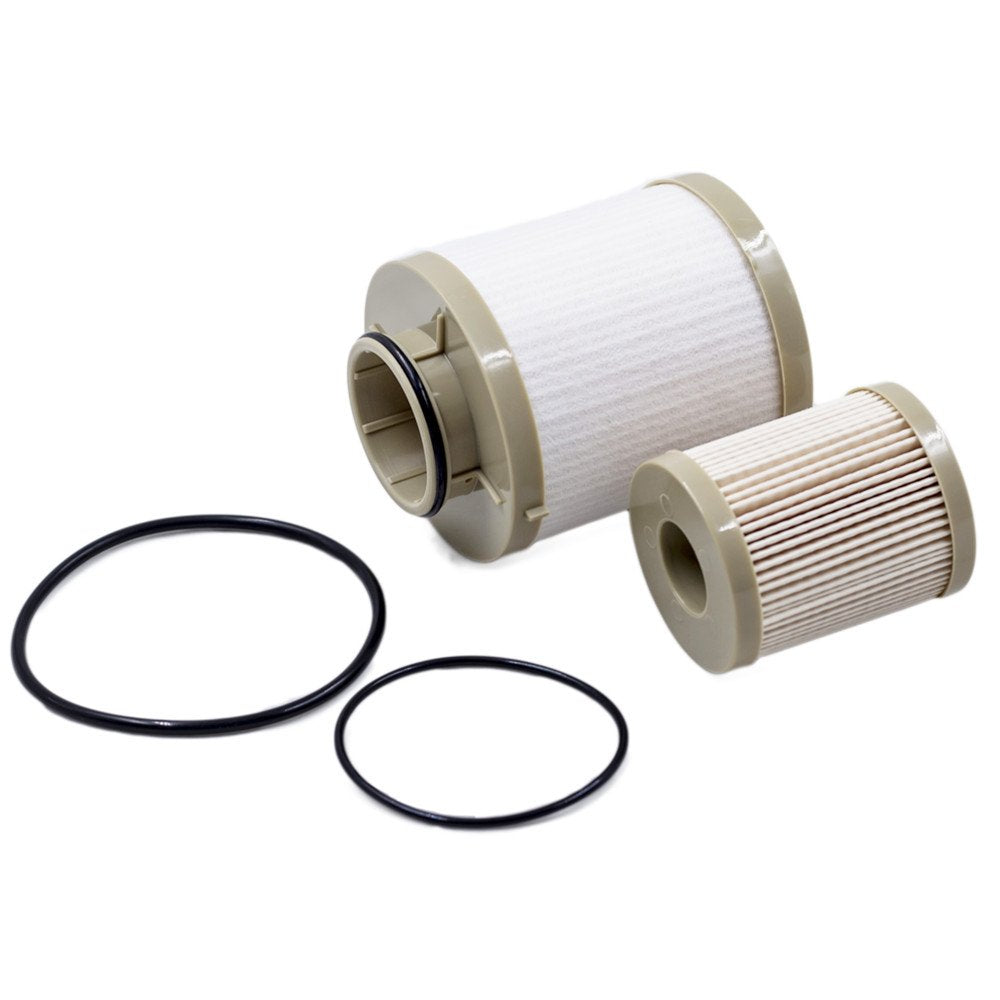

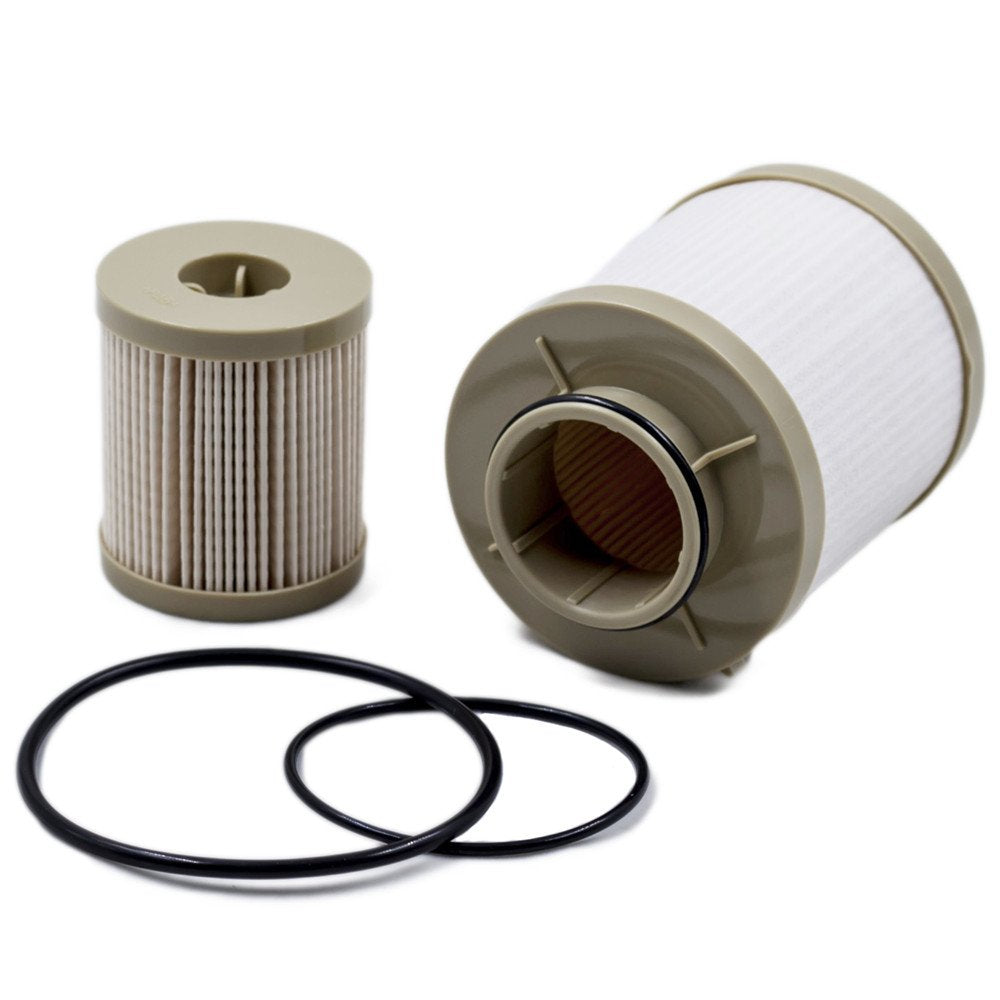

Complete Diesel Fuel Filter Set — FD4616 Lower & Upper Bowl
The iFJF FD4616 Fuel Filter Kit provides a complete filtration solution for your diesel engine. This 2-piece set includes both the lower lifter pump filter and the upper fuel bowl filter, delivering comprehensive protection against contaminants that can damage injectors and fuel system components.
Key Features
-
Dual Filtration System: Lower pump filter captures coarse debris before the lift pump; upper bowl filter provides fine filtration before the injection system
-
High-Efficiency Media: Engineered filtration media traps 99% of particles down to 10 microns
-
Direct OEM Replacement: Designed to match or exceed OE specifications for fit, flow rate, and filtration efficiency
-
Corrosion-Resistant Construction: Heavy-duty steel housing with anti-rust coating for long service life
-
Easy Installation: Spin-on design — no special tools required; gasket pre-lubricated from factory
Compatibility & Fitment
| Specification |
Detail |
| Part Number |
FD4616 |
| Filter Type |
Spin-On Fuel Filter (Lower + Upper Set) |
| Micron Rating |
10 Micron (Nominal) |
| Application |
Diesel Engines — Fuel Lift Pump & Fuel Bowl |
| Quantity |
2-Piece Set |
| Gasket Included |
Yes (Pre-Lubricated) |
Why Choose iFJF FD4616?
Diesel fuel contamination is the #1 cause of premature injector failure. The FD4616 dual-filter system ensures clean fuel reaches your injection pump and injectors. Unlike single-filter setups that leave the lift pump unprotected, this complete set guards the entire fuel path — from tank to combustion chamber.

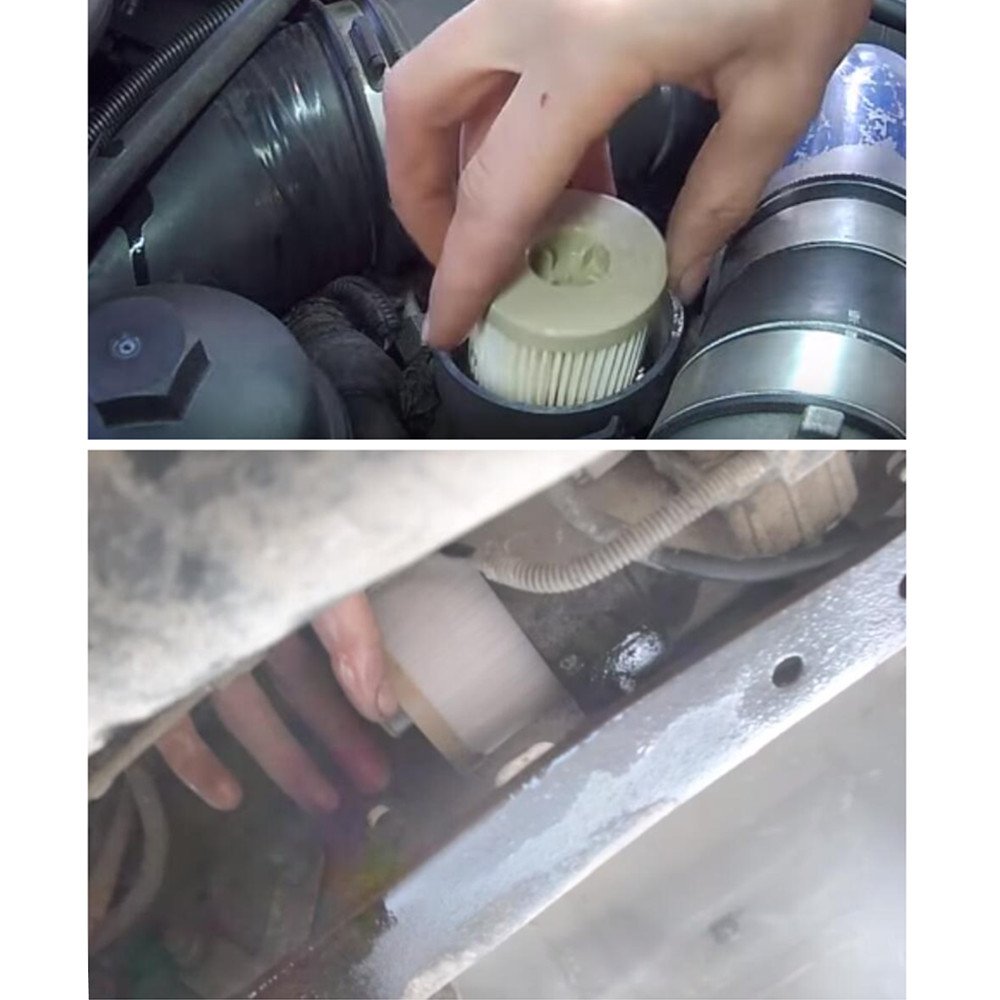

Installation Tips
- Always replace both filters as a set for maximum protection
- Fill the new filter with clean diesel fuel before spinning on to reduce air in the system
- Hand-tighten then add 1/2 to 3/4 turn — do not over-tighten
- Prime the fuel system after installation per your engine manufacturer's procedure
- Replace every 10,000-15,000 miles or per your maintenance schedule
Frequently Asked Questions
Q: Does this include both the upper and lower filter?
A: Yes. The FD4616 kit includes both the lower lifter pump filter and the upper fuel bowl filter — a complete 2-piece set.
Q: How often should I replace these fuel filters?
A: We recommend every 10,000-15,000 miles for optimal protection. For heavy-duty or off-road use, replace every 5,000-7,500 miles.
Q: Will this fit my Cummins engine?
A: The FD4616 is designed for diesel fuel systems using this specific filter configuration. Please verify your engine's filter part number cross-reference before ordering.
Q: Do I need to bleed the fuel system after installation?
A: Yes, you should prime/bleed the fuel system after filter replacement to remove air. Refer to your engine's service manual for the correct procedure.
Q: Is the gasket pre-lubricated?
A: Yes, each filter comes with a pre-lubricated gasket for proper sealing and easy removal at the next service interval.
