Description
Make Duramax Fuel Filter Changes Quick & Easy — Add This 1/2" Spacer Kit
Anyone who's changed a fuel filter on a 6.6L Duramax knows the struggle: the filter is wedged tight against the intake manifold, making it a knuckle-busting, one-flat-at-a-time wrestling match every time. This 1/2" billet aluminum spacer kit relocates the entire filter head outboard, giving you the clearance you need for quick, frustration-free filter changes — every single time.

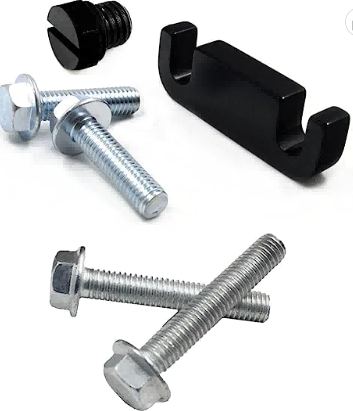

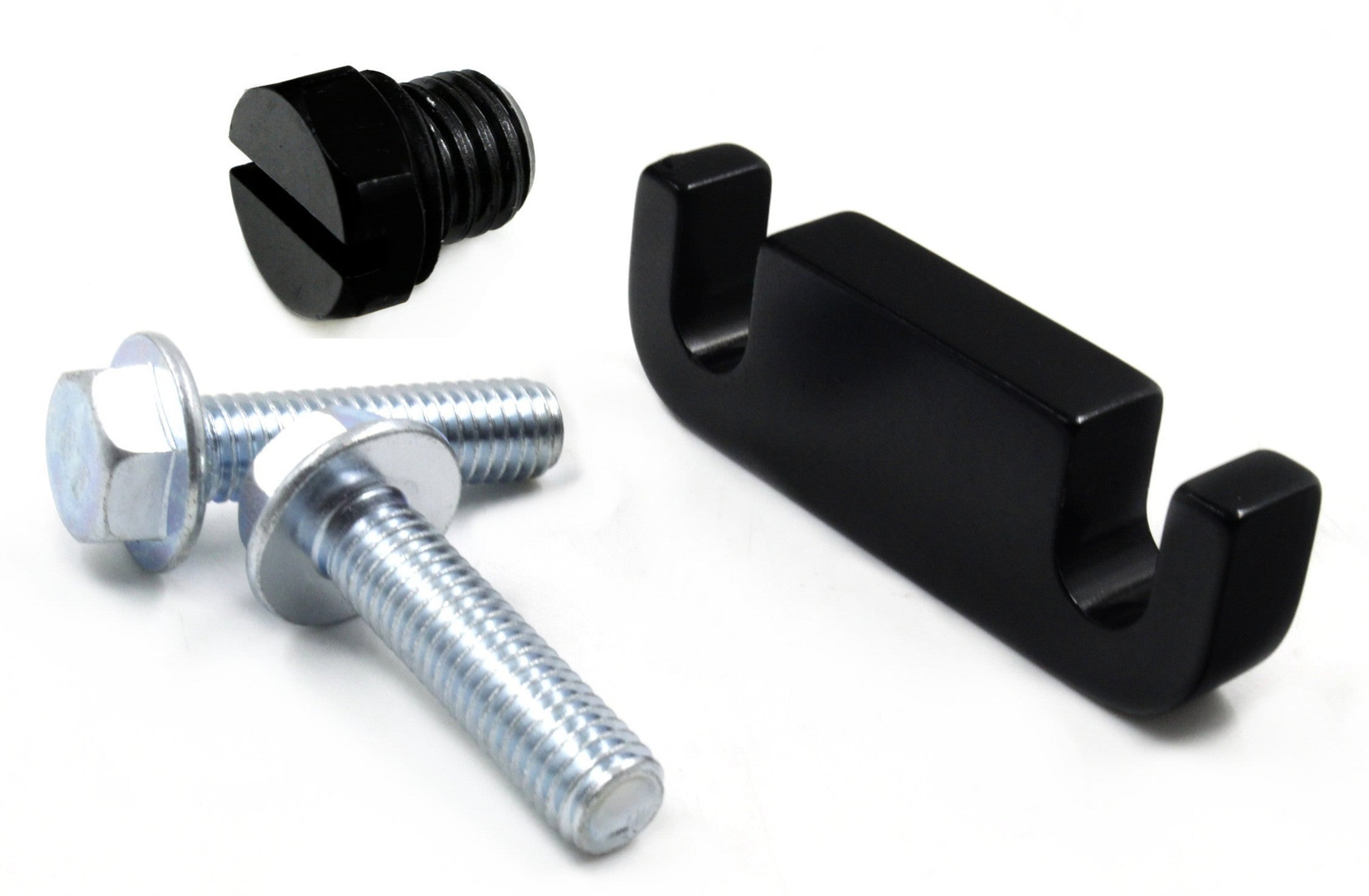

What's in the Kit
| Part |
Material |
Purpose |
| Spacer Plate ×1 |
Billet 6061-T6 Aluminum, Anodized |
Relocates filter head outward by 1/2" for tool clearance |
| Bleeder Screw ×1 |
Billet 6061-T6 Aluminum, Anodized |
Upgrades fragile plastic bleeder — won't strip or crack |
| Bolts ×4 |
Grade 8 Steel |
2 short bolts (30mm thread, 2001–2010) + 2 long bolts (45mm thread, 2011+) |
🚛 Vehicle Compatibility
Fits all 2001–2017 GM 6.6L Duramax fuel filter housings:
- Chevrolet Silverado 2500HD/3500HD (2001–2017)
- GMC Sierra 2500HD/3500HD (2001–2017)
- Engine codes: LB7 · LLY · LBZ · LMM · LML (2001–2017)
- Kit includes BOTH short and long bolts — use short bolts for 2001–2010, long bolts for 2011+
🛒 Choose Your Color

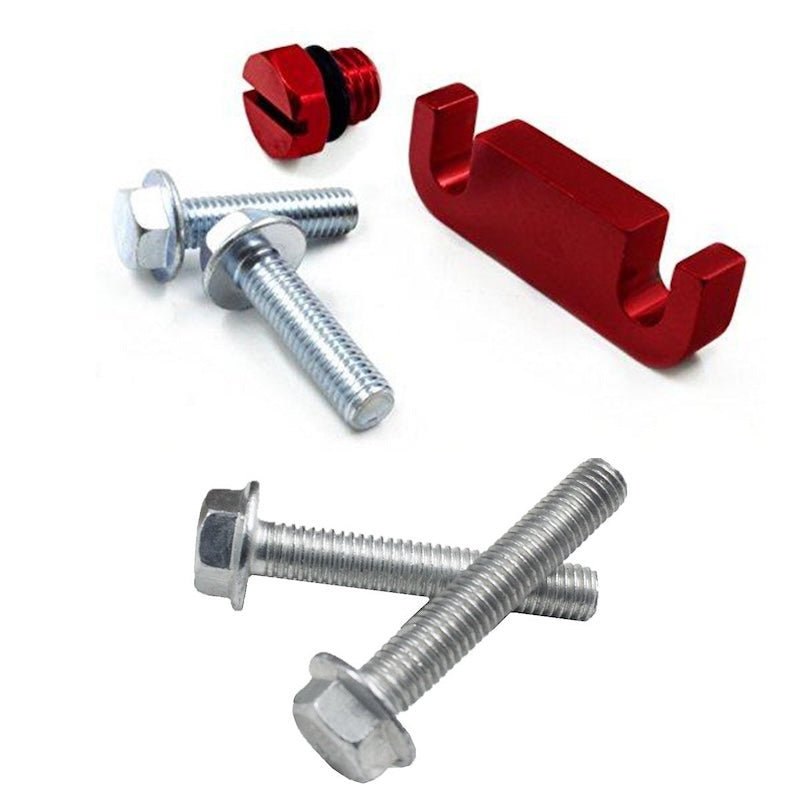

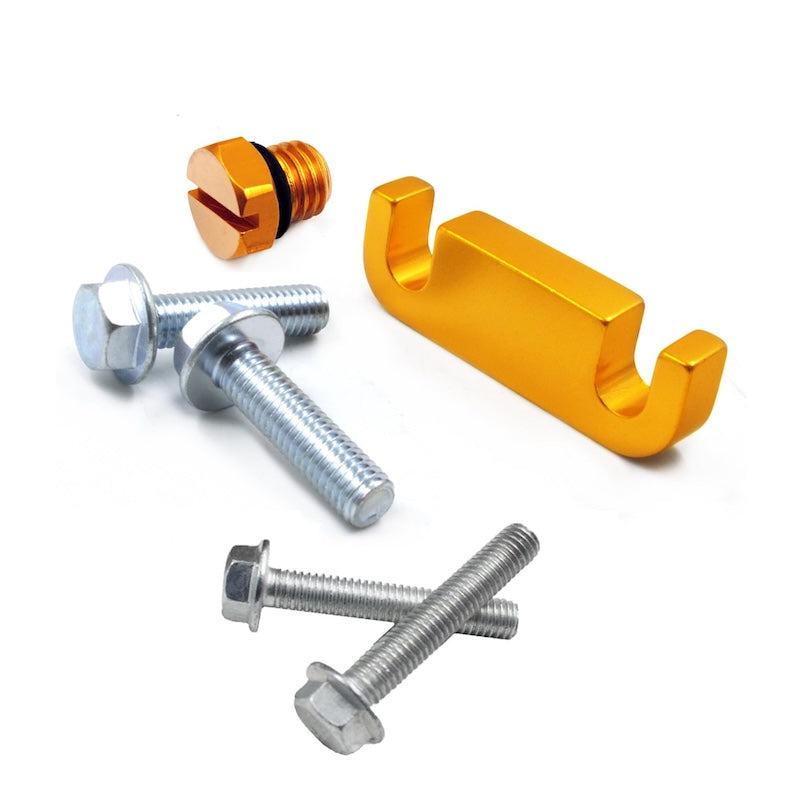

Available in Blue, Red, and Gold anodized finishes — pick the color that matches your engine bay or just looks good to you. All colors use the same billet 6061-T6 aluminum with Type II anodizing for corrosion resistance.
Why You Need This Spacer
🔧 Filter Changes That Take Minutes, Not an Hour — The stock filter head sits flush against the intake, leaving zero room for a filter wrench. With this 1/2" spacer, you get enough clearance to use a proper tool and spin the filter off in seconds.
🔧 Bleeder Screw Upgrade Included — You're already in there, so the kit includes our CNC aluminum bleeder screw. The stock plastic bleeder strips easily; this billet aluminum unit is a lifetime part that threads smoothly and seals tight every time.
🔧 Won't Affect Fuel Lines or Clearance — The 1/2" offset is carefully calculated. It won't stretch fuel lines, interfere with the hood, or cause any clearance issues. It just pushes the filter head out enough to get your hands and tools in.
🛠️ Installation
- Remove the two filter head mounting bolts from the intake manifold.
- Place the spacer plate between the filter head bracket and the intake manifold.
- Install the included bolts: use short bolts (30mm thread) for 2001–2010 trucks, long bolts (45mm thread) for 2011–2017 trucks.
- While you're in there, replace the plastic bleeder screw with the included aluminum unit.
- Torque bolts evenly to 18 ft-lb — do not over-tighten into the aluminum intake.
- Install a new fuel filter, prime the system, and you're done.
Total install time: 15–20 minutes with basic hand tools. No fabrication, no fuel line modification, no check engine lights.
❓ Frequently Asked Questions
Q: Will the 1/2" spacer cause clearance issues with the hood or engine cover?
No. The 1/2" offset pushes the filter head toward the driver's side fender well, not upward. There is ample clearance in all directions — this spacer has been tested on stock and lifted trucks from 2001 through 2017 without any fitment issues.
Q: Do I need longer fuel lines with this spacer?
No. The stock fuel lines have enough flex and length to accommodate the 1/2" relocation without binding or kinking. The spacer works with factory lines on all Duramax years.
Q: Can I use this spacer WITH the iFJF rebuild kit?
Absolutely — and we recommend it. If you're already rebuilding the filter head with our seal rebuild kit, adding the spacer makes future filter changes faster. The two kits complement each other perfectly — rebuild the seals once, add the spacer, and enjoy easy filter changes for the life of the truck. Check out our complete Duramax filter head rebuild guide for step-by-step instructions.
Q: Which bolt length do I use for my year?
Short bolts (30mm thread): 2001–2010 Duramax (LB7, LLY, LBZ, LMM). Long bolts (45mm thread): 2011–2017 Duramax (LML). Both sets are included in the kit.
Q: Does this spacer affect fuel pressure or cause air intrusion?
No. The spacer sits between the filter head bracket and the intake manifold — it does not open the fuel system or affect any seals. Fuel flow, pressure, and priming behavior are completely unchanged. Your Duramax will run exactly as it did before, just with easier filter access.
