HP6032 Marine Steering Repair Kit for Seastar HH5271 & Baystar HH5261 — Stop Fluid Leaks

Description

Product Overview

The iFJF HP6032 Marine Steering Repair Kit is a complete seal and gasket rebuild solution for Seastar HH5271 and Baystar HH5261 hydraulic helm pump units. If your boat's steering is getting stiff, leaking fluid at the helm, or losing hydraulic pressure, this kit contains everything needed for a full front seal rebuild.

Key Features

  • Complete Seal Kit: Includes shaft seal, O-rings, gaskets, and backup rings — everything for a front seal rebuild.
  • Compatible with Seastar & Baystar: Direct fit for HH5271 (Seastar) and HH5261 (Baystar) helm pump units.
  • Stops Fluid Leaks: Replace worn seals to eliminate hydraulic fluid leaks at the steering wheel shaft.
  • Restores Steering Feel: Fresh seals restore proper hydraulic pressure for smooth, responsive steering.
  • Marine-Grade Materials: Nitrile and PTFE seals rated for marine hydraulic fluid and UV exposure.

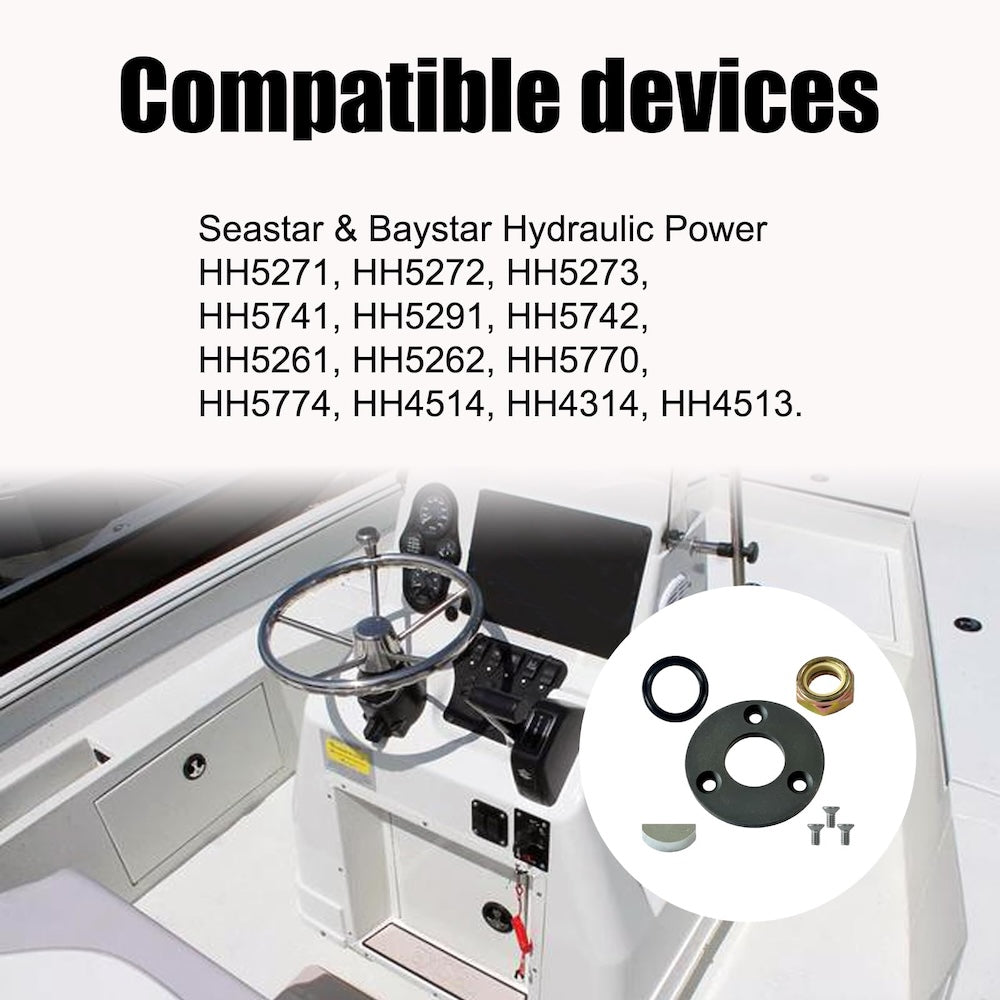

Compatibility

Brand Model/Part Years/Notes
Seastar HH5271 Helm Pump Front Seal
Baystar HH5261 Helm Pump Front Seal
Teleflex HP6032 OEM Part Number

Technical Specifications

Specification Value
Part Number HP6032
Application Hydraulic Helm Pump Front Seal Rebuild
Compatible Units Seastar HH5271 / Baystar HH5261
Seal Material Nitrile / PTFE

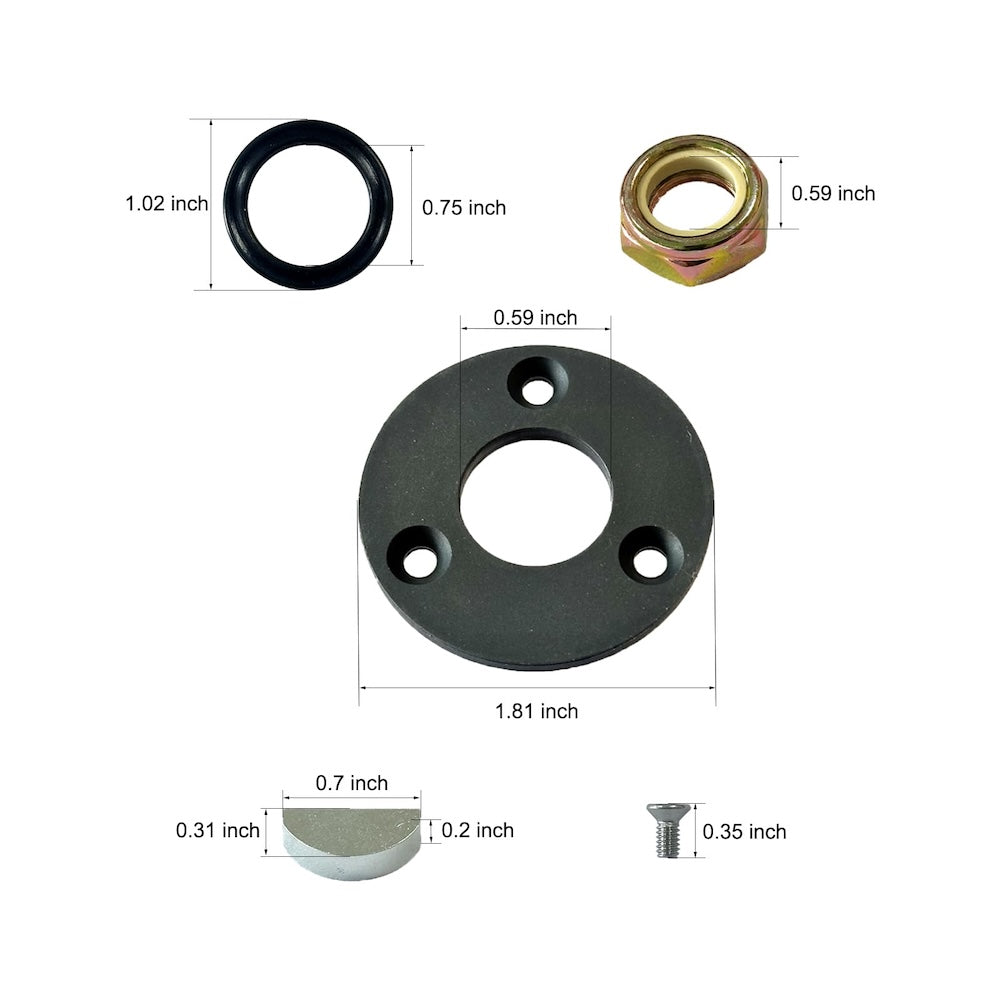

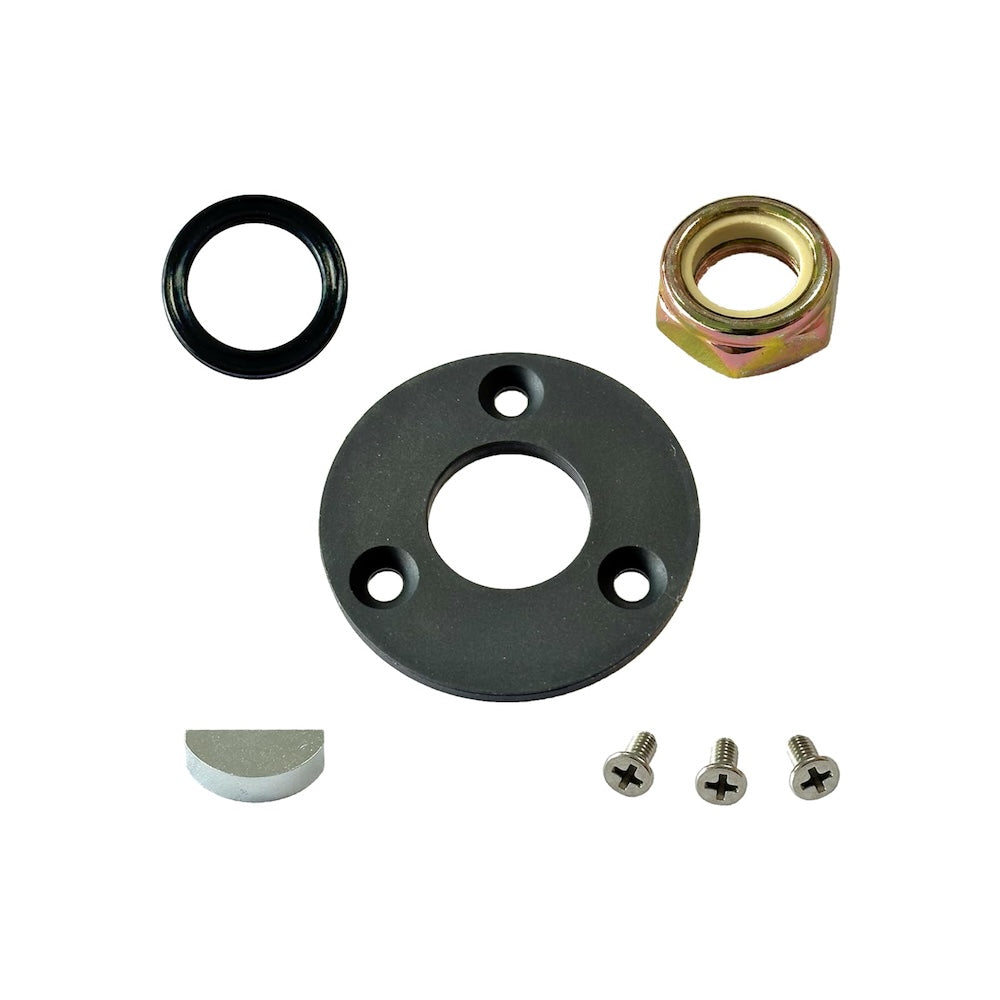

Kit Contents Shaft seal, O-rings, gaskets, backup rings
Fluid Type Compatible with Seastar HA5430 hydraulic fluid

Why Choose iFJF?

  • Cost-Effective Repair: A $30 seal kit vs. $400+ for a new helm pump.
  • Marine-Spec Quality: Seals rated for marine hydraulic fluid and saltwater environment exposure.
  • Same-Day Shipping: In-stock and ready to ship from US warehouses.
  • DIY Friendly: Basic mechanical skills required — no special tools needed beyond a pick set.

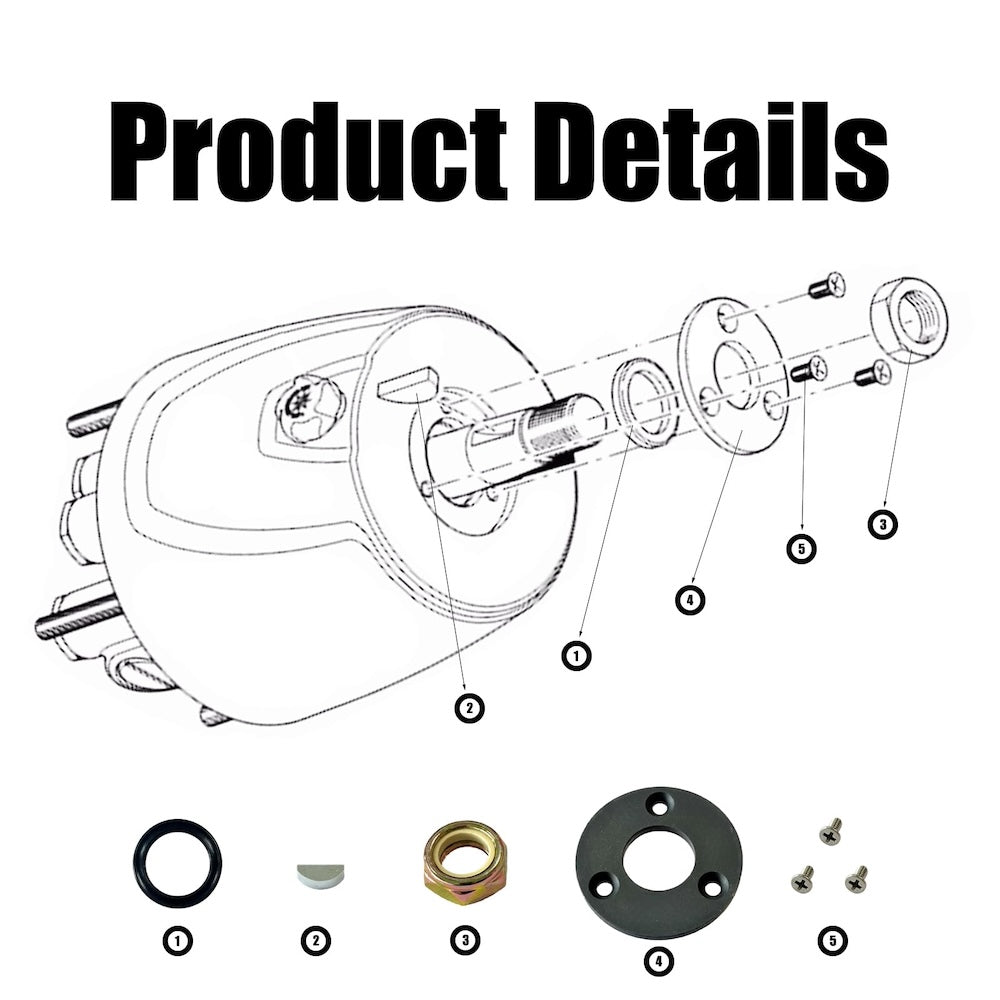

Installation Overview

  1. Turn steering wheel to port stop to relieve system pressure.
  2. Remove steering wheel using a puller tool.
  3. Remove the front seal retaining nut and extract the old shaft seal.
  4. Clean the seal bore thoroughly — any debris will cause the new seal to leak.
  5. Install new shaft seal, O-rings, and gaskets from the kit.
  6. Reassemble, refill with HA5430 fluid, and bleed the system.

Frequently Asked Questions

Q: How do I know if my helm pump seals are bad?
A: Symptoms include: hydraulic fluid leaking from behind the steering wheel, steering wheel feels loose or has excessive play, difficulty turning, or low fluid level in the helm pump reservoir.

Q: Does this kit include the shaft bearing?
A: This is a seal rebuild kit — it includes the shaft seal, O-rings, and gaskets but does not include the shaft bearing. Replace the bearing separately if needed.

Q: Will this fit my boat?
A: Fits all Seastar HH5271 and Baystar HH5261 helm pumps. Check your helm pump model number stamped on the unit body.

Q: What fluid should I use after rebuild?
A: Use Seastar HA5430 hydraulic steering fluid or equivalent marine-grade hydraulic fluid. Do NOT use ATF or power steering fluid.

Q: Do I need to bleed the system after?
A: Yes. Any time the hydraulic system is opened, you must bleed air from the system following Seastar's bleeding procedure.
