2001-2016 Duramax Diesel Fuel Filter Replacement: Complete DIY Guide (With NAPA 3960)

Meta Description: Step-by-step Duramax fuel filter replacement guide for 2001-2016 6.6L engines. Covers inner fender removal, water sensor disconnect, O-ring lubrication, and priming procedure. NAPA 3960 compatible.

---

Why Replace Your Duramax Fuel Filter Yourself?

The 6.6L Duramax fuel filter is your injection system's first line of defense. A clogged filter starves the CP3/CP4 pump, leading to reduced power, rough idle, and — in worst cases — injector failure. GM recommends replacement every 15,000 miles, but many owners do it every other oil change.

Dealer quotes $150-250 for this 30-minute job. With the right technique, you can do it yourself for the cost of the filter.

---

Tools & Parts You'll Need

Item	Notes
Fuel filter	NAPA 3960 (comes with 2 O-rings) or OEM ACDelco TP3018
Trim removal tool	For fender liner push pins
Oil filter wrench	Strap-style works best
Large channel locks	For water sensor housing — plastic, be gentle
Flathead screwdriver	Pick or small screwdriver for O-ring removal + bleeder valve
Fresh motor oil	For lubricating new O-rings
Clean rag	Catch fuel spills
Safety glasses	Diesel in the eye is no joke

---

Step-by-Step Replacement

Step 1: Access the Filter Housing

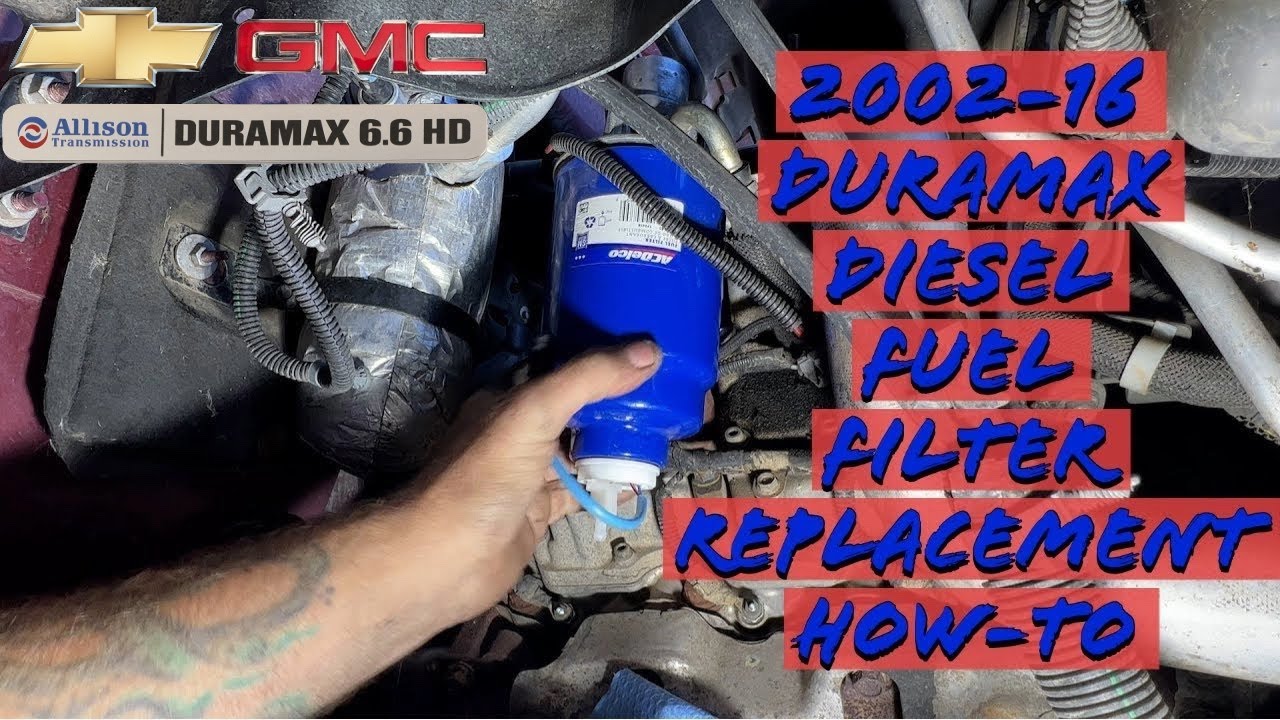

The fuel filter lives on the passenger side firewall. From above, it's buried behind wiring and hoses — technically reachable, but the inner fender well removal method saves 15 minutes and prevents dropped tools.

1. Turn the wheel full-lock left for more working room
2. Remove all push pins and clips around the inner fender liner using a trim tool
3. For push-pin style clips: get under the first round lip with your trim tool and pop it — the whole thing comes out
4. Some holes have Christmas-tree clips holding wire looms — pull those from above
5. Pull the liner down and out. Access improvement is dramatic.

Step 2: Disconnect the Water-in-Fuel (WIF) Sensor

At the bottom of the filter housing, locate the wire harness:

• Press down with your thumb on the release tab
• Pull the connector straight out — don't twist
• The sensor is plastic → no channel locks here

⚠️ Safety: Set a rag underneath before unscrewing. Residual fuel will drip.

Step 3: Remove the Old Filter

1. Use an oil filter wrench or hand-twist the filter body counterclockwise
2. Lower the filter carefully — it's full of diesel
3. Verify the small rubber O-ring came off with the filter housing. It often sticks to the mounting surface — if left behind, the new filter won't seal.

Step 4: Disassemble the Water Sensor Housing

The water sensor threads into the bottom of the old filter:

1. Secure the old filter with channel locks
2. Slowly unscrew the plastic sensor housing counterclockwise
3. Critical: This is plastic. Go slow, steady pressure, no jerking.
4. Remove the old O-ring from the sensor housing with a pick or small flathead

Step 5: Install New O-Rings (The Step Most People Skip)

The NAPA 3960 includes two O-rings — and both matter:

O-Ring	Location	Failure Mode
Small	Water sensor → filter base	Air ingress → hard start
Large	Filter body → housing	External fuel leak

The pro move: Coat both O-rings with fresh motor oil before installation. This prevents pinching/rolling during installation, ensures the seal beds correctly, and makes future removal easier.

1. Lubricate the small O-ring → slide onto water sensor
2. Thread sensor into new filter base → tighten with channel locks
3. Lubricate the large O-ring → seat in the groove around the filter lip

💡 "You don't want to go too tight, but also not too loose. About right there."

Step 6: Install the New Filter

1. Confirm both gaskets are seated correctly
2. Thread the filter into the housing by hand
3. Hand-tight only — the O-ring does the sealing, not torque
4. Reconnect the WIF sensor — it should click into place

Step 7: Prime the System

⚠️ Do NOT crank the engine without priming. The CP3/CP4 pump is lubricated by fuel — running it dry damages a $1,200-3,500 pump.

1. Locate the primer pump (black rubber bulb on the driver-side fuel filter housing)
2. Locate the bleeder valve just below the primer
3. Crack the bleeder open with a small flathead
4. Pump the primer steadily until pure fuel flows from the bleeder (no air bubbles)
5. Close the bleeder, wipe up spilled fuel

"That actually didn't take much. You're just filling the filter."

Step 8: Start & Check for Leaks

1. Start the engine — it should fire immediately if primed correctly
2. Let it idle and check three points: Bleeder valve / WIF sensor base / Filter-to-housing seal
3. Check again after a short drive before reinstalling the fender liner

---

💡 Pro Tips From the Shop Floor

Tip	Why
Remove the inner fender	Saves 15 min + prevents dropped tools behind the engine
Motor oil on O-rings	Prevents pinching — #1 cause of comeback leaks
Hand-tight the filter	Overtightening deforms the gasket; it won't seal
Prime before starting	A dry CP3 pump self-destructs in seconds
Keep the old O-rings	They show you what size you need if a parts store gives you the wrong filter

---

🔧 Parts Cross-Reference

Brand	Part Number	Notes
NAPA	3960	Used in this guide, includes O-rings
ACDelco	TP3018	OEM GM filter
WIX	33960	Aftermarket equivalent
Baldwin	BF7967	Heavy-duty option
iFJF Direct	Shop Duramax Filters	Direct pricing, fast shipping

---

❓ FAQ

Q: How often should I change the fuel filter on my Duramax?
A: Every 15,000 miles for stock trucks. If you're running a tune or frequently fill from auxiliary tanks, every 10,000 is better insurance.

Q: Can I skip removing the inner fender?
A: Yes, but you'll fight wiring harnesses and risk dropping the filter. The fender adds 5 minutes and saves 15.

Q: What happens if I don't prime after the filter change?
A: The CP3/CP4 injection pump runs dry. A replacement pump costs $1,200-3,500 installed. Prime every time.

Q: Do I need to drain the fuel tank?
A: No. You're only replacing the filter element, not opening the supply line. Just catch the filter contents.

Q: Is NAPA 3960 as good as ACDelco TP3018?
A: Yes — the 3960 meets or exceeds GM specifications. Many fleet operators run NAPA/WIX filters exclusively.

---

This guide was adapted from a hands-on replacement on a 2005 GMC Sierra 2500 6.6L Duramax. Source: YouTube diesel technician community.
