GM Sunroof Glass Lock Retainer Fix: 84691055 for Chevy Traverse & GMC Acadia — Stop the Leak in 45 Minutes

July 28 2026, by iFJF Direct, 8 min reading time

That Wind Noise at 65 MPH Is Not Your Radio — It Is Your Sunroof

You have been driving around with a strip of duct tape on the roof of your Chevy Traverse for six months. The sunroof whistles on the highway, rattles over every speed bump, and every time it rains, you hold your breath checking the headliner. You are not alone — this is the #1 sunroof failure point on 2009-2017 GM Lambda-platform crossovers, and the fix costs less than a tank of gas.

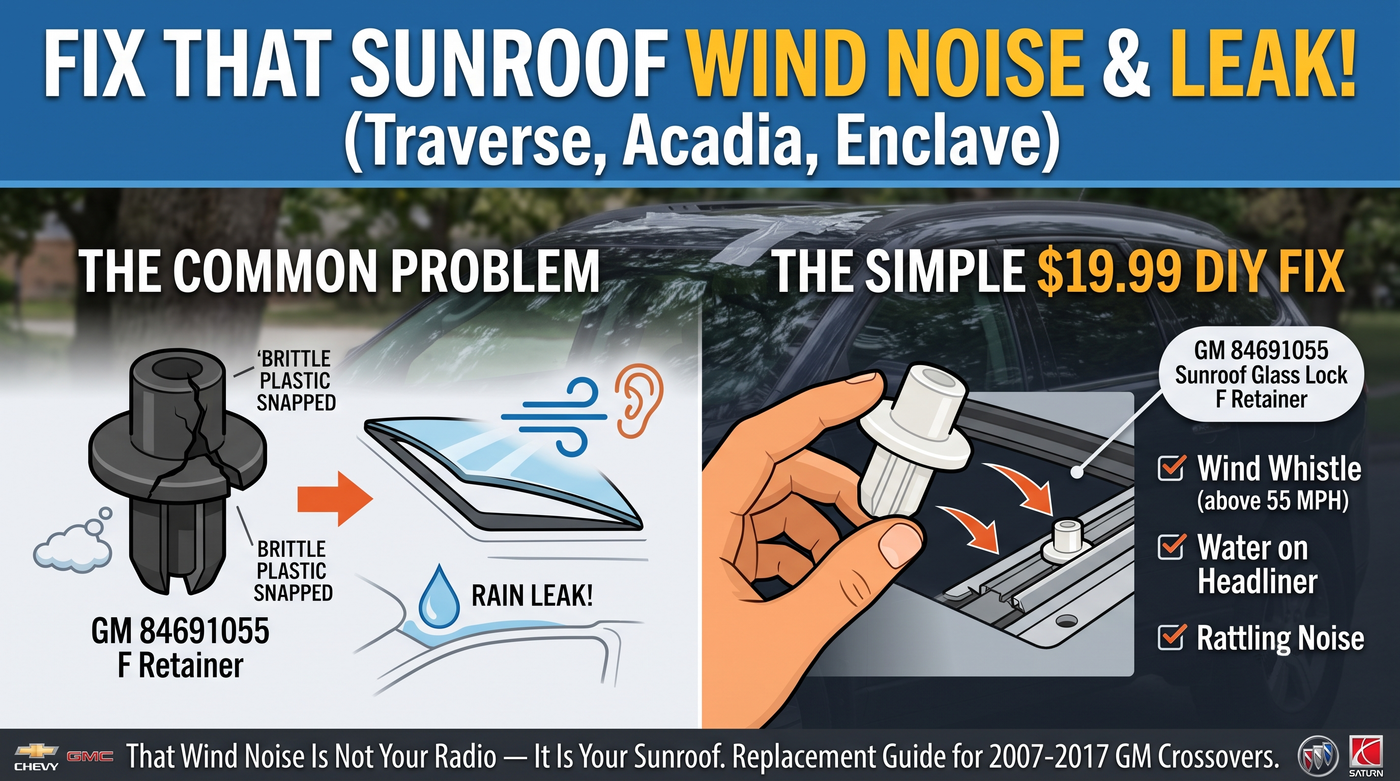

The GM 84691055 Sunroof Glass Lock F Retainer is the small plastic clip that locks the sunroof glass panel to the mechanism track. When it breaks — and it will break — the glass panel shifts out of position, the seal no longer seals, and suddenly your "premium feature" becomes a liability.

The Problem: GM Designed These Clips to Fail

GM sunroofs on the Traverse, Acadia, Enclave, and Outlook use four F-style retainers (two per side) to hold the glass panel in place on the sliding track. The retainers are made of ABS plastic that gets brittle with age and UV exposure. After 5-7 years of thermal cycling — cold winters, hot summers, the sunroof glass acting like a magnifying glass — the plastic loses its flexibility. One day you hit a pothole and crack — the retainer snaps.

Once one retainer fails, the glass shifts. The load that was spread across four clips is now on three. Within weeks, a second clip fails. Now the glass is floating, the weatherstrip is not compressing evenly, and you have got wind noise, water leaks, and a sunroof that struggles to open or close smoothly.

Symptoms of a Broken 84691055 Retainer

Wind whistle above 55 MPH. The glass is not seating flush against the seal. Air sneaks past the weatherstrip and creates a high-pitched whistle.
Water on the headliner or A-pillar. If the glass drops even 1-2mm out of position, the seal gap lets rain through. Water stains on the headliner near the sunroof are the telltale sign.
Rattling or clunking from the roof. The glass panel is bouncing in its track because a retainer is either broken or has come loose.
Sunroof binds or tilts crooked. When one side of the glass has working retainers and the other does not, the mechanism pulls unevenly. The glass tilts diagonally and binds in the track.
Visible gap between glass and roof. Park the vehicle, stand on the running board or open a door and look across the roof line. If one corner of the glass sits lower or higher than the roof panel, a retainer has failed on that corner.

Replacement: 45 Minutes, Basic Hand Tools

You do not need a lift, a scan tool, or a dealership appointment. This is a driveway job. Here is how it goes:

Step 1: Position the Glass

If the sunroof still moves, cycle it to the vent (tilt) position. This gives you the best access to the retainers. If the motor is dead or the glass is stuck, skip to manually releasing the mechanism — there is a hex key override behind the overhead console.

Step 2: Remove the Old Retainers

The 84691055 retainer is a small F-shaped clip about 2 inches long with two mounting tabs. It snaps into a bracket on the glass frame and clips around the track pin. Pry the old one off with a plastic trim tool — the broken pieces will likely fall apart in your hand. Clean out any plastic debris from the track; fragments can jam the mechanism.

Step 3: Snap In the New Retainers

The F retainer goes in one way only. The open side of the "F" faces the track pin. Press it firmly onto the glass bracket until you hear two distinct clicks — one for each mounting tab. If it does not click, it is not seated and will pop off the first time you open the sunroof.

Step 4: Re-align the Glass Panel

This is the step most people skip, and it is why "I replaced the clips and it still leaks" is a common complaint. GM specifies that the sunroof glass should sit 0.5mm to 1.0mm BELOW the roof panel at the front edge, and flush to 0.5mm above at the rear. Loosen the Torx screws on the glass bracket (T25), adjust the height, then tighten to 4-5 Nm (about 3.5 ft-lbs).

Step 5: Test Before You Celebrate

Cycle the sunroof through full open, full close, and vent. Listen for binding. Spray the roof with a garden hose and check the headliner for water. No drips? You are done.

Pro Tips That Save You Headaches

Replace all four retainers at once. If one broke, the other three are the same age and just as brittle. The part is $19.99 — far cheaper than a water-damaged headliner or a fried sunroof motor.
Clean and lube the tracks while you are in there. Wipe the track rails clean with isopropyl alcohol, then apply a thin coat of white lithium grease. Do NOT use WD-40 — it attracts dirt and turns into sludge.
Check the drain tubes. While the glass is tilted up, pour a small cup of water into each corner of the sunroof tray. The water should drain out behind the front wheels and ahead of the rear wheels within 10 seconds. If it does not, the drain tube is clogged — compressed air (low pressure!) through the tube usually clears it.
The glass is heavier than it looks. If you decide to remove the glass panel entirely for cleaning, have a helper. The panel weighs about 25-30 lbs and is awkward to handle. Drop it and you are looking at $400-600 for a replacement.

Vehicles This Fits

Make/Model	Years	Notes
Chevy Traverse	2009-2017	All trims with sunroof
GMC Acadia	2007-2017	SLT and Denali trims
Buick Enclave	2008-2017	CXL and Premium trims
Saturn Outlook	2007-2010	XR trim with sunroof option

FAQ

Do I need to remove the headliner to replace these retainers?

No. The retainers are accessible with the sunroof glass in the vent (tilt) position. You are working from outside the vehicle, on top. The headliner stays in place.

Can I drive with a broken retainer?

You can, but you should not for long. Wind noise is the least of your worries — water intrusion can damage the headliner, short out the dome light wiring, and eventually cause mold in the roof insulation. Fix it within a week or two of noticing symptoms.

Are aftermarket retainers as good as OEM?

The OEM 84691055 retainer is made by GM\'s supplier (likely Inteva or Webasto). Aftermarket replacements vary in quality. The key factor is the plastic formulation — cheap ABS gets brittle faster. Our retainers use a glass-fiber-reinforced nylon blend that is noticeably more flexible than the factory part, which should translate to a longer service life.

My sunroof motor makes noise but the glass does not move. Is it the retainer?

Probably not — that sounds like a stripped gear in the sunroof motor or a broken drive cable. The retainers hold the glass to the track; the motor drives the track. If you hear grinding but no movement, the problem is in the drive mechanism, not the retainers.

Can these retainers break again after replacement?

Yes, but our improved nylon-blend version should outlast the factory parts. The real key to longevity is keeping the tracks clean and lubricated. A dry, gritty track puts extra stress on the retainers every time the sunroof opens and closes. A $5 tube of white lithium grease applied once a year is the cheapest insurance you can buy.
