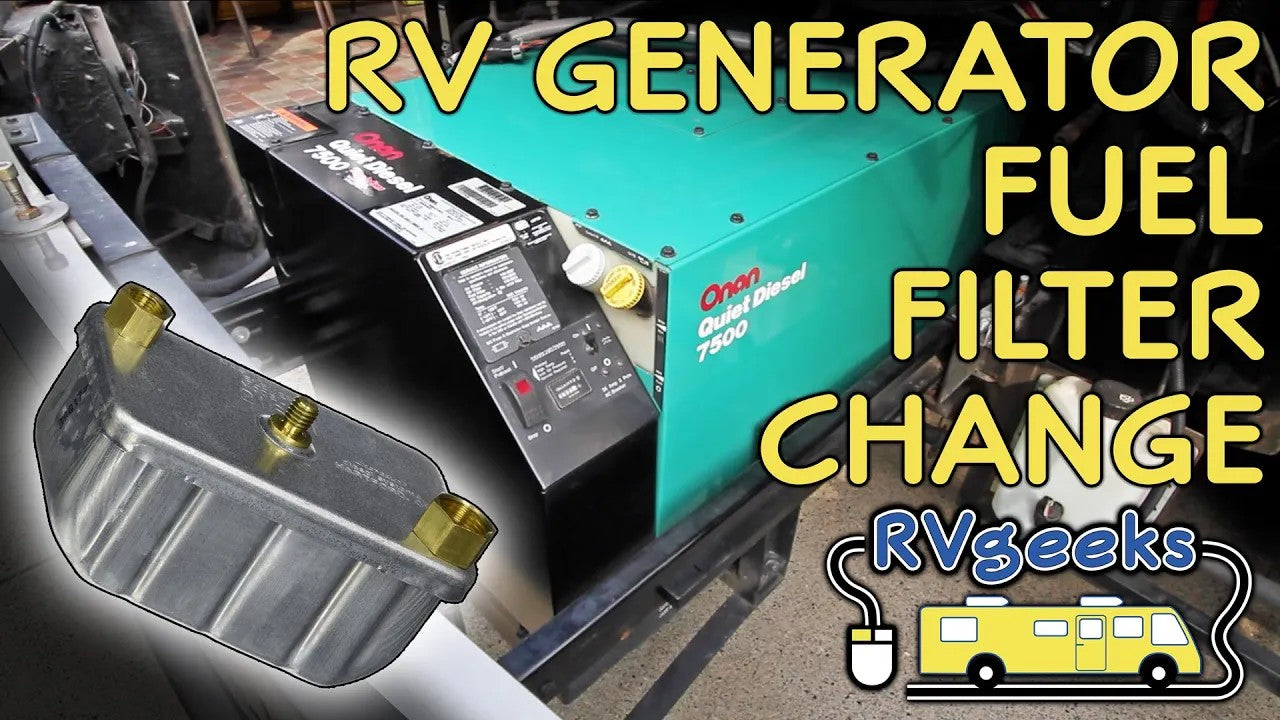

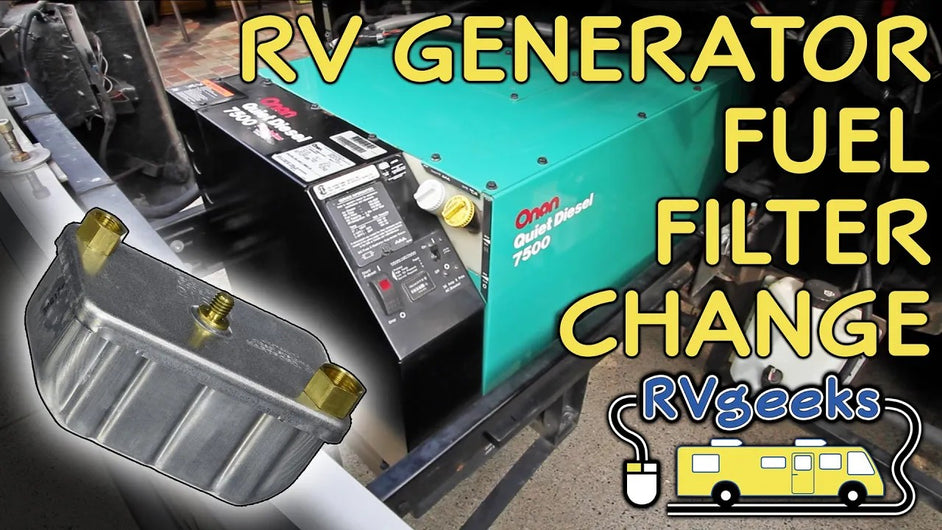

How to Replace the Fuel Filter on Your Onan Quiet Diesel RV Generator (HDKAH / HDKAK / HDKAJ)

July 08 2026, by iFJF Direct, 13 min reading time

Step-by-step guide to replacing the fuel filter on Cummins Onan Quiet Diesel RV generators (HDKAH, HDKAK, HDKAJ). Covers tools, procedure, compatibility, cross-reference part numbers, and how often to change. The 149-2513 filter and equivalent replacements.

Onan Quiet Diesel Generator Fuel Filter Replacement

Every 500 hours — or at least every two years, whichever comes first — your Onan Quiet Diesel RV generator needs its fuel filter replaced. Skip this service and you'll eventually deal with hard starting, surging under load, black smoke, and in worst-case scenarios, a clogged injection pump that costs hundreds to replace.

The job takes about 20 minutes, requires only basic hand tools, and costs less than $20 with an aftermarket 149-2513 fuel filter. This guide covers every step for the Cummins Onan Quiet Diesel HDK series generators — HDKAH (7.5kW), HDKAK (10kW), HDKAJ, HDKBA, and similar models.

What You'll Need

Two open-end wrenches (sized to fit the fuel line hex nuts)
Socket wrench with appropriately-sized socket for the center mounting bolt
Diesel-rated oil drain pan (the filter is still full of fuel when removed)
Nitrile gloves and several clean rags
Something to lie on underneath the RV (a yoga mat or moving blanket works)
New 149-2513 fuel filter or equivalent (Baldwin BF806, Fleetguard FF236, WIX 33063)

Where Is the Fuel Filter on a Quiet Diesel Generator?

The fuel filter lives behind an access panel on the bottom of the generator — the same side as the oil filter and oil drain plug. On most Class A motorhomes and large fifth-wheel toy haulers, this panel is accessible from the basement storage bay or through a ground-level service door.

The filter itself is a silver canister approximately 4 inches tall, held in a mounting bracket by a single center bolt. Two fuel lines attach to the top of the canister via hex nuts. This is the inline canister style fuel filter — different from the spin-on screw-thread filters found on smaller gasoline generators.

Step 1: Access the Filter and Clean Up

Open the access panel by squeezing the two latches together. The fuel filter sits inside a metal bracket. Before disconnecting anything, wipe the filter and surrounding area with a clean rag. The goal: keep dirt and debris out of your fuel system when you open the lines. A single grain of sand in a diesel injector is enough to cause problems.

Step 2: Position Your Drain Pan

Slide your drain pan directly underneath the fuel filter. The filter canister is still full of diesel when you remove it, and a few ounces will drain from the disconnected fuel lines. Having the pan in position before you start prevents spills and makes cleanup easier.

Step 3: Disconnect the Fuel Lines

The filter has two fuel lines connected to the top with hex nuts. Here's the critical technique that prevents damage: use two wrenches.

Hold the filter-side hex nut stationary with one wrench to keep it from twisting the metal fuel line fitting. Use the second wrench on the line-side hex nut to loosen and remove it. Loosen either line first — the order doesn't matter. A small amount of diesel will drip from the disconnected line. Keep your hands off to the side to minimize fuel running down your arm.

Repeat on the second fuel line. Allow the remaining fuel to drain from both lines into the pan until it's just dripping — typically 30–60 seconds.

Step 4: Remove the Center Bolt and Old Filter

Use your socket wrench to remove the single center bolt that holds the filter bracket in place. Once the bolt is out, carefully lower the old filter into the drain pan. Be prepared — the canister is still full of diesel. Handle it level to minimize spills.

This is also your chance to inspect the old filter. If the outside of the canister is rusty, caked with grime, or shows signs of moisture contamination inside, that's your signal that the fuel in your tank may need attention — or that it's time to consider a fuel filter/water separator upgrade.

Step 5: Install the New Filter

Place the new 149-2513 fuel filter into the bracket. The mounting bracket has a center post that passes through the filter's mounting hole. Thread the center bolt through the bracket and into the filter by hand first to check alignment.

Critical rule: thread everything by hand before using any tools. Diesel filter fittings are aluminum and soft — cross-threading permanently damages the filter mounting boss on the bracket, which could mean replacing the entire fuel line assembly.

Step 6: Tighten to Spec

Hand-tighten the center bolt until the filter gasket contacts the mounting surface. Then use your socket wrench to advance it one flat — one-sixth of a turn. That's the correct torque spec for this application.

For the two fuel line hex nuts: finger-tighten first, then use your two-wrench technique to snug each nut one flat past seated. Don't overtighten — you'll crush the gasket and create a slow leak that's hard to diagnose.

Step 7: Prime the Fuel System

The Onan Quiet Diesel's electric fuel pump will self-prime after you install a new filter, but you need to activate it. With the access panel still open (so you can watch for leaks), hold the generator's Stop switch down for 60 seconds. You'll hear the electric fuel pump running as it draws fuel through the new filter and purges any air from the lines.

After 60 seconds, release the Stop switch and attempt to start the generator. If it doesn't fire on the first attempt, hold the Stop switch again for another 30–60 seconds and try once more. It typically starts on the second or third attempt after a filter change. Do not use starting fluid or ether — it damages the glow plugs and pre-combustion chamber on these generators.

Step 8: Leak Check Under Load

Once the generator starts, let it idle for 2 minutes. Then turn on two or three high-draw appliances — the water heater, air conditioner, or a space heater — to put a meaningful electrical load on the generator. Run it under load for 5–10 minutes while watching carefully for any fuel leaks at the filter connections.

A filter that shows no leaks at idle may develop a slow leak under the higher fuel pressure that comes with generator load. This step catches leaks before you close the access panel and drive away.

Step 9: Close Up and Dispose Properly

After confirming no leaks under load, shut down the generator and perform one final visual inspection. Close the access panel and secure the latches. Take the old filter and any contaminated rags to an approved diesel/automotive recycling facility. Diesel fuel is hazardous waste — never pour it down a drain or into the ground.

Compatible Generators — Does the 149-2513 Fit My Model?

The 149-2513 fuel filter is the standard service filter for the Cummins Onan Quiet Diesel HDK series — the generators found in most diesel-powered Class A motorhomes and high-end fifth-wheel trailers. Check your generator's data plate (inside the access door or on the side panel):

Generator Model	kW Rating	Common In	Fits This Filter?
HDKAH	7.5kW / 8kW	Class A diesel pushers	✅ Yes
HDKAK	10kW	Large Class A diesel pushers	✅ Yes
HDKAJ	8–12.5kW	Late-model Class A diesel	✅ Yes
HDKBA	7.5kW	Earlier Quiet Diesel units	✅ Yes
HDKCA / HDKCB	Varies	Commercial / mobile units	✅ Yes
HDCAA / HDCAB	Varies	Commercial RVs	✅ Yes
QG 4000 series	4kW	Gasoline Class B / Class C	❌ Different filter

If your generator data plate shows HDKA or HDC followed by a letter, the 149-2513 is your filter. If it shows "QG" with a number, you have a gasoline generator with a different filter type — browse our full fuel filter collection to find the correct part.

Cross-Reference Part Numbers

The 149-2513 is the Cummins Onan OEM part number, but multiple aftermarket manufacturers produce equivalent or better filters under their own brands. Here's a full cross-reference chart:

Manufacturer	Part Number	Notes	Avg. Price
Cummins Onan (OEM)	149-2513	Original equipment	$25–$35
Baldwin	BF806	Heavy-duty OE-quality	$18–$22
Fleetguard	FF236	Cummins subsidiary, same specs	$16–$20
WIX	33063	Widely available at NAPA / O'Reilly	$15–$18
iFJF	FJ-2513	IATF 16949 certified, 5-micron	$15.83+
Other references	P55-0888, F50033, PF-888, TP-888	Various brands	Varies

All these filters use 5-micron filtration media and spin onto the same bracket mount. The specification is well-established — any reputable brand meets or exceeds OEM requirements. The Cummins logo on the box doesn't make the filter any more effective than a quality aftermarket equivalent.

What If You Skip This Service?

A clogged or restricted onan generator fuel filter doesn't fail gracefully — it fails progressively. Here's what to expect if you keep pushing:

Hard starting: The generator cranks but doesn't fire. You wait, try again, and eventually it catches.
Surging under load: The generator runs roughly and fluctuates in RPM when you turn on air conditioners or other heavy loads. The fuel pump works harder to push diesel through a clogged filter, and can't keep up with demand spikes.
Black smoke: The engine runs rich — too much fuel, not enough air — because fuel volume is restricted and the ECU compensates by injecting more fuel.
Stalled generator: Under sufficient load, a restricted filter causes the generator to stall entirely. In hot weather with AC running, this can strand you without power.
Injection pump failure: The worst-case scenario. A fuel pump that's forced to work against a severely clogged filter overheats and fails. Replacement cost: $800–$2,000 depending on model and labor.

The $15–$20 filter is cheap insurance against a $1,000+ repair bill.

How Often to Change the Fuel Filter

Cummins Onan's official interval is every 500 hours of operation for the Quiet Diesel series. In practice, most RVers accumulate 50–100 hours per year, which means the filter is due every 5–10 years by hours alone.

However, there's a second clock ticking: time and environment. Diesel fuel degrades, absorbs moisture, and promotes microbial growth in the tank. Metal fuel filter canisters can rust, especially in humid climates or coastal environments. If your generator sits idle for months between uses, consider changing the filter every 2 years regardless of hours.

For heavy-use scenarios — full-time RVers running the generator 4–6 hours daily in hot weather — you'll accumulate 500 hours in 3–4 months. In that case, the 500-hour interval is your guide. Stock up on filters in multi-packs to avoid being stranded without a spare.

Complete Your Generator Service

The fuel filter is one of three filters on the onan quiet diesel generator maintenance schedule. While you're underneath the rig with your tools out, it's the perfect time to handle all three:

Filter	Part #	Interval	Symptoms When Clogged	Price
Fuel Filter	149-2513	500 hrs / 2 years	Surging, hard starting, black smoke	From $15.83
Oil Filter	122-0833	150 hrs / annually	Low oil pressure, metallic engine noise	$9.99

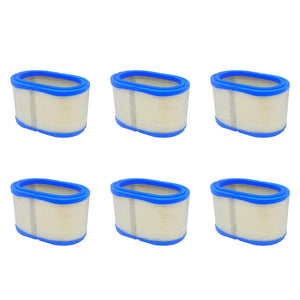

Air Filter	140-2897	500 hrs / annually	Reduced power, black smoke, poor fuel economy	$13.99

All three filters are available individually or as a 3-filter maintenance kit for $43.99 — one order, one box, everything you need for a complete generator service.

Frequently Asked Questions

Q: My generator starts fine. Can I skip the fuel filter change?
A: Not recommended. A partially clogged fuel filter restricts fuel flow under load even when it starts fine at idle. The symptoms — surging, power fluctuations, black smoke — often appear gradually and get misdiagnosed as other problems. By the time a fuel filter causes a hard-start condition, you've already been running the injection pump against elevated back-pressure, which accelerates wear.

Q: Should I use genuine Cummins parts or aftermarket?
A: Cummins doesn't manufacture fuel filters — they source the same components as Fleetguard, Baldwin, and WIX. The real quality marker is IATF 16949 certification, the international quality standard for automotive parts suppliers. All the filters in our cross-reference table meet or exceed OEM specifications. Paying dealer prices for the Cummins logo doesn't give you a better filter — it gives Cummins more margin.

Q: The old filter is barely dirty. Does that mean I changed it too soon?

A: Not necessarily. Filter condition depends on fuel quality, tank cleanliness, and operating environment. A filter can look clean but still be past its effective service life if it's been installed for years. Time-based replacement (every 2 years for low-hour users) and hours-based replacement (every 500 hours) are both valid schedules — use whichever comes first.

Q: Do I need to add fuel treatment or water separator along with the filter?
A: For most RVers, the 149-2513's 5-micron filtration is sufficient. If you frequently fill up in areas with inconsistent fuel quality, or if you've had water contamination issues, consider adding a fuel water separator upstream of the primary filter. Diesel fuel with visible water contamination is an emergency — water in the injection system can hydrolock an engine or seize injectors.

Q: Can I change the fuel filter without professional help?
A: Absolutely. The procedure is simpler than most people expect — two hex nuts, one center bolt, and an electric pump that does the priming automatically. If you can change a car's oil filter, you can change this fuel filter. The only specialty item is having a diesel-rated drain pan and knowing to use two wrenches on the fuel line fittings.
