Description
Product Overview
The iFJF 20-Piece Lynch Pin Clip Set provides industrial-grade fastening for tractors, trailers, trucks, mowers, boats, and agricultural equipment. Forged from heat-treated carbon steel with bright zinc plating, each pin features a spring steel retaining ring for secure latching.
Key Features
-

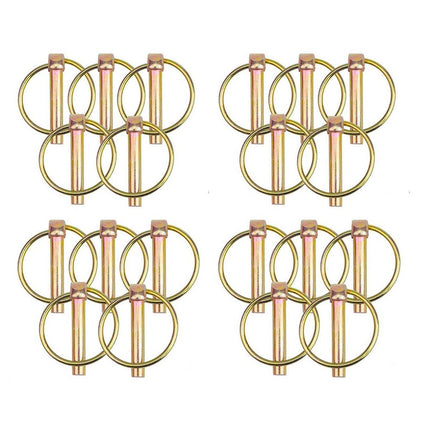

20-Piece Value Pack: Complete set for multiple implements — never run out of lynch pins when you need them most
-
Heat-Treated Carbon Steel: 45-50 HRC hardness rating resists bending, shearing, and deformation under heavy loads
-
Zinc-Plated Finish: Bright zinc coating provides excellent rust and corrosion resistance for outdoor, all-weather use
-
Spring Steel Retaining Ring: High-tension spring steel ring locks securely onto hitch pins and resists vibration-induced loosening — proven reliable in agricultural equipment for decades
-

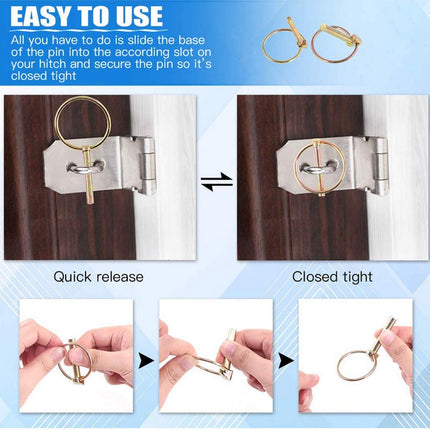

Quick-Connect Design: Snap on and off in seconds with no tools required. The spring ring mechanism allows one-handed operation
-
Universal Application: Compatible with standard hitch pins, clevis pins, drawbar pins, and any pin with a cross-drilled hole in the correct diameter range
Specifications
| Spec |
Detail |

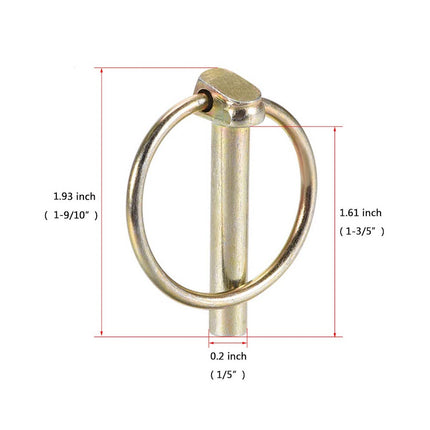

| Pin Diameter |
1/5 inch (5mm) |
| Usable Length |
1-3/5 inch (40mm) |
| Material |
Heat-Treated Carbon Steel (45-50 HRC) |
| Finish |
Bright Zinc Plated |
| Retaining Ring |
Spring Steel, High Tension |
| Quantity |
20 Pins per Pack |
| SKU |
FJ-JP-FS01-PC-20 |

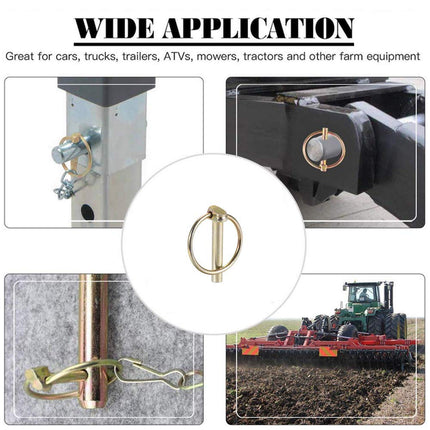

Common Applications
| Equipment |
Use |
| Tractors |
3-point hitch pins, drawbar pins, PTO shaft retainers |
| Trailers |
Coupler locks, ramp hinge pins, gate latch pins |
| Trucks |
Receiver hitch pins, tailgate hinge clips, gooseneck safety pins |
| Marine / Boats |
Boat trailer couplers, transom saver pins, outboard motor locks |
| Lawn & Garden |
Mower deck pins, garden cart hitches, snowblower attachment pins |
| Construction |
Scaffold pins, equipment couplers, temporary fencing latches |
Why Carbon Steel & Zinc Plating Outperform Stainless for Lynch Pins
While stainless steel is excellent for corrosion resistance, it is softer than heat-treated carbon steel and can deform under the repeated shear loads that lynch pins experience in agricultural and towing applications. Our carbon steel pins are heat-treated to 45-50 HRC — hard enough to resist bending and shearing, but not so hard that they become brittle and snap. The bright zinc plating provides the corrosion resistance that carbon steel lacks on its own, creating a pin that combines the strength of hardened steel with the weather resistance needed for outdoor equipment. The spring steel retaining ring is a separate material choice — spring steel is specifically formulated to maintain its tension through thousands of open/close cycles without taking a permanent set or losing clamping force.
Frequently Asked Questions
What size hitch pins do these fit?
These 1/5-inch × 1-3/5-inch lynch pins fit 1/4-inch to 3/8-inch diameter hitch pins with standard cross-hole spacing. They are designed for standard agricultural, trailer, and towing hardware — not for heavy equipment pins over 1/2-inch diameter.
Will these rust over time?
The zinc plating provides excellent corrosion resistance for normal outdoor use. For marine/saltwater environments, applying a light coat of oil, fluid film, or anti-seize will extend the service life significantly. The spring steel rings are the most susceptible component — lubricate them periodically in harsh environments.
Will vibration cause the ring to loosen?
No. The spring steel retaining rings are specifically engineered with high clamping tension to resist vibration-induced loosening. This design has been proven reliable in agricultural equipment for decades, where constant vibration from diesel engines and rough terrain would quickly shake loose an inferior clip.
Can I use these for a tractor 3-point hitch?
Yes. These lynch pins are ideal for securing the lift arm pins and top link pins on Category 1 and Category 2 3-point hitches. The 20-pack quantity ensures you have spares when one goes missing in the field.
Are these the same size as the ones that came with my trailer?
Most standard trailers use 1/4-inch or 5/16-inch hitch pins with matching lynch pin clips. These 1/5-inch × 1-3/5-inch pins are the standard replacement size. Measure your existing pin's cross-hole diameter to confirm before ordering.
Why Choose iFJF?
-
Bulk Value: 20-pack ensures spares are always on hand when you need them
-
US Support: 7-day assistance from our Arizona-based team
-
Fast Shipping: Ships within 1 business day from our US warehouse
