10PCS Front Control Arm Kit for 2000-2006 BMW X5 E53 — Complete Tie Rod & Sway Bar Set
Restore your BMW X5 E53 (2000-2006) handling precision with this iFJF 10-piece Front Control Arm Kit. Manufactured from forged high-strength steel with pre-installed ball joints and OEM-spec rubber bushings, this complete kit eliminates steering clunks, vibrations, and wandering — returning your X5 to factory-fresh road manners. A single comprehensive kit replaces all front suspension wear components in one job, saving you multiple alignments and repeated labor.
Common Symptoms of Worn Control Arms
-
Steering Vibration: Shimmy through the steering wheel at 50-70 mph, especially noticeable under moderate braking
-
Clunking Noise: Metallic knocking or thumping when driving over bumps, speed bumps, or uneven road surfaces
-
Steering Wander: Vehicle requires constant small steering corrections to track straight — feels loose or floaty
-
Uneven Tire Wear: Inner or outer edge tire wear pattern caused by alignment shifts from worn bushings
-
Brake Judder: Front-end vibration during braking that's not caused by warped rotors
Key Features
-
Forged High-Strength Steel: exceeds OEM strength requirements — designed to handle the weight and dynamic loads of the X5 SUV platform
-

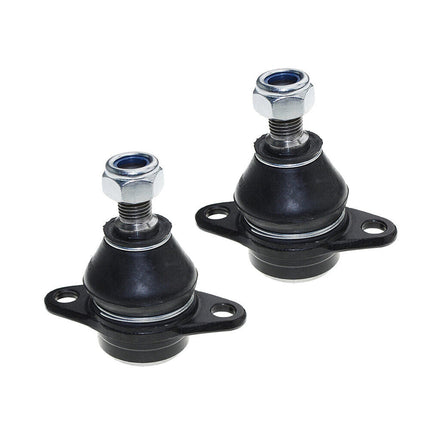

Pre-Installed Ball Joints: Factory-pressed, sealed, and pre-lubricated ball joints — no pressing or assembly required
-
OEM-Spec Rubber Bushings: Matches factory durometer (hardness) for the ideal balance of ride comfort and steering precision
-

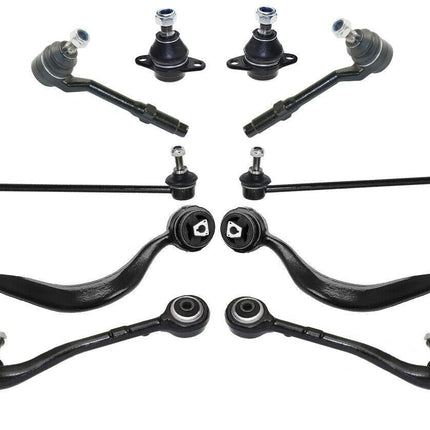

Complete 10-Piece Kit: Includes front upper control arms, front lower control arms, tie rod ends (inner + outer), and sway bar links
-
E-Coated Finish: Electrophoretic coating provides superior corrosion protection — resists rust even in winter salt-belt states
Compatibility
| Make |
Model |
Year |
Chassis |
Engine |
| BMW |
X5 3.0i / 4.4i / 4.6is / 4.8is |
2000-2006 |
E53 |
M54 3.0L / M62 4.4L / N62 4.8L |
Specifications
| Spec |
Detail |
| Material |
Forged Steel, E-Coated Corrosion Protection |
| Ball Joint Type |
Sealed, Maintenance-Free, Pre-Lubricated |
| Bushing Material |
OEM-Spec Rubber (Matched Durometer) |
| Kit Contents |
10 Pieces — All Front Control Arms, Tie Rods & Sway Bar Links |
| Warranty |
2-Year / 24,000-Mile Limited Warranty |
Frequently Asked Questions
Q: Should I replace all 10 pieces at once?
A: We strongly recommend a complete kit replacement. Worn control arms and tie rods wear at similar rates, and replacing everything at once ensures consistent handling and saves you from paying for multiple alignments.
Q: Will this restore original BMW handling?
A: Yes. The OEM-spec rubber bushings and ball joint tolerances match factory specifications. Your X5 should feel like it did when new — tight, responsive, and planted.
Q: Is this compatible with air suspension?
A: Yes. This kit is compatible with both coil spring and air suspension E53 X5 models. The control arms are the same regardless of spring type.
Q: What exactly is included in the 10-piece kit?

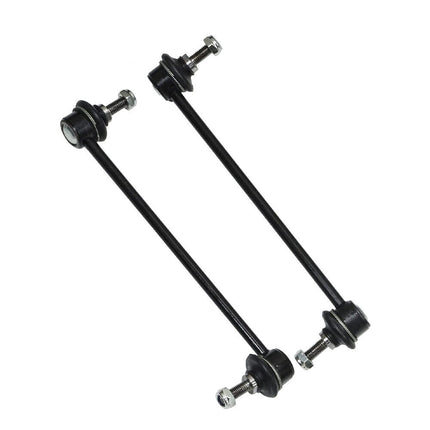

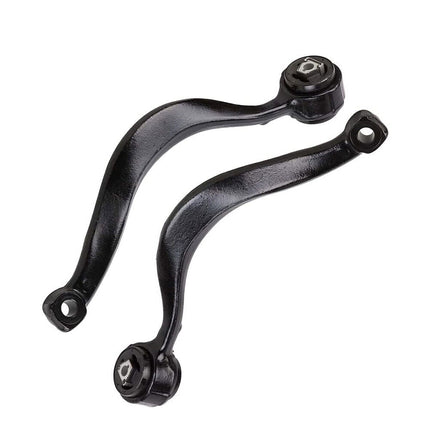

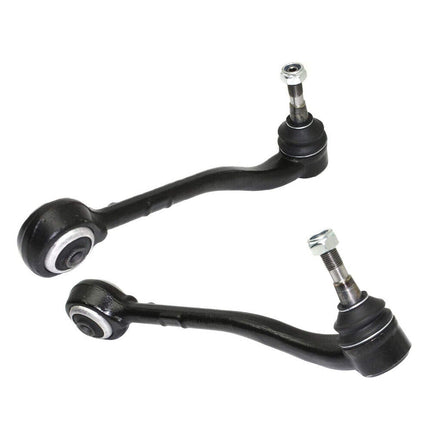

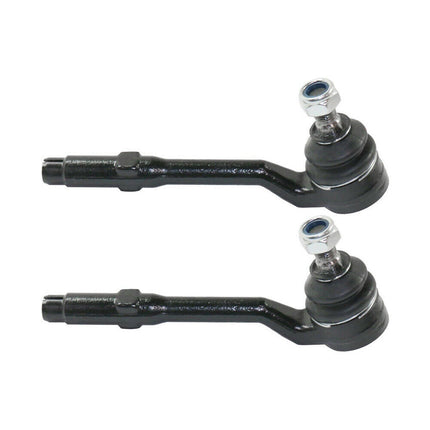

A: The kit includes: 2x front upper control arms (left + right), 2x front lower forward control arms, 2x front lower rearward control arms, 2x tie rod assemblies (inner + outer), and 2x sway bar end links. All mounting hardware included.
Q: Do I need an alignment after installation?
A: Yes. A professional 4-wheel alignment is absolutely required after replacing any control arms or tie rods. Budget $80-150 for alignment at a shop with BMW experience.
Q: How long does installation take?
A: Professional shop: 3-4 hours. Experienced DIY: 4-6 hours with proper tools (ball joint separator, torque wrench, spring compressor may be needed).
Why Choose iFJF?
-
2-Year / 24,000-Mile Warranty: Full coverage on all suspension components
-
US-Based Support: 7-day customer assistance for fitment and installation questions
-
Fast Shipping: Orders processed within 1 business day from US warehouse
