Diesel Fuel Filter Replacement: The Complete Guide for Cummins, Powerstroke & CAT Engines

Your diesel engine's fuel filter is the cheapest insurance policy you'll ever buy. A clogged filter starves your injectors. Water in fuel corrodes your CP4 pump into a glitter bomb. Skip a filter change and that $30 part turns into a $10,000 fuel system rebuild.

But here's the problem: every engine platform has its own filter setup, its own interval, and its own quirks. What works on a 6.7L Cummins doesn't translate to a 6.0L Powerstroke. And CAT engines? Completely different beast.

This guide breaks it down by engine platform — covering Cummins (5.9L, 6.7L, ISX), Powerstroke (6.0L, 6.4L, 6.7L, 7.3L), and CAT (C7, C13, D4E, D6H) — so you know exactly when, how, and with what filter to service your rig.

---

Table of Contents

1. Cummins Fuel Filter Replacement — 5.9L, 6.7L ISB, ISX
2. Powerstroke Fuel Filter Replacement — 6.0L, 6.4L, 6.7L, 7.3L
3. CAT Engine Fuel Filter Replacement — C7, C13, D4E, D6H
4. Recommended Replacement Intervals
5. 5 Signs Your Fuel Filter Needs Changing
6. Top iFJF Replacement Filters by Engine
7. Frequently Asked Questions

---

1. Cummins Fuel Filter Replacement

Cummins powerplants dominate the heavy-duty pickup and commercial truck market — from the legendary 5.9L 12V/24V to the modern 6.7L ISB in Ram 2500/3500/5500 trucks. Every one of them uses a dual-stage filtration system: a chassis-mounted fuel-water separator (primary) and an engine-mounted secondary filter.

6.7L Cummins (2010–2024 Ram 2500/3500/4500/5500)

The 6.7L Cummins uses two filters that should always be changed as a set:

Filter	OEM Part #	iFJF Cross-Reference	Micron Rating
Primary (chassis)	68197867AA	68197867AA Fuel Water Separator	10 micron
Secondary (engine bay)	68157291AA	68157291AA 5-Micron Element	5 micron

Replacement Steps (Ram 6.7L):

1. Locate the primary filter housing under the driver's side frame rail. Place a drain pan underneath.
2. Open the water-in-fuel drain valve (yellow lever) and drain into the pan. Close the valve.
3. Unscrew the filter cap with a 28mm socket or filter wrench. Remove the old filter element.
4. Coat the new O-ring with clean diesel. Install the new filter element into the cap.
5. Thread the cap back on — hand-tight plus a quarter turn. Do not over-torque.
6. Move to the engine bay. The secondary filter is on the driver's side of the block, near the intake manifold.
7. Unplug the water-in-fuel sensor connector. Unscrew the cap, swap the filter, replace the cap.
8. Prime the system: Cycle the ignition to "Run" (not start) 4–5 times. The in-tank lift pump will self-prime. No manual bleeding required on 2013+ models.
9. Start the engine. Let it idle for 2 minutes. Check for leaks at both filter housings.

5.9L Cummins (1998–2007 Ram 2500/3500)

The 5.9L (24V ISB) uses a single spin-on fuel filter mounted to the driver's side of the block. The 1998.5–2002 models use a fleetguard-style canister; 2003–2007 models use a cartridge-style housing. Pro tip: If you're still running the factory fuel filter housing with the plastic cap, upgrade to an aluminum cap — the stock plastic caps crack with age and cause air-in-fuel hard starts.

Cummins ISX (Commercial Trucks)

The ISX uses a primary spin-on fuel-water separator and a secondary spin-on filter, both mounted on the driver's side. These are high-capacity filters designed for 15,000–25,000 mile intervals in commercial service:

Filter Position	iFJF Part	Cummins Cross-Reference
Primary (water separator)	FF2200 Spin-On	P552200 / 4088272
Secondary (final)	FF2203 Spin-On	P552203 / 4010476

---

2. Powerstroke Fuel Filter Replacement

Ford's Powerstroke family spans four generations — and each one has a completely different fuel filter setup. Miss the details on your specific model year and you'll order the wrong filter (ask any Ford parts counter — this happens daily).

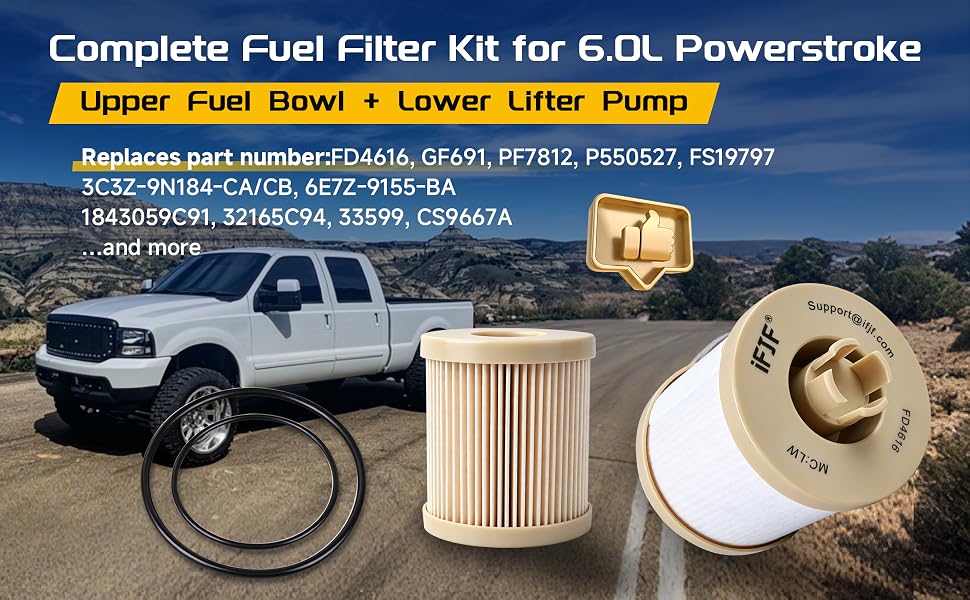

6.0L Powerstroke (2003–2007 F-Series Super Duty)

The 6.0L uses a single frame-mounted filter housing with a cartridge-style element, part of the HFCM (Horizontal Fuel Conditioning Module). This module separates water, heats fuel, and filters — all in one unit.

Key facts:

• Filter: FD-4616 (OEM: 3C3Z-9N184-CB) — Shop iFJF FD-4616 →
• Location: Driver's side frame rail, inside the HFCM
• Socket size: 36mm for the HFCM cap
• Interval: Every 15,000 miles (severe duty: 10,000)
• ⚠️ Critical: Always drain the HFCM water separator plug before removing the cap. Water accumulation in the 6.0L HFCM is the #1 cause of injector failure.

6.4L Powerstroke (2008–2010 F-Series Super Duty)

The 6.4L keeps a similar under-chassis HFCM setup to the 6.0L but with a different filter element.

Filter	iFJF Part	OEM #	Interval
HFCM filter set	FD-4617	8C3Z-9N184-C	15,000 miles

6.7L Powerstroke (2011–2024 F-Series Super Duty)

The 6.7L uses a two-filter system similar to the Cummins setup: a frame-mounted primary (fuel-water separator) and an engine-bay secondary filter. 2017+ models use a different secondary filter than 2011–2016 models — do not mix these up.

Position	Model Years	iFJF Part	OEM #
Primary (frame rail)	2011–2024	FD-4615	BC3Z-9N184-B
Secondary (engine bay)	2011–2016	FD-4615 (same as primary)	BC3Z-9N184-B
Secondary (engine bay)	2017–2019	FD-4625	HC3Z-9N184-B

6.7L Priming Procedure: After replacing both filters, cycle the key to "Run" 6 times (30 seconds total). The electric lift pump handles priming. Do not crank the starter immediately — give the pump time to fill both filter housings first.

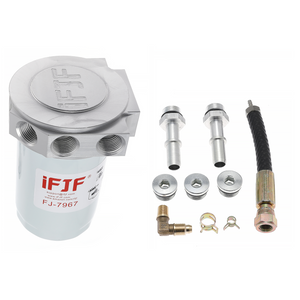

🔄 Upgrade Option: Ford ships the 6.7L with 10-micron primary filtration. The 5-Micron Fuel Filter Conversion Kit upgrades to CAT-grade 5-micron filtration — significantly better injector protection, especially if you're tuned or towing heavy.

7.3L Powerstroke (1994–2003 F-Series Super Duty)

The 7.3L uses a simple spin-on fuel filter in a housing on top of the engine (center of the valley). Two generations:

Years	Filter Type	iFJF Part	Extra
1994–1997	Spin-on (earlier housing)	FD-4595	Check fuel bowl heater condition
1999–2003	Spin-on (updated cap)	FD-4596	Use aluminum cap F81Z-9G270-BA if plastic cap is stripped

7.3L Pro Tip: When replacing the filter, clean out the fuel bowl thoroughly. The 7.3L's fuel bowl collects sediment over time. A dirty bowl will foul your new filter within 1,000 miles. Use a shop towel — not compressed air — to avoid blowing debris into the fuel passages.

---

3. CAT Engine Fuel Filter Replacement

CAT engines power everything from bulldozers to marine vessels to medium-duty trucks. Their filter systems are industrial-grade — designed for high-hour operation in extreme conditions. Most CAT engines use a primary/secondary setup with spin-on or cartridge filters.

CAT C7 / C9 / C13 (On-Highway & Industrial)

These engines use a primary fuel-water separator (often a Fleetguard FS1000-style) and a secondary 2-micron final filter. The 1R-0750 is the most common secondary filter across CAT's mid-range diesel lineup:

Filter	iFJF Part	CAT #	Application
Secondary fuel filter	3-Pack 1R-0750	1R-0750	CAT D4E, D6H, 3114, 3116
Secondary (with housing)	1R-0750 + Aluminum Head	1R-0750 + Refit	CAT / Duramax cross-fit

Converting to CAT-Spec Filtration

One of the best upgrades for any diesel engine is running CAT 1R-0750 secondary filters. They're rated at 2-micron absolute — significantly finer than most OEM filters (5–10 micron). The 1R-0750 is widely used as a performance upgrade on Duramax engines, but it cross-references to dozens of industrial CAT applications.

---

4. Recommended Replacement Intervals

Engine	Normal Duty	Severe Duty	Filter Cost
Cummins 5.9L/6.7L	15,000 miles / 12 months	10,000 miles / 6 months	$27.99–$51.99
Powerstroke 6.0L	15,000 miles / 12 months	10,000 miles	$19.99
Powerstroke 6.4L	15,000 miles / 12 months	10,000 miles	$25.99
Powerstroke 6.7L (2011–2016)	15,000 miles / 12 months	10,000 miles	$27.99 (primary), $27.99 (secondary)
Powerstroke 6.7L (2017+)	15,000 miles / 12 months	10,000 miles	$27.99 (primary), $35.99 (secondary)
Powerstroke 7.3L	15,000 miles / 12 months	10,000 miles	$13.99–$20.99
Cummins ISX	25,000 miles	15,000 miles	$27.99–$49.99
CAT C7/C13/D4E/D6H	250 hours	150 hours	$17.66 (1R-0750 ea.)

Severe duty conditions include: frequent towing, dusty environments, biodiesel use (B5+), short trips, extended idling, and cold-weather operation. If you check two or more of those boxes, use the shorter interval.

---

5. Five Signs Your Fuel Filter Needs Changing NOW

Don't wait for the maintenance schedule if you're experiencing these symptoms:

1. Loss of Power Under Load

Engine pulls fine at idle but falls on its face when you hit the accelerator or climb a grade. A restricted filter can't supply enough fuel volume for high-demand conditions.

2. Hard Starting / Extended Cranking

Especially after the truck sits overnight. Air is being drawn in past a clogged filter element, or the filter has collapsed internally and is blocking flow. Common on 6.0L Powerstrokes with neglected HFCM filters.

3. Surging or Stumbling at Highway Speed

Feels like a miss or hesitation at steady throttle. The injection pump is starved for fuel and can't maintain rail pressure. This is your last warning before injector damage.

4. Water-in-Fuel Warning Light

On Ram Cummins and Ford Powerstroke trucks, the dashboard will alert you when the water separator is full. Drain it immediately — water through high-pressure injectors equals catastrophic failure.

5. Black Smoke from Exhaust

Incomplete combustion from fuel starvation creates soot. If you're suddenly rolling coal when you didn't before (and haven't changed your tune), check the filter first.

---

6. Top iFJF Replacement Filters by Engine Platform

Cummins

Product	Application	Price
68197867AA Fuel Water Separator	Ram 6.7L 2013–2018	$25.99
68157291AA 5-Micron Fuel Filter	Ram 6.7L 2010–2020	$19.99
FS1098 Fuel Water Separator (2-Pack)	Cummins B6.7 / ISL8.9	$51.99
FF2200 Spin-On ISX Filter	Cummins ISX 15L	$49.99
149-2513 Onan RV Generator Filter (3-Pack)	Cummins Onan RV Gen	$57.99

Powerstroke

Product	Application	Price
FD-4616 Fuel Filter Set	6.0L Powerstroke 2003–2007	$19.99
FD-4617 Fuel Filter	6.4L Powerstroke 2008–2010	$25.99
FD-4615 Fuel Water Separator	6.7L Powerstroke 2011–2016	$27.99
FD-4625 Fuel Filter Element	6.7L Powerstroke 2017–2019	$35.99
5-Micron Conversion Kit	6.7L Powerstroke Upgrade	$90.00

CAT

Product	Application	Price
3-Pack 1R-0750 Secondary Filter	CAT D4E/D6H/3114	$52.99
1R-0750 Filter + Aluminum Refit Head	CAT / Duramax Cross-Fit	$29.99

---

7. Frequently Asked Questions

Q: Can I mix filter brands? Run one OEM, one aftermarket?

Yes — filters are filters. What matters is the specification, not the brand name. An iFJF 68197867AA is built to the same micron rating, same flow rate, and same dimensions as the Mopar part. What you shouldn't do is mix filter intervals — always change both filters (primary + secondary) at the same time. A fresh secondary feeding through a clogged primary defeats the purpose.

Q: How do I dispose of old diesel fuel filters?

Used fuel filters are considered hazardous waste — they contain diesel fuel residue. Most auto parts stores (AutoZone, O'Reilly, Advance) accept them for free recycling. Drain the old filter into your waste oil container, bag it, and drop it off. Never throw a diesel-soaked filter in household trash.

Q: Do I need to pre-fill the new filter with diesel before installing?

Cartridge-style filters (Cummins 6.7L, Powerstroke 6.7L): Yes — pre-filling with clean diesel reduces priming time and prevents the HPFP from running dry on first start. Spin-on filters (7.3L, ISX): Pour clean diesel into the center hole until the filter is about 2/3 full. Never pre-fill through the outer holes — that's unfiltered fuel that goes straight to your injectors.

Q: My 6.0L Powerstroke won't start after a filter change. Help?

Classic 6.0L HFCM air-lock. The 6.0L's fuel system is notoriously hard to bleed. Try this: cycle the key to "Run" 6–8 times (you'll hear the HFCM pump hum each time), then crack the secondary fuel filter cap on top of the engine with a 24mm wrench. You should see fuel seep out — tighten it back down and crank. If that fails, the HFCM pump itself may be weak (common on high-mileage 6.0Ls).

Q: What's better — 2-micron or 10-micron filtration?

Lower micron = finer filtration = better injector protection. CAT's 1R-0750 at 2-micron absolute catches particles smaller than a red blood cell. A 10-micron filter lets those through. The trade-off: finer filters clog faster. For daily drivers, 5–10 micron is fine. For performance engines (tuned, big injectors, CP3/CP4 pumps), run the tightest filter your system can flow — the CAT 2-micron standard is the gold standard.

Q: Can I use a fuel filter from a different engine on my truck?

Only if it cross-references correctly. The most common cross-fit is the CAT 1R-0750, which fits Duramax LB7–LML with an adapter and matches several CAT industrial engines. But don't guess — fuel filters are not universal. Thread size, gasket diameter, bypass pressure, and flow rating all vary by engine. Check cross-reference charts or contact us before mixing platforms.

---

Bottom line: Fuel filter replacement is the single most cost-effective maintenance you can perform on a diesel engine. Whether you're running a 6.7L Cummins in a Ram 3500, a 6.0L Powerstroke in an F-250 work truck, or a CAT C13 in a piece of heavy equipment — the principle is the same. Clean fuel protects your injection system. A $20 filter today beats a $10,000 repair tomorrow.

Find the right filter for your engine at ifjf.net/collections/fuel-filter — free shipping on every order.
