iFJF R12T vs Genuine Racor 120A Fuel Filter: A Real Tractor Owner Tears Them Apart
, by iFJF Direct, 11 min reading time
Roger, a Kubota BX owner and YouTuber, decided to find out. He bought both a genuine Racor 120A and an iFJF R12T, then performed a full tear-down comparison on camera โ measuring every dimension, cutting open the filter elements, and giving an honest verdict on build quality versus price.
๐บ Watch the full tear-down comparison:
Racor Clone (iFJF) vs Racor โ Full Tear-Down by Tractor Tech
Real customer Roger (Tractor Tech) compares every dimension and cuts open both filter elements
What's in the Box โ iFJF R12T
The iFJF R12T assembly ships as a complete kit. Inside the box, you get:
- Aluminum filter head with dual in/out ports on both sides
- Filter element (cartridge) pre-installed
- Clear plastic water collection bowl (diesel-rated; metal bowl available separately for gasoline applications)
- PTFE thread tape โ a nice touch most brands skip
- Four fittings โ 3/8-inch hose barb fittings included
- Two plugs to cap unused ports on the filter head
- Central mounting screw with sealing washer
"It comes well-equipped with extra accessories โ PTFE tape, hose barb fittings, and plugs to cap off the unused ports."
Side-by-Side Disassembly & Dimensions
Roger stripped both units down to their three core components โ filter head, filter element, and collection bowl โ and put calipers on everything. The filter heads are indistinguishable in build quality. The iFJF has "iFJF" cast directly into the aluminum.
Detailed Measurements
| Measurement | iFJF R12T | Genuine Racor | Verdict |
|---|---|---|---|
| Filter element height | 1.57 in | 1.56 in | โ Identical |
| Filter element diameter | 2.854 in | 2.869 in | โ Identical |
| Media thickness | ~20 mil | ~20 mil | โ Identical |
| Metal canister feel | Slightly thicker | Standard | โ iFJF edge |
๐ Key takeaway: The elements are 100% interchangeable between iFJF and Racor. You are not locked into any one brand's ecosystem.
The Destruction Test โ Which Filter Has More Media?

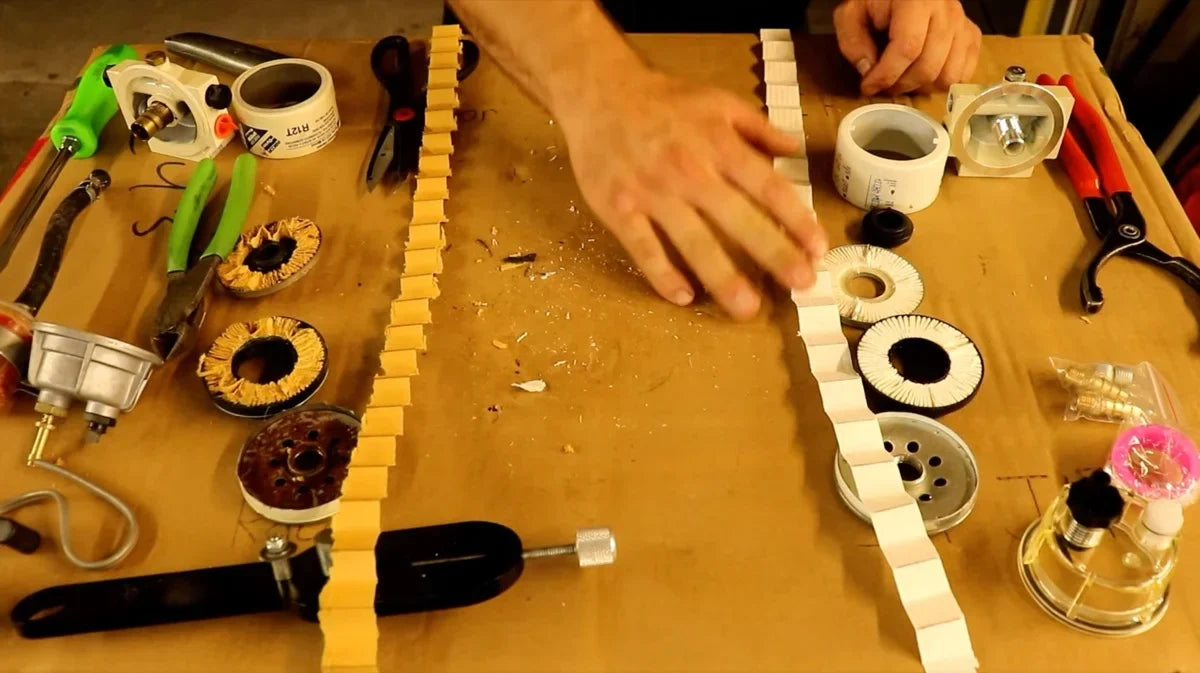

Here's where the comparison gets serious. Roger took a utility knife and cut off the end caps of both filter cartridges to stretch out and measure the internal pleated filter media on the floor.
The Racor media is yellow. The iFJF media is bright white. Same thickness (20 mils).
But the length? That's where the surprise came.
The iFJF filter media extended 21 to 23 inches past the genuine Racor media on the tape measure.
Why this matters: More filter media surface area means lower flow restriction as the filter loads up with contaminants and a longer effective service life before you need to swap elements.
"The iFJF filter media is actually significantly longer than the genuine Racor media โ extending past it by about 21 to 23 and a quarter inches."
The Honest Verdict
Roger is transparent about what this comparison can and cannot tell you:
โ What This Test Proves
- Dimensionally interchangeable with Racor 120A
- Filter head & bowl quality = Racor level
- 23โณ more filter media โ more surface area
- Better accessory kit (fittings, plugs, tape)
- 1/3 the price with no build quality trade-off
โ ๏ธ What This Test Cannot Prove
- Actual micron rating (requires lab equipment)
- Water-separation efficiency at flow
- Long-term chemical compatibility
"I'm not a filter expert โ I don't have laboratory equipment to test the actual micron rating or water-separation efficiency," Roger says. "But structurally, the iFJF is highly impressive."
The Ultimate Money-Saving Strategy
๐ช The Hybrid Approach โ Best of Both Worlds
Buy the complete iFJF R12T assembly for $29.99 to get the premium aluminum head, bowl, and all fittings. Then spend ~$20 on a genuine Racor replacement element and spin it on.
Total: ~$50 โ roughly half the price of a full genuine Racor kit.
Frequently Asked Questions
๐ค Is the iFJF R12T the same as Racor 120A?
Dimensionally, yes. The filter head, element, and bowl are identical in size and thread pattern. The elements are 100% interchangeable between both brands. The iFJF version includes more accessories and has more filter media surface area.
๐ง Can I use this on a gasoline engine?
The clear plastic bowl is rated for diesel fuel. For gasoline applications, you should use a metal bowl (available separately). The filter head and element work with both fuel types.
๐ What are the port sizes?
The iFJF R12T uses NPT ZG1/4-19 ports (standard 120AT / S3240 thread). The kit includes 3/8-inch hose barb fittings and plugs for unused ports.
โ๏ธ What vehicles is this compatible with?
The R12T 120AT fuel filter water separator fits any diesel engine application where a Racor 120A is specified โ including Kubota BX tractors, marine diesels, generators, and light truck diesel conversions.
๐ง How do I drain water from the bowl?
The clear nylon bowl lets you visually monitor water accumulation. Simply loosen the drain at the bottom of the bowl to release trapped water. Check and drain monthly as part of your regular maintenance schedule.
Related Products โ Build Your Setup
๐ง Related: Ready to mount your filter? Follow our R12T installation walkthrough โ 30-minute DIY with photos.
๐ Shop All R12T/R12H Products
Tags
๐ ๏ธ Parts & Tools for This Guide
Fuel Filter Assembly for 1992-2002 Chevy GMC 6.5L Diesel โ Suburban Tahoe Silverado Sierra Yukon Hummer H1 โ Replaces 10226035
$177.99
FS1098 Fuel Water Separator w/ PCV for Cummins B6.7 ISL8.9 โ 10 Micron
$79.99
68394482AA Water Separator for 2014-2018 Ram 1500 3.0L EcoDiesel
$489.73

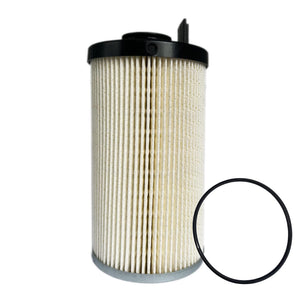

FS20081 Fuel Water Separator for EPA 2017 Cummins ISX15 X15
