Cost saving: The new R12H only needs to replace the filter element, which is affordable and saves your replacement cost. The original R12T filter element is not removable, and the housing needs to be replaced when the filter element is replaced.

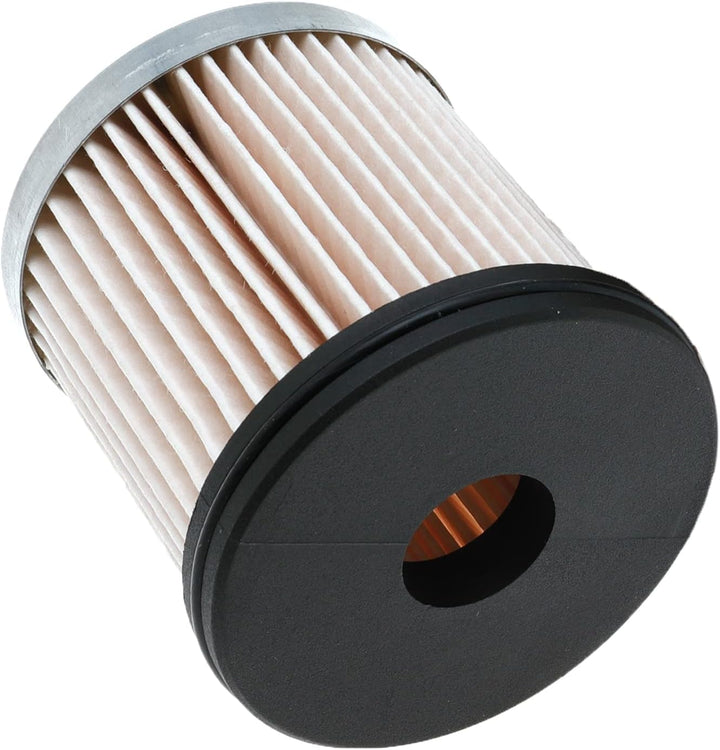

High efficiency filtration: High-quality filter paper with excellent performance, with an efficiency of over 90% for removing particles as small as 10 microns. A 10 micron filter is recommended to protect sensitive inboard, stern drive, and outboard fuel injection systems. Designed to capture the smallest particles and emulsified water in diesel.
Replacement note: Because the rubber ring on the filter element makes the filter element tightly fit the inner wall of the housing, it takes a certain amount of effort to push out the old filter element.

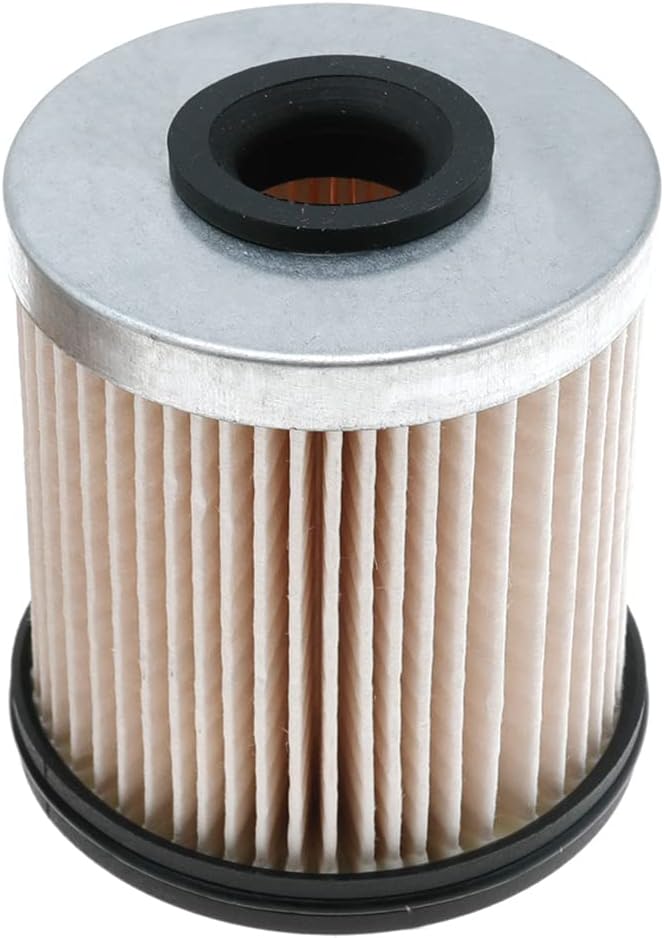

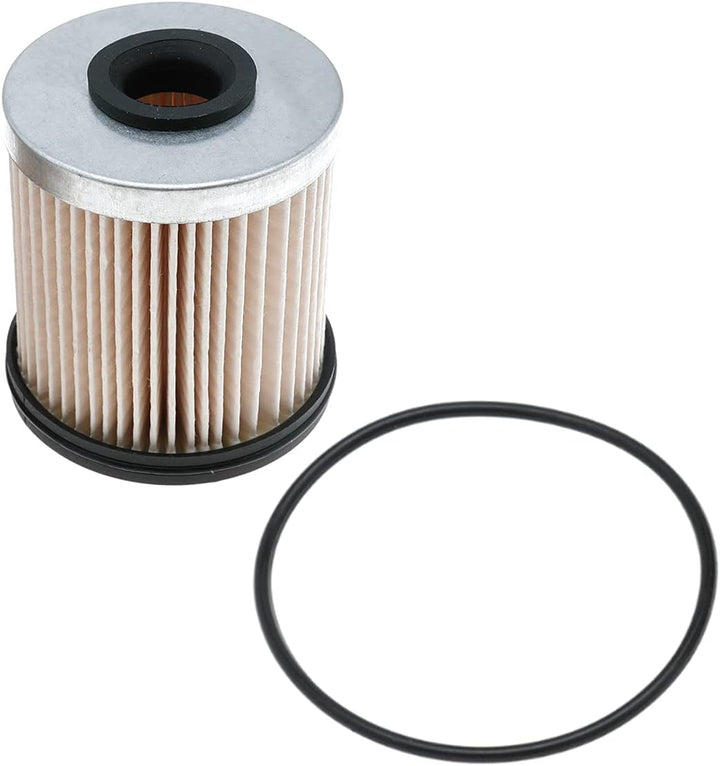

Package includes: 1 x R12H filter element, 1 x O-ring.

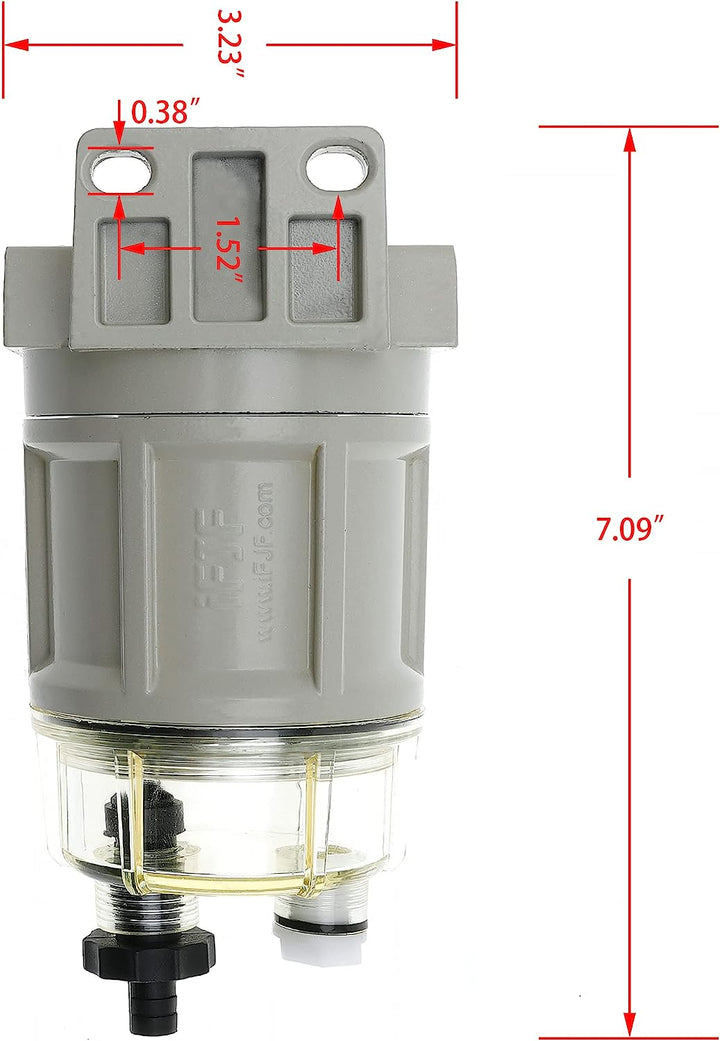

R12H (R12T Upgrade) Fuel Water Separator Marine/Automotive Replacement Complete Combo

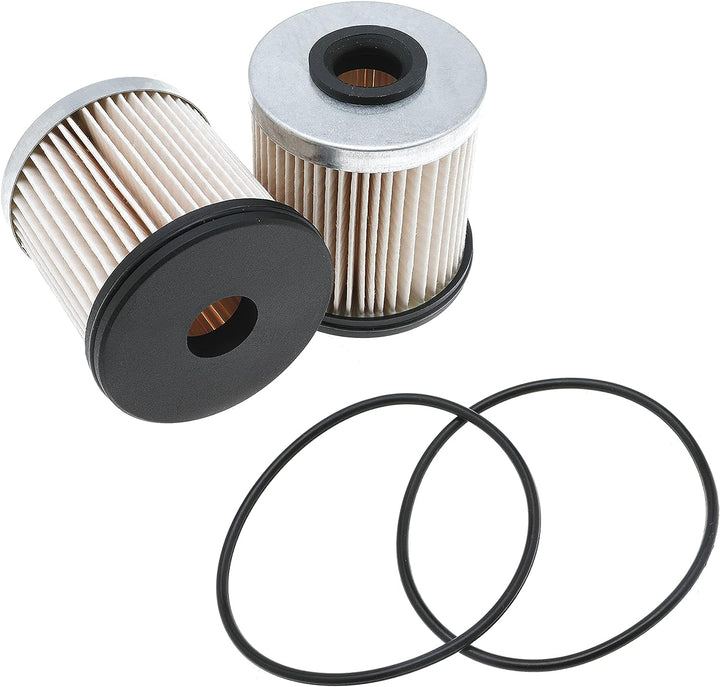

Two filter elements and two O-rings are given for free.
So the package includes: 1 x R12H fuel-water separator complete combination (with filter element installed), 2 x connection accessories, 2 x plugs, 2 x filter elements (gift), 2 x O-rings (gift).
What are the advantages of R12H over R12T?
- The cost of the first purchase:
If you buy 1 R12H assembly, 2 R12H filter elements and rubber rings will be given for free in the package, which is equivalent to purchasing 1 R12T assembly and 2 R12T filter elements with less cost.
- The cost of replacing the filter element:
Cost of 2 R12H filter elements = 1 R12T filter element
This product is an upgraded version of R12T.
The replacement of the R12H filter only needs to replace the filter element, which greatly saves your cost.
Please note: It takes a certain amount of effort to push out the old filter element.
Anti-corrosion: For ships going to the sea, iron products are easily damaged by the influence of sea water and sea wind. The upgraded R12H adopts aluminum alloy material and plastic spraying process as a whole, and the shell is anti-corrosion and durable.
No leakage: Due to the new design, the R12H casing is very firm and compact, which makes the R12H avoid the problem of oil leakage from the general filter.
High-quality filter element with excellent performance, with an efficiency of over 90% for removing particles as small as 10 microns. A 10 micron filter is recommended to protect sensitive inboard, stern drive, and outboard fuel injection systems. Designed to capture the smallest particles and emulsified water in diesel.
The filtered water can be discharged through the black valve under the nylon oil cup.
1. Before installation, please remove the nylon collecting bowl and filter base to lubricate the O-ring of the filter.
2. There are two inputs and two outputs. We provide two plugs for the extra two ports. If you need to use two plugs, you must install them to the filter and tighten them.
3. Before installing the filter, you must remove those plugs, stick them with Teflon tape, and then reinstall.
4. All of the above steps are very easy to operate, you'd better use the tool to install tighten.
|Replace Part Numbers:||S3240 R12T 120AT, 18-7987, RK10222.|
|Maximum Flow Rate:||15 GPH (57 LPH)|
|Filter Rating:||10 Micron.|
|(In/out) port thread size:||ZG1/4-19.|
|Connection size:||3/8 Inch NPT|
