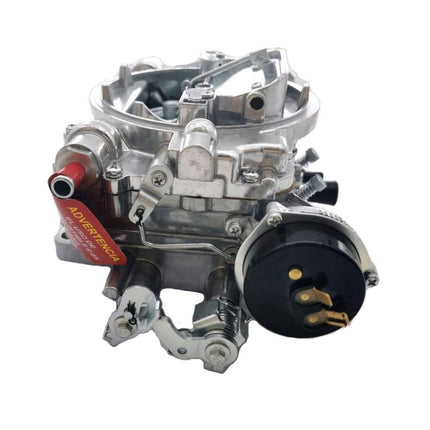

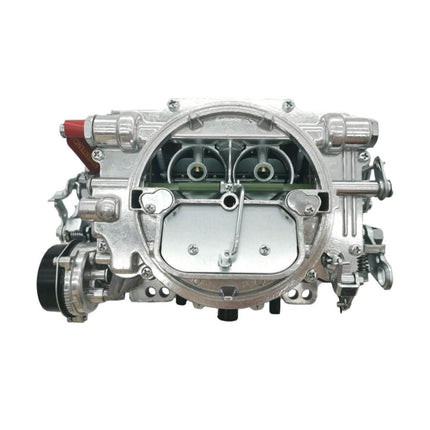

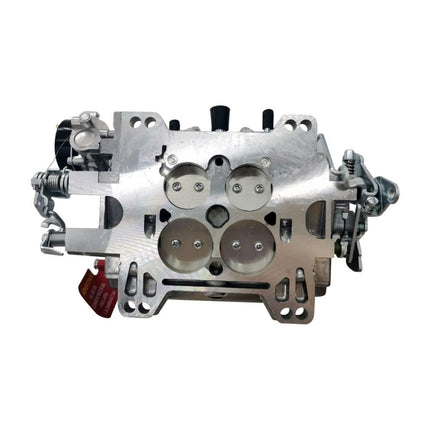

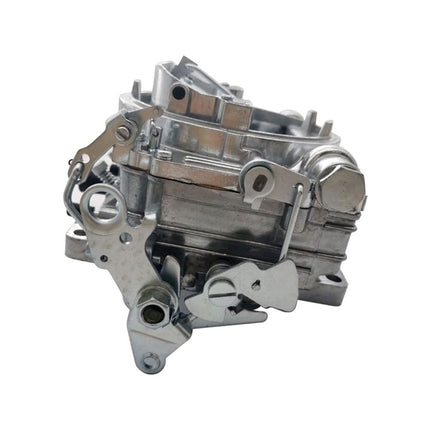

Edelbrock 1409 Marine Performer Carburetor — 600 CFM, 4-Barrel
The iFJF 1409 Marine Performer Carburetor brings the proven AFB-style design to marine applications. With 600 CFM airflow, electric choke, and USCG-compliant safety features, this carburetor is a direct performance upgrade for Chrysler Marine and Chevy Marine V8 inboard engines. The air valve secondary system delivers smooth, predictable power delivery that's essential for docking, trolling, and hole-shot acceleration.
Marine-Specific Design
-
Sealed Throttle Shaft Bearings — Eliminates fuel vapor leakage into enclosed engine compartments
-
Overflow-Safe Vent Design — Bowl vents route excess fuel back through the venturi instead of spilling externally
-
Marine Fuel Curve — Calibrated for sustained high-load marine operation at 3,000-4,500 RPM cruising speeds
-
Corrosion-Resistant — All external hardware is stainless steel or dichromate-coated for saltwater durability
-
Two-Piece Body — Easy tuning access without full disassembly
Applications
Direct replacement for Chrysler Marine 318, 360, 400, and 440 V8 engines and Chevy Marine 305, 350, and 454 V8 engines originally equipped with a 4-barrel square bore carburetor. Also fits aftermarket marine intake manifolds with square bore flanges.
Specifications
| Spec |
Detail |
| CFM |
600 |
| Barrels |
4 |
| Choke |
Electric (12V) |
| Secondary |
Air Valve (Mechanical) |
| Flange |
Square Bore |
| Compliance |
USCG |
Frequently Asked Questions
Q: Is this a genuine Edelbrock carburetor?
A: This is an aftermarket replacement for the Edelbrock 1409, engineered to the same specifications and dimensions for direct bolt-on installation.
Q: Does it include mounting gaskets?
A: Yes, a base gasket and mounting hardware are included. For marine applications, always use a marine-grade intake manifold gasket rated for enclosed engine compartments.
Q: Can this be used on a freshwater-cooled boat?
A: Yes, it is suitable for both freshwater and saltwater applications. For saltwater use, we recommend regular inspection of external surfaces and periodic application of corrosion inhibitor spray.
Q: What's the break-in procedure?
A: No special break-in is required. Install, connect the 12V choke wire, set idle speed to 650-700 RPM (in gear, in water), and verify float level after the first hour of operation.
Q: Can I convert my 2-barrel marine engine to this 4-barrel?
A: Yes, if you change to a 4-barrel marine intake manifold. The 1409 is an excellent upgrade that improves both performance and fuel economy at cruising speeds when paired with the correct intake.
