iFJF diesel filter with R12T filter cartridge
, by iFJF Direct, 18 min reading time
Short answer: yes — a spin-on fuel-water separator such as the iFJF R12T swaps out the messy cartridge housing on most 2001-2016 Duramax 6.6L, 2003-2007 Power Stroke 6.0L and 2007.5-2018 Cummins 6.7L trucks, and it installs in about 15 minutes with hand tools. Want the aluminum-upgraded housing instead? The iFJF R12H aluminum spin-on combo fits the same way. Running a boat or outboard? The S3213 upgraded fuel-water separator assembly is the direct fit for Mercury, Yamaha and Johnson setups.
🛒 Parts Used in This Guide
Why Upgrade to a Spin-On Fuel Filter System?
If you're still wrestling with traditional cartridge-style fuel filters on your diesel engine, you're not alone. Cartridge filters are messy, time-consuming to service, and make it hard to monitor fuel condition at a glance. That's why more diesel truck owners and boat mechanics are switching to spin-on fuel filter systems — and the iFJF R12T spin-on system is one of the most practical upgrades you can make in 2026.

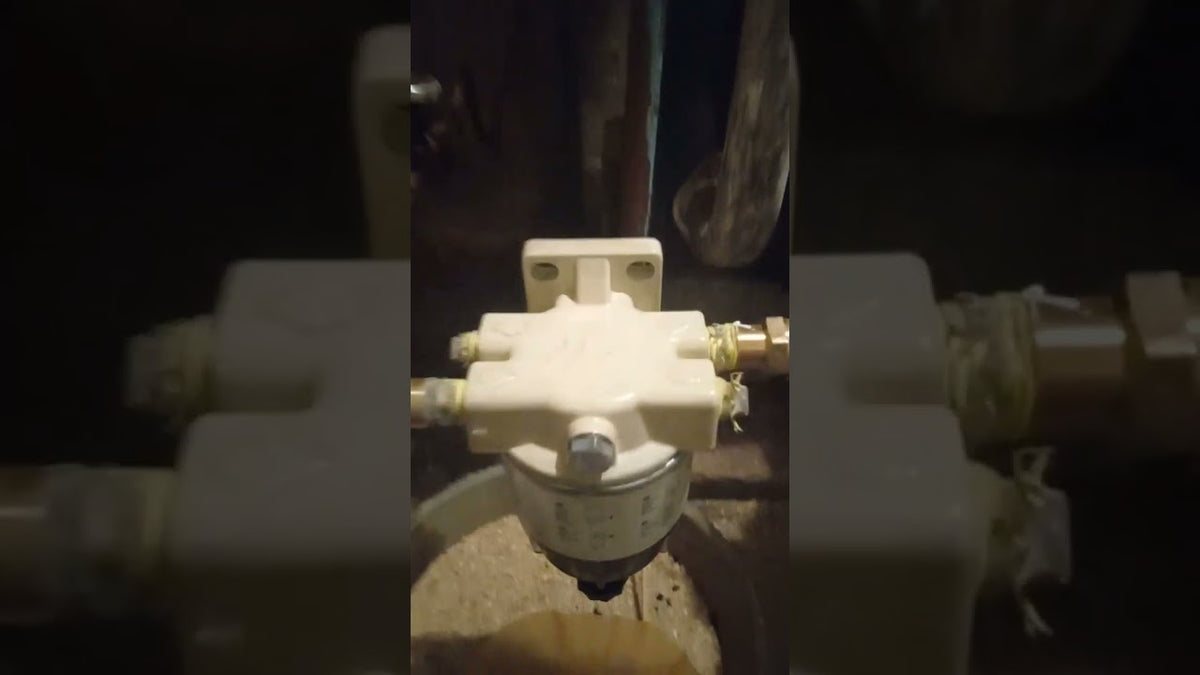

In this guide, I'll walk you through a real-world installation of the iFJF R12T spin-on fuel filter cartridge on a Beckett oil gun boiler system (identical in principle to pickup truck diesel fuel systems). I'll cover tools needed, step-by-step installation, pro tips from hands-on experience, and compatibility across the most common diesel platforms — GM Duramax, Ford Power Stroke, and Ram Cummins.
Whether you're a weekend mechanic or a professional technician, this guide will help you get the job done right the first time.
What Is the iFJF R12T Fuel Filter?
The iFJF R12T is a spin-on fuel filter cartridge designed for use with the iFJF R12T spin-on fuel-water separator combo kit. Unlike traditional cartridge filters that require disassembly and messy element replacement, the R12T uses a throwaway spin-on design — much like a standard automotive oil filter. You screw it on, and when it's time to service, you unscrew the whole unit and replace it. No sponges, no seals to guess, no fuel spills.
One of the standout features of the R12T system is the clear nylon water collection bowl at the base. This lets you visually inspect fuel condition without cracking anything open. Is there water in the bowl? Is fuel frozen in cold weather? You'll know immediately — a critical advantage for diesel operators who run in extreme conditions or use off-road/bulk fuel sources.
Tools & Parts Needed
| Item | Notes |
|---|---|
| iFJF R12T spin-on fuel filter cartridge | Primary filter element |
| iFJF R12T fuel-water separator bowl | Includes drain port for water inspection |
| 3/8" to 1/4" NPT adapter fittings | Required for plumbing connection |
| 1/4" to 3/8" NPT adapter fittings | Depending on your existing fuel line size |
| Filter wrench (if needed) | Standard oil filter wrench works |
| Fuel-resistant Teflon tape | For NPT thread sealing |
| Safety glasses + nitrile gloves | Diesel fuel contact = skin irritation risk |
| Diesel-rated fuel line hose | Marine/outboard builds: use a 5/16" marine fuel line hose kit with primer bulb. Diesel pickups: check local auto parts for #6 or #8 diesel hose |
| Torque wrench (optional but recommended) | Hand-tighten spin-on filters — do NOT over-torque |
Step-by-Step Installation
Step 1: Assess Your Current Fuel System and Plumbing
Before buying anything, map your existing fuel system. Identify the inlet and outlet ports on your filter housing — the R12T system uses NPT (National Pipe Thread) fittings in 1/4" and 3/8" sizes. Most diesel pickup fuel systems will require a 3/8" to 1/4" adapter or vice versa. Note which port is supply (fuel from tank) and which is return (fuel to engine) — mixing these up will starve your injection system.
Step 2: Install the iFJF R12T Fuel-Water Separator Bowl
Mount the R12T separator bowl in a location that's accessible but protected from road debris. Several Duramax and Power Stroke owners mount it on the inner wheel well or frame rail. The clear bowl should be in a vertical position so the drain port at the bottom works correctly. Thread the bowl onto the R12T housing and hand-tighten — no tools needed for the bowl itself.
Step 3: Connect Fuel Lines to the R12T Inlet and Outlet
Apply diesel-rated Teflon tape to your NPT adapter fittings (3 wraps clockwise) and screw them into the R12T inlet and outlet ports. Connect your supply fuel line to the inlet and return line to the outlet. Use worm-gear hose clamps rated for diesel service. Double-check that fittings are tight — NPT threads seal by deformation, so overtightening can crack the housing.
Step 4: Thread the iFJF R12T Filter Cartridge Onto the Mounting Base
This is the satisfying part. Apply a thin film of diesel fuel or clean engine oil to the R12T gasket (the rubber seal at the base of the filter). This lubricates the seal so it seats properly and makes removal at next service easier. Align the R12T onto the center shaft and hand-tighten by turning clockwise. You should feel the gasket compress as the filter seats — stop when you feel resistance.
Pro tip from the install: The R12T tightens up on the back side of the mounting plate. Make sure you can access the filter before final tightening. If your filter ends up on the hard-to-reach side, you'll still be able to remove it with a filter wrench, but it adds unnecessary difficulty. New to spin-on filters? Our 10-minute R12T installation walkthrough covers the same steps with photos.
Step 5: Prime the Fuel System and Check for Leaks
With the ignition on (engine off), cycle the fuel pump 2-3 times to prime the system. Watch the R12T clear bowl — you should see fuel flowing through within seconds. Check every fitting and the filter base for leaks. If you see a weep at the filter base, hand-tighten a quarter-turn more. Do NOT start the engine if you detect a fuel leak — diesel fuel leaks under pressure are a serious fire hazard.
Step 6: Final Torque Check and Road Test
Start the engine and let it idle for 2 minutes. Watch for fuel pressure irregularities or check engine lights. The R12T has excellent flow characteristics — you should see normal fuel pressure immediately on most 2001-2016 GM Duramax 6.6L (LB7, LLY, LBZ, LMM), 2003-2007 Ford Power Stroke 6.0L, and 2007.5-2012 Ram Cummins 6.7L applications. For other models, consult the R12T compatibility chart below.
Pro Tips from the Shop Floor
| Tip | Why It Matters |
|---|---|
| Change the R12T every 15,000 miles or annually | Diesel fuel degrades over time; water and sediment accumulate in the bowl |
| Check the R12T water separation bowl monthly | Clear visibility lets you catch fuel contamination before it reaches injectors |
| Use a filter wrench, not pliers | Pliers dent the filter can and make future removal harder |
| Keep spare 10-micron R12T replacement elements on hand | Spin-on filters are disposable — having a spare eliminates downtime |
| Mount the R12T in a protected location | Off-road debris and road salt accelerate fitting corrosion |
R12T Compatibility Across Diesel Platforms
The iFJF R12T system is versatile and widely used across multiple diesel platforms. Below is a cross-reference based on real-world installs from truck forums, marine mechanic communities, and our own customer feedback:
| Engine / Platform | Application Notes | Filter Requirement |
|---|---|---|
| GM Duramax 6.6L (2001-2016) LB7, LLY, LBZ, LMM, LML | Common pickup truck fuel system upgrade; works with stock fuel lines with adapters | R12T cartridge + water bowl |
| Ford Power Stroke 6.0L (2003-2007) | High-particulate fuel concern; R12T water separation is especially valuable | R12T cartridge + water bowl |
| Ford Power Stroke 6.7L (2011-2016) | Direct injection system; maintain OEM primary filter + add R12T as secondary | R12T as secondary polish filter |
| Ram Cummins 6.7L (2007.5-2018) | Many owners use the R12T as an in-tank upgrade or frame rail mount | R12T cartridge + water bowl |
| Diesel marine / boiler applications | Beckett oil gun and similar; for outboard fuel systems the 802893Q01 marine separator kit is the spin-on equivalent | R12T cartridge + water bowl |
| RV diesel fuel systems | Class A diesel pushers often run bulk or off-road diesel; R12T water check is critical | R12T cartridge + water bowl |
Running a Mercury, Yamaha or Johnson outboard instead of a truck? The same water-separation principle applies — the S3213 clear-bowl fuel-water separator is the 3/8" NPT assembly most workshops fit for 10-micron protection on outboards. Browse the full diesel fuel filter & water separator collection.
FAQ — Frequently Asked Questions
Is the spin-on fuel filter really easier to service than a cartridge filter?
Yes. The R12T spin-on design eliminates the messy disassembly of cartridge-style housings. You remove the old R12T by hand (or with a filter wrench), apply diesel fuel to the new gasket, and thread on the replacement. No sponges, no O-rings to lubricate, no risk of getting the housing seal wrong. Most owners report 50% faster filter changes with spin-on systems.
Will the R12T system void my truck's warranty?
The R12T is a secondary fuel filtration upgrade that installs downstream of the OEM primary filter on most platforms. Because it doesn't modify the fuel pump, injection system, or OEM filter housing, it generally does not void powertrain warranties. That said, if an injector failure were to occur and the R12T was found to be improperly installed or the wrong spec, a dealer could potentially argue causation. Consult your owner's warranty documentation or speak with a qualified diesel mechanic before installing.
How often should I replace the R12T fuel filter cartridge?
For most diesel pickup truck applications (Duramax, Power Stroke, Cummins), replace the R12T every 15,000 miles or at every oil change, whichever comes first. If you run primarily on biodiesel blends (B20 or higher), or if you frequently source fuel from smaller stations, consider reducing the service interval to 10,000 miles — water contamination and particulate load are higher in these conditions. Marine and boiler applications should follow manufacturer-recommended schedules for the specific equipment.
What's the difference between the R12T and the upgraded R12H?
The R12H is the upgraded version of the R12T system. It uses the same 10-micron spin-on cartridge and the same NPT plumbing, but comes with an aluminum alloy housing. Everything in this guide — the plumbing, the priming procedure and the 15,000-mile service interval — applies to both.
Can I install the R12T on a 2016+ newer model diesel truck?
The R12T system works on most diesel platforms, but newer trucks (2017+ Duramax L5P, 2017+ Power Stroke 6.7L, 2019+ Cummins 6.7L) have increasingly complex OEM fuel systems with high-pressure fuel pumps and returnless fuel systems. For these applications, consult the iFJF product page or contact iFJF technical support to confirm fitment before purchasing.
iFJF Product — R12T Fuel-Water Separator Combo
🛒 R12T Spin-On Fuel Filter & Water Separator Combo Kit — 10 Micron
The exact kit shown in this guide: a 10-micron spin-on cartridge, aluminum mounting head, clear nylon water bowl and four NPT fittings. It replaces the messy cartridge-style housing on Duramax, Power Stroke and Cummins diesels with a throwaway spin-on element you can change by hand.
Everything arrives in one box — no measuring thread sizes, no hunting for adapters.
