Description

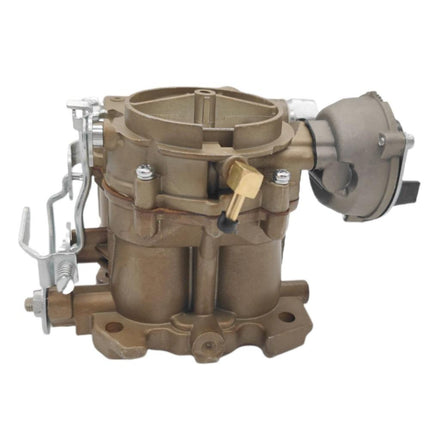

V6 4.3L (262ci) Marine Carburetor — Direct OEM Replacement
The 3310-807764A1 Marine Carburetor for Stock 2 Barrel V6 4.3L Mercarb Mercruiser Boats with Electric Choke (Yellow) is a precision-engineered 2-barrel marine carburetor designed as a direct bolt-on replacement for Mercruiser sterndrive engines. Built with marine-grade aluminum alloy and featuring an electric choke, this carburetor delivers reliable cold starts, smooth idle, and consistent fuel delivery for worry-free boating.
Key Features
-
Marine-Grade Aluminum Construction — Corrosion-resistant alloy body withstands saltwater and freshwater environments; significantly more durable than standard automotive carburetors
-
Electric Choke System — Automatic electric choke ensures reliable cold starts without manual priming; wired for simple 12V ignition connection
-
Precision Tuned for Marine Use — Calibrated for the unique fuel demands of marine engines operating under sustained load at varying RPMs
-
Direct Bolt-On Replacement — Exact OEM fitment with no modifications required; matches original mounting bolt pattern and linkage configuration
-
Pre-Set Float Level — Factory-calibrated float height eliminates the need for initial adjustment in most installations
-
2-Barrel Design — Balanced primary and secondary venturi for smooth acceleration and efficient cruising fuel economy
Fitment & Compatibility
| Engine |
Year Range |
Application |
| V6 4.3L (262ci) |
1990-2015 |
Mercruiser Sterndrive (2-Barrel Mercarb) |
| V6 4.3L (262ci) |
1990-2015 |
Mercruiser V6 Sterndrive |
Technical Specifications
| Specification |
Detail |
| Barrel Configuration |
2-Barrel (Primary + Secondary) |
| Choke Type |
Electric (12V Automatic) |
| Body Material |
Marine-Grade Aluminum Alloy |
| Base Bolt Pattern |
3-3/4 x 2 inches |
| Fuel Type |
Gasoline (87+ Octane) |
| OEM Part Number |
3310-807764A1 |
| Finish |
Yellow Anodized |
Installation Tips
- Always replace the base gasket when installing a new carburetor
- Verify fuel line compatibility — marine applications require USCG-approved fuel hose
- Check throttle linkage alignment before final torque
- Prime the fuel system before first start to avoid extended cranking
- Allow engine to reach operating temperature before final idle adjustment
Why Choose iFJF Marine Carburetors
-
Cost-Effective Alternative — Save up to 60% vs OEM dealer pricing without sacrificing quality
-
Rigorous Testing — Each unit is flow-tested and calibrated before shipping
-
Marine-Specific Engineering — Designed for the sustained high-load operation unique to marine applications, not adapted from automotive carbs
-
Fast Shipping — In-stock in our US warehouse for quick delivery
Frequently Asked Questions
Q: Does this carburetor come with a base gasket?
A: The carburetor includes the base gasket. We recommend having a spare gasket on hand for installation, available separately.
Q: Is this a direct replacement for OEM 3310-807764A1?
A: Yes. This carburetor is an exact bolt-on replacement with matching bolt pattern, linkage configuration, and fuel inlet placement. No modifications are required for installation.
Q: How do I wire the electric choke?
A: Connect the choke wire to a 12V ignition-switched source (key-on power). The choke heating element draws minimal current and automatically opens as it warms up.
Q: Will this work with Thunderbolt IV/V ignition systems?
A: Yes. The carburetor is compatible with all Mercruiser ignition systems including Thunderbolt IV, Thunderbolt V, and EST systems.
Q: Does it come pre-tuned / pre-calibrated?
A: The carburetor is factory flow-tested and pre-set for standard operating parameters. Minor idle mixture and idle speed adjustments may be needed based on your specific engine and altitude.
