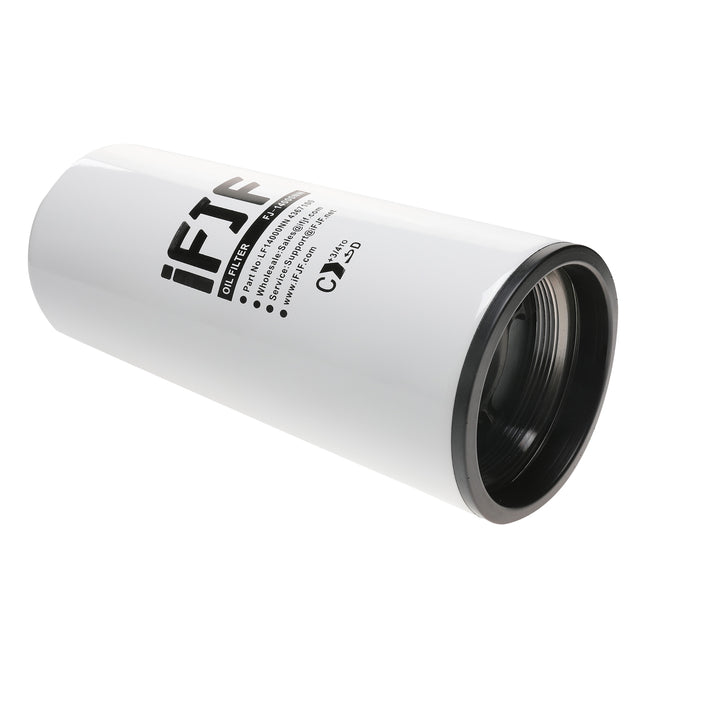

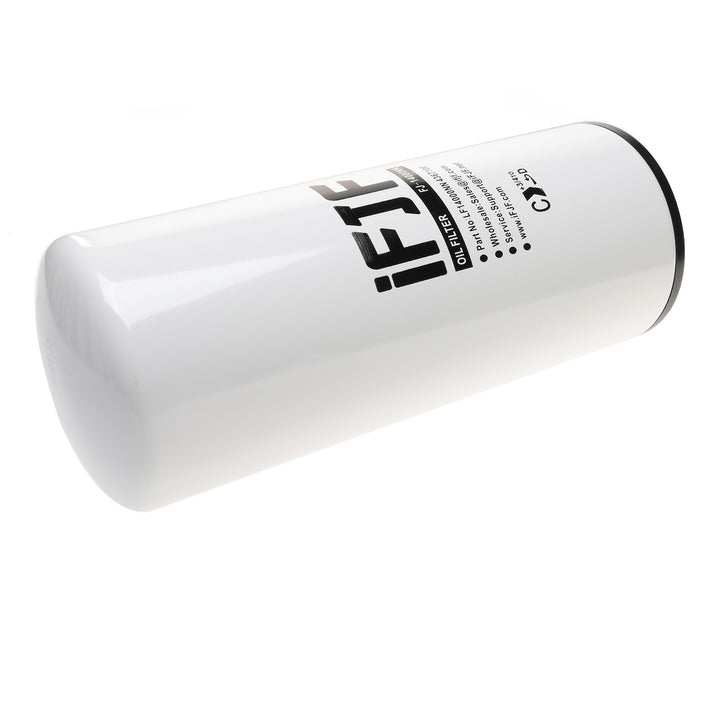

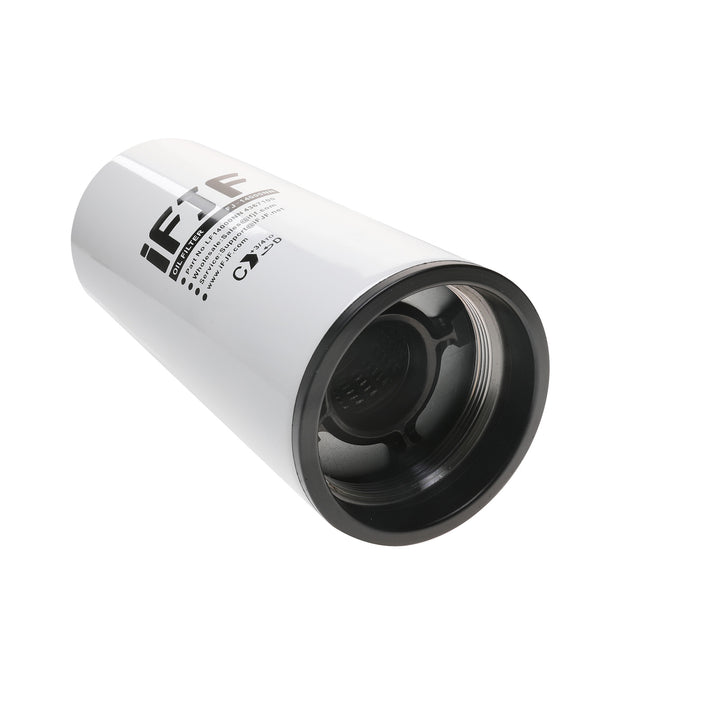

LF14000NN Lube Oil Filter — Full-Flow (30 Micron) with 10 Micron Fine Media, 100 g Capacity
Product Overview
LF14000NN lube oil filter — a full-flow element rated 30 Micron combined with a 10 Micron fine-media stage in one spin-on canister. Fits Cummins ISX, ISX15, X15, ISM, M11, QSX, QSM and QST diesel engines. Direct replacement for Fleetguard LF9080, LF9001 and Cummins 4367100 — no adapter required. Rated for a 35,000-mile light-duty interval and holds up to 100 g of contaminant.
Engineered as the current Fleetguard number for the filter previously sold as the LF9080, the LF14000NN combines a 30 Micron full-flow rating with a 10 Micron fine-media stage inside a single canister. The full-flow design keeps oil pressure stable from a cold start instead of routing oil around a restrictive fine-only element, while the fine stage removes the sub-10 Micron wear particles that shorten bearing, liner and turbo life. That combination is what allows one canister to cover everything from an ISX15 line-haul tractor to a QST industrial engine, on the same M95 x 2.5 thread and 4.74 in gasket land.
Key Features
-
Two-Stage Filtration: A 30 Micron full-flow rating for the whole oil volume, combined with a 10 Micron fine-media stage for the wear particles that shorten bearing and liner life.
-
Full-Flow Cold-Start Behaviour: Oil travels through the element instead of around a restrictive fine-only filter, so oil pressure holds at idle and under load on a cold morning.
-
100 g Contaminant Capacity: Holds up to 100 g of trapped dust and wear debris before restriction climbs, which is what makes a 35,000-mile light-duty interval realistic.
-
Direct LF9080 Replacement: Engines that ran the earlier Fleetguard LF9080 take the LF14000NN on the original filter head — no adapter, no spacer, no new leak path.
-
OE Envelope and Thread: 4.74 in (120.3 mm) outside diameter, 11.6 in (294.7 mm) overall height, M95 x 2.5 thread and a 4.00 in (102 mm) gasket inside diameter, matching the canister footprint on ISX and M11 engines.
-
Cross-References Nine Brands: Fleetguard, Cummins, Donaldson, Baldwin, Wix, NAPA, Fram, Purolator and Komatsu numbers are all listed in the cross-reference guide below.
Compatibility / Fitment
| Application |
Engine Type |
Fitment Notes |
| Cummins ISX / ISX15 |
Diesel |
Heavy-duty line-haul tractors and vocational trucks |
| Cummins X15 |
Diesel |
On-highway tractors and vocational trucks |
| Cummins ISM / M11 |
Diesel |
Older on-highway tractors, dump trucks, transit and motor coaches |
| Cummins QSX / QSM / QST |
Diesel |
Industrial, marine, generator and off-highway equipment |
| Fleetguard LF9080 applications |
Diesel |
Direct drop-in replacement — the LF14000NN supersedes the LF9080 |
Specifications
| Specification |
Value |
| Part Number |
LF14000NN |
| Filter Type |
Spin-on lube oil filter, dual element |
| Full-Flow Rating |
30 Micron |
| Fine Media Rating |
10 Micron |
| Contaminant Capacity |
Up to 100 g |
| Outside Diameter |
4.74 in (120.3 mm) |
| Overall Height |
11.6 in (294.7 mm) |
| Gasket Outside Diameter |
4.74 in (120.3 mm) |
| Gasket Inside Diameter |
4.00 in (102 mm) |
| Thread Size |
M95 x 2.5 (Class 7H, metric) |
| Service Interval |
35,000 miles light duty / 25,000 miles normal duty / 15,000 miles severe duty |
| Item Weight |
1.7 kg (3.75 lb) |
| Replaces |
Fleetguard LF14000NN, LF9080, LF9001; Cummins 4367100; Donaldson P559000, ELF7900 |
| Kit Includes |
1 x LF14000NN oil filter |
Installation Tips
- Drain the oil pan first, then remove the old filter with a proper filter wrench. The LF14000NN canister is 11.6 in (294.7 mm) tall — confirm you have that clearance under the frame before you start.
- Wipe the filter head gasket land clean and check that the old gasket came off with the old filter. A gasket left behind on the head is the most common cause of a leak after a filter change.
- Coat the new gasket with clean engine oil, then seat the filter by hand until the gasket contacts the head.
- Tighten three quarters of a turn by hand only. Do not use a wrench to tighten — over-torquing distorts the gasket and is the second most common cause of seepage.
- Start the engine, idle for a minute and check the head for seepage, then shut down, confirm the oil level and top up as needed.
Frequently Asked Questions
Q: Will this fit my Cummins ISX or X15 engine?
A: Yes. The iFJF LF14000NN fits Cummins ISX, ISX15, X15, ISM, M11, QSX, QSM and QST diesel engines. Confirm the filter coming off your engine matches 4.74 in (120.3 mm) outside diameter, 11.6 in (294.7 mm) overall height and an M95 x 2.5 thread before installing.
Q: Is this a direct replacement for the Fleetguard LF9080?
A: Yes. The LF14000NN is the current number for the filter previously sold as the Fleetguard LF9080, so an engine that ran an LF9080 takes the LF14000NN on the original filter head with no adapter or spacer. It also replaces Fleetguard LF9001 and Cummins 4367100.
Q: How often should the LF14000NN oil filter be replaced?
A: Replace the LF14000NN every 35,000 miles in light duty above 7.0 miles per gallon, every 25,000 miles in normal duty at 6.0 to 7.0 miles per gallon, and every 15,000 miles in severe duty below 6.0 miles per gallon. Severe duty covers heavy towing, refuse and construction work, and long idle periods.
Q: Why does the LF14000NN list both a 30 Micron and a 10 Micron rating?
A: The LF14000NN is a full-flow filter, so the 30 Micron figure describes the rating that governs how much oil the element can pass at working pressure, and the 10 Micron figure describes the finer particles it still captures. A micron number on its own means little — a filter can be rated at 10 Micron and still only catch half the particles at that size. That is why the service interval and contaminant capacity (100 g) matter as much as the micron figures when comparing filters.
Q: Which part numbers does the LF14000NN replace?
A: The iFJF LF14000NN replaces Fleetguard LF14000NN, LF9080 and LF9001, Cummins 4367100, Donaldson P559000 and ELF7900, Baldwin BD7154, Wix 57746XD, NAPA 7746XD, Fram PH8691, Purolator L65329 and Komatsu 600-211-1340. Note that 7746XD is the NAPA number for the same filter sold by Wix as 57746XD — they are two brands, not two sizes. Match the number stamped on the filter currently on the engine against the cross-reference table on this page before ordering.
Q: What are the dimensions and thread size of the LF14000NN?
A: The LF14000NN measures 4.74 in (120.3 mm) outside diameter and 11.6 in (294.7 mm) overall height, uses an M95 x 2.5 Class 7H metric thread, and carries a 4.74 in (120.3 mm) gasket outside diameter with a 4.00 in (102 mm) inside diameter. Check all four numbers when the engine has been repowered or the filter head has been changed.
🔬 Reading the Two Ratings on the LF14000NN
What the 30 Micron and 10 Micron figures actually tell you
-
30 Micron Full-Flow: the rating the element carries while passing the entire oil volume at working pressure — this is what keeps oil pressure stable on a cold start
-
10 Micron Fine Media: the finer stage that captures the wear particles below 30 Micron which shorten bearing, liner and turbo life
-
Micron Alone Is Not Enough: the same nominal rating can mean 50% or 99% capture at that size — always read the micron figure together with capacity and service interval
-
100 g Capacity: contaminant holding capacity supports the 35,000-mile light-duty interval instead of forcing an early change
⚠️ What Buyers Report on Other LF14000NN Listings
Three complaints that repeat across aftermarket LF14000NN reviews
| Complaint |
How the iFJF LF14000NN Handles It |
| "The element inside is not what the description claims." |

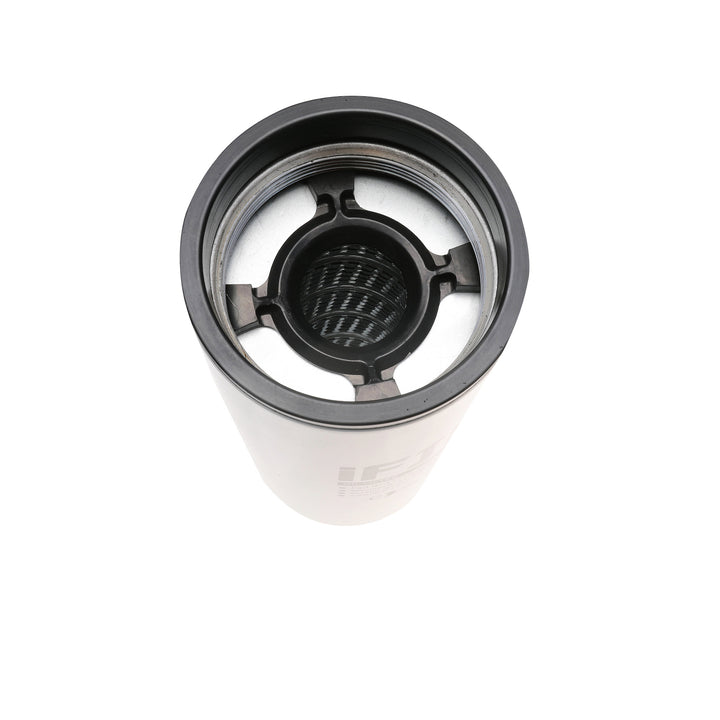

The seven gallery photos include the cutaway view of the element, so the media construction is visible before you buy rather than described only in text. |
| "It did not fit the engine the listing said it would." |
Four numbers to check first: 4.74 in outside diameter, 11.6 in height, 4.00 in gasket inside diameter, M95 x 2.5 thread. If your filter differs, it is not an LF14000NN application. |
| "It feels lighter than the filter it replaced." |
Published weight is 1.7 kg (3.75 lb) — weigh the replacement against the unit coming off the engine. |
📦 Related Products & Service Parts
🛒 Complete Your ISX / X15 Service:
📖 Read before the next oil change:
Browse all oil filters and Cummins parts.
🔄 LF14000NN Cross Reference & Replacement Guide
Looking for a replacement? The iFJF LF14000NN is a direct drop-in for the numbers below. Match your number, swap the unit — no adapters required.
| Part / Model |
What It Is |
Relation to LF14000NN |
| iFJF LF14000NN |
This product — spin-on lube oil filter, 30 Micron full-flow with 10 Micron fine media |
— |
| Fleetguard LF14000NN |
Genuine Fleetguard number for the same application |
Direct replacement |
| Fleetguard LF9080 |
Earlier number superseded by the LF14000NN |
Direct drop-in, no adapter |
| Fleetguard LF9001 |
Same-family lube element |
Direct replacement |
| Cummins 4367100 |
OEM part number for the same application |
Direct replacement |
| Donaldson P559000 |
Donaldson primary cross-reference |
Cross-reference |
| Donaldson ELF7900 |
Donaldson number the LF14000NN replaces |
Cross-reference |
| Baldwin BD7154 |
Baldwin cross-reference |
Cross-reference |
| Wix 57746XD |
Wix XD full-flow / by-pass spin-on |
Cross-reference |
| NAPA 7746XD |
NAPA Gold counterpart of Wix 57746XD — different brand, same size |
Cross-reference |
| Fram PH8691 |
Fram lube filter |
Cross-reference |
| Purolator L65329 |
Purolator lube filter |
Cross-reference |
| Komatsu 600-211-1340 |
Off-highway number for SA6D125 / SAA6D140 applications |
Cross-reference |
| Fleetguard LF14001NN |
Later revision listed by some aftermarket sellers |
Verify thread and length before use |
Not sure whether your number matches? Measure the filter coming off the engine — 4.74 in outside diameter, 11.6 in height, M95 x 2.5 thread — or message us with your engine serial number.
