Description

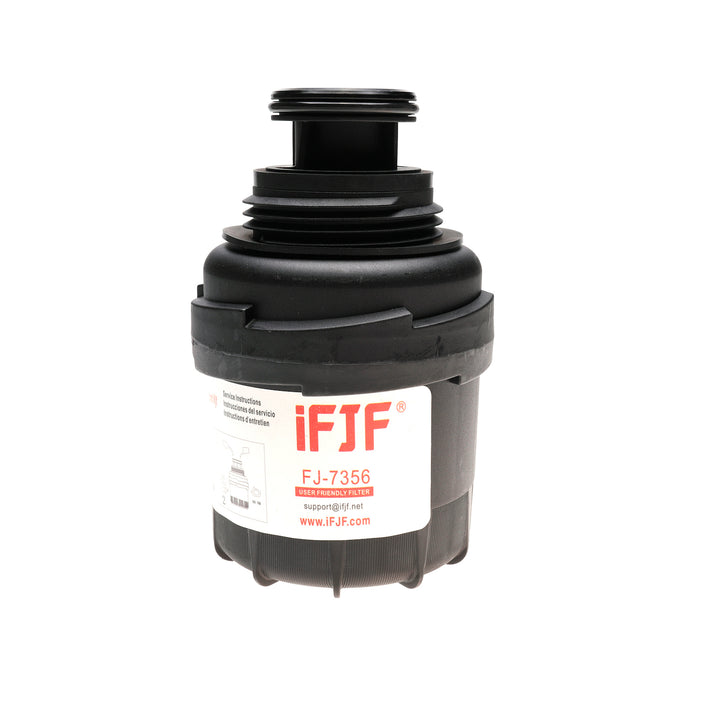

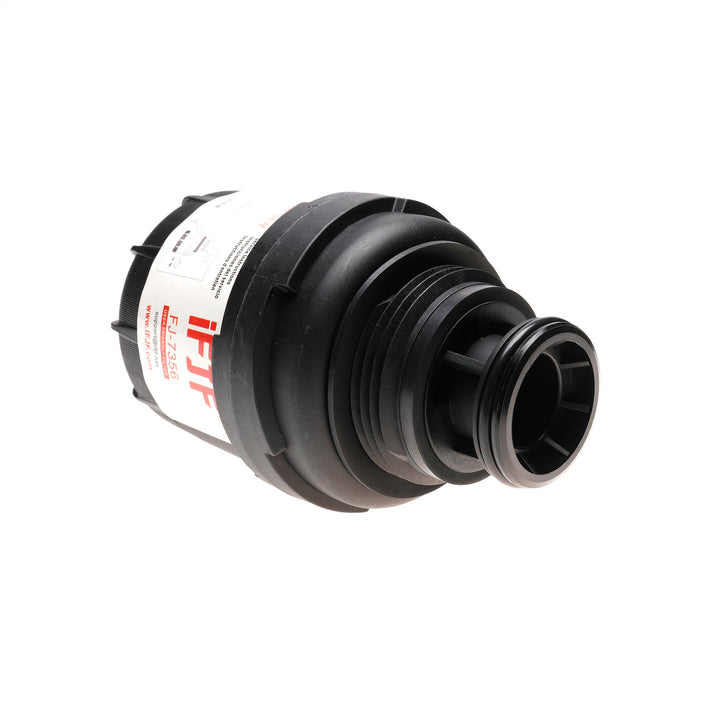

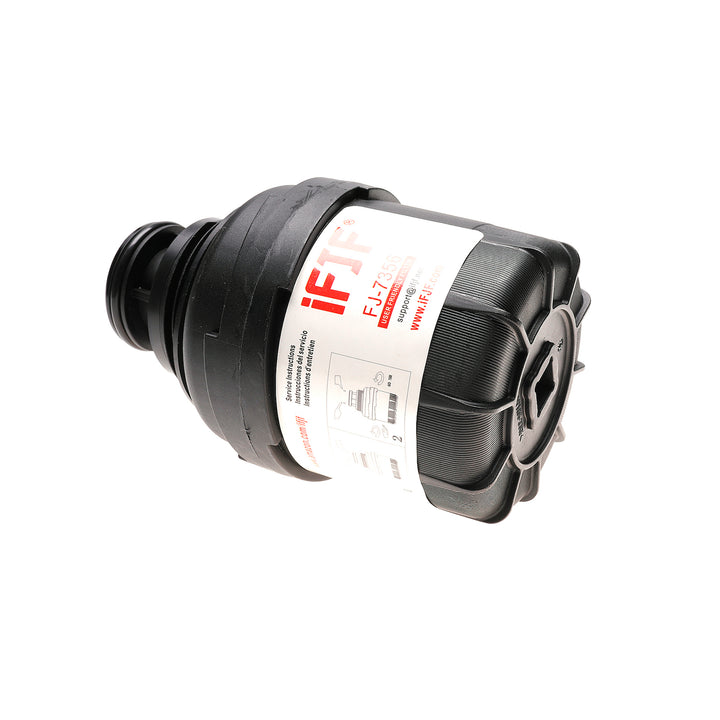

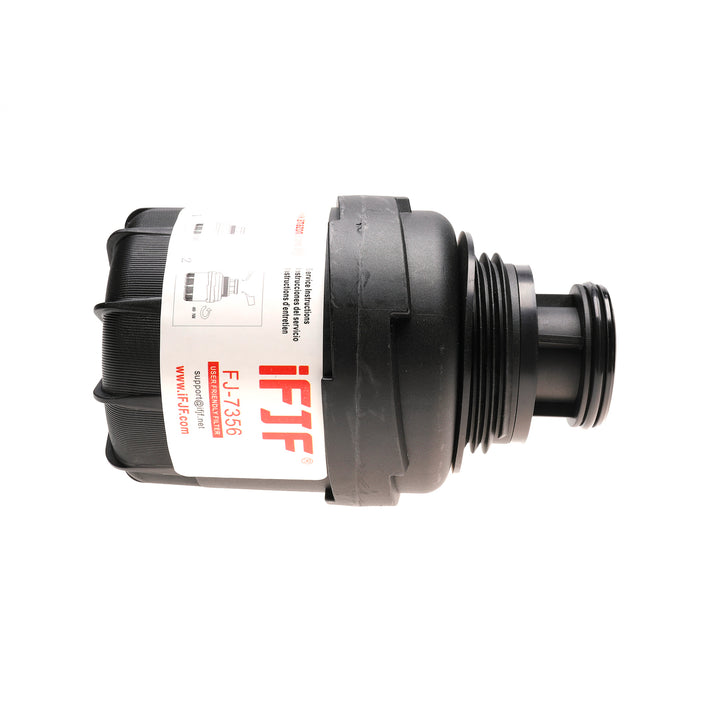

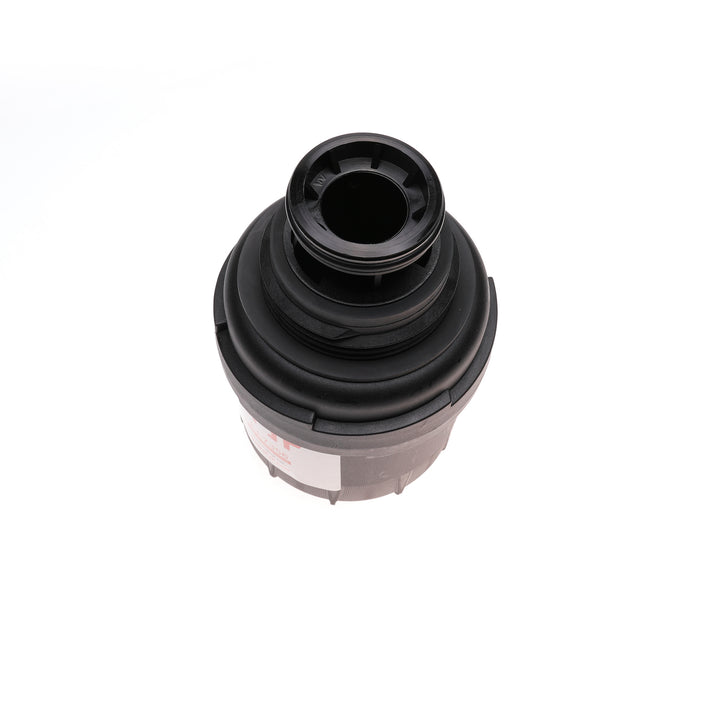

LF17356 Oil Filter — Spin-On Lube Filter for Cummins ISF 2.8 and QSF 2.8
Product Overview
LF17356 is the spin-on lube oil filter for the Cummins ISF 2.8L (CM2220) and QSF 2.8L (CM2880) diesel engines — the 2.8 litre four-cylinder used in Ford F-150, F-250 and F-350 trucks specified with the ISF, in Foton Tunland pickups, Aumark and Forland light trucks, and in skid steers and small gensets. It replaces Cummins 5266016, Donaldson P557356, Foton L0391020086A0 and Volkswagen 23B115403. Rated at 97% efficiency on 30 Micron media (TWA, SAE J1858), with an M67 x 4 special butt thread, listed at 3.94 x 3.94 x 5.51 in (100 x 100 x 140 mm) and 13.6 oz.
The thread is the part that catches people out. An M67 x 4 special butt is not the 3/4-16 UNF that fits most light-truck filters, and it is not the M27 x 2 used on several small Cummins engines. It is a 67 mm diameter thread with a 4 mm pitch, and the sealing land around it is cut to match. A filter with the wrong thread either will not start on the head at all, or starts a turn and stops — which is worse, because it feels like it is going on. The LF17356 is cut to the ISF/QSF head, and the gasket is sized to the 58.5 mm sealing groove the head actually has.
Key Features
-
M67 x 4 Special Butt Thread: The ISF and QSF filter head uses this thread and nothing else. 3/4-16 UNF and M27 x 2 filters that look the same diameter will not seat.
-
97% Efficiency at 30 Micron: Rated TWA per SAE J1858 — the multi-pass figure, not a single-pass headline.
-
One Filter, Two Engine Codes: The same element serves the on-road ISF 2.8 (CM2220) and the industrial QSF 2.8 (CM2880), so a mixed fleet only stocks one number.
-
No Standpipe in the Filter: The standpipe is part of the engine head on this application. If the old filter comes off with a standpipe in it, something is wrong upstream.
-
Compact Envelope: 3.94 x 3.94 x 5.51 in (100 x 100 x 140 mm) and 13.6 oz. The ISF lube circuit is deliberately tight, and a longer can will not clear the frame rail on Tunland and Aumark installations.
-
Direct 5266016 Replacement: Goes onto the original head with no adapter, no spacer and no second gasket.
Compatibility / Fitment
| Engine |
Common Equipment |
Notes |
| Cummins ISF 2.8L (CM2220) |
Foton Tunland 4x4, Foton Aumark / Forland light trucks, JAC and JMC light commercial |
2008 and later |
| Cummins QSF 2.8L (CM2880) |
Skid steer loaders, light excavators, small generator sets |
2012 and later |
| Ford F-150 / F-250 / F-350 — late model with ISF 2.8 |
Light-duty trucks built with the Cummins ISF |
Listed application |
Two checks before you order: the old filter should be an M67 x 4 thread, and its gasket should land at 2.303 in (58.5 mm) outside diameter. If your truck runs a 3.0L or 6.7L Powerstroke, or a 5.9L / 6.7L Cummins, this is not the filter — those take a 3/4-16 UNF or M27 body of a different length.
Technical Specifications
| Specification |
Value |
| Part Number |
LF17356 (iFJF) |
| Filter Type |
Spin-on lube oil filter |
| Thread Size |
M67 x 4 special butt |
| Product Dimensions |
3.94 x 3.94 x 5.51 in (100 x 100 x 140 mm) |
| Item Weight |
13.6 oz (386 g) |
| Gasket Outside Diameter |
2.303 in (58.5 mm) |
| Gasket Inside Diameter |
1.971 in (50.06 mm) |
| Standpipe |
No — the standpipe is in the engine head |
| Filtration Efficiency |
97% at 30 Micron (TWA, SAE J1858) |
| Engine Compatibility |
Cummins ISF 2.8L (CM2220), QSF 2.8L (CM2880) |
| Replaces |
Cummins 5266016; Donaldson P557356; Foton L0391020086A0; Volkswagen 23B115403; B40051; CP40001; SM5089 |
| Package Includes |
1 x LF17356 oil filter |
| Warranty |
iFJF Quality Guarantee |
Installation Tips
-
Pre-fill the filter before it goes on. The ISF filter head sits high and drains back. Filling the canister with fresh oil is the difference between a normal start and the two seconds of dry rattle that people report after a service.
-
Wipe the head face and check for a stuck gasket. The most common leak on an ISF is not a bad filter — it is the old gasket left behind, so the new filter seats on two gaskets and weeps at pressure.
-
Oil the new gasket, do not grease it. Clean engine oil lets the gasket slide and settle. Grease makes it grab and roll out of the groove.
-
Hand-tighten three quarters of a turn past gasket contact. No wrench on the canister. The M67 thread is fine-pitch and it is easy to over-torque a thin can into a distorted seat.
-
Run thirty seconds, then look at the seam. A seep at the seam means the gasket is pinched, not that the filter is defective. Take it off and start again rather than adding a second turn.
Frequently Asked Questions
Will this fit my Cummins ISF 2.8 or QSF 2.8 engine?
The LF17356 is built for the Cummins ISF 2.8L (CM2220) and QSF 2.8L (CM2880) engines. Check the number on the filter coming off: 5266016, P557356, L0391020086A0 or 23B115403 all cross to this element. If the old filter is a different length or has a 3/4-16 thread, it is not this application.
What thread size is the LF17356?
M67 x 4 special butt. That is a 67 mm diameter thread with a 4 mm pitch and a buttress-style profile. It is not interchangeable with 3/4-16 UNF or M27 x 2 filters, even when the canister diameter looks similar.
What does the LF17356 replace?
Cummins 5266016, Donaldson P557356, Foton L0391020086A0, Volkswagen 23B115403, plus the aftermarket numbers B40051, CP40001 and SM5089. The cross-reference table on this page lists them together so you can match whichever number is stamped on the part you are removing.
Does the filter come with a gasket?
Yes. The gasket is bonded to the canister, which is normal for a spin-on lube filter. There is no separate O-ring to fit and nothing else in the box beyond the filter.
Does it fit a Ford F-150, F-250 or F-350?
It fits trucks built with the Cummins ISF 2.8. It does not fit the 3.0L Powerstroke or the 6.7L Powerstroke, which use a different thread and a different canister length. Match the part number before ordering rather than the badge on the grille.
What is the difference between the LF17356 and a standard 3/4-16 filter?
The thread and the length. A 3/4-16 UNF filter of similar diameter will start to thread but will not seal, because the ISF head is cut for M67 x 4 and the sealing groove sits at a different radius. The LF17356 is listed at 3.94 x 3.94 x 5.51 in (100 x 100 x 140 mm) and 13.6 oz.
🔧 Reading the M67 x 4 Thread
Why a filter that "looks right" still will not seal on an ISF head
-
M67 means 67 mm: measured across the outside of the thread, not the canister. A 3/4-16 UNF filter is about 19 mm across the thread — visibly smaller once you look for it.
-
x 4 means a 4 mm pitch: coarse for a filter thread. It grips in fewer turns, so "two turns and it stopped" is a thread mismatch, not a tight seal.
-
Special butt profile: a buttress-style flank that pulls the gasket down flat instead of wedging it. A standard 60-degree thread can start on it and then bind.
-
Gasket lands at 58.5 mm OD: the sealing groove on the head is cut for that diameter. A gasket that sits outside it will not compress evenly, which shows up as a seep at the seam rather than a drip.
📦 Related Products & Service Parts
🛒 Same Cummins family, different displacement:
📖 Read before you order:
Browse all oil filters · Cummins parts.
🔁 Cross Reference & Replacement Guide
Read the number stamped on the filter you are removing, then find that row. Two numbers that are not on this list — 3/4-16 UNF filters and M27 x 2 filters — are physically different and will not seal on an ISF head.
| Number on the Old Part |
What It Is |
Relation |
| LF17356 (iFJF) |
This product — spin-on lube filter, M67 x 4 |
— |
| Cummins 5266016 |
OEM number for the ISF / QSF 2.8 lube filter |
Direct replacement |
| Donaldson P557356 |
Donaldson cross-reference (also written 557356) |
Cross-reference |
| Foton L0391020086A0 |
Foton number for Tunland / Aumark |
Cross-reference |
| Volkswagen 23B115403 |
VW number used on the same engine |
Cross-reference |
| B40051 |
Aftermarket cross-reference |
Cross-reference |
| CP40001 |
Aftermarket cross-reference |
Cross-reference |
| SM5089 |
Aftermarket cross-reference |
Cross-reference |
| Goodwill OG111 |
Aftermarket cross-reference |
Cross-reference |
| Tec-Fil PSL356 |
Aftermarket cross-reference |
Cross-reference |
Not sure which number you have? Measure across the thread: M67 is 67 mm outside diameter. If it measures about 19 mm, you have a 3/4-16 filter and this is not your application.
Every iFJF filter is produced in a facility audited to ISO 9001:2015 and IATF 16949:2016 quality management standards. Quality Guarantee · Easy Returns · Fitment Support.
