MP10325 Fuel Filter & Lift Pump for Perkins 804C 804D ASV Terex

Description

MP10325 Fuel Filter and Lift Pump Assembly — 12V Electric Pump with Integrated Filter

Product Overview

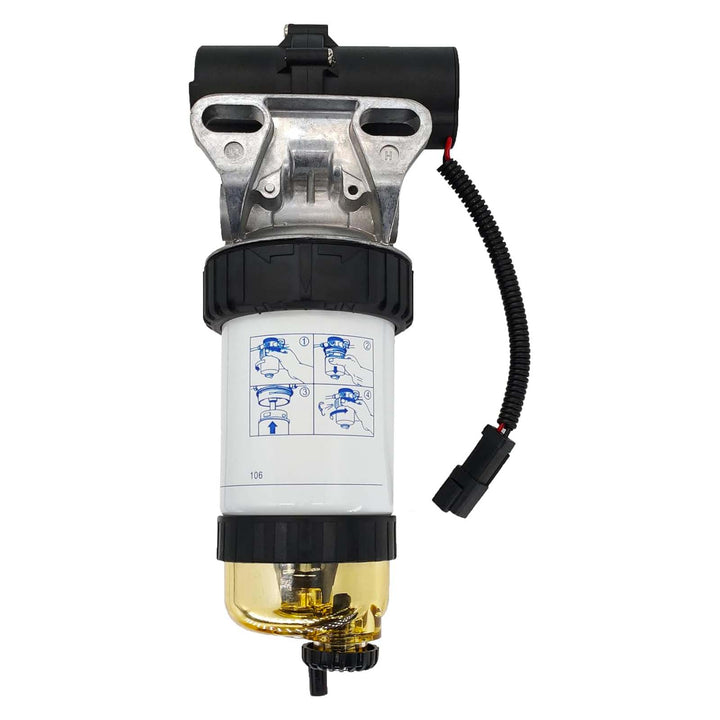

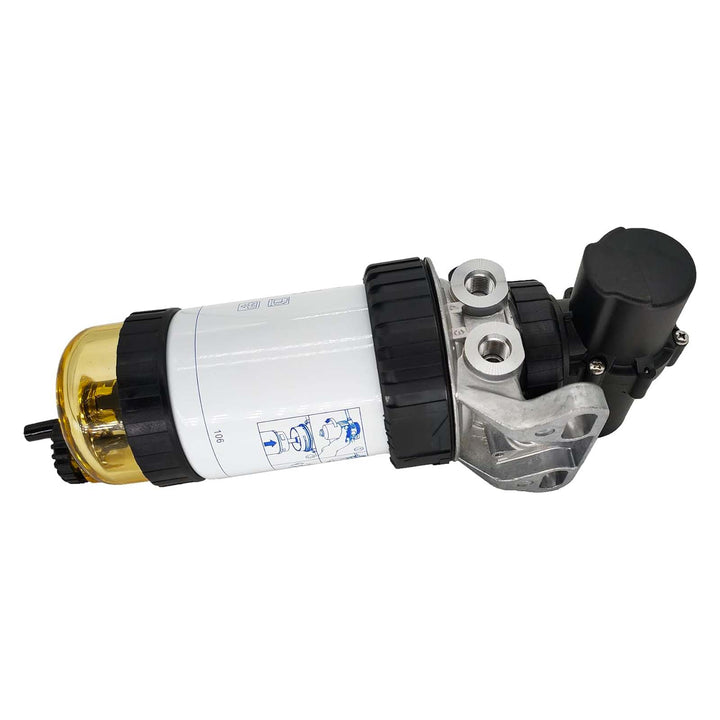

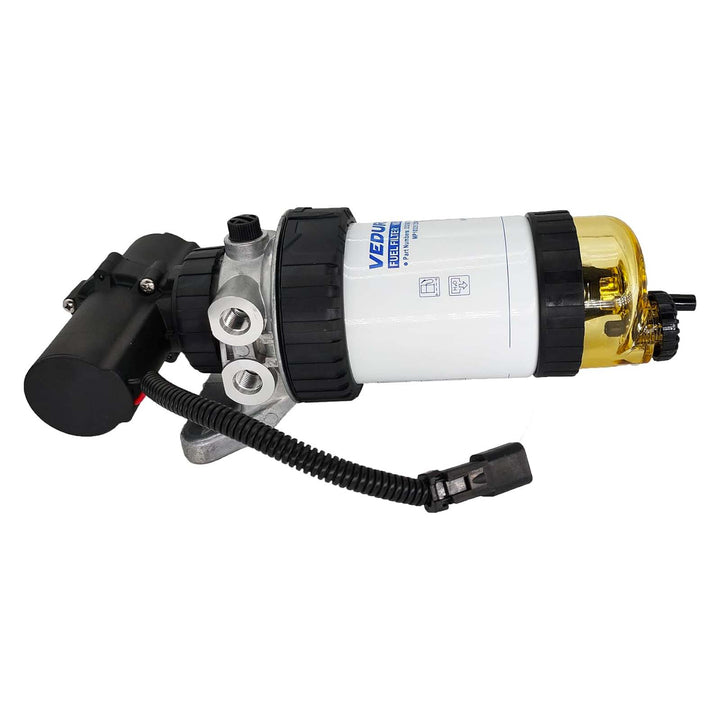

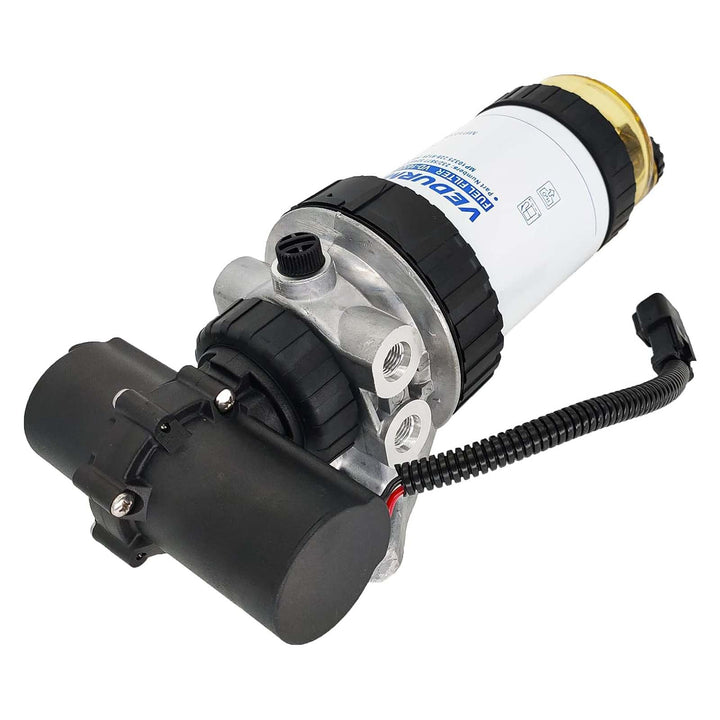

MP10325 is a fuel filter and electric lift pump in one housing, for the Perkins 804C-33, 804C-33T, 804D-33 and 804D-33T 3.3 litre diesel engines — the engines fitted to ASV SR70 and SR80 and Terex PT75 and PT80 compact track loaders, and to a long list of Caterpillar skid steer, wheel loader and backhoe models. It replaces Perkins MP10325, Caterpillar 228-9129, 232-5877 and 249-7669, Massey 232/5877, and JCB 320/07207. 12 volt electric lift pump, filter integrated into the housing, direct mount to the original bracket.

Because the pump and the filter share a housing, this is the part that gets blamed for two different failures. A machine that cranks and will not fire, or dies under load and restarts after sitting, is usually the pump. A machine that starts fine but loses power as the throttle comes in is usually the filter. Replacing the assembly fixes both, but replacing only an element — on machines that have a serviceable element — will not bring a dead pump back. The diagnosis section below separates the two before you spend the money.

Key Features

  • Pump and Filter in One Housing: The 12V lift pump and the filter share a body, so one part number restores both fuel delivery and filtration.
  • 12 Volt Electric Lift Pump: Matches the original electrical connector and mounting bracket — no relay change and no wiring adaptor.
  • Crosses Four Nameplates: Perkins MP10325, Caterpillar 228-9129 / 232-5877 / 249-7669, Massey 232/5877 and JCB 320/07207 all point at the same assembly.
  • Covers the Whole 804C / 804D Family: 804C-33, 804C-33T, 804D-33 and 804D-33T, plus the 3044C, C3.4 and 3000 industrial designations.
  • Built for Off-Highway Fuel: Loaders working from site drums see water and grit that road trucks never do, which is why the filter is inside the pump housing rather than upstream of it.
  • Direct Mount, No Adaptor: Bolts to the original bracket with the original two-hose layout and the original bleed screw.

Compatibility / Fitment

Machine Engine Notes
ASV SR70 / SR80 compact track loader 804C-33 / 804C-33T / 804D-33 / 804D-33T Primary application
Terex PT75 / PT80 compact track loader 804C-33 / 804C-33T / 804D-33 / 804D-33T Primary application
Caterpillar skid steer 236B, 246B, 248B, 252B, 262B, 267B, 268B, 277B, 287B 804C / 804D family Confirm by machine serial
Caterpillar wheel loader 906, 906H, 907H, 908, 908H 804C / 804D family Confirm by machine serial
Caterpillar backhoe loader 422E, 428D, 428E, 432D 804C / 804D family Confirm by machine serial
Perkins industrial 3044C, C3.4, 3000 804C / 804D family Industrial and genset use

The model numbers above are Caterpillar designations, not Bobcat. If your machine is a different brand, match the engine code (804C-33, 804C-33T, 804D-33, 804D-33T) and the number cast on the old assembly before ordering — the engine is what determines the fit, not the paint colour.

Technical Specifications

Specification Value
Part Number MP10325 (iFJF)
Assembly Type Fuel filter with integrated electric lift pump
Voltage 12V
Engine Family Perkins 804C-33 / 804C-33T / 804D-33 / 804D-33T (3.3L)
Item Weight 1.6 kg (3.5 lb)
Mounting Direct to original bracket, original two-hose layout
Replaces Perkins MP10325; Caterpillar 228-9129 / 232-5877 / 249-7669; Massey 232/5877 / 349/5327 / 349/5328 / 361/3869; JCB 320/07207; 32A62-02010
Package Includes 1 x MP10325 fuel filter and lift pump assembly
Warranty iFJF Quality Guarantee

Diagnosis & Installation

Step Why It Matters
Open the bleed screw and crank for five seconds If fuel pulses out, the pump is running and the restriction is the filter. If nothing moves, the pump is dead and an element change will not help.
Check 12V at the pump connector with the key on A pump that has voltage and makes no sound is a failed pump. A pump with no voltage is a wiring or relay fault, and a new assembly will not fix it.
Mark both hoses before you pull them The assembly is directional. Swapped lines will not prime, and on a 3.3L the mistake looks exactly like a dead pump.
Prime the new housing before cranking Dry cranking to pull fuel through is hard on the starter and the battery on a machine that may already be on a low charge.
Re-check the bleed screw after the first start Off-highway vibration loosens a fitting that was only nipped up. A weep at the bleed screw shows as a hard start the next morning, not as a puddle.

Frequently Asked Questions

Is this just a filter, or does it include the pump?
The MP10325 is the complete assembly — a 12V electric lift pump with the fuel filter built into the same housing. It is not a bare element. If your machine has a separate serviceable element and a healthy pump, you do not need this part.

What does MP10325 replace?
Perkins MP10325, Caterpillar 228-9129, 232-5877 and 249-7669, Massey 232/5877, 349/5327, 349/5328 and 361/3869, JCB 320/07207, and 32A62-02010. Four different nameplates sell the same assembly, which is why the number on the old part rarely matches the number you search for.

How do I know whether the pump or the filter has failed?
Open the bleed screw and crank. Fuel pulsing out means the pump runs, so the restriction is the filter. No movement means the pump is dead. Then confirm with 12V at the connector: voltage present but silent means replace the pump; no voltage means chase the wiring or the relay first.

Which machines does it fit?
ASV SR70 and SR80, Terex PT75 and PT80 compact track loaders, plus Caterpillar skid steer 236B through 287B, wheel loaders 906 through 908H and backhoe loaders 422E through 432D, all on the Perkins 804C / 804D 3.3L engine. Match the engine code and the number on the old assembly.

Is it 12 volt?
Yes, 12V, matching the original connector. It is not a 24V part. If your machine is a 24V system, this assembly is not the correct one.

Will it fit a Bobcat?
The model numbers in this listing — 236B to 287B, 906 to 908H, 422E to 432D — are Caterpillar designations, not Bobcat. If you run a different brand of loader, check the engine is a Perkins 804C-33, 804C-33T, 804D-33 or 804D-33T, and match the number on the assembly you are removing.

🔧 Pump or Filter? Five Minutes to Tell

Both failures look the same from the seat — here is what separates them

  • Cranks, will not fire, no fuel at the bleed screw: pump. The motor is not turning, so nothing is being lifted from the tank.
  • Starts cold, dies when hot, restarts after ten minutes: pump. A worn motor stalls as it heats and recovers once it cools — a clogged filter does not recover on its own.
  • Starts fine, loses power as the throttle comes in: filter. Fuel volume is enough at idle and not enough under load.
  • Hard start every morning that gets worse over weeks: usually the filter, sometimes air drawn past a perished seal at the bleed screw. Check the screw before replacing the assembly.

📦 Related Products & Service Parts

🛒 Fuel side parts for compact diesel equipment:

📖 Read before you order:

Browse all fuel filters · diesel fuel filters.

🔁 Cross Reference & Replacement Guide

Read the number cast or stamped on the assembly you are removing. Four nameplates — Perkins, Caterpillar, Massey Ferguson and JCB — sell the same part under different numbers, so the number you search for is often not the number on the part.

Number on the Old Part What It Is Relation
MP10325 (iFJF) This product — filter and 12V lift pump assembly —
Perkins MP10325 OEM number for the assembly Direct replacement
Caterpillar 228-9129 CAT number, same assembly Cross-reference
Caterpillar 232-5877 CAT number, also written 232/5877 Cross-reference
Caterpillar 249-7669 CAT number, later listing Cross-reference
Massey 232/5877 Massey Ferguson number Cross-reference
Massey 349/5327 / 349/5328 Massey Ferguson alternate numbers Cross-reference
Massey 361/3869 Massey Ferguson alternate number Cross-reference
JCB 320/07207 JCB Dieselmax 444 number Cross-reference
32A62-02010 Alternate assembly number Cross-reference

Four nameplates, one assembly. Match the engine code (804C-33, 804C-33T, 804D-33, 804D-33T) first, then the number on the old part.

Every iFJF filter is produced in a facility audited to ISO 9001:2015 and IATF 16949:2016 quality management standards. Quality Guarantee · Easy Returns · Fitment Support.
