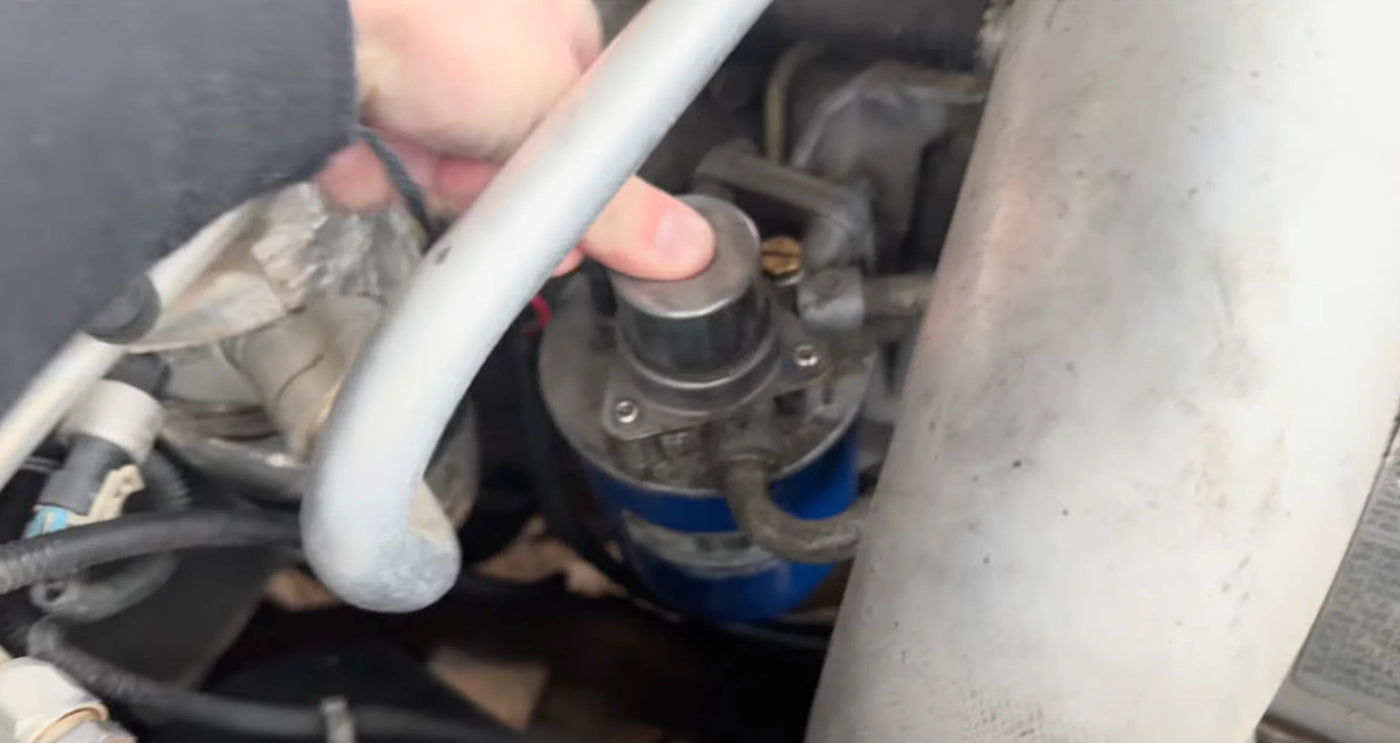

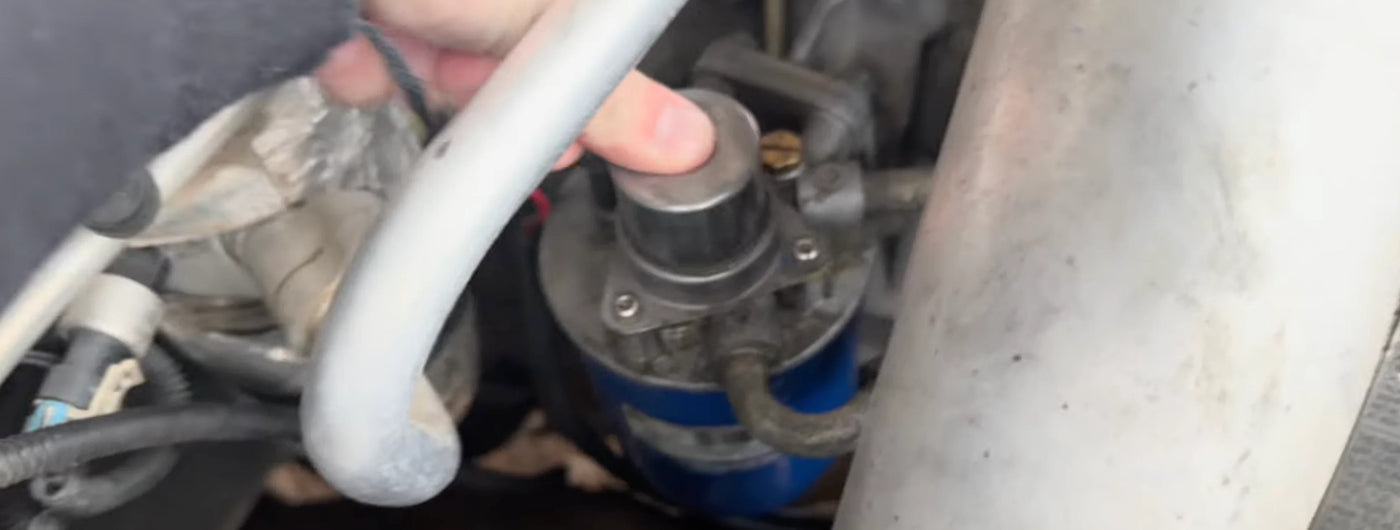

Duramax Fuel Filter Housing: Complete Compatibility & Replacement Guide (2001–2024)

If you own a Duramax-powered Chevy Silverado or GMC Sierra, the fuel filter housing is one of those components you don't think about — until it starts leaking, sucking air, or leaving you stranded on a cold morning. This guide covers every generation of the 6.6L Duramax from the 2001 LB7 through the 2024 L5P, including OEM cross-reference numbers, common failure points, and exactly which replacement parts fit your truck.

---

Why the Fuel Filter Housing Matters More Than You Think

The fuel filter housing on a Duramax does three jobs at once:

1. Filters contaminants — Catches debris, water, and rust before they reach your injectors

2. Separates water — The lower bowl traps water in diesel fuel that would destroy your CP3 or CP4 pump

3. Heats the fuel — The integrated heater element warms cold diesel before it enters the high-pressure system

When any of these functions fail, you get hard starts, rough idle, power loss, or worse — a blown injection pump. On trucks running in freezing temperatures, a dead fuel heater can mean the difference between a reliable daily driver and a driveway ornament when the temperature drops.

GSC data insight: Over 63 monthly searches on ifjf.net alone for OEM part number 10226035 and Duramax fuel filter housing compatibility queries — with zero clicks on many of them because the right content didn't exist. This guide fixes that.

---

Duramax Generations: Which Housing Fits Your Truck?

Not all Duramax fuel filter housings are the same. The orientation of the fuel line ports changes between generations, and mixing them up will leave you with hoses pointing the wrong way.

Generation	Years	Engine Code	Housing OEM #	Key Difference
1st Gen	2001–2004	LB7	12642623 / 10226035 (6.5L variant)	Inboard-facing hose ports; heater element in base
2nd Gen	2004.5–2005	LLY	12642623 (revised)	Port orientation rotated ~90° vs LB7
3rd Gen	2006–2007	LBZ	12642623	Same housing as LLY
4th Gen	2007.5–2010	LMM	12642623	Same housing as LLY/LBZ
5th Gen	2011–2016	LML	Integrated canister	No separate housing head — uses spin-on TP3018 filter
6th Gen	2017–2024	L5P	134001 (cap)	Cartridge-style filter under threaded billet cap; no housing head replacement needed

Critical note: An LB7 housing will not bolt onto an LLY or later truck without modification — the hose ports face the wrong direction. If you need to upgrade an early truck to the 1R-0750 spin-on conversion, you'll need the full conversion kit that includes the correct-generation housing head and the Cat filter adapter.

For 1992–2002 GM 6.5L Detroit Diesel trucks (C/K 1500–3500, Suburban, Tahoe, Yukon), the OEM assembly is 10226035 — a popular search on our site from owners of older Chevrolet and GMC HD trucks looking for a direct-fit replacement.

---

Common Failure Points (And How to Spot Them)

1. Leaking O-Rings → Air Intrusion

The factory housing is sealed by O-rings at the filter head-to-base junction, the primer pump plunger, and the bleeder screw. Over time, exposure to engine bay heat cycles cooks these rubber seals until they dry, shrink, and crack.

Symptoms:

- Hard starting after sitting overnight

- Rough idle that smooths out after a few minutes

- Visible fuel seepage around the housing seams

- Air bubbles in the clear fuel line (LB7/LBZ/LMM)

The fix: If the housing body and heater are still functional, a primer seal rebuild kit ($10–$25) with fresh Viton O-rings can restore it to leak-free operation in under an hour.

➜ iFJF Fuel Filter Primer Seal Rebuild Kit — 2001–2013 GM Duramax

2. Failed Fuel Heater Element

The fuel heater is designed to activate when fuel temperature drops below approximately 59°F (15°C). Even if you confirm power at the electrical connector with a test light, the heating element itself can burn out.

Symptoms:

- Truck runs fine in warm weather, struggles below freezing

- Increased white smoke on cold starts

- Noticeable drop in fuel economy during winter months

- Fuel filter appears waxy or gelled when removed

The fix: The heater element is not sold separately by GM — if it's dead, you're replacing the entire housing assembly.

3. Stripped Bleeder Screw Threads

The factory plastic bleeder screw threads into the aluminum housing body. Over-tightening (or using the wrong tool) strips the soft threads, causing a permanent vacuum leak.

Upgrade: Aftermarket housings like the iFJF replacement use an aluminum bleeder screw with a PTFE (Teflon) washer instead of a rubber O-ring — a significant durability upgrade over the OE design.

➜ iFJF Fuel Filter Head Spacer + Bleeder Screw + Bolts Kit — 2001–2017 Duramax

4. Cracked Filter Base Bowl

The plastic water-separation bowl at the bottom of the housing gets brittle with age and heat exposure. A hairline crack lets air in — often invisible until the housing is pressurized.

Symptoms:

- Intermittent stalling under load

- No visible external leak (air goes in, fuel doesn't always come out)

- Water-in-fuel sensor reading unreliable

---

Replace vs. Rebuild: Decision Matrix

Situation	Recommendation	Cost	Link
Housing body intact, heater works, just leaking	**Rebuild** with O-ring kit	~$25	[Primer Seal Rebuild Kit →](https://ifjf.net/products/ifjf-fuel-filter-primer-seal-rebuild-kit-for-2001-2013-gm-duramax-fuel-filter-housing-with-4-viton-o-rings-and-2-buna-nitrile-plunger-cups)
Heater dead, housing body OK	**Replace** full housing assembly	~$90–$120	[Complete Housing Head →](https://ifjf.net/products/ifjf-12642623-fuel-filter-head-with-hand-fuel-pump-housing-and-heating-sheet-and-aluminum-air-bleeder-screw-for-duramax-6-6l-v8-chevy-silverado-gmc-sierra-2500hd-2005-2013-3500-2005-2007)
L5P cap cracked or leaking	**Replace** billet aluminum cap	~$40–$60	[L5P Billet Cap →](https://ifjf.net/products/134001-fuel-filter-housing-cap-for-gm-chevy-chevrolet-duramax-6-6l-6-6-l5p)
Want to convert to Cat 1R-0750 filter	**Conversion** with refit head	~$100–$150	[1R-0750 Conversion Kit →](https://ifjf.net/products/1r-0750-fuel-filter-aluminum-refit-head-for-duramax-6-6l-2001-2016-chevy-silverado-gmc-sierra-lb7-lly-lbz-lmm-lml-with-upgraded-bolt)
Filter + Cap combo (L5P)	**Bundle** for savings	~$70–$90	[TP1015 + 134001 Cap →](https://ifjf.net/products/tp1015-fuel-filter-and-134001-black-housing-cap-for-duramax-6-6l-2017-2020-silverado-gmc-sierra-2500hd-3500hd-l5p-diesel-engine)

---

How to Replace a Duramax Fuel Filter Housing (LB7 / LLY / LBZ / LMM)

This procedure applies to 2001–2010 trucks with the bolt-on housing head design. LML and L5P owners skip to the filter-cap section below.

Tools You'll Need

- T20 Torx driver (for electrical connector)

- 10mm socket and ratchet (housing mounting bolts)

- 13mm wrench (bleeder screw)

- Catch pan or shop rags (diesel will spill)

- Test light or multimeter (verify heater circuit)

Step-by-Step

1. Disconnect the electrical connector. The fuel heater wiring harness plugs into the side of the housing. On the LB7 it faces the driver's side. Depress the clip and gently pull — no tools needed if the new housing includes a fresh harness.

2. Remove the two mounting bolts. The housing is secured to the intake manifold or a bracket with two bolts. Keep them — the replacement housing doesn't always include mounting hardware.

3. Swap the housing. Before bolting the new unit in, verify the hose ports face the same direction as your original. LB7 and LLY/LBZ/LMM housings have different port orientations despite looking nearly identical.

4. Torque and reconnect. Snug the mounting bolts, plug in the electrical connector, and double-check all hose clamps.

5. Bleed the air. This is the step most people skip — and then wonder why the truck won't start.

If you have a lift pump, turn the key to accessory mode (don't start) and let the pump run. Crack the 13mm bleeder screw on top of the housing. Air and foam will sputter out, then transition to a steady stream of pure fuel. Tighten the bleeder and you're done.

If you don't have a lift pump, you'll need to manually pump the primer button on top of the housing until firm resistance builds, then crack the bleeder. Repeat until only fuel comes out.

6. Test the heater circuit. With the key on, use a test light to confirm power at the connector. The heater should activate automatically when fuel temperature drops below ~59°F.

7. Start and inspect. Fire up the truck, let it idle, and watch for leaks around all connections. Take a quick spin around the block and recheck.

---

L5P (2017–2024): Cap Replacement

The L5P uses a cartridge-style filter under a threaded cap on top of the engine. There's no separate housing head to replace — just the cap and filter element.

When to replace the cap:

- Original plastic cap is cracked or cross-threaded

- You want a billet aluminum upgrade with a drain plug for easier filter changes

- The O-ring seat is scored and won't seal

The iFJF billet aluminum cap replaces OEM part 134001 and includes a built-in drain plug — no more diesel shower when you spin the cap off.

➜ Duramax L5P Billet Aluminum Fuel Filter Cap — Replace 134001

Bundle savings:

- TP1015 Filter + Black Cap →

- TP1015 Filter + Silver Cap →

- TP1015 Filter + A3231C Air Filter Combo →

---

Why the Fuel Heater Actually Matters (Especially If You Live Where It Freezes)

Diesel fuel needs heat to burn properly. Here's why a working fuel heater affects more than just cold starts:

Cold Fuel = Incomplete Combustion

In a diesel engine, compression creates the heat that ignites fuel. When you inject ice-cold diesel into a cold cylinder — even with glow plugs and intake heaters doing their job — a portion of the fuel doesn't fully combust. That unburned fuel goes straight out the tailpipe as white smoke. You're paying for diesel you're not using.

A functioning fuel heater warms diesel before it hits the high-pressure pump, ensuring:

- Cleaner cold starts — Less white smoke, smoother idle

- Better fuel economy — More complete burn per injection event

- Reduced injector wear — Cold, viscous fuel stresses injector internals

Preventing Fuel Gelling

Number 2 diesel contains paraffin wax. In cold temperatures, that wax crystallizes and clogs filter media — a condition called gelling. Once your filter is plugged with wax, fuel stops flowing and the engine dies.

Running number 1 diesel in winter avoids gelling but costs more. A functional fuel heater lets many owners stick with number 2 year-round by keeping fuel above its cloud point.

Multiple Heaters, Multiple Zones

For extreme cold climates, running a fuel heater at the lift pump near the tank AND the factory heater in the engine bay creates a two-stage warming path — heated fuel from the tank gets a second temperature boost right before injection. Combined with a block heater and oil pan heater, this is the overkill setup for reliable winter starting in temperatures well below zero.

---

The 1R-0750 Cat Filter Conversion (2001–2016 Duramax)

One of the most popular upgrades for LB7 through LML trucks is switching from the stock TP3018 filter to the Caterpillar 1R-0750 element. Here's why:

Stock TP3018	Cat 1R-0750 Conversion
10 micron nominal rating	2 micron absolute rating
Paper media	Synthetic media
~$15–$20 per filter	~$10–$15 per filter
Filter only	Filter + water separation

The conversion requires an aluminum adapter (refit head) that threads onto the factory housing in place of the stock filter nipple. Once installed, you spin on 1R-0750 filters — widely available at any heavy equipment dealer, truck stop, or online.

➜ iFJF 1R-0750 Aluminum Refit Head — 2001–2016 Duramax

Want the full setup? The combo kit includes everything:

➜ 1R-0750 Filter + Refit Head + 12642623 Housing Head Combo →

---

6.5L GM Diesel Owners: The 10226035 Assembly

If you're running a 1992–2002 Chevrolet or GMC with the 6.5L Detroit Diesel V8 (C/K 1500–3500, Suburban, Tahoe, Yukon, Blazer), your fuel filter assembly is the 10226035 — a standalone unit that's often neglected until it starts leaking or sucking air.

The 10226035 assembly includes the filter head, primer pump, water-in-fuel sensor port, and heater connections — all in one bolt-on unit. Direct replacement for the factory part, no modifications needed.

➜ 10226035 Fuel Filter Assembly — 1992–2002 GM 6.5L Diesel

---

Frequently Asked Questions

Q: Can I use an LB7 fuel filter housing on an LLY engine?

No. The hose port orientation is different. An LB7 housing on an LLY will have fuel lines pointing the wrong direction. Use the correct housing for your engine code — LLY, LBZ, and LMM share the same orientation; LB7 is unique.

Q: How do I know if my fuel heater is dead?

The most reliable test: use a test light or multimeter at the electrical connector with the key on. If you have power at the plug but the heater doesn't warm up (you can feel warmth at the housing body after ~30 seconds in cold weather), the element is burned out. Note: a powered connector alone doesn't prove the heater works.

Q: How often should I replace the fuel filter?

Every 15,000 miles or once a year, whichever comes first. If you tow heavy, operate in dusty conditions, or buy diesel from questionable sources, cut that interval in half.

Q: Do I need a lift pump to bleed the fuel system after replacing the housing?

No, but it helps a lot. Without a lift pump, you'll manually pump the primer button on top of the housing until firm resistance builds, then crack the bleeder. Repeat until only fuel comes out. This takes 5–10 rounds of pumping. With a lift pump, just turn the key to accessory and let it push fuel through.

Q: What's the torque spec for the L5P fuel filter cap?

Hand-tight plus a quarter turn. The O-ring does the sealing, not the thread torque. Over-tightening cracks the plastic cap. If you're upgrading to a billet aluminum cap, the same rule applies — snug, not cranked.

Q: Can I rebuild my existing housing instead of replacing it?

Yes — if the heater still works. A primer seal rebuild kit replaces all O-rings and plunger cups for under $25. If the heater is dead, replacing the entire housing is the better move since GM doesn't sell the heater element separately.

Q: Does the 1R-0750 conversion affect fuel pressure?

No. The 1R-0750 is a secondary filter — it cleans fuel after the lift pump but before the CP3. The filter media is rated for higher flow than the stock pump can produce, so there's no restriction.

---

Final Take: Don't Wait for a Leak

The Duramax fuel filter housing is a wear item. O-rings age, heater elements burn out, and plastic threads strip. Catching it before you get stranded — or before air intrusion silently damages your injectors — is the difference between a sub-$100 fix and a multi-thousand-dollar fuel system repair.

At iFJF, we stock replacement housings, caps, filters, rebuild kits, and conversion hardware for every Duramax generation from 2001 to 2024. Every part listed in this guide ships from our US warehouse.

Browse All Duramax Fuel Filter Parts →

*Got a specific year or question? Drop a comment below or reach out — we answer every one.*
